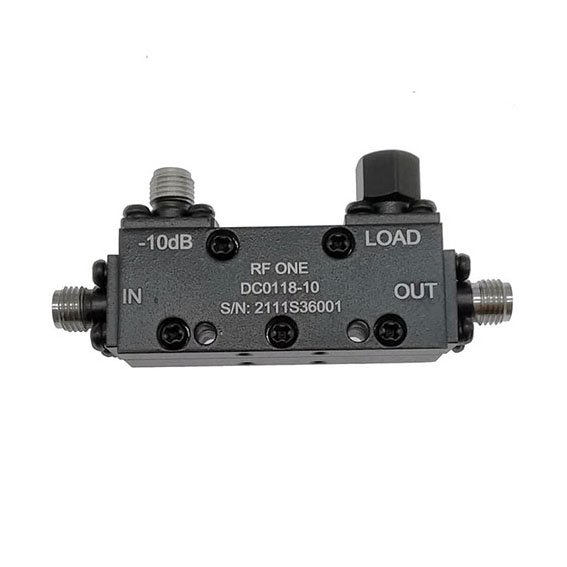

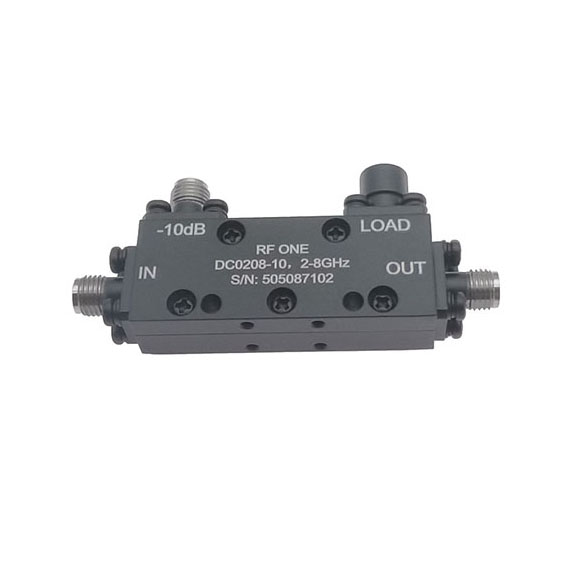

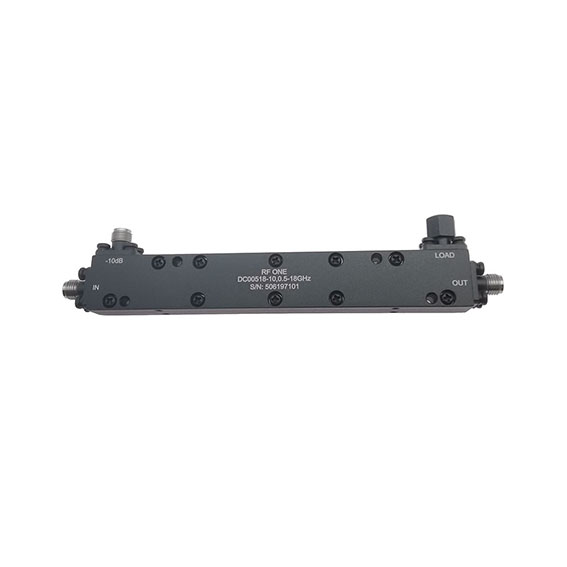

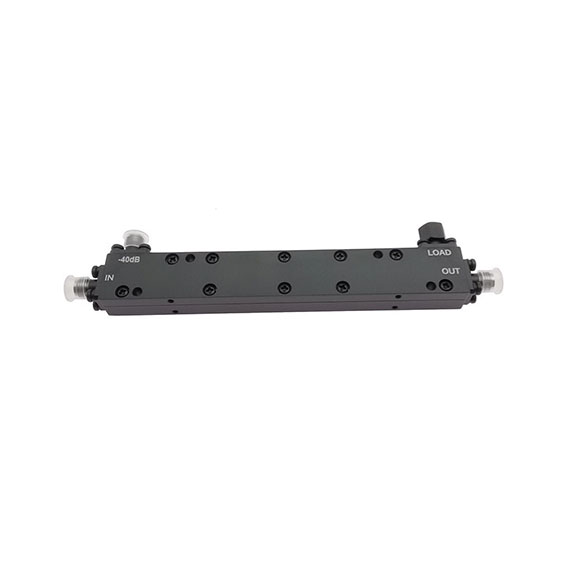

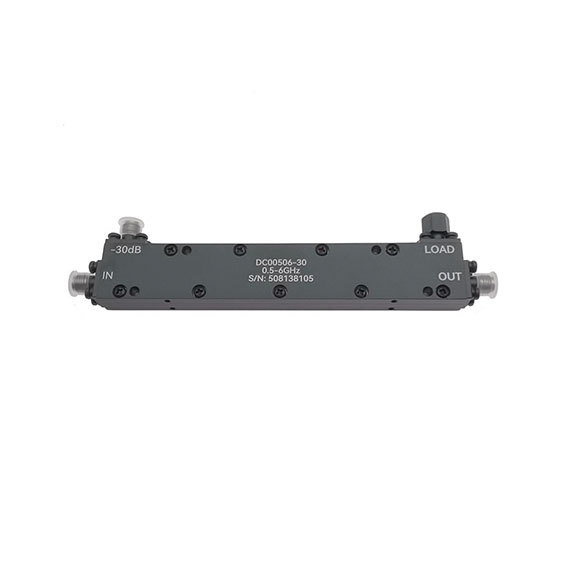

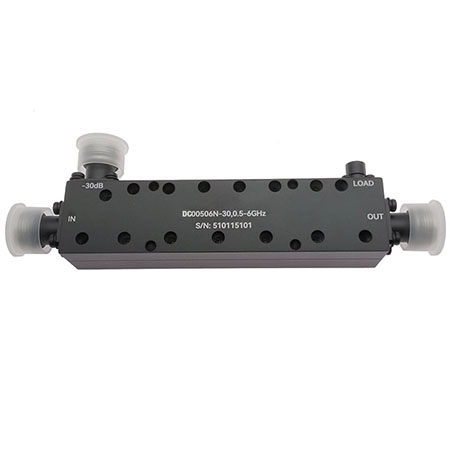

RF ONE provides coaxial directional couplers covering frequency ranges up to 40 GHz, nominal coupling values including 6 dB, 10 dB, 16 dB, 20 dB, 30 dB. These couplers are suitable for broadband applications with optimized matching and high directivity performance.
RF ONE also offers a wide choice of Waveguide Couplers.
| P/N | Frequency Range | Coupling | Coupling Flatness | Directivity Min | VSWR Max | Power Input Max | Connector | Add to RFQ |
|---|---|---|---|---|---|---|---|---|

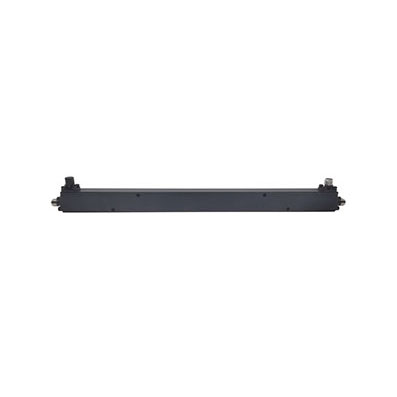

| DC00206-10 | 0.2-6 GHz | 10±1.0 dB | ±1.0 dB | 18 dB | 1.3 | 50 W | SMA | Add to RFQ |

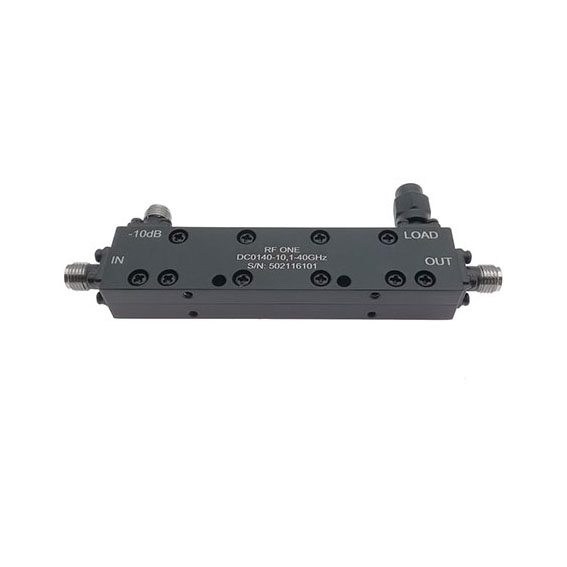

| DC0140-10 | 1-40 GHz | 10±1.0 dB | ±1.2 dB | 10 dB | 1.7 | 20 W | 2.92mm | Add to RFQ |

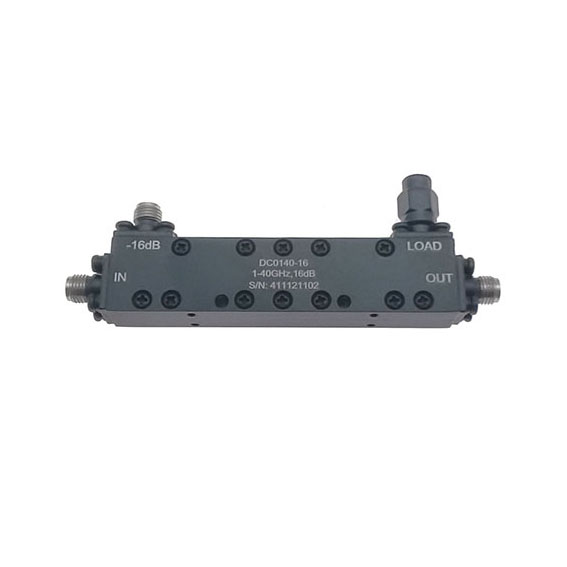

| DC0140-16 | 1-40 GHz | 16±1.0 dB | ±1.2 dB | 10 dB | 1.7 | 20 W | 2.92mm | Add to RFQ |

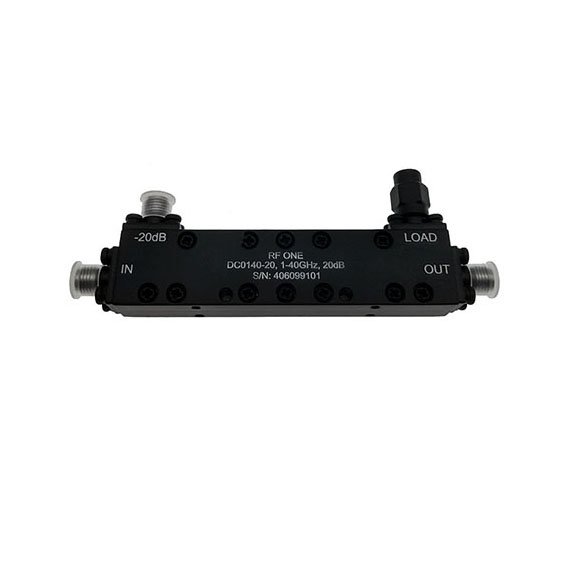

| DC0140-20 | 1-40 GHz | 20±1.0 dB | ±1.2 dB | 10 dB | 1.7 | 20 W | 2.92mm | Add to RFQ |

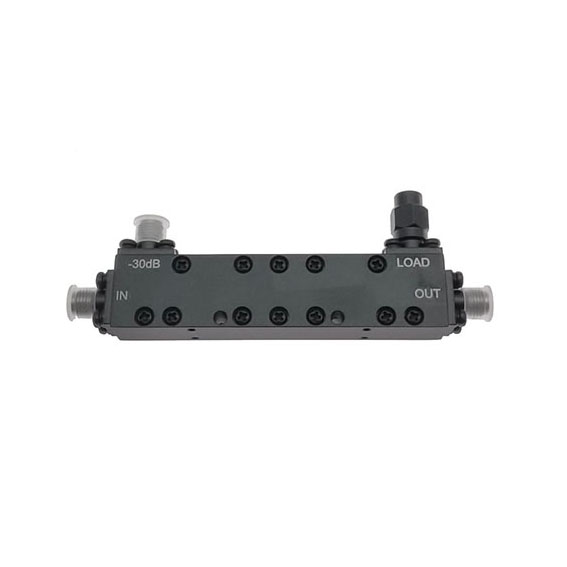

| DC0140-30 | 1-40 GHz | 30±1.0 dB | ±1.5 dB | 10 dB | 1.7 | 20 W | 2.92mm | Add to RFQ |

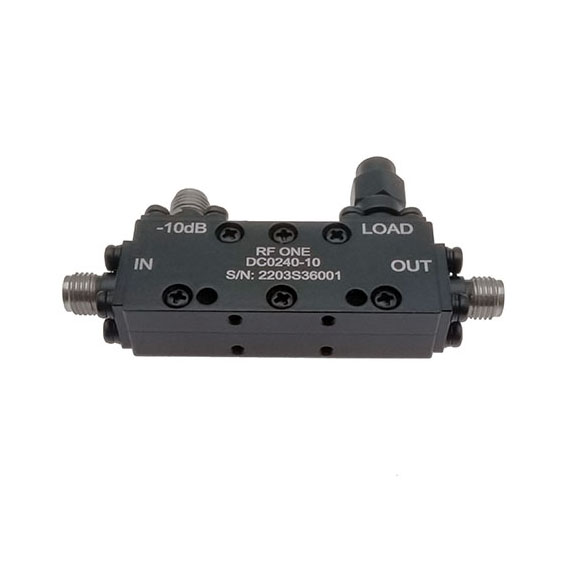

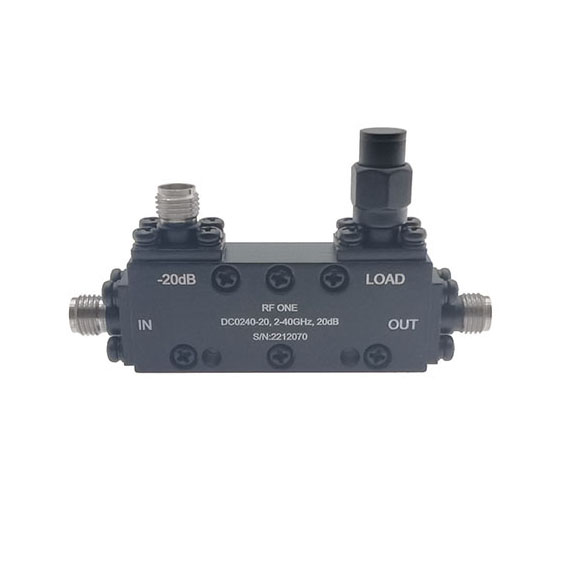

| DC0240-10 | 2-40 GHz | 10±1.0 dB | ±1.0 dB | 12 dB | 1.6 | 20 W | 2.92mm | Add to RFQ |
| DC0240-20 | 2-40 GHz | 20±1.0 dB | ±1.0 dB | 12 dB | 1.6 | 20 W | 2.92mm | Add to RFQ |

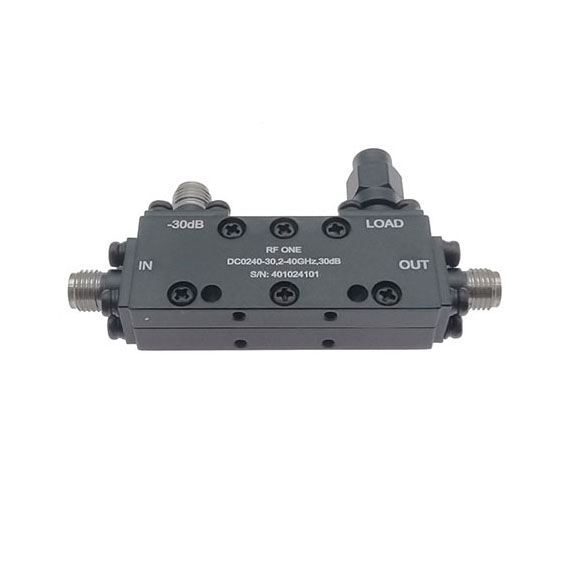

| DC0240-30 | 2-40 GHz | 30±1.0 dB | ±1.5 dB | 10 dB | 1.6 | 20 W | 2.92mm | Add to RFQ |
| DC1840-10 | 18-40 GHz | 10±1.2 dB | ±1.0 dB | 12 dB | 1.6 | 30 W | 2.92mm | Add to RFQ |

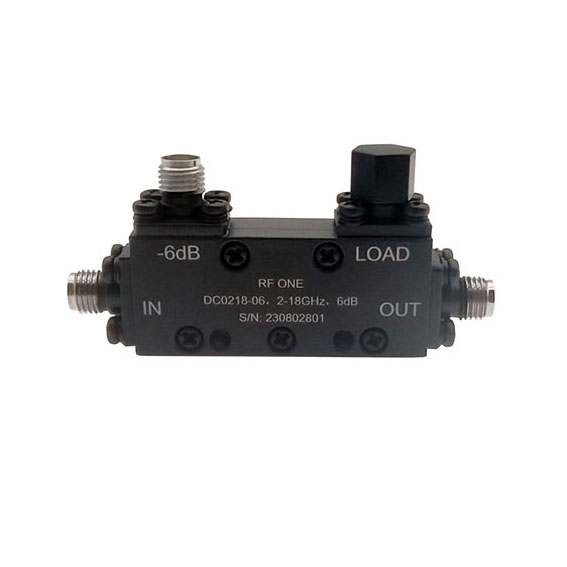

| DC0218-06 | 2-18 GHz | 6±0.7 dB | ±0.7 dB | 15 dB | 1.5 | 20 W | SMA | Add to RFQ |

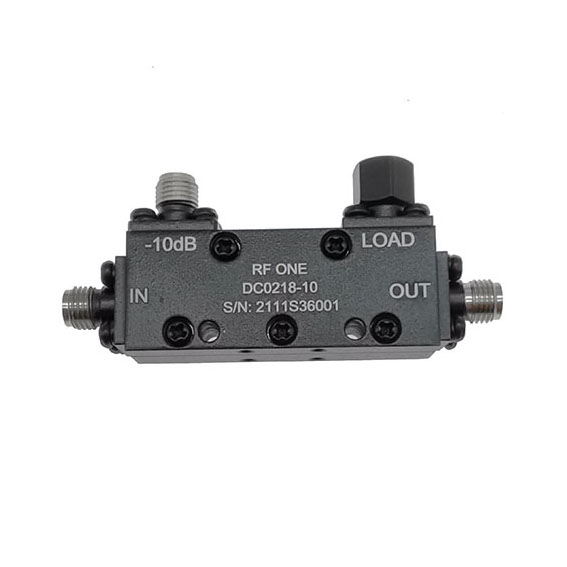

| DC0218-10 | 2-18 GHz | 10±1.0 dB | ±1.0 dB | 15 dB | 1.5 | 20 W | SMA | Add to RFQ |

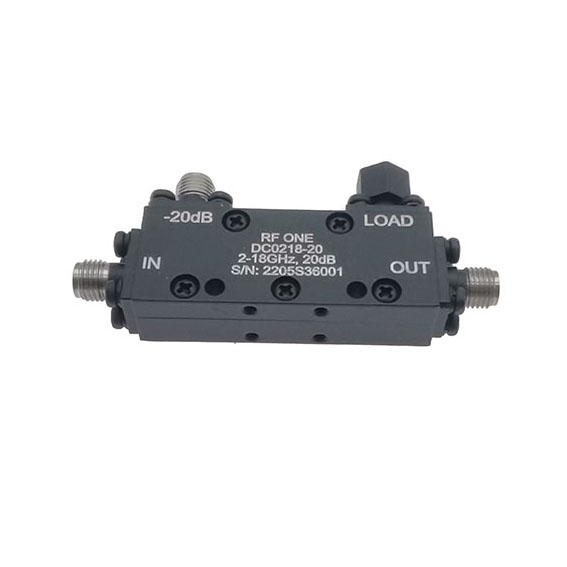

| DC0218-20 | 2-18 GHz | 20±1.0 dB | ±1.0 dB | 12 dB | 1.5 | 20 W | SMA | Add to RFQ |

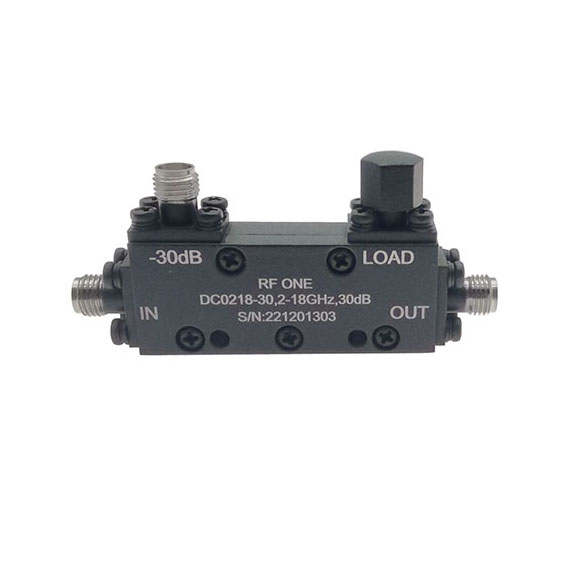

| DC0218-30 | 2-18 GHz | 30±1.0 dB | ±1.0 dB | 12 dB | 1.5 | 20 W | SMA | Add to RFQ |

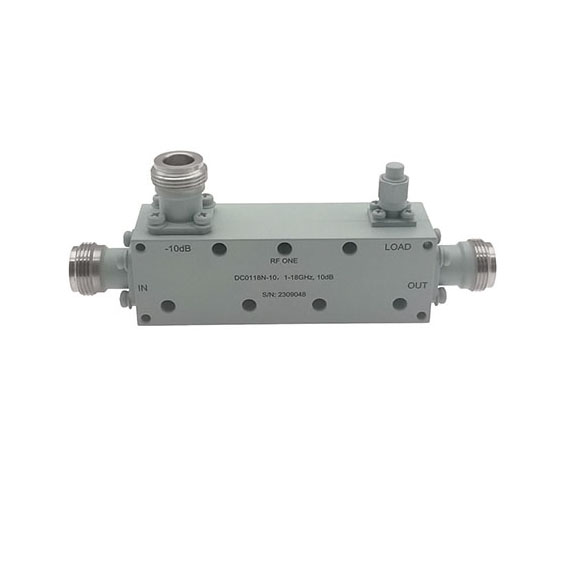

| DC0118N-10 | 1-18 GHz | 10±1.0 dB | ±1.0 dB | 12 dB | 1.6 | 50 W | N | Add to RFQ |
| DC0118N-20 | 1-18 GHz | 20±1.0 dB | ±1.0 dB | 12 dB | 1.5 | 50 W | N | Add to RFQ |

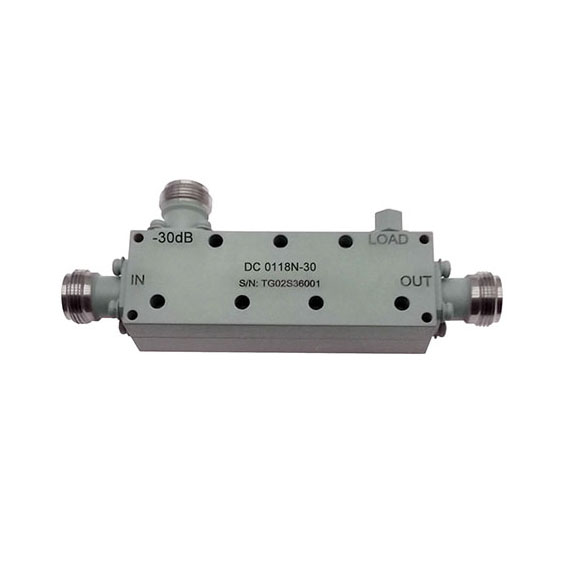

| DC0118N-30 | 1-18 GHz | 30±1.0 dB | ±1.0 dB | 10 dB | 1.6 | 50 W | N | Add to RFQ |
