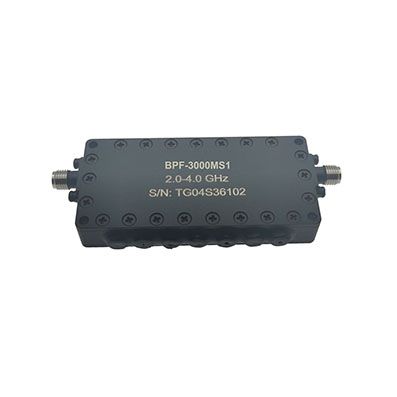

2000-4000 MHz SMA Female Band Pass Filter
2000-4000 MHz SMA Female Band Pass Filter 2000-4000 MHz SMA Female Band Pass Filter 2000-4000 MHz SMA Female Band Pass Filter
  • 2000-4000 MHz SMA Female Band Pass Filter
Generic photo used for illustration purposes only.

2000-4000 MHz SMA Female Band Pass Filter

P/N:BPF-3000MS1
  • Passband Frequency:2000-4000 MHz
  • Insertion Loss Max:1.0 dB
  • VSWR Max:1.6
  • Reject Frequency:DC-1400, 500-5500 MHz
  • Rejection Min:70 dB
  • Power Input Max:2 W
  • Connector:SMA

    • Datasheet
