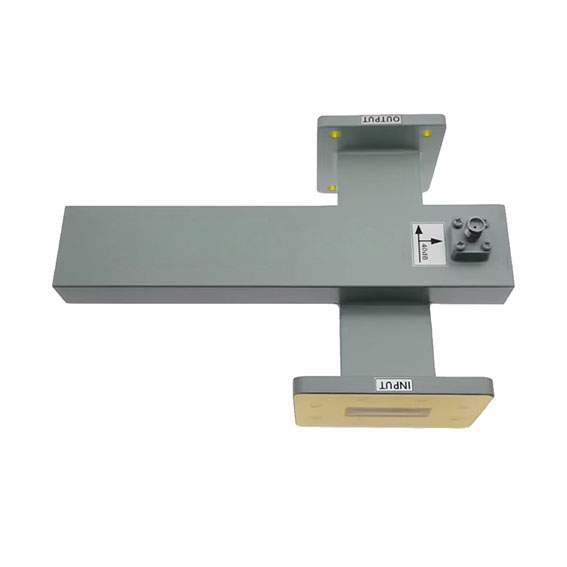

Generic photo used for illustration purposes only.
WDCT137SF-50 from RF ONE is a 50 dB WR137 three port crossguide directional coupler with intergrated SMA female connector for the coupled port. This waveguide crossguide directional coupler has a 50 dB nominal coupling level and 15 dB min directivity across the full waveguide band from 5.38 to 8.17 GHz. The compactness of the crossguide coupler suits many applications when space is a premium consideration while directivity is not critical. Custom designs available.
