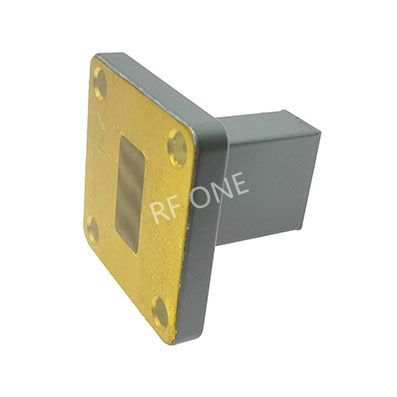

Generic photo used for illustration purposes only.

WR62 Waveguide Termination 11.9-18.0 GHz 20 W UBR140 Flange

P/N:WT62S
  • Series:Low Power Small Size
  • Waveguide Size:WR62
  • Frequency Range:11.9-18.0 GHz
  • Average Power:20 W
  • VSWR Max:1.2
  • Flange Type:UBR140
  • Description
    WT62S from RF ONE is a WR-62 waveguide termination load that covers the frequency range of 11.9 to 18.0 GHz and rated for 20 watts. It is low power small size design which is used to prevent RF signals from reflecting back from open-ended or unused waveguide ports.
