RF ONE offers different types of band pass filters, such as LC band pass filter, cavity band pass filter, suspended stripline band pass filter and waveguide band pass filter. Each type of filter has its own advantages and disadvantages depending on the intended end application and product cost.
Notes:
RF ONE also provides various customized band pass filters, If you cannot find a specific band pass filter,please feel free to contact sales@rfone.cn.
Here are some tips to help us respond to your band pass filter enquiry faster.
* Specify the operating frequency range such as center frequency and bandwidth or lower and upper passband frequencies.
* Specify the lower and upper rejection frequencies and the desired attenuation at these frequencies.
* Specify the passband insertion loss, power handling, connectors,return loss and any other requirements.
| P/N | Passband Frequency | Insertion Loss Max | Power Input Max | Connector | Add to RFQ |
|---|---|---|---|---|---|
| BPF-300MS1 | 100-500 MHz | 1.0 dB | 1 W | SMA Female | Add to RFQ |
| BPF-722MS1 | 717-728 MHz | 1.0 dB | 10 W | SMA Female | Add to RFQ |
| BPF-869MN1 | 863-875 MHz | 3.5 dB | 20 W | N Female | Add to RFQ |
| BPF-920MS1 | 916-924 MHz | 2.5 dB | 20 W | SMA Female | Add to RFQ |
| BPF-1200MS1 | 1000-1400 MHz | 1.4 dB | 5 W | SMA Female | Add to RFQ |
| BPF-1400MS1 | 1000-1800 MHz | 1.5 dB | 2 W | SMA Female | Add to RFQ |
| BPF-1425MS1 | 1000-1850 MHz | 1.5 dB | 5 W | SMA Female | Add to RFQ |
| BPF-1500MS1 | 1000-2000 MHz | 1.2 dB | 5 W | SMA Female | Add to RFQ |

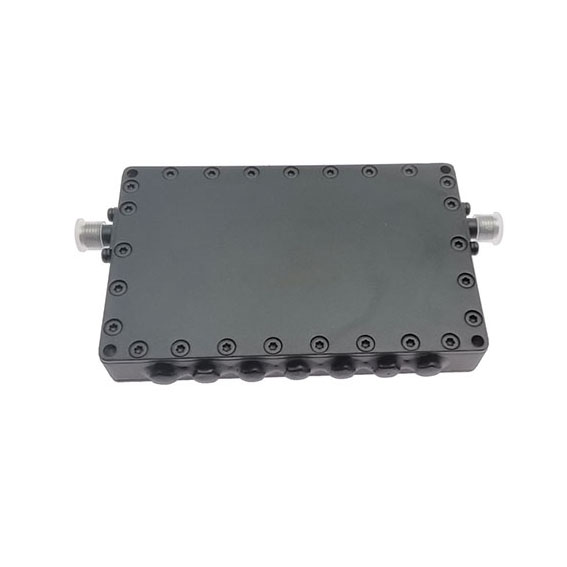

| BPF-1500MS2 | 1000-2000 MHz | 1.2 dB | 5 W | SMA Female | Add to RFQ |
| BPF-1575MS1 | 1565-1585 MHz | 1.5 dB | 10 W | SMA Female | Add to RFQ |
| BPF-1600MS1 | 1400-1800 MHz | 2.0 dB | 10 W | SMA Female | Add to RFQ |

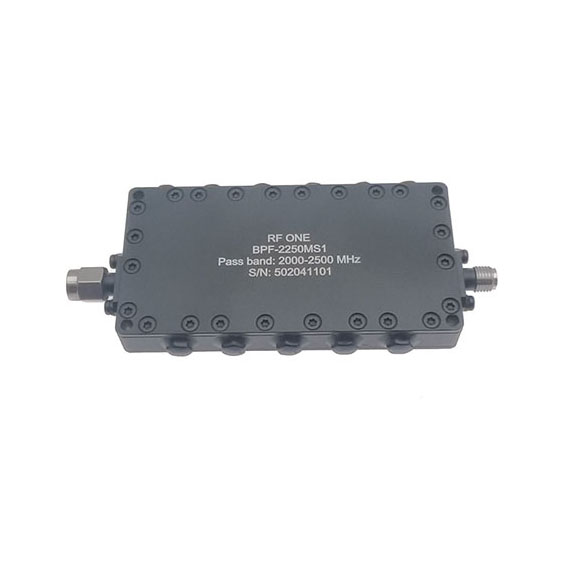

| BPF-2250MS1 | 2000-2500 MHz | 1.0 dB | 5 W | SMA Female | Add to RFQ |
| BPF-2450MS1 | 2400-2500 MHz | 1.5 dB | 5 W | SMA Female | Add to RFQ |

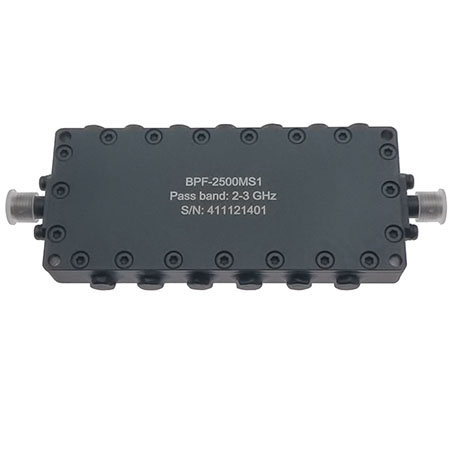

| BPF-2500MS1 | 2000-3000 MHz | 1.0 dB | 5 W | SMA Female | Add to RFQ |

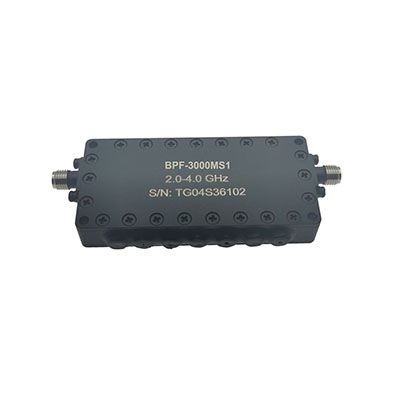

| BPF-3000MS1 | 2000-4000 MHz | 1.0 dB | 2 W | SMA Female | Add to RFQ |

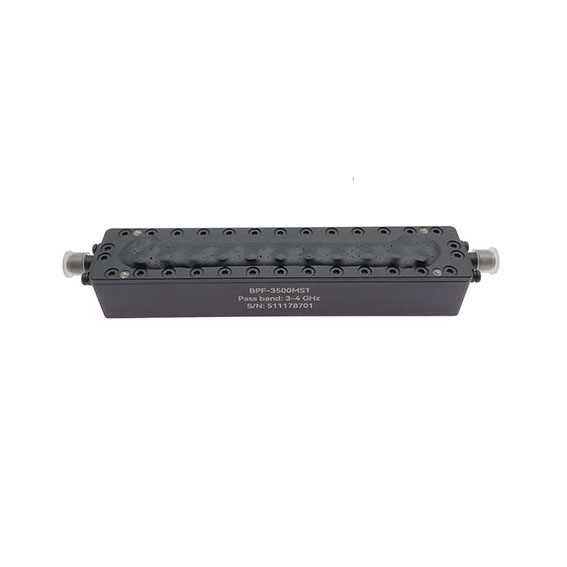

| BPF-3500MS1 | 3000-4000 MHz | 1.0 dB | 10 W | SMA Female | Add to RFQ |
| BPF-3600MS1 | 3400-3800 MHz | 1.0 dB | 20 W | SMA Female | Add to RFQ |
| BPF-4000MS1 | 3800-4200 MHz | 1.0 dB | 5 W | SMA Female | Add to RFQ |

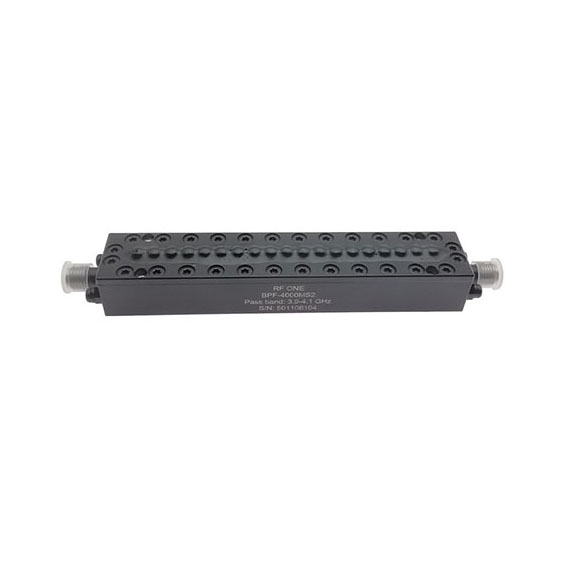

| BPF-4000MS2 | 3900-4100 MHz | 1.0 dB | 10 W | SMA Female | Add to RFQ |
| BPF-4500MS1 | 4000-5000 MHz | 1.0 dB | 10 W | SMA Female | Add to RFQ |
| BPF-4550MS1 | 4300-4800 MHz | 0.9 dB | 10 W | SMA Female | Add to RFQ |
| BPF-4770MN1 | 4720-4820 MHz | 0.8 dB | 10 W | N Female | Add to RFQ |
| BPF-5000MS1 | 1000-9000 MHz | 1.5 dB | 10 W | SMA Female | Add to RFQ |
| BPF-5075MS1 | 4050-6100 MHz | 0.8 dB | 10 W | SMA Female | Add to RFQ |
| BPF-5300MS1 | 3600-7000 MHz | 0.8 dB | 5 W | SMA Female | Add to RFQ |
| BPF-5500MS1 | 5000-6000 MHz | 1.0 dB | 10 W | SMA Female | Add to RFQ |
| BPF-5600MS1 | 5100-6100 MHz | 1.2 dB | 5 W | SMA Female | Add to RFQ |
| BPF-6000MS1 | 5800-6200 MHz | 1.4 dB | 10 W | SMA Female | Add to RFQ |
| BPF-6500MS1 | 6000-7000 MHz | 1.2 dB | 10 W | SMA Female | Add to RFQ |
| BPF-8000MS1 | 7900-8100 MHz | 1.2 dB | 10 W | SMA Female | Add to RFQ |
| BPF-8000MS2 | 4000-12000 MHz | 1.2 dB | 10 W | SMA Female | Add to RFQ |
| BPF-7500MS1 | 7000-8000 MHz | 1.0 dB | 10 W | SMA Female | Add to RFQ |
| BPF-8175MS1 | 7800-8550 MHz | 0.6 dB | 5 W | SMA Female | Add to RFQ |
| BPF-8500MS1 | 8000-9000 MHz | 1.2 dB | 10 W | SMA Female | Add to RFQ |
| BPF-8500MS2 | 7800-9200 MHz | 0.75 dB | 10 W | SMA Female | Add to RFQ |
| BPF-10000MS4 | 8000-12000 MHz | 0.65 dB | 5 W | SMA Female | Add to RFQ |
| BPF-10600MS1 | 10200-11000 MHz | 0.6 dB | 5 W | SMA Female | Add to RFQ |
| BPF-11725MS1 | 10700-12750 MHz | 0.7 dB | 5 W | SMA Female | Add to RFQ |
| BPF-11750MS1 | 10600-12900 MHz | 0.8 dB | 5 W | SMA Female | Add to RFQ |
| BPF-12000MS1 | 11000-13000 MHz | 0.7 dB | 10 W | SMA Female | Add to RFQ |
| BPF-12750MS1 | 11000-14500 MHz | 1.0 dB | 10 W | SMA Female | Add to RFQ |
| BPF-13000MS1 | 9000-17000 MHz | 0.8 dB | 5 W | SMA Female | Add to RFQ |
| BPF-14500MS1 | 13000-16000 MHz | 1.0 dB | 10 W | SMA Female | Add to RFQ |
| BPF-16450MS1 | 14900-18000 MHz | 2.0 dB | 5 W | SMA Female | Add to RFQ |
| BPF-16800MS1 | 16400-17200 MHz | 1.7 dB | 5 W | SMA Female | Add to RFQ |
| BPF-17500MS1 | 15000-20000 MHz | 0.85 dB | 5 W | SMA Female | Add to RFQ |
| BPF-18000MS1 | 17500-18500 MHz | 0.7 dB | 5 W | SMA Female | Add to RFQ |
| BPF-19250MK1 | 17100-21400 MHz | 0.8 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-22500MK1 | 20000-25000 MHz | 1.1 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-23000MK1 | 20000-26000 MHz | 1.05 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-24000MK1 | 20000-28000 MHz | 1.25 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-25000MK1 | 20000-30000 MHz | 1.1 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-26000MK1 | 21000-31000 MHz | 1.15 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-27000MK1 | 22000-33000 MHz | 1.15 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-27500MK1 | 25000-30000 MHz | 1.2 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-28000MK1 | 23000-33000 MHz | 1.15 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-29000MK1 | 24000-34000 MHz | 1.2 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-30000MK1 | 20000-40000 MHz | 1.0 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-30000MK2 | 25000-35000 MHz | 1.2 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-30000MK3 | 26000-34000 MHz | 1.4 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-31000MK1 | 26000-36000 MHz | 1.35 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-32000MK1 | 27000-37000 MHz | 1.35 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-32500MK1 | 30000-35000 MHz | 1.3 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-32500MK2 | 25000-40000 MHz | 1.05 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-33000MK1 | 26000-40000 MHz | 1.05 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-33000MK2 | 28000-38000 MHz | 1.4 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-33500MK1 | 27000-40000 MHz | 1.15 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-33500MQ1 | 26000-41000 MHz | 1.05 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-34000MK1 | 28000-40000 MHz | 1.2 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-34000MK2 | 29000-39000 MHz | 1.4 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-34000MQ1 | 26000-42000 MHz | 1.05 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-34000MQ2 | 27000-41000 MHz | 1.1 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-34500MK1 | 29000-40000 MHz | 1.4 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-34500MQ1 | 27000-42000 MHz | 1.1 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-34500MQ2 | 28000-41000 MHz | 1.15 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-35000MK1 | 30000-40000 MHz | 1.5 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-35000MK2 | 32000-38000 MHz | 1.35 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-35000MQ1 | 28000-42000 MHz | 1.15 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-35000MQ2 | 29000-41000 MHz | 1.25 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-35000MQ3 | 27000-43000 MHz | 1.05 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-35500MQ1 | 29000-42000 MHz | 1.2 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-35500MQ2 | 30000-41000 MHz | 1.35 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-35500MQ3 | 28000-43000 MHz | 1.1 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-36000MK1 | 32000-40000 MHz | 1.65 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-36000MQ1 | 30000-42000 MHz | 1.3 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-36000MQ2 | 31000-41000 MHz | 1.55 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-36000MQ3 | 29000-43000 MHz | 1.15 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-36500MQ1 | 30000-43000 MHz | 1.2 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-37000MQ1 | 30000-44000 MHz | 1.15 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-37000MQ2 | 32000-42000 MHz | 1.55 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-37500MK1 | 35000-40000 MHz | 1.5 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-37500MQ1 | 30000-45000 MHz | 1.1 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-38000MQ1 | 33000-43000 MHz | 1.6 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-38500MQ1 | 35000-42000 MHz | 1.3 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-39000MQ1 | 36000-42000 MHz | 1.45 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-39000MQ2 | 34000-44000 MHz | 1.65 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-39000MQ3 | 37000-41000 MHz | 1.8 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-39500MQ1 | 37000-42000 MHz | 1.5 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-40000MK1 | 38000-42000 MHz | 1.8 dB | 5 W | 2.92mm Female | Add to RFQ |
| BPF-40000MQ1 | 35000-45000 MHz | 1.7 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-42500MQ1 | 35000-50000 MHz | 1.2 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-43000MQ1 | 40000-46000 MHz | 1.6 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-45000MQ1 | 40000-50000 MHz | 1.8 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-47000MQ1 | 44000-50000 MHz | 1.8 dB | 5 W | 2.4mm Female | Add to RFQ |
| BPF-50000MV1 | 45000-55000 MHz | 1.9 dB | 5 W | 1.85mm Female | Add to RFQ |
| BPF-55000MV1 | 50000-60000 MHz | 2.0 dB | 5 W | 1.85mm Female | Add to RFQ |
| BPF-60000MV1 | 55000-65000 MHz | 2.1 dB | 5 W | 1.85mm Female | Add to RFQ |
