We offer a large range of SMA adapters in-series and intra-series. Our precision SMA adapters are made of stainless steel body operating to 27 GHz, 18 GHz SMA adapters in brass body are also off-the-shelf for lower cost option. Quick-mate SMA adapters, flange mount, bulkhead SMA adapters etc are from stock as well.
| P/N | Connection Type | Freq Range | Connector 1 | Connector 2 | Body Style | VSWR Max | Add to RFQ |
|---|---|---|---|---|---|---|---|

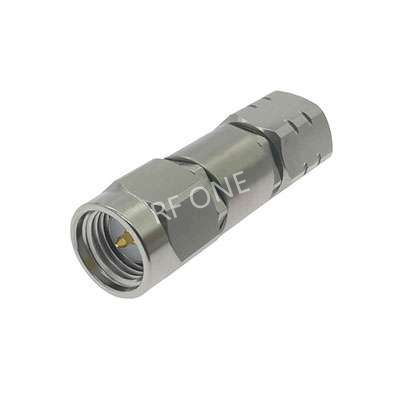

| A1855B | Between Series | DC-18 GHz | 1.85mm Male | SMA Male | Straight | 1.15 | Add to RFQ |

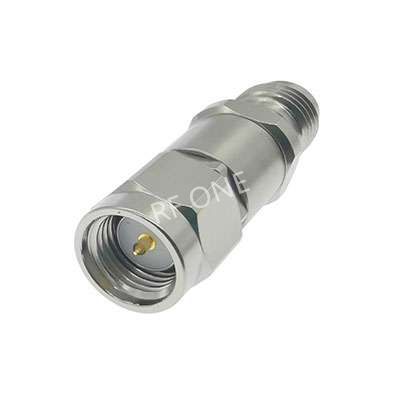

| A1856B | Between Series | DC-18 GHz | 1.85mm Female | SMA Male | Straight | 1.15 | Add to RFQ |

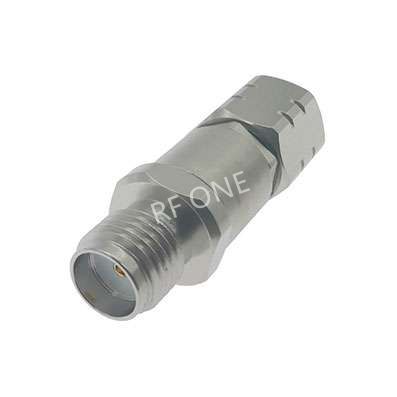

| A1857B | Between Series | DC-18 GHz | 1.85mm Male | SMA Female | Straight | 1.15 | Add to RFQ |

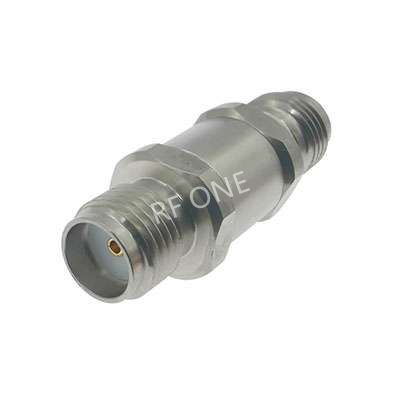

| A1858B | Between Series | DC-18 GHz | 1.85mm Female | SMA Female | Straight | 1.15 | Add to RFQ |

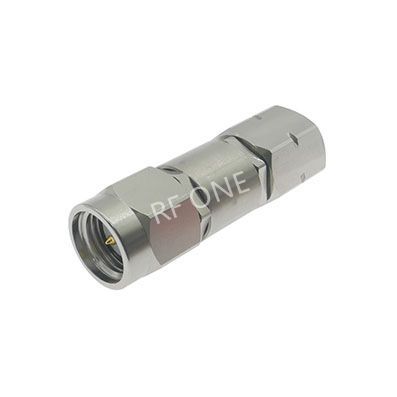

| A1851B | Between Series | DC-18 GHz | 2.4mm Male | SMA Male | Straight | 1.15 | Add to RFQ |

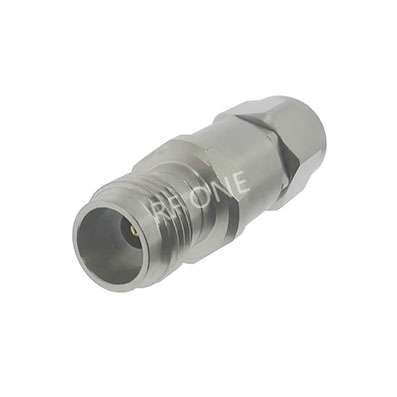

| A1852B | Between Series | DC-18 GHz | 2.4mm Female | SMA Male | Straight | 1.15 | Add to RFQ |

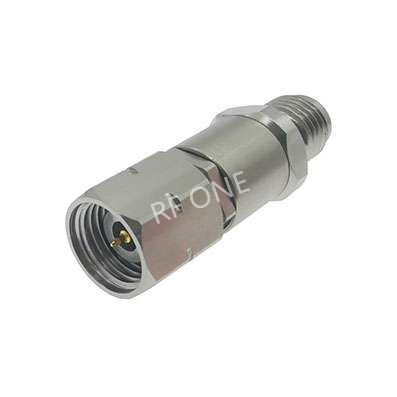

| A1853B | Between Series | DC-18 GHz | 2.4mm Male | SMA Female | Straight | 1.15 | Add to RFQ |

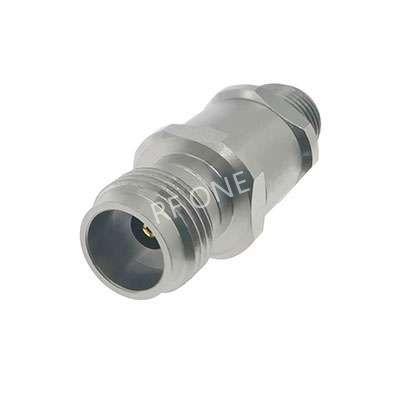

| A1854B | Between Series | DC-18 GHz | 2.4mm Female | SMA Female | Straight | 1.15 | Add to RFQ |

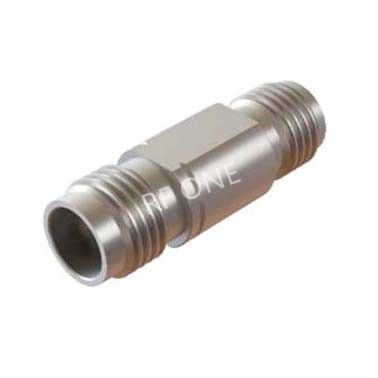

| A2717P | Between Series | DC-27 GHz | 2.4mm Female | SMA Female | Straight | 1.15 | Add to RFQ |
| A2718P | Between Series | DC-27 GHz | 2.4mm Male | SMA Female | Straight | 1.15 | Add to RFQ |

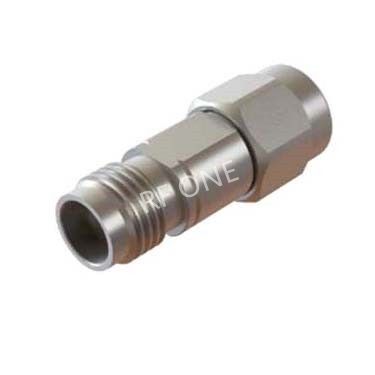

| A2719P | Between Series | DC-27 GHz | 2.4mm Female | SMA Male | Straight | 1.15 | Add to RFQ |

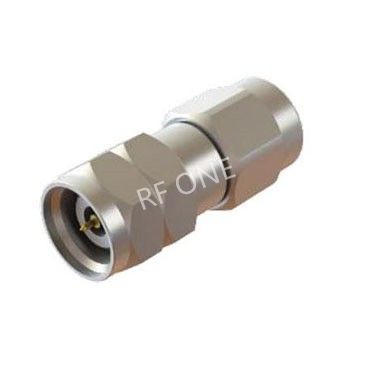

| A2720P | Between Series | DC-27 GHz | 2.4mm Male | SMA Male | Straight | 1.15 | Add to RFQ |

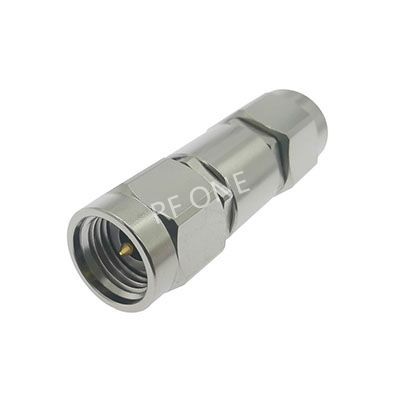

| A1847B | Between Series | DC-18 GHz | 2.92mm Male | SMA Male | Straight | 1.15 | Add to RFQ |

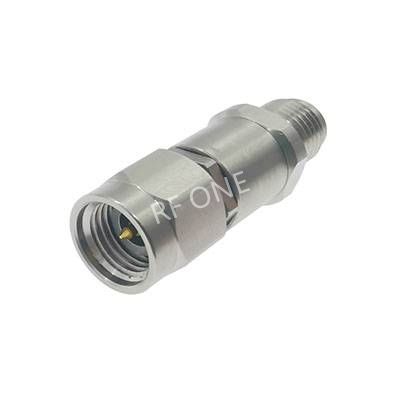

| A1848B | Between Series | DC-18 GHz | 2.92mm Female | SMA Male | Straight | 1.15 | Add to RFQ |

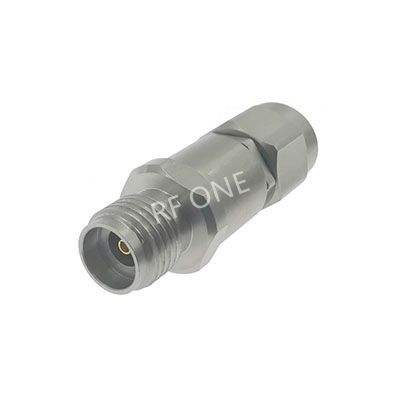

| A1849B | Between Series | DC-18 GHz | 2.92mm Male | SMA Female | Straight | 1.15 | Add to RFQ |

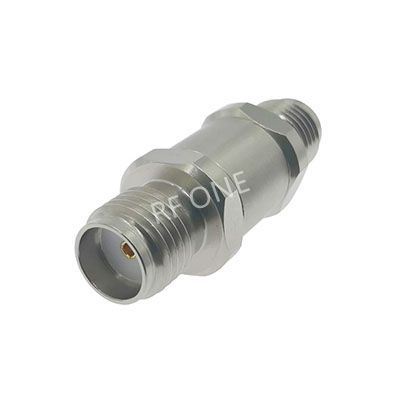

| A1850B | Between Series | DC-18 GHz | 2.92mm Female | SMA Female | Straight | 1.15 | Add to RFQ |

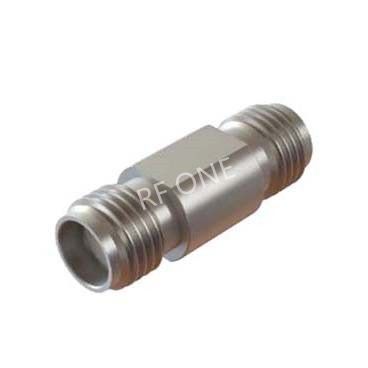

| A2713P | Between Series | DC-27 GHz | 2.92mm Female | SMA Female | Straight | 1.15 | Add to RFQ |

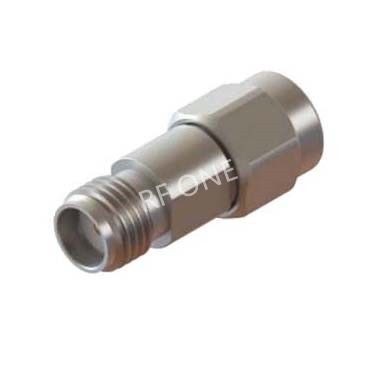

| A2714P | Between Series | DC-27 GHz | 2.92mm Male | SMA Female | Straight | 1.15 | Add to RFQ |

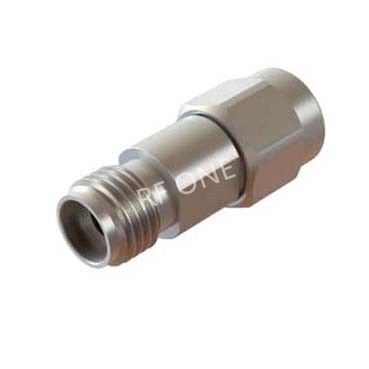

| A2715P | Between Series | DC-27 GHz | 2.92mm Female | SMA Male | Straight | 1.15 | Add to RFQ |

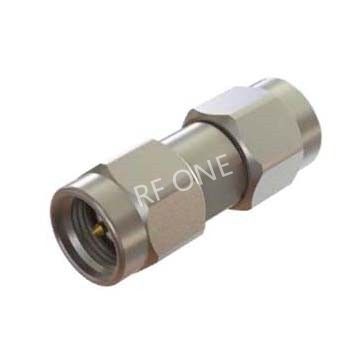

| A2716P | Between Series | DC-27 GHz | 2.92mm Male | SMA Male | Straight | 1.15 | Add to RFQ |
| A1843B | Between Series | DC-18 GHz | 3.5mm Male | SMA Male | Straight | 1.15 | Add to RFQ |
| A1844B | Between Series | DC-18 GHz | 3.5mm Female | SMA Male | Straight | 1.15 | Add to RFQ |
| A1845B | Between Series | DC-18 GHz | 3.5mm Male | SMA Female | Straight | 1.15 | Add to RFQ |
| A1846B | Between Series | DC-18 GHz | 3.5mm Female | SMA Female | Straight | 1.15 | Add to RFQ |
| A2709P | Between Series | DC-27 GHz | 3.5mm Female | SMA Female | Straight | 1.15 | Add to RFQ |
| A2710P | Between Series | DC-27 GHz | 3.5mm Male | SMA Female | Straight | 1.15 | Add to RFQ |
| A2711P | Between Series | DC-27 GHz | 3.5mm Female | SMA Male | Straight | 1.15 | Add to RFQ |
| A2712P | Between Series | DC-27 GHz | 3.5mm Male | SMA Male | Straight | 1.15 | Add to RFQ |
| A1839B | Between Series | DC-18 GHz | Mini SMP Male | SMA Male | Straight | 1.2 | Add to RFQ |
| A1840B | Between Series | DC-18 GHz | Mini SMP Female | SMA Male | Straight | 1.2 | Add to RFQ |
| A1841B | Between Series | DC-18 GHz | Mini SMP Male | SMA Female | Straight | 1.2 | Add to RFQ |
| A1842B | Between Series | DC-18 GHz | Mini SMP Female | SMA Female | Straight | 1.2 | Add to RFQ |
| A0405P | Between Series | DC-4 GHz | SMA Male | BNC Male | Straight | 1.15 | Add to RFQ |
| A0406P | Between Series | DC-4 GHz | SMA Female | BNC Female | Straight | 1.15 | Add to RFQ |
| A0407P | Between Series | DC-4 GHz | SMA Male | BNC Female | Straight | 1.15 | Add to RFQ |
| A0408P | Between Series | DC-4 GHz | SMA Female | BNC Male | Straight | 1.15 | Add to RFQ |
| A1805B | Between Series | DC-18 GHz | SMA Male | N Male | Straight | 1.15 | Add to RFQ |
| A1806B | Between Series | DC-18 GHz | SMA Female | N Male | Straight | 1.15 | Add to RFQ |
| A1807B | Between Series | DC-18 GHz | SMA Male | N Female | Straight | 1.15 | Add to RFQ |
| A1808B | Between Series | DC-18 GHz | SMA Female | N Female | Straight | 1.15 | Add to RFQ |
| A1808B-F | Between Series | DC-18 GHz | SMA Female | N Female | 4 Hole Flange | 1.15 | Add to RFQ |
| A1808B-Y | Between Series | DC-18 GHz | SMA Female | N Female | Bulkhead | 1.15 | Add to RFQ |
| A1802P | Between Series | DC-18 GHz | SMA Female | N Female | Straight | 1.15 | Add to RFQ |
| A1803P | Between Series | DC-18 GHz | SMA Male | N Female | Straight | 1.15 | Add to RFQ |
| A1804P | Between Series | DC-18 GHz | SMA Male | N Male | Straight | 1.15 | Add to RFQ |
| A1805P | Between Series | DC-18 GHz | SMA Female | N Male | Straight | 1.15 | Add to RFQ |
| A1859B | Between Series | DC-18 GHz | SMA Male | QSMA Male | Straight | 1.15 | Add to RFQ |
| A1861B | Between Series | DC-18 GHz | SMA Female | QSMA Male | Straight | 1.15 | Add to RFQ |
| A1828B | In Series | DC-18 GHz | SMA Female | SMA Female | Straight | 1.15 | Add to RFQ |
| A1828B-F1 | In Series | DC-18 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ |
| A1828B-F2 | In Series | DC-18 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ |
| A1828B-Y1 | In Series | DC-18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ |
| A1828B-Y2 | In Series | DC-18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ |
| A1828B-Y3 | In Series | DC-18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ |
| A1828B-R | In Series | DC-18 GHz | SMA Female | SMA Female | Right Angle | 1.25 | Add to RFQ |
| A2728B-RA | In Series | DC-27 GHz | SMA Female | SMA Female | Right Angle | 1.2 | Add to RFQ |
| A1829B | In Series | DC-18 GHz | SMA Male | SMA Male | Straight | 1.15 | Add to RFQ |
| A1829B-R | In Series | DC-18 GHz | SMA Male | SMA Male | Right Angle | 1.25 | Add to RFQ |
| A2729B-RA | In Series | DC-27 GHz | SMA Male | SMA Male | Right Angle | 1.2 | Add to RFQ |
| A1830B | In Series | DC-18 GHz | SMA Female | SMA Male | Straight | 1.15 | Add to RFQ |
| A1830B-Y | In Series | DC-18 GHz | SMA Female | SMA Male | Bulkhead | 1.15 | Add to RFQ |
| A1830B-R | In Series | DC-18 GHz | SMA Female | SMA Male | Right Angle | 1.25 | Add to RFQ |
| A2730B-RA | In Series | DC-27 GHz | SMA Female | SMA Male | Right Angle | 1.2 | Add to RFQ |
| A2701P | In Series | DC-27 GHz | SMA Female | SMA Female | Straight | 1.15 | Add to RFQ |
| A2701P-FX | In Series | DC-27 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ |
| A2701P-YX | In Series | DC-27 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ |
| A2702P | In Series | DC-27 GHz | SMA Female | SMA Male | Straight | 1.15 | Add to RFQ |
| A2702P-F1 | In Series | DC-27 GHz | SMA Female | SMA Male | 4 Hole Flange | 1.15 | Add to RFQ |
| A2702P-Y1 | In Series | DC-27 GHz | SMA Female | SMA Male | Bulkhead | 1.15 | Add to RFQ |
| A2703P | In Series | DC-27 GHz | SMA Male | SMA Male | Straight | 1.15 | Add to RFQ |
| A1863B | Between Series | DC-18 GHz | SMA Male | TNCA Male | Straight | 1.2 | Add to RFQ |
| A1864B | Between Series | DC-18 GHz | SMA Male | TNCA Female | Straight | 1.2 | Add to RFQ |
| A1865B | Between Series | DC-18 GHz | SMA Female | TNCA Male | Straight | 1.2 | Add to RFQ |
| A1866B | Between Series | DC-18 GHz | SMA Female | TNCA Female | Straight | 1.2 | Add to RFQ |
| A1827P-F1 | Between Series | DC-18 GHz | SMA Female | TNCA Female | 4 Hole Flange | 1.2 | Add to RFQ |
| A1835B | Between Series | DC-18 GHz | SMP Male | SMA Male | Straight | 1.25 | Add to RFQ |
| A1836B | Between Series | DC-18 GHz | SMP Female | SMA Male | Straight | 1.25 | Add to RFQ |
| A1837B | Between Series | DC-18 GHz | SMP Male | SMA Female | Straight | 1.25 | Add to RFQ |
| A1838B | Between Series | DC-18 GHz | SMP Female | SMA Female | Straight | 1.25 | Add to RFQ |
| A1831B | Between Series | DC-18 GHz | SSMA Male | SMA Male | Straight | 1.15 | Add to RFQ |
| A1832B | Between Series | DC-18 GHz | SSMA Female | SMA Male | Straight | 1.15 | Add to RFQ |
| A1833B | Between Series | DC-18 GHz | SSMA Male | SMA Female | Straight | 1.15 | Add to RFQ |
| A1834B | Between Series | DC-18 GHz | SSMA Female | SMA Female | Straight | 1.15 | Add to RFQ |
| AHS-SFSF-1 | In Series | DC-18 GHz | SMA Female | SMA Female | Bulkhead Hermetically | 1.25 | Add to RFQ |
