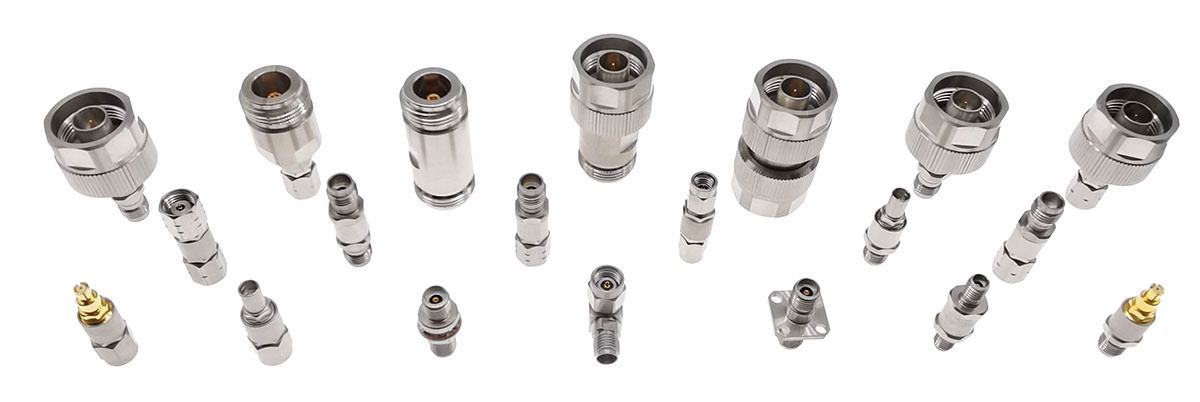

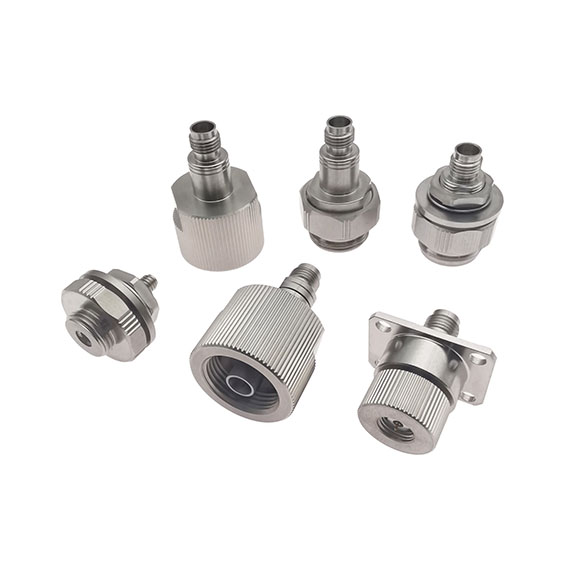

RF ONE offers a huge selection of high precision RF / Microwave and mmWave adapters from stock, including SMA, SSMA, SMP, BNC, Type-N, TNCA, 3.5mm, 2.92mm(K type), 2.4mm,1.85mm(V type),1.0mm etc, in-series and between-series, available in flange, bulkhead types, right angle and straight body styles. These adapters can be widely used in general purpose or precision test & measurement, allowing connection between series of connectors.

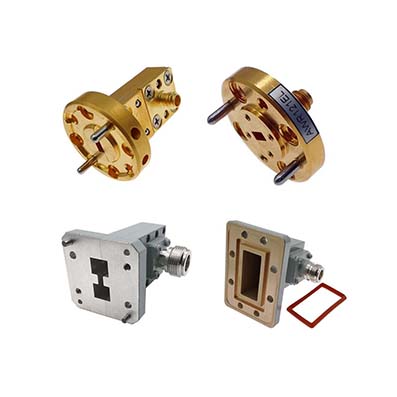

RF ONE also offers a wide choice of Low PIM Adapters and Waveguide to Coaxial Adapters.
| P/N | Connection Type | Waveguide Size | Frequency Max | Coaxial Connnector | Connector 1 | Gender | Connector 2 | Frequency Range | Body Style | VSWR Max | Flange Type | Add to RFQ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A11001B |
In Series | 110 GHz | 1.0mm Female | 1.0mm Female | Straight | 1.35 | Add to RFQ | |||||
|
A11002B |
In Series | 110 GHz | 1.0mm Male | 1.0mm Female | Straight | 1.35 | Add to RFQ | |||||
|
A11003B |
In Series | 110 GHz | 1.0mm Male | 1.0mm Male | Straight | 1.35 | Add to RFQ | |||||
| A11001P | In Series | 110 GHz | 1.0mm Female | 1.0mm Female | Straight | 1.35 | Add to RFQ | |||||
| A11001P-F | In Series | 110 GHz | 1.0mm Female | 1.0mm Female | 4 Hole Flange | 1.35 | Add to RFQ | |||||
| A11001P-Y | In Series | 110 GHz | 1.0mm Female | 1.0mm Female | Bulkhead | 1.35 | Add to RFQ | |||||
| A11002P | In Series | 110 GHz | 1.0mm Male | 1.0mm Female | Straight | 1.35 | Add to RFQ | |||||
| A11002P-F | In Series | 110 GHz | 1.0mm Male | 1.0mm Female | 4 Hole Flange | 1.35 | Add to RFQ | |||||
| A11003P | In Series | 110 GHz | 1.0mm Male | 1.0mm Male | Straight | 1.35 | Add to RFQ | |||||
| A11004B | Between Series | 110 GHz | 0.8mm Female | 1.0mm Female | Straight | 1.35 | Add to RFQ | |||||
| A11005B | Between Series | 110 GHz | 0.8mm Female | 1.0mm Male | Straight | 1.35 | Add to RFQ | |||||
| A11006B | Between Series | 110 GHz | 0.8mm Male | 1.0mm Female | Straight | 1.35 | Add to RFQ | |||||
| A11007B | Between Series | 110 GHz | 0.8mm Male | 1.0mm Male | Straight | 1.35 | Add to RFQ | |||||
|
A6704B |
Between Series | 67 GHz | 1.0mm Female | 1.85mm Female | Straight | 1.25 | Add to RFQ | |||||
|
A6705B |
Between Series | 67 GHz | 1.0mm Male | 1.85mm Female | Straight | 1.25 | Add to RFQ | |||||
|
A6706B |
Between Series | 67 GHz | 1.0mm Female | 1.85mm Male | Straight | 1.25 | Add to RFQ | |||||
|
A6707B |
Between Series | 67 GHz | 1.0mm Male | 1.85mm Male | Straight | 1.25 | Add to RFQ | |||||
| A5008B | Between Series | 50 GHz | 1.0mm Male | 2.4mm Male | Straight | 1.25 | Add to RFQ | |||||
| A5009B | Between Series | 50 GHz | 1.0mm Female | 2.4mm Male | Straight | 1.25 | Add to RFQ | |||||
| A5010B | Between Series | 50 GHz | 1.0mm Male | 2.4mm Female | Straight | 1.25 | Add to RFQ | |||||
| A5011B | Between Series | 50 GHz | 1.0mm Female | 2.4mm Female | Straight | 1.25 | Add to RFQ | |||||
| A4047B | Between Series | 40 GHz | 1.0mm Male | 2.92mm Male | Straight | 1.15 | Add to RFQ | |||||
| A4048B | Between Series | 40 GHz | 1.0mm Male | 2.92mm Female | Straight | 1.15 | Add to RFQ | |||||
| A4049B | Between Series | 40 GHz | 1.0mm Female | 2.92mm Male | Straight | 1.15 | Add to RFQ | |||||
| A4050B | Between Series | 40 GHz | 1.0mm Female | 2.92mm Female | Straight | 1.15 | Add to RFQ | |||||
| A6701B | In Series | 67 GHz | 1.85mm Female | 1.85mm Female | Straight | 1.3 | Add to RFQ | |||||
| A6701B-R1 | In Series | 67 GHz | 1.85mm Female | 1.85mm Female | Right Angle | 1.3 | Add to RFQ | |||||
| A6702B | In Series | 67 GHz | 1.85mm Male | 1.85mm Male | Straight | 1.3 | Add to RFQ | |||||
| A6702B-R1 | In Series | 67 GHz | 1.85mm Male | 1.85mm Male | Right Angle | 1.3 | Add to RFQ | |||||
| A6703B | In Series | 67 GHz | 1.85mm Male | 1.85mm Female | Straight | 1.3 | Add to RFQ | |||||
| A6703B-R1 | In Series | 67 GHz | 1.85mm Male | 1.85mm Female | Right Angle | 1.3 | Add to RFQ | |||||
| A6501P | In Series | 67 GHz | 1.85mm Female | 1.85mm Female | Straight | 1.25 | Add to RFQ | |||||
| A6501P-F | In Series | 67 GHz | 1.85mm Female | 1.85mm Female | 4 Hole Flange | 1.25 | Add to RFQ | |||||
| A6501P-Y | In Series | 67 GHz | 1.85mm Female | 1.85mm Female | Bulkhead | 1.25 | Add to RFQ | |||||
| A6502P | In Series | 67 GHz | 1.85mm Male | 1.85mm Female | Straight | 1.25 | Add to RFQ | |||||
| A6503P | In Series | 67 GHz | 1.85mm Male | 1.85mm Male | Straight | 1.25 | Add to RFQ | |||||
| A5004B | Between Series | 50 GHz | 1.85mm Male | 2.4mm Male | Straight | 1.2 | Add to RFQ | |||||
| A5004B-RA | Between Series | 50 GHz | 1.85mm Male | 2.4mm Male | Right Angle | 1.3 | Add to RFQ | |||||
| A5005B | Between Series | 50 GHz | 1.85mm Female | 2.4mm Male | Straight | 1.2 | Add to RFQ | |||||
| A5005B-RA | Between Series | 50 GHz | 1.85mm Female | 2.4mm Male | Right Angle | 1.3 | Add to RFQ | |||||
| A5006B | Between Series | 50 GHz | 1.85mm Male | 2.4mm Female | Straight | 1.2 | Add to RFQ | |||||
| A5006B-RA | Between Series | 50 GHz | 1.85mm Male | 2.4mm Female | Right Angle | 1.3 | Add to RFQ | |||||
| A5007B | Between Series | 50 GHz | 1.85mm Female | 2.4mm Female | Straight | 1.2 | Add to RFQ | |||||
| A5007B-RA | Between Series | 50 GHz | 1.85mm Female | 2.4mm Female | Right Angle | 1.3 | Add to RFQ | |||||
| A4008B | Between Series | 40 GHz | 1.85mm Male | 2.92mm Male | Straight | 1.15 | Add to RFQ | |||||
| A4008B-RA | Between Series | 40 GHz | 1.85mm Male | 2.92mm Male | Right Angle | 1.25 | Add to RFQ | |||||
| A4009B | Between Series | 40 GHz | 1.85mm Female | 2.92mm Male | Straight | 1.15 | Add to RFQ | |||||
| A4009B-RA | Between Series | 40 GHz | 1.85mm Female | 2.92mm Male | Right Angle | 1.25 | Add to RFQ | |||||
| A4010B | Between Series | 40 GHz | 1.85mm Female | 2.92mm Female | Straight | 1.15 | Add to RFQ | |||||
| A4010B-RA | Between Series | 40 GHz | 1.85mm Female | 2.92mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A4011B | Between Series | 40 GHz | 1.85mm Male | 2.92mm Female | Straight | 1.15 | Add to RFQ | |||||
| A4011B-RA | Between Series | 40 GHz | 1.85mm Male | 2.92mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A2716B | Between Series | 34 GHz | 1.85mm Male | 3.5mm Male | Straight | 1.2 | Add to RFQ | |||||
| A2717B | Between Series | 34 GHz | 1.85mm Female | 3.5mm Male | Straight | 1.2 | Add to RFQ | |||||
| A2718B | Between Series | 34 GHz | 1.85mm Male | 3.5mm Female | Straight | 1.2 | Add to RFQ | |||||
| A2719B | Between Series | 34 GHz | 1.85mm Female | 3.5mm Female | Straight | 1.2 | Add to RFQ | |||||
| A3312P | Between Series | 33 GHz | 1.85mm Female | 3.5mm Female | Straight | 1.15 | Add to RFQ | |||||
| A3313P | Between Series | 33 GHz | 1.85mm Female | 3.5mm Male | Straight | 1.15 | Add to RFQ | |||||
| A3314P | Between Series | 33 GHz | 1.85mm Male | 3.5mm Female | Straight | 1.15 | Add to RFQ | |||||
| A3315P | Between Series | 33 GHz | 1.85mm Male | 3.5mm Male | Straight | 1.15 | Add to RFQ | |||||
| A1855B | Between Series | 18 GHz | 1.85mm Male | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1856B | Between Series | 18 GHz | 1.85mm Female | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1857B | Between Series | 18 GHz | 1.85mm Male | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A1858B | Between Series | 18 GHz | 1.85mm Female | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A5001B | In Series | 50 GHz | 2.4mm Female | 2.4mm Female | Straight | 1.2 | Add to RFQ | |||||
| A5001B-F1 | In Series | 50 GHz | 2.4mm Female | 2.4mm Female | 4 Hole Flange | 1.2 | Add to RFQ | |||||
| A5001B-F2 | In Series | 50 GHz | 2.4mm Female | 2.4mm Female | 4 Hole Flange | 1.2 | Add to RFQ | |||||
| A5001B-Y | In Series | 50 GHz | 2.4mm Female | 2.4mm Female | Bulkhead | 1.2 | Add to RFQ | |||||
| A5001B-RA | In Series | 50 GHz | 2.4mm Female | 2.4mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A5002B | In Series | 50 GHz | 2.4mm Male | 2.4mm Male | Straight | 1.2 | Add to RFQ | |||||
| A5002B-RA | In Series | 50 GHz | 2.4mm Male | 2.4mm Male | Right Angle | 1.25 | Add to RFQ | |||||
| A5003B | In Series | 50 GHz | 2.4mm Male | 2.4mm Female | Straight | 1.2 | Add to RFQ | |||||
| A5003B-RA | In Series | 50 GHz | 2.4mm Male | 2.4mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A4004B | Between Series | 40 GHz | 2.4mm Female | 2.92mm Female | Straight | 1.2 | Add to RFQ | |||||
| A4004B-RA | Between Series | 40 GHz | 2.4mm Female | 2.92mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A4005B | Between Series | 40 GHz | 2.4mm Male | 2.92mm Female | Straight | 1.15 | Add to RFQ | |||||
| A4005B-RA | Between Series | 40 GHz | 2.4mm Male | 2.92mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A4006B | Between Series | 40 GHz | 2.4mm Male | 2.92mm Male | Straight | 1.15 | Add to RFQ | |||||
| A4006B-RA | Between Series | 40 GHz | 2.4mm Male | 2.92mm Male | Right Angle | 1.25 | Add to RFQ | |||||
| A4007B | Between Series | 40 GHz | 2.4mm Female | 2.92mm Male | Straight | 1.15 | Add to RFQ | |||||
| A4007B-RA | Between Series | 40 GHz | 2.4mm Female | 2.92mm Male | Right Angle | 1.25 | Add to RFQ | |||||
| A4007P-F1 | Between Series | 40 GHz | 2.4mm Female | 2.92mm Female | 4 Hole Flange | 1.2 | Add to RFQ | |||||
| A2708B | Between Series | 34 GHz | 2.4mm Female | 3.5mm Male | Straight | 1.2 | Add to RFQ | |||||
| A2709B | Between Series | 34 GHz | 2.4mm Male | 3.5mm Male | Straight | 1.2 | Add to RFQ | |||||
| A2710B | Between Series | 34 GHz | 2.4mm Female | 3.5mm Female | Straight | 1.2 | Add to RFQ | |||||
| A2711B | Between Series | 34 GHz | 2.4mm Male | 3.5mm Female | Straight | 1.2 | Add to RFQ | |||||
| A1821B | Between Series | 18 GHz | 2.4mm Male | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1822B | Between Series | 18 GHz | 2.4mm Female | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1823B | Between Series | 18 GHz | 2.4mm Female | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1824B | Between Series | 18 GHz | 2.4mm Male | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1851B | Between Series | 18 GHz | 2.4mm Male | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1852B | Between Series | 18 GHz | 2.4mm Female | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1853B | Between Series | 18 GHz | 2.4mm Male | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A1854B | Between Series | 18 GHz | 2.4mm Female | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A2717P | Between Series | 27 GHz | 2.4mm Female | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A2718P | Between Series | 27 GHz | 2.4mm Male | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A2719P | Between Series | 27 GHz | 2.4mm Female | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A2720P | Between Series | 27 GHz | 2.4mm Male | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A4016B | Between Series | 40 GHz | 2.4mm Male | SMP Male | Straight | 1.3 | Add to RFQ | |||||
| A4017B | Between Series | 40 GHz | 2.4mm Male | SMP Female | Straight | 1.3 | Add to RFQ | |||||
| A4018B | Between Series | 40 GHz | 2.4mm Female | SMP Male | Straight | 1.3 | Add to RFQ | |||||
| A4019B | Between Series | 40 GHz | 2.4mm Female | SMP Female | Straight | 1.3 | Add to RFQ | |||||
| A4043B | Between Series | 40 GHz | 2.4mm Male | SSMA Male | Straight | 1.2 | Add to RFQ | |||||
| A4044B | Between Series | 40 GHz | 2.4mm Female | SSMA Male | Straight | 1.2 | Add to RFQ | |||||
| A4045B | Between Series | 40 GHz | 2.4mm Male | SSMA Female | Straight | 1.2 | Add to RFQ | |||||
| A4046B | Between Series | 40 GHz | 2.4mm Female | SSMA Female | Straight | 1.2 | Add to RFQ | |||||
| A4001B | In Series | 40 GHz | 2.92mm Female | 2.92mm Female | Straight | 1.15 | Add to RFQ | |||||
| A4001B-F1 | In Series | 40 GHz | 2.92mm Female | 2.92mm Female | 4 Hole Flange | 1.15 | Add to RFQ | |||||
| A4001B-F2 | In Series | 40 GHz | 2.92mm Female | 2.92mm Female | 4 Hole Flange | 1.15 | Add to RFQ | |||||
| A4001B-Y1 | In Series | 40 GHz | 2.92mm Female | 2.92mm Female | Bulkhead | 1.15 | Add to RFQ | |||||
| A4001B-RA | In Series | 40 GHz | 2.92mm Female | 2.92mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A4002B | In Series | 40 GHz | 2.92mm Male | 2.92mm Male | Straight | 1.15 | Add to RFQ | |||||
| A4002B-RA | In Series | 40 GHz | 2.92mm Male | 2.92mm Male | Right Angle | 1.25 | Add to RFQ | |||||
| A4003B | In Series | 40 GHz | 2.92mm Male | 2.92mm Female | Straight | 1.15 | Add to RFQ | |||||
| A4003B-RA | In Series | 40 GHz | 2.92mm Male | 2.92mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A4001P-F1 | In Series | 40 GHz | 2.92mm Female | 2.92mm Male | 4 Hole Flange | 1.2 | Add to RFQ | |||||
| A4001P-Y1 | In Series | 40 GHz | 2.92mm Female | 2.92mm Male | Bulkhead | 1.15 | Add to RFQ | |||||
| A2704B | Between Series | 34 GHz | 2.92mm Female | 3.5mm Female | Straight | 1.2 | Add to RFQ | |||||
| A2705B | Between Series | 34 GHz | 2.92mm Male | 3.5mm Male | Straight | 1.2 | Add to RFQ | |||||
| A2706B | Between Series | 34 GHz | 2.92mm Male | 3.5mm Female | Straight | 1.2 | Add to RFQ | |||||
| A2707B | Between Series | 34 GHz | 2.92mm Female | 3.5mm Male | Straight | 1.2 | Add to RFQ | |||||
| A1817B | Between Series | 18 GHz | 2.92mm Male | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1818B | Between Series | 18 GHz | 2.92mm Female | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1819B | Between Series | 18 GHz | 2.92mm Male | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1820B | Between Series | 18 GHz | 2.92mm Female | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1847B | Between Series | 18 GHz | 2.92mm Male | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1848B | Between Series | 18 GHz | 2.92mm Female | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1849B | Between Series | 18 GHz | 2.92mm Male | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A1850B | Between Series | 18 GHz | 2.92mm Female | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A2713P | Between Series | 27 GHz | 2.92mm Female | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A2714P | Between Series | 27 GHz | 2.92mm Male | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A2715P | Between Series | 27 GHz | 2.92mm Female | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A2716P | Between Series | 27 GHz | 2.92mm Male | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A2701B | In Series | 34 GHz | 3.5mm Female | 3.5mm Female | Straight | 1.2 | Add to RFQ | |||||
| A2701B-F1 | In Series | 34 GHz | 3.5mm Female | 3.5mm Female | 4 Hole Flange | 1.2 | Add to RFQ | |||||
| A2701B-RA | In Series | 27 GHz | 3.5mm Female | 3.5mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A2702B | In Series | 34 GHz | 3.5mm Male | 3.5mm Male | Straight | 1.2 | Add to RFQ | |||||
| A2702B-RA | In Series | 27 GHz | 3.5mm Male | 3.5mm Male | Right Angle | 1.25 | Add to RFQ | |||||
| A2703B | In Series | 34 GHz | 3.5mm Male | 3.5mm Female | Straight | 1.2 | Add to RFQ | |||||
| A2703B-RA | In Series | 27 GHz | 3.5mm Male | 3.5mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A3301P | In Series | 33 GHz | 3.5mm Female | 3.5mm Female | Straight | 1.15 | Add to RFQ | |||||
| A3301P-Y1 | In Series | 33 GHz | 3.5mm Female | 3.5mm Female | Bulkhead | 1.15 | Add to RFQ | |||||
| A3301P-RA1 | In Series | 33 GHz | 3.5mm Female | 3.5mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A3302P | In Series | 33 GHz | 3.5mm Male | 3.5mm Female | Straight | 1.15 | Add to RFQ | |||||
| A3302P-RA1 | In Series | 33 GHz | 3.5mm Male | 3.5mm Female | Right Angle | 1.25 | Add to RFQ | |||||
| A3303P | In Series | 33 GHz | 3.5mm Male | 3.5mm Male | Straight | 1.15 | Add to RFQ | |||||
| A3303P-RA1 | In Series | 33 GHz | 3.5mm Male | 3.5mm Male | Right Angle | 1.25 | Add to RFQ | |||||
| A1874B | Between Series | 18 GHz | 3.5mm Male | BMA Male | Straight | 1.2 | Add to RFQ | |||||
| A1875B | Between Series | 18 GHz | 3.5mm Male | BMA Female | Straight | 1.2 | Add to RFQ | |||||
| A1876B | Between Series | 18 GHz | 3.5mm Female | BMA Male | Straight | 1.2 | Add to RFQ | |||||
| A1877B | Between Series | 18 GHz | 3.5mm Female | BMA Female | Straight | 1.2 | Add to RFQ | |||||
| A1813B | Between Series | 18 GHz | 3.5mm Male | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1814B | Between Series | 18 GHz | 3.5mm Female | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1815B | Between Series | 18 GHz | 3.5mm Male | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1816B | Between Series | 18 GHz | 3.5mm Female | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1843B | Between Series | 18 GHz | 3.5mm Male | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1844B | Between Series | 18 GHz | 3.5mm Female | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1845B | Between Series | 18 GHz | 3.5mm Male | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A1846B | Between Series | 18 GHz | 3.5mm Female | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A2709P | Between Series | 27 GHz | 3.5mm Female | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A2710P | Between Series | 27 GHz | 3.5mm Male | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A2711P | Between Series | 27 GHz | 3.5mm Female | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A2712P | Between Series | 27 GHz | 3.5mm Male | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A0409P | In Series | 4 GHz | BNC Male | BNC Male | Straight | 1.15 | Add to RFQ | |||||
| A0410P | In Series | 4 GHz | BNC Female | BNC Female | Straight | 1.15 | Add to RFQ | |||||
| A0411P | In Series | 4 GHz | BNC Male | BNC Female | Straight | 1.15 | Add to RFQ | |||||
| ASS01 | In Series | 40 GHz | Mini SMP Female | Mini SMP Female | Straight | 1.3 | Add to RFQ | |||||
| ASS02 | In Series | 40 GHz | Mini SMP Female | Mini SMP Female | Straight | 1.3 | Add to RFQ | |||||
| ASS03 | In Series | 18 GHz | Mini SMP Female | Mini SMP Female | Straight | 1.15 | Add to RFQ | |||||
| A6708B | Between Series | 67 GHz | Mini SMP Female | 1.85mm Female | Straight | 1.45 | Add to RFQ | |||||
| A6709B | Between Series | 67 GHz | Mini SMP Male | 1.85mm Female | Straight | 1.45 | Add to RFQ | |||||
| A6710B | Between Series | 67 GHz | Mini SMP Female | 1.85mm Male | Straight | 1.45 | Add to RFQ | |||||
| A6711B | Between Series | 67 GHz | Mini SMP Male | 1.85mm Male | Straight | 1.45 | Add to RFQ | |||||
| A4028B | Between Series | 40 GHz | Mini SMP Male | 2.4mm Male | Straight | 1.3 | Add to RFQ | |||||
| A4029B | Between Series | 40 GHz | Mini SMP Female | 2.4mm Male | Straight | 1.3 | Add to RFQ | |||||
| A4030B | Between Series | 40 GHz | Mini SMP Male | 2.4mm Female | Straight | 1.3 | Add to RFQ | |||||
| A4031B | Between Series | 40 GHz | Mini SMP Female | 2.4mm Female | Straight | 1.3 | Add to RFQ | |||||
| A4024B | Between Series | 40 GHz | Mini SMP Male | 2.92mm Male | Straight | 1.3 | Add to RFQ | |||||
| A4025B | Between Series | 40 GHz | Mini SMP Female | 2.92mm Male | Straight | 1.3 | Add to RFQ | |||||
| A4026B | Between Series | 40 GHz | Mini SMP Male | 2.92mm Female | Straight | 1.3 | Add to RFQ | |||||
| A4027B | Between Series | 40 GHz | Mini SMP Female | 2.92mm Female | Straight | 1.3 | Add to RFQ | |||||
| A1839B | Between Series | 18 GHz | Mini SMP Male | SMA Male | Straight | 1.2 | Add to RFQ | |||||
| A1840B | Between Series | 18 GHz | Mini SMP Female | SMA Male | Straight | 1.2 | Add to RFQ | |||||
| A1841B | Between Series | 18 GHz | Mini SMP Male | SMA Female | Straight | 1.2 | Add to RFQ | |||||
| A1842B | Between Series | 18 GHz | Mini SMP Female | SMA Female | Straight | 1.2 | Add to RFQ | |||||
| A4039B | Between Series | 40 GHz | Mini SMP Male | SSMA Male | Straight | 1.25 | Add to RFQ | |||||
| A4040B | Between Series | 40 GHz | Mini SMP Female | SSMA Male | Straight | 1.25 | Add to RFQ | |||||
| A4041B | Between Series | 40 GHz | Mini SMP Male | SSMA Female | Straight | 1.25 | Add to RFQ | |||||
| A4042B | Between Series | 40 GHz | Mini SMP Female | SSMA Female | Straight | 1.25 | Add to RFQ | |||||
| A0401P | Between Series | 4 GHz | N Male | BNC Male | Straight | 1.15 | Add to RFQ | |||||
| A0402P | Between Series | 4 GHz | N Female | BNC Female | Straight | 1.15 | Add to RFQ | |||||
| A0403P | Between Series | 4 GHz | N Male | BNC Female | Straight | 1.15 | Add to RFQ | |||||
| A0404P | Between Series | 4 GHz | N Female | BNC Male | Straight | 1.15 | Add to RFQ | |||||
| A1825B | In Series | 18 GHz | N Female | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1825B-F1 | In Series | 18 GHz | N Female | N Female | 4 Hole Flange | 1.2 | Add to RFQ | |||||
| A1825B-Y1 | In Series | 18 GHz | N Female | N Female | Bulkhead | 1.2 | Add to RFQ | |||||
| A1825B-Y2 | In Series | 18 GHz | N Female | N Female | Bulkhead | 1.2 | Add to RFQ | |||||
| A1825B-RA | In Series | 18 GHz | N Female | N Female | Right Angle | 1.2 | Add to RFQ | |||||
| A1826B | In Series | 18 GHz | N Male | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1826B-RA | In Series | 18 GHz | N Male | N Female | Right Angle | 1.2 | Add to RFQ | |||||
| A1827B | In Series | 18 GHz | N Male | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1827B-RA | In Series | 18 GHz | N Male | N Male | Right Angle | 1.2 | Add to RFQ | |||||
| A1867B | Between Series | 18 GHz | N Male | TNCA Male | Straight | 1.2 | Add to RFQ | |||||
| A1867B-R | Between Series | 18 GHz | N Male | TNCA Male | Right Angle | 1.25 | Add to RFQ | |||||
| A1868B | Between Series | 18 GHz | N Male | TNCA Female | Straight | 1.2 | Add to RFQ | |||||
| A1868B-R | Between Series | 18 GHz | N Male | TNCA Female | Right Angle | 1.25 | Add to RFQ | |||||
| A1869B | Between Series | 18 GHz | N Female | TNCA Male | Straight | 1.2 | Add to RFQ | |||||
| A1869B-R | Between Series | 18 GHz | N Female | TNCA Male | Right Angle | 1.25 | Add to RFQ | |||||
| A1870B | Between Series | 18 GHz | N Female | TNCA Female | Straight | 1.2 | Add to RFQ | |||||
| A1870B-R | Between Series | 18 GHz | N Female | TNCA Female | Right Angle | 1.25 | Add to RFQ | |||||
| A0405P | Between Series | 4 GHz | SMA Male | BNC Male | Straight | 1.15 | Add to RFQ | |||||
| A0406P | Between Series | 4 GHz | SMA Female | BNC Female | Straight | 1.15 | Add to RFQ | |||||
| A0407P | Between Series | 4 GHz | SMA Male | BNC Female | Straight | 1.15 | Add to RFQ | |||||
| A0408P | Between Series | 4 GHz | SMA Female | BNC Male | Straight | 1.15 | Add to RFQ | |||||
| A1805B | Between Series | 18 GHz | SMA Male | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1806B | Between Series | 18 GHz | SMA Female | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1807B | Between Series | 18 GHz | SMA Male | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1808B | Between Series | 18 GHz | SMA Female | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1808B-F | Between Series | 18 GHz | SMA Female | N Female | 4 Hole Flange | 1.15 | Add to RFQ | |||||
| A1808B-Y | Between Series | 18 GHz | SMA Female | N Female | Bulkhead | 1.15 | Add to RFQ | |||||
| A1802P | Between Series | 18 GHz | SMA Female | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1803P | Between Series | 18 GHz | SMA Male | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1804P | Between Series | 18 GHz | SMA Male | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1805P | Between Series | 18 GHz | SMA Female | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1859B | Between Series | 18 GHz | SMA Male | QSMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1861B | Between Series | 18 GHz | SMA Female | QSMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1828B | In Series | 18 GHz | SMA Female | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A1828B-F1 | In Series | 18 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ | |||||
| A1828B-F2 | In Series | 18 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ | |||||
| A1828B-Y1 | In Series | 18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ | |||||
| A1828B-Y2 | In Series | 18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ | |||||
| A1828B-Y3 | In Series | 18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ | |||||
| A1828B-RA | In Series | 18 GHz | SMA Female | SMA Female | Right Angle | 1.25 | Add to RFQ | |||||
| A2728B-RA | In Series | 27 GHz | SMA Female | SMA Female | Right Angle | 1.2 | Add to RFQ | |||||
| A1829B | In Series | 18 GHz | SMA Male | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1829B-RA | In Series | 18 GHz | SMA Male | SMA Male | Right Angle | 1.25 | Add to RFQ | |||||
| A2729B-RA | In Series | 27 GHz | SMA Male | SMA Male | Right Angle | 1.2 | Add to RFQ | |||||
| A1830B | In Series | 18 GHz | SMA Female | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1830B-Y | In Series | 18 GHz | SMA Female | SMA Male | Bulkhead | 1.15 | Add to RFQ | |||||
| A1830B-RA | In Series | 18 GHz | SMA Female | SMA Male | Right Angle | 1.25 | Add to RFQ | |||||
| A2730B-RA | In Series | 27 GHz | SMA Female | SMA Male | Right Angle | 1.2 | Add to RFQ | |||||
| A2701P | In Series | 27 GHz | SMA Female | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A2701P-F1 | In Series | 27 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ | |||||
| A2701P-F2 | In Series | 27 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ | |||||
| A2701P-Y1 | In Series | 27 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ | |||||
| A2701P-Y2 | In Series | 27 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ | |||||
| A2702P | In Series | 27 GHz | SMA Female | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A2702P-F | In Series | 27 GHz | SMA Female | SMA Male | 4 Hole Flange | 1.15 | Add to RFQ | |||||
| A2703P | In Series | 27 GHz | SMA Male | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1863B | Between Series | 18 GHz | SMA Male | TNCA Male | Straight | 1.2 | Add to RFQ | |||||
| A1864B | Between Series | 18 GHz | SMA Male | TNCA Female | Straight | 1.2 | Add to RFQ | |||||
| A1865B | Between Series | 18 GHz | SMA Female | TNCA Male | Straight | 1.2 | Add to RFQ | |||||
| A1866B | Between Series | 18 GHz | SMA Female | TNCA Female | Straight | 1.2 | Add to RFQ | |||||
| A1827P-F1 | Between Series | 18 GHz | SMA Female | TNCA Female | 4 Hole Flange | 1.2 | Add to RFQ | |||||
| A4012B | Between Series | 40 GHz | SMP Male | 2.92mm Male | Straight | 1.3 | Add to RFQ | |||||
| A4013B | Between Series | 40 GHz | SMP Female | 2.92mm Male | Straight | 1.3 | Add to RFQ | |||||
| A4014B | Between Series | 40 GHz | SMP Male | 2.92mm Female | Straight | 1.3 | Add to RFQ | |||||
| A4015B | Between Series | 40 GHz | SMP Female | 2.92mm Female | Straight | 1.3 | Add to RFQ | |||||
| A2712B | Between Series | 34 GHz | SMP Female | 3.5mm Female | Straight | 1.25 | Add to RFQ | |||||
| A2713B | Between Series | 34 GHz | SMP Male | 3.5mm Female | Straight | 1.25 | Add to RFQ | |||||
| A2714B | Between Series | 34 GHz | SMP Male | 3.5mm Male | Straight | 1.25 | Add to RFQ | |||||
| A2715B | Between Series | 34 GHz | SMP Female | 3.5mm Male | Straight | 1.25 | Add to RFQ | |||||
| A1835B | Between Series | 18 GHz | SMP Male | SMA Male | Straight | 1.25 | Add to RFQ | |||||
| A1836B | Between Series | 18 GHz | SMP Female | SMA Male | Straight | 1.25 | Add to RFQ | |||||
| A1837B | Between Series | 18 GHz | SMP Male | SMA Female | Straight | 1.25 | Add to RFQ | |||||
| A1838B | Between Series | 18 GHz | SMP Female | SMA Female | Straight | 1.25 | Add to RFQ | |||||
| A4035B | Between Series | 40 GHz | SMP Male | SSMA Male | Straight | 1.3 | Add to RFQ | |||||
| A4036B | Between Series | 40 GHz | SMP Female | SSMA Male | Straight | 1.3 | Add to RFQ | |||||
| A4037B | Between Series | 40 GHz | SMP Male | SSMA Female | Straight | 1.3 | Add to RFQ | |||||
| A4038B | Between Series | 40 GHz | SMP Female | SSMA Female | Straight | 1.3 | Add to RFQ | |||||
| A4020B | Between Series | 40 GHz | SSMA Male | 2.92mm Male | Straight | 1.2 | Add to RFQ | |||||
| A4021B | Between Series | 40 GHz | SSMA Female | 2.92mm Male | Straight | 1.2 | Add to RFQ | |||||
| A4022B | Between Series | 40 GHz | SSMA Male | 2.92mm Female | Straight | 1.2 | Add to RFQ | |||||
| A4023B | Between Series | 40 GHz | SSMA Female | 2.92mm Female | Straight | 1.2 | Add to RFQ | |||||
| A2720B | Between Series | 34 GHz | SSMA Male | 3.5mm Male | Straight | 1.2 | Add to RFQ | |||||
| A2721B | Between Series | 34 GHz | SSMA Female | 3.5mm Male | Straight | 1.2 | Add to RFQ | |||||
| A2722B | Between Series | 34 GHz | SSMA Male | 3.5mm Female | Straight | 1.2 | Add to RFQ | |||||
| A2723B | Between Series | 34 GHz | SSMA Female | 3.5mm Female | Straight | 1.2 | Add to RFQ | |||||
| A1809B | Between Series | 18 GHz | SSMA Male | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1810B | Between Series | 18 GHz | SSMA Female | N Male | Straight | 1.15 | Add to RFQ | |||||
| A1811B | Between Series | 18 GHz | SSMA Male | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1812B | Between Series | 18 GHz | SSMA Female | N Female | Straight | 1.15 | Add to RFQ | |||||
| A1831B | Between Series | 18 GHz | SSMA Male | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1832B | Between Series | 18 GHz | SSMA Female | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| A1833B | Between Series | 18 GHz | SSMA Male | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A1834B | Between Series | 18 GHz | SSMA Female | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| A4032B | In Series | 40 GHz | SSMA Female | SSMA Female | Straight | 1.2 | Add to RFQ | |||||
| A4033B | In Series | 40 GHz | SSMA Male | SSMA Male | Straight | 1.2 | Add to RFQ | |||||
| A4034B | In Series | 40 GHz | SSMA Female | SSMA Male | Straight | 1.2 | Add to RFQ | |||||
| A1871B | In Series | 18 GHz | TNCA Female | TNCA Female | Straight | 1.2 | Add to RFQ | |||||
| A1871B-R | In Series | 18 GHz | TNCA Female | TNCA Female | Right Angle | 1.25 | Add to RFQ | |||||
| A1871B-F | In Series | 18 GHz | TNCA Female | TNCA Female | 4 Hole Flange | 1.2 | Add to RFQ | |||||
| A1871B-Y | In Series | 18 GHz | TNCA Female | TNCA Female | Bulkhead | 1.2 | Add to RFQ | |||||
| A1872B | In Series | 18 GHz | TNCA Male | TNCA Female | Straight | 1.2 | Add to RFQ | |||||
| A1872B-R | In Series | 18 GHz | TNCA Male | TNCA Female | Right Angle | 1.25 | Add to RFQ | |||||
| A1873B | In Series | 18 GHz | TNCA Male | TNCA Male | Straight | 1.2 | Add to RFQ | |||||
| A1873B-R | In Series | 18 GHz | TNCA Male | TNCA Male | Right Angle | 1.25 | Add to RFQ | |||||
| AS01 | In Series | 40 GHz | SMP Female | SMP Female | Straight | 1.25 | Add to RFQ | |||||
| AS02 | In Series | 40 GHz | SMP Female | SMP Female | Straight | 1.25 | Add to RFQ | |||||
| AS03 | In Series | 18 GHz | SMP Female | SMP Female | Straight | 1.25 | Add to RFQ | |||||
| AS04 | In Series | 18 GHz | SMP Female | SMP Female | Straight | 1.25 | Add to RFQ | |||||
| AWR22185EL | WR22 | 1.85mm | Female | 32.9-50.1 GHz | End Launch | 1.3 | UG-383/U | Add to RFQ | ||||
| AWR2100N | WR2100 | N | Female | 0.35-0.53 GHz | Right Angle | 1.25 | UDR4 | Add to RFQ | ||||
| AWRD840N | WRD840 | N | Female | 0.8-2 GHz | Right Angle | 1.3 | FPWRD840 | Add to RFQ | ||||
| NM-NM | In Series | 18 GHz | N Male | N Male | Straight | 1.2 | Add to RFQ | |||||
| NF-NM | In Series | 18 GHz | N Female | N Male | Straight | 1.2 | Add to RFQ | |||||
| NF-NF | In Series | 18 GHz | N Female | N Female | Straight | 1.2 | Add to RFQ | |||||
| NF-NF-F | In Series | 18 GHz | N Female | N Female | 4 Hole Flange | 1.2 | Add to RFQ | |||||
| NM-SMAM | Between Series | 18 GHz | N Male | SMA Male | Straight | 1.2 | Add to RFQ | |||||
| NM-SMAF | Between Series | 18 GHz | N Male | SMA Female | Straight | 1.2 | Add to RFQ | |||||
| NF-SMAF | Between Series | 18 GHz | N Female | SMA Female | Straight | 1.2 | Add to RFQ | |||||
| NF-SMAM | Between Series | 18 GHz | N Female | SMA Male | Straight | 1.2 | Add to RFQ | |||||
| NF-SMAF-F | Between Series | 18 GHz | N Female | SMA Female | 4 Hole Flange | 1.2 | Add to RFQ | |||||
| NF-SMAM-F | Between Series | 18 GHz | N Female | SMA Male | 4 Hole Flange | 1.2 | Add to RFQ | |||||
| SMAM-SMAM | In Series | 18 GHz | SMA Male | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| SMAF-SMAM | In Series | 18 GHz | SMA Female | SMA Male | Straight | 1.15 | Add to RFQ | |||||
| SMAF-SMAF | In Series | 18 GHz | SMA Female | SMA Female | Straight | 1.15 | Add to RFQ | |||||
| SMAF-SMAM-F | In Series | 18 GHz | SMA Female | SMA Male | 4 Hole Flange | 1.15 | Add to RFQ | |||||
| SMAF-SMAF-F | In Series | 18 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ | |||||

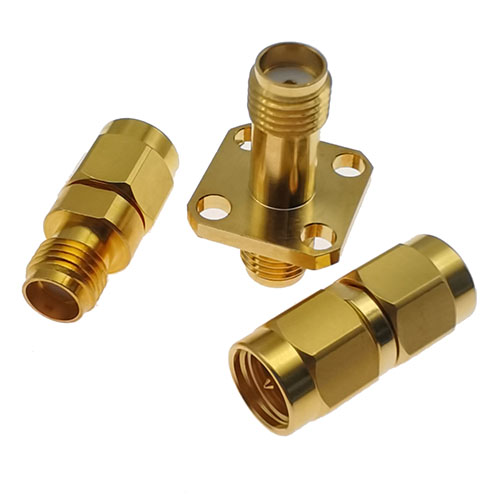

| SMAF-SMAF-FA | In Series | 18 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ | |||||
| SMAF-SMAF-FB | In Series | 18 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ | |||||

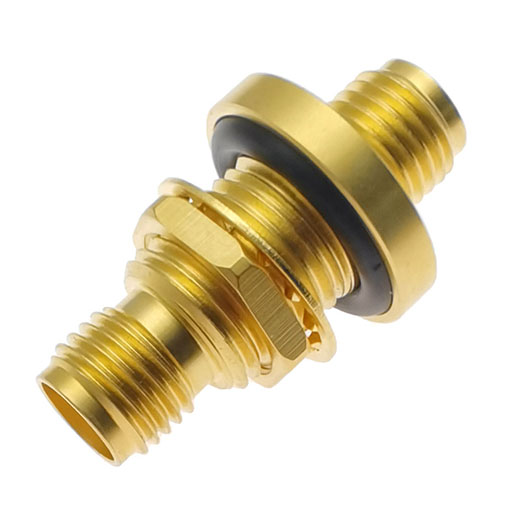

| SMAF-SMAF-Y | In Series | 18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ | |||||
| SMAF-SMAF-YA | In Series | 18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ | |||||
| SMAF-SMAF-YB | In Series | 18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ | |||||

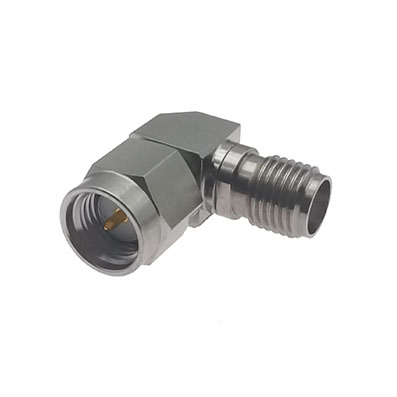

| SMAM-SMAM-R | In Series | 18 GHz | SMA Male | SMA Male | Right Angle | 1.25 | Add to RFQ | |||||
| SMAF-SMAM-R | In Series | 18 GHz | SMA Female | SMA Male | Right Angle | 1.25 | Add to RFQ | |||||
| SMAF-SMAF-R | In Series | 18 GHz | SMA Female | SMA Female | Right Angle | 1.25 | Add to RFQ | |||||

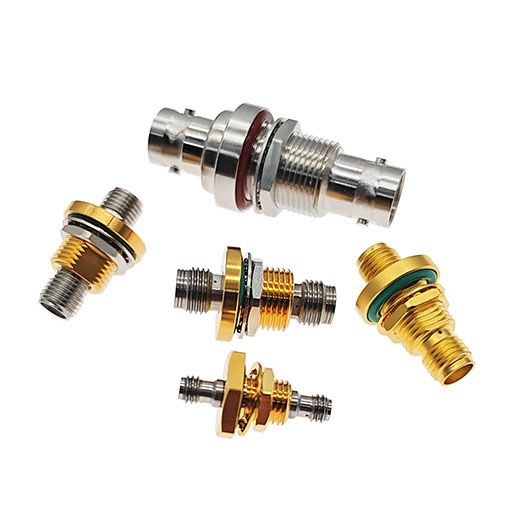

| AHS-1F1F-1 | In Series | 110 GHz | 1.0mm Female | 1.0mm Female | Bulkhead Hermetically | 1.65 | Add to RFQ | |||||
| AHS-VFVF-1 | In Series | 67 GHz | 1.85mm Female | 1.85mm Female | Bulkhead Hermetically | 1.5 | Add to RFQ | |||||
| AHS-QFQF-1 | In Series | 50 GHz | 2.4mm Female | 2.4mm Female | Bulkhead Hermetically | 1.35 | Add to RFQ | |||||
| AHS-KFKF-1 | In Series | 40 GHz | 2.92mm Female | 2.92mm Female | Bulkhead Hermetically | 1.3 | Add to RFQ | |||||
| AHS-SFSF-1 | In Series | 18 GHz | SMA Female | SMA Female | Bulkhead Hermetically | 1.25 | Add to RFQ | |||||
| AHS-BFBF-1 | In Series | 4 GHz | BNC Female | BNC Female | Bulkhead Hermetically | 1.4 | Add to RFQ | |||||
| AM11001 | 110 GHz | NMD 1.0mm Female | 1.0mm Female | Straight | 1.35 | Add to RFQ | ||||||
| AM11002 | 110 GHz | NMD 1.0mm Male | 1.0mm Male | Bulkhead | 1.4 | Add to RFQ | ||||||
| AM11003 | 110 GHz | NMD 1.0mm Male | 1.0mm Female | Bulkhead | 1.4 | Add to RFQ | ||||||
| AM6701 | 67 GHz | NMD 1.0mm Female | 1.85 Female | Straight | 1.2 | Add to RFQ | ||||||
| AM6702 | 67 GHz | NMD 1.85mm Female | 1.85 Female | Straight | 1.2 | Add to RFQ | ||||||
| AM6703 | 67 GHz | NMD 1.85mm Male | 1.85 Female | Straight | 1.2 | Add to RFQ | ||||||
| AM6704 | 67 GHz | NMD 1.85mm Male | 1.85 Female | Bulkhead | 1.2 | Add to RFQ | ||||||
| AM5001 | 50 GHz | NMD 2.4mm Female | 2.4 Female | Straight | 1.2 | Add to RFQ | ||||||
| AM5002 | 50 GHz | NMD 2.4mm Male | 2.4 Female | Straight | 1.2 | Add to RFQ | ||||||
| AM4001 | 40 GHz | NMD 2.92mm Female | 2.92 Female | Straight | 1.15 | Add to RFQ | ||||||
| AM4002 | 40 GHz | NMD 2.92mm Male | 2.92 Female | Straight | 1.15 | Add to RFQ | ||||||
| AM4003 | 40 GHz | NMD 2.92mm Male | 2.92 Female | Bulkhead | 1.15 | Add to RFQ | ||||||
| AM2701 | 26.5 GHz | NMD 3.5mm Female | 3.5 Female | Straight | 1.15 | Add to RFQ | ||||||
| AM2702 | 26.5 GHz | NMD 3.5mm Male | 3.5 Female | Straight | 1.15 | Add to RFQ |
