RF ONE's 7-16 DIN 50 Ohm fixed attenuators includes low to high power attenuators which have the power handling up to 2000 Watts. We offer 10 watts, 25 watts, 100 watts, 1000 watts and 1000 watts 7/16 DIN Coaxial Attenuators, and the frequency range is from DC to 6 GHz.
| P/N | Average Power | Frequency Max | VSWR Max | Attenuations | Shape | Direction | Dimensions (mm) | Add to RFQ |
|---|---|---|---|---|---|---|---|---|
| RFHB04XXDC10 | 10 W | 4 GHz | 1.2 | 1-50 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |

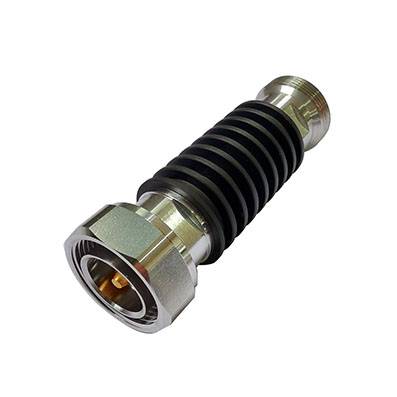

| RFHB06XXDC10 | 10 W | 6 GHz | 1.25 | 1-50 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB04XXDC25 | 25 W | 4 GHz | 1.2 | 1-40 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |

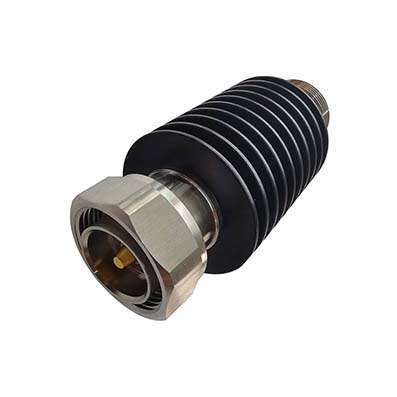

| RFHB06XXDC25 | 25 W | 6 GHz | 1.25 | 1-40 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |

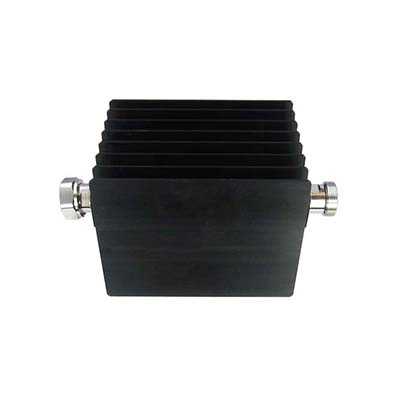

| RFHB04XXDC100-D | 100 W | 4 GHz | 1.2 | 3-40 dB | Rectangular | Bidirectional | 152*110*120 | Add to RFQ |
| RFHB06XXDC100-D | 100 W | 6 GHz | 1.25 | 6-40 dB | Rectangular | Bidirectional | 152*110*120 | Add to RFQ |

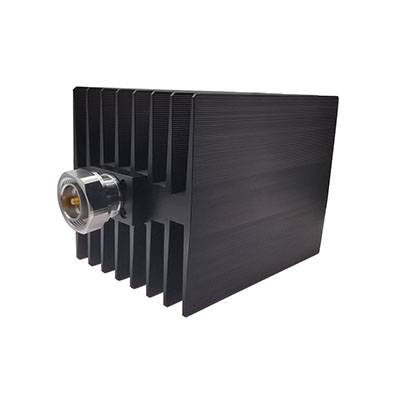

| RFH04XXDD100-D | 100 W | 4 GHz | 1.2 | 6-30 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |

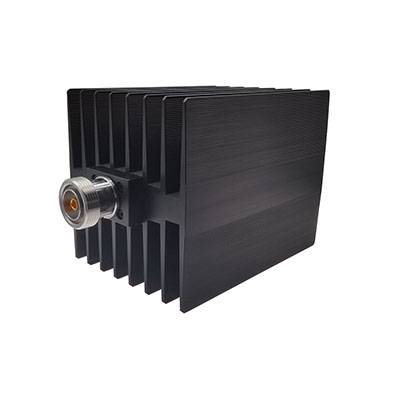

| RFH06XXDD100-D | 100 W | 6 GHz | 1.25 | 6-30 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH06XXDD1000 | 1000 W | 6 GHz | 1.4 | 30-60 dB | Rectangular | Unidirectional | 486*220*508 | Add to RFQ |

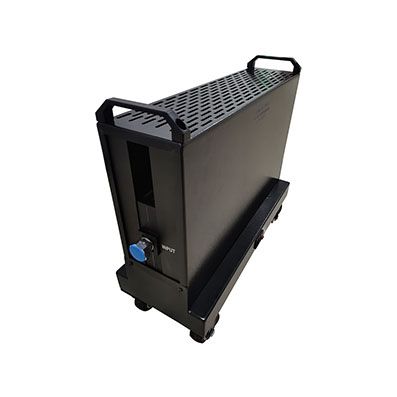

| RFH03XXDA1500 | 1500 W | 3 GHz | 1.25 | 20-50 dB | Rectangular | Unidirectional | 564*220*508 | Add to RFQ |

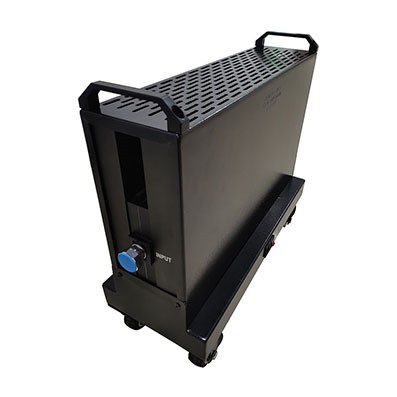

| RFH02XXDD2000 | 2000 W | 2 GHz | 1.25 | 40-60 dB | Rectangular | Unidirectional | 641*220*508 | Add to RFQ |
| RFH04XXDD2000 | 2000 W | 4 GHz | 1.35 | 40-60 dB | Rectangular | Unidirectional | 641*220*508 | Add to RFQ |
| RFH06XXDD2000 | 2000 W | 6 GHz | 1.45 | 40-60 dB | Rectangular | Unidirectional | 641*220*508 | Add to RFQ |
