RF ONE offers a range of waveguide fixed attenuators in WG sizes from WR15 through WR650, in low, medium and high power rates from 1 watts up to 1000 watts. These waveguide attenuators come with standard attenuations from 3 dB to 50 dB, in UG, CPR, UDR, UBR flanges etc, custom flanges are available upon request.
WR62, WR75, WR112 100 watts or 200 watts fixed attenuators are the popular models. We will keep releasing more waveguide fixed attenuators.
| P/N | Waveguide Size | Frequency Range | Average Power | VSWR Max | Attenuations | Flange Type | Add to RFQ |
|---|---|---|---|---|---|---|---|
| WA2850-20 | WR28 | 26.5-40 GHz | 50 W | 1.2 | 20 dB | UBR320 | Add to RFQ |
|
WA28200-20 |
WR28 | 26.5-40 GHz | 200 W | 1.2 | 20 dB | UBR320 | Add to RFQ |
|
WA28200-30 |
WR28 | 26.5-40 GHz | 200 W | 1.2 | 30 dB | UBR320 | Add to RFQ |
| WA28200-40 | WR28 | 26.5-40 GHz | 200 W | 1.2 | 40 dB | UBR320 | Add to RFQ |

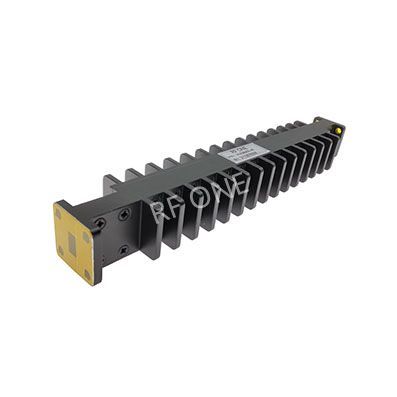

| WA4260-30 | WR42 | 18-26.5 GHz | 60 W | 1.2 | 30 dB | UBR220 | Add to RFQ |

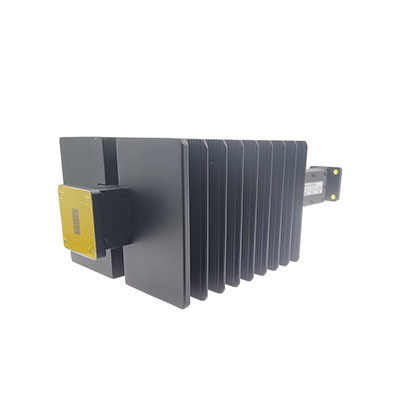

| WA51500-40 | WR51 | 14.5-22 GHz | 500 W | 1.2 | 40 dB | MIL3922/70-023 | Add to RFQ |
| WA6250-20 | WR62 | 11.9-18 GHz | 50 W | 1.2 | 20 dB | UBR140 | Add to RFQ |
| WA6260-30 | WR62 | 11.9-18 GHz | 60 W | 1.2 | 30 dB | UBR140 | Add to RFQ |
|

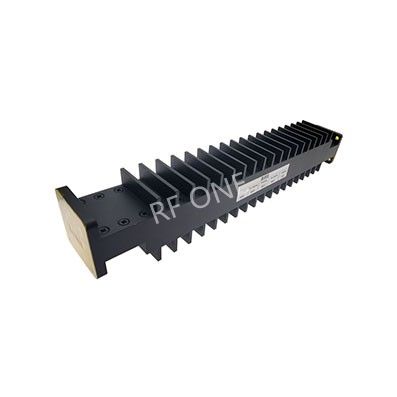

WA62100-40 |
WR62 | 11.9-18 GHz | 100 W | 1.12 | 40 dB | UBR140 | Add to RFQ |
| WA62300-30 | WR62 | 11.9-18 GHz | 300 W | 1.2 | 30 dB | UBR140 | Add to RFQ |

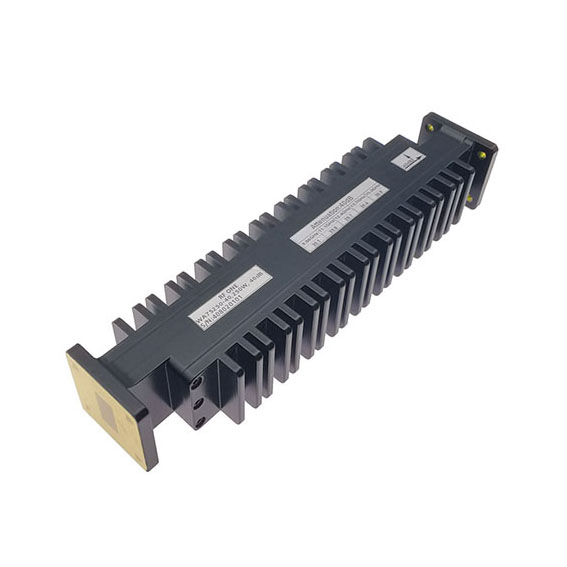

| WA75250-40 | WR75 | 9.84-15 GHz | 250 W | 1.2 | 40 dB | UBR120 | Add to RFQ |
| WA9060-30 | WR90 | 8.2-12.4 GHz | 60 W | 1.2 | 30 dB | UBR100 | Add to RFQ |
| WA112500-40 | WR112 | 6.57-10 GHz | 500 W | 1.2 | 40 dB | CPR112F | Add to RFQ |
| WA137250-40 | WR137 | 5.38-8.17 GHz | 250 W | 1.2 | 40 dB | UDR70 | Add to RFQ |
| WA15960-30 | WR159 | 4.9-7.05 GHz | 60 W | 1.2 | 30 dB | UDR58 | Add to RFQ |
| WA2291000-40 | WR229 | 3.22-4.9 GHz | 1000 W | 1.2 | 40 dB | UDR40 | Add to RFQ |
