RF ONE offers a wide selection of high pass filters starting at cut off frequency of 1 GHz up to 28 GHz. Whether your requirement is an industry standard or completely unique, our technical staff specializes in engineering custom solutions.
| P/N | Passband Frequency | Insertion Loss Max | VSWR Max | Reject Frequency | Rejection Min | Power Input Max | Connector | Add to RFQ |
|---|---|---|---|---|---|---|---|---|

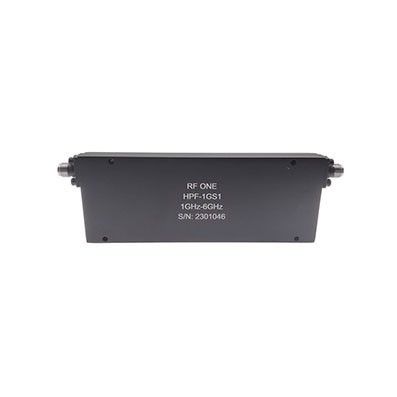

| HPF-1GS1 | 1.0-6.0 GHz | 1.0 dB | 1.6 | DC-0.86 GHz | 60 dB | 15 W | SMA | Add to RFQ |

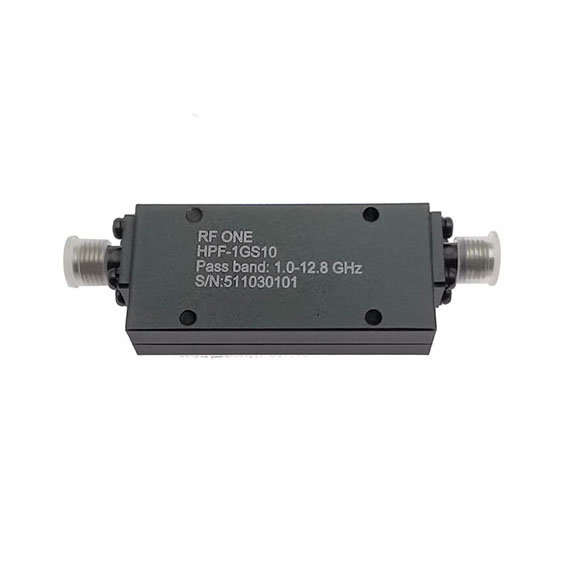

| HPF-1GS10 | 1.0-12.8 GHz | 1.0 dB | 1.6 | DC-0.8 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-1D25S1 | 1.25-7.0 GHz | 1.0 dB | 1.5 | DC-1.04 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-1D5GS1 | 1.5-8.0 GHz | 1.0 dB | 1.5 | DC-1.28 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-1D75GS1 | 1.75-10 GHz | 1.0 dB | 1.5 | DC-1.47 GHz | 60 dB | 15 W | SMA | Add to RFQ |

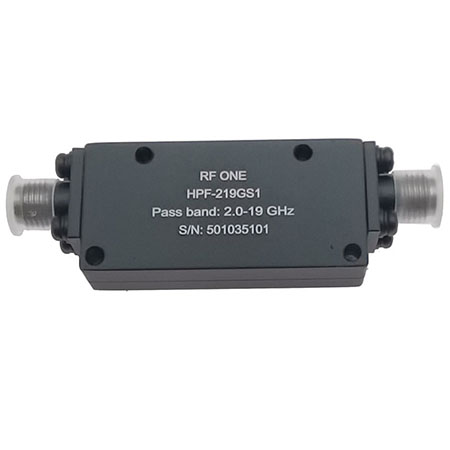

| HPF-219GS1 | 2.0-19 GHz | 1.5 dB | 1.5 | DC-1.58 GHz | 50 dB | 15 W | SMA | Add to RFQ |

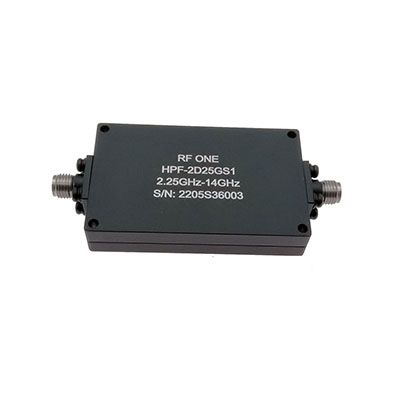

| HPF-2D25GS1 | 2.25-14 GHz | 1.0 dB | 1.5 | DC-1.93 GHz | 60 dB | 15 W | SMA | Add to RFQ |

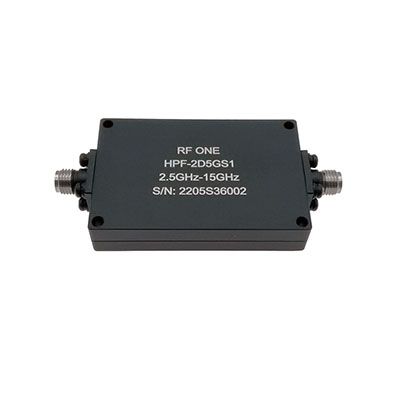

| HPF-2D5GS1 | 2.5-15 GHz | 1.0 dB | 1.5 | DC-2.15 GHz | 60 dB | 15 W | SMA | Add to RFQ |

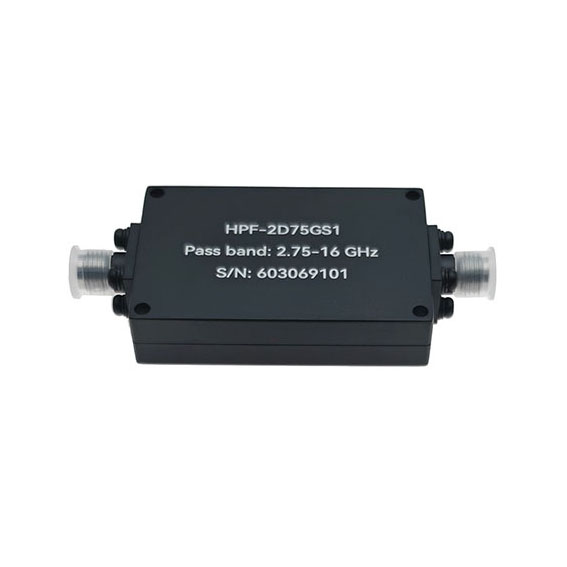

| HPF-2D75GS1 | 2.75-16 GHz | 1.0 dB | 1.5 | DC-2.36 GHz | 60 dB | 15 W | SMA | Add to RFQ |

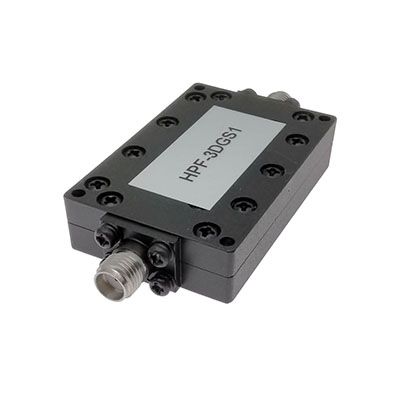

| HPF-3DGS1 | 3.0-18 GHz | 1.0 dB | 1.5 | DC-2.6 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-3D3GS1 | 3.3-18 GHz | 2.0 dB | 1.6 | DC-2.5 GHz | 60 dB | 15 W | SMA | Add to RFQ |

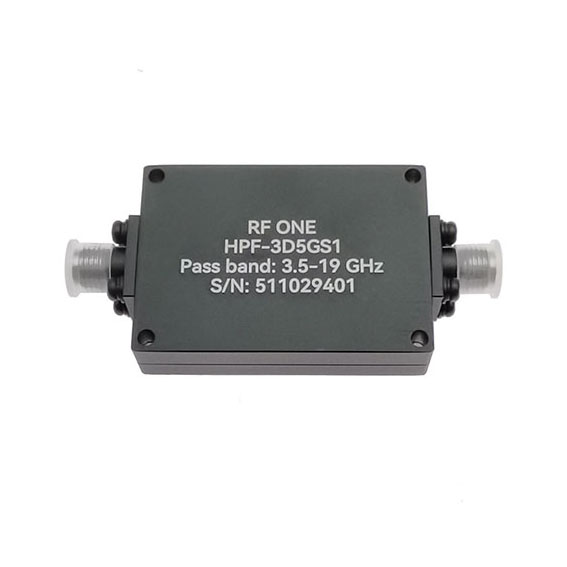

| HPF-3D5GS1 | 3.5-19 GHz | 1.0 dB | 1.5 | DC-3.08 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-3D75GS1 | 3.75-19 GHz | 1.0 dB | 1.5 | DC-3.3 GHz | 60 dB | 15 W | SMA | Add to RFQ |

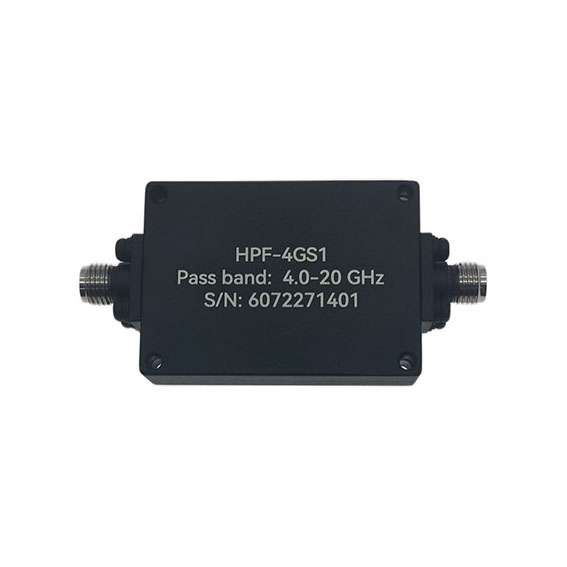

| HPF-4GS1 | 4.0-20 GHz | 1.0 dB | 1.5 | DC-3.55 GHz | 60 dB | 15 W | SMA | Add to RFQ |

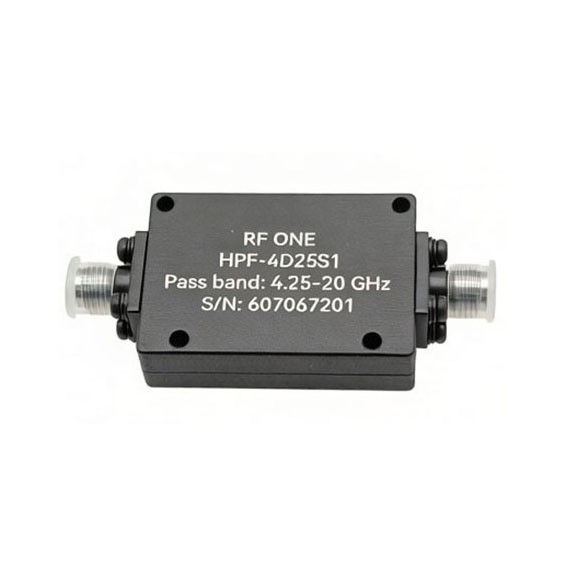

| HPF-4D25S1 | 4.25-20 GHz | 1.0 dB | 1.5 | DC-3.78 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-4D5GS1 | 4.5-21 GHz | 1.0 dB | 1.5 | DC-3.98 GHz | 60 dB | 15 W | SMA | Add to RFQ |

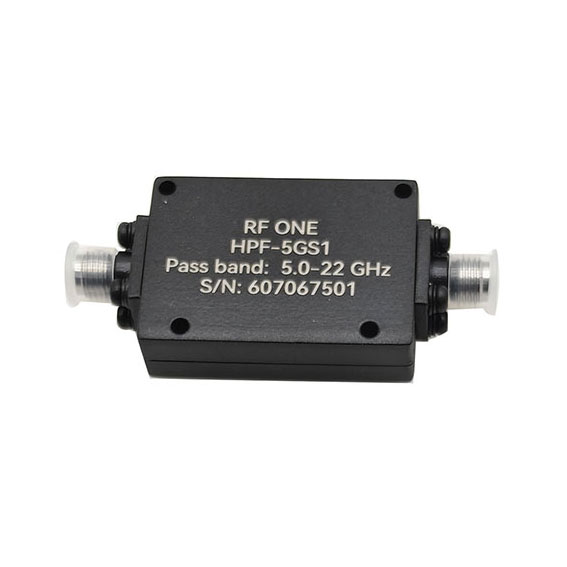

| HPF-5GS1 | 5.0-22 GHz | 1.0 dB | 1.5 | DC-4.48 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-5D5GS1 | 5.5-23 GHz | 1.0 dB | 1.5 | DC-4.95 GHz | 60 dB | 15 W | SMA | Add to RFQ |

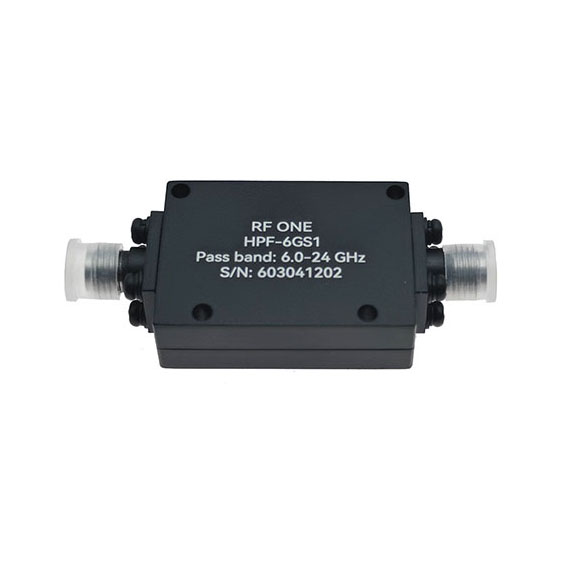

| HPF-6GS1 | 6.0-24 GHz | 1.0 dB | 1.5 | DC-5.4 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-6D5GS1 | 6.5-24 GHz | 1.0 dB | 1.5 | DC-5.83 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-724GS1 | 7.0-24 GHz | 1.0 dB | 1.5 | DC-6.3 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-727GS1 | 7.5-27 GHz | 1.0 dB | 1.5 | DC-6.25 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| HPF-8GS1 | 8.0-25 GHz | 1.0 dB | 1.5 | DC-7.25 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-8D5GS1 | 8.5-25 GHz | 1.0 dB | 1.5 | DC-7.68 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-9GS1 | 9.0-23 GHz | 1.0 dB | 1.5 | DC-8.22 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-9D5GS1 | 9.5-23.5 GHz | 1.0 dB | 1.5 | DC-8.7 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-10GS1 | 10-24 GHz | 1.0 dB | 1.5 | DC-9.17 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-10D5GS1 | 10.5-24 GHz | 1.0 dB | 1.6 | DC-9.58 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-11GS1 | 11-24 GHz | 1.0 dB | 1.6 | DC-10.07 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-11D5GS1 | 11.5-24 GHz | 1.0 dB | 1.6 | DC-10.55 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-12GS1 | 12-24.5 GHz | 1.0 dB | 1.6 | DC-11 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-12D5GS1 | 12.5-24.5 GHz | 1.0 dB | 1.6 | DC-11.4 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-13GS1 | 13-24.5 GHz | 1.0 dB | 1.6 | DC-11.95 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-13D5GS1 | 13.5-24.5 GHz | 1.0 dB | 1.6 | DC-12.4 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-14GS1 | 14-25 GHz | 1.0 dB | 1.6 | DC-12.82 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-14D5GS1 | 14.5-25 GHz | 1.0 dB | 1.6 | DC-13.3 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-15GS1 | 15-25 GHz | 1.0 dB | 1.6 | DC-13.7 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-18GS2 | 18-28 GHz | 2.0 dB | 1.7 | DC-16.2 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| HPF-18GK2 | 18-46 GHz | 2.0 dB | 1.7 | DC-16.2 GHz | 60 dB | 15 W | 2.92mm | Add to RFQ |
