RF ONE’s 2.4mm fixed attenuators combine high-power handling (2 Watts–35 Watts)with ultra-broadband performance across the Q-band (DC–50 GHz, usable to 52.5 GHz). Available in attenuation values from 1 dB to 40 dB, these units are engineered for satcom, 5G/mmWave test systems and advanced R&D.
Featuring a rugged, miniature design, every attenuator undergoes 100% RF testing, with individual test plots supplied.
Features
| P/N | Average Power | Frequency Max | VSWR Max | Attenuations | Direction | Dimensions (mm) | Add to RFQ |
|---|---|---|---|---|---|---|---|
|

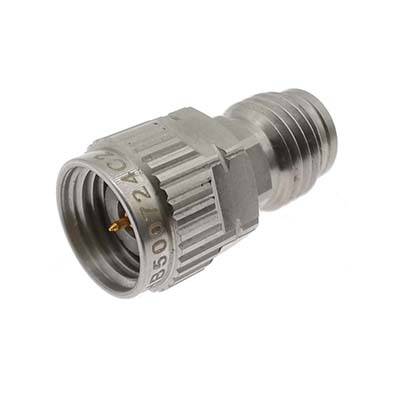

RFHB50XX24C2 |
2 W | 50 GHz | 1.3 | 0-40 dB | Bidirectional | 16(L)*9(φ) | Add to RFQ |
|

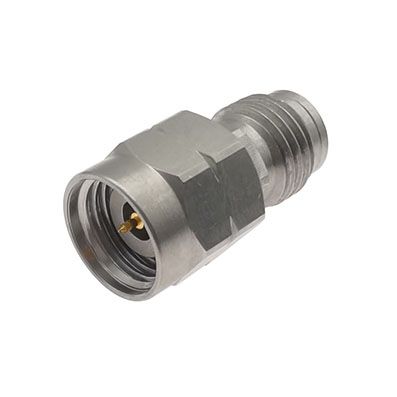

RFHB50XXQC2 |
2 W | 50 GHz | 1.3 | 0-40 dB | Bidirectional | 16(L)*9(φ) | Add to RFQ |

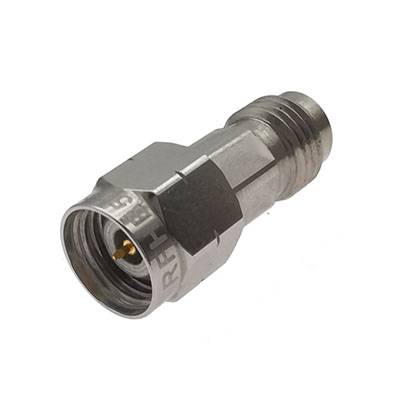

| RFHB50XX24C2A | 2 W | 50 GHz | 1.3 | 1-30 dB | Bidirectional | 19.7(L)*9(φ) | Add to RFQ |
|
RFHB50XX24C5 |

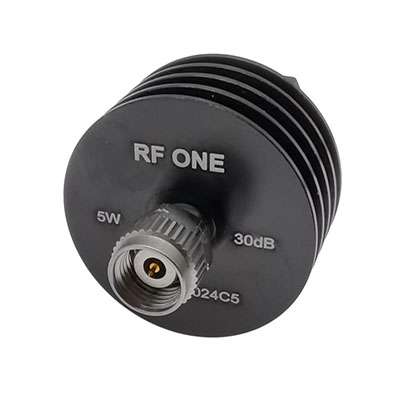

5 W | 50 GHz | 1.34 | 1-40 dB | Bidirectional | 15.6(L)*28(φ) | Add to RFQ |
| RFHB50XX24C8 | 8 W | 50 GHz | 1.34 | 1-40 dB | Bidirectional | 15.6(L)*34.8(φ) | Add to RFQ |
|
RFH50XX24D10 |
10 W | 50 GHz | 1.34 | 3-40 dB | Unidirectional | 22.2(L)*28(φ) | Add to RFQ |

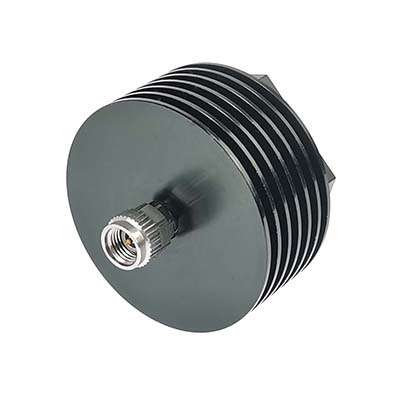

| RFH50XX24D15 | 15 W | 50 GHz | 1.34 | 3-40 dB | Unidirectional | 22.2(L)*34.8(φ) | Add to RFQ |
| RFH50XX24D20 | 20 W | 50 GHz | 1.38 | 10-40 dB | Unidirectional | 28.8(L)*40.8(φ) | Add to RFQ |

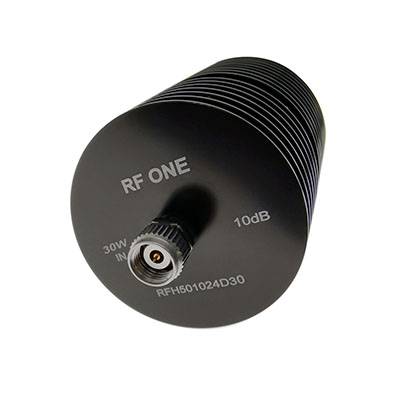

| RFH50XX24D30 | 30 W | 50 GHz | 1.38 | 10-40 dB | Unidirectional | 47.6(L)*40.8(φ) | Add to RFQ |

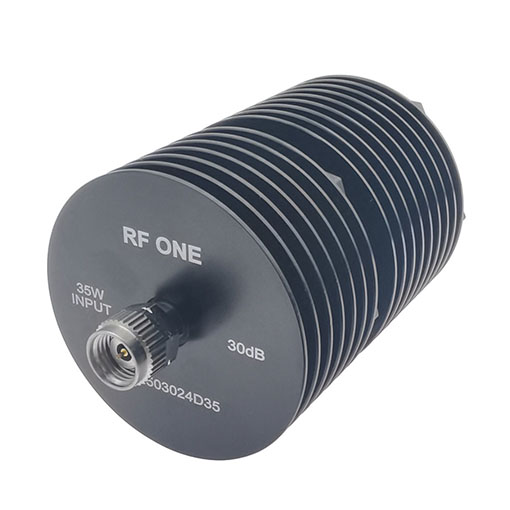

| RFH50XX24D35 | 35 W | 50 GHz | 1.44 | 10-40 dB | Unidirectional | 54.2(L)*40.8(φ) | Add to RFQ |
