RF ONE offers a range of 16 way power dividers/combiners covering from 0.5 GHz to 18 GHz. These dividers come in BNC, N type, SMA etc connectors, featuring high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance. Custom frequency bands and optimized specifications available.
| P/N | Frequency Min | Frequency Max | Insertion Loss Max | Input VSWR Max | Isolation Min | Amplitude Balance Max | Phase Balance Max | Connector | Add to RFQ |
|---|---|---|---|---|---|---|---|---|---|
| PDM-00506-N16 | 0.5 GHz | 6 GHz | 4.8 dB | 1.5 | 18 dB | ±0.5 dB | ±8° | N | Add to RFQ |

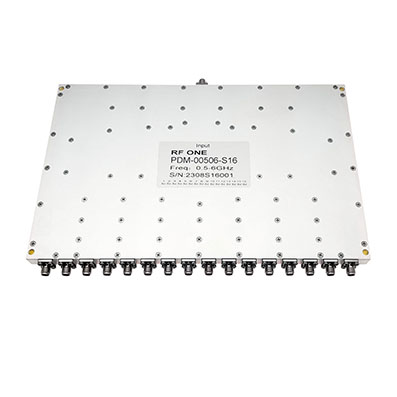

| PDM-00506-S16 | 0.5 GHz | 6 GHz | 4.8 dB | 1.4 | 20 dB | ±0.5 dB | ±8° | SMA | Add to RFQ |
| PDM-00508-S16 | 0.5 GHz | 8 GHz | 4.5 dB | 1.5 | 18 dB | ±0.4 dB | ±8° | SMA | Add to RFQ |

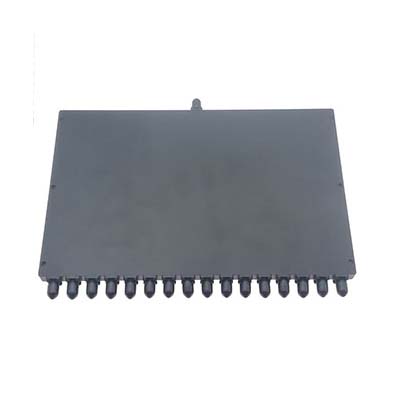

| PDM-00606-S16 | 0.6 GHz | 6 GHz | 3.0 dB | 1.5 | 20 dB | ±0.4 dB | ±6° | SMA | Add to RFQ |

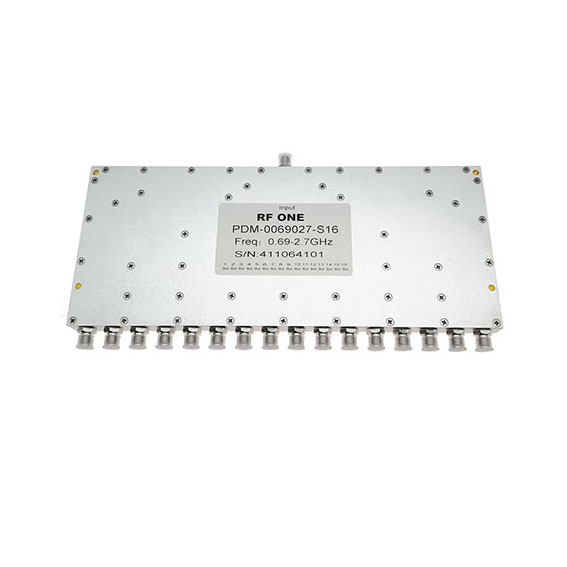

| PDM-0069027-S16 | 0.69 GHz | 2.7 GHz | 1.5 dB | 1.3 | 20 dB | ±0.3 dB | ±5° | SMA | Add to RFQ |

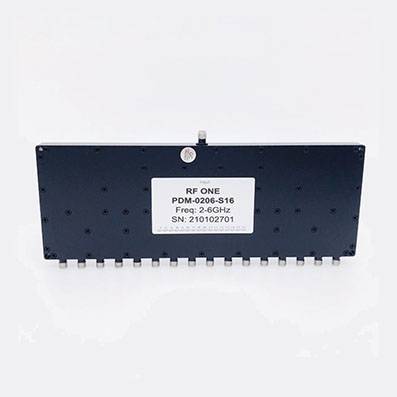

| PDM-0206-S16 | 2 GHz | 6 GHz | 1.6 dB | 1.4 | 18 dB | ±0.3 dB | ±5° | SMA | Add to RFQ |

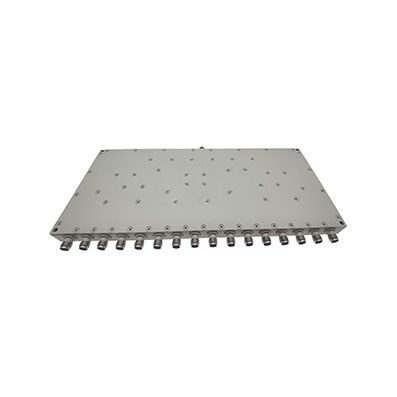

| PDM-0208-S16 | 2 GHz | 8 GHz | 2.8 dB | 1.5 | 18 dB | ±0.4 dB | ±6° | SMA | Add to RFQ |
| PDM-0218-S16 | 2 GHz | 18 GHz | 3.5 dB | 1.7 | 17 dB | ±0.5 dB | ±8° | SMA | Add to RFQ |
| PDM-0408-S16 | 4 GHz | 8 GHz | 2.0 dB | 1.5 | 18 dB | ±0.4 dB | ±5° | SMA | Add to RFQ |

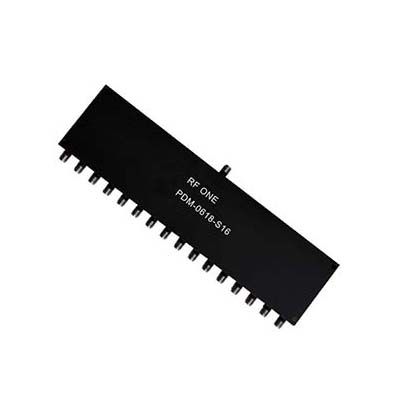

| PDM-0618-S16 | 6 GHz | 18 GHz | 1.8 dB | 1.6 | 17 dB | ±0.6 dB | ±6° | SMA | Add to RFQ |
| PDM-0812-S16 | 8 GHz | 12 GHz | 1.6 dB | 1.3 | 18 dB | ±0.4 dB | ±5° | SMA | Add to RFQ |

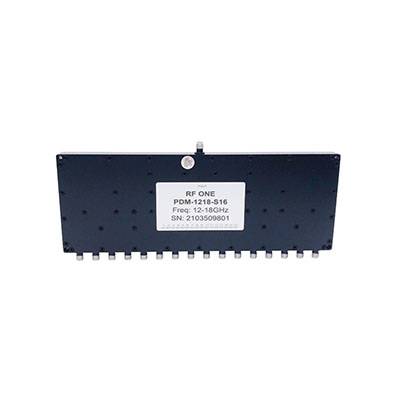

| PDM-1218-S16 | 12 GHz | 18 GHz | 2.2 dB | 1.5 | 16 dB | ±0.3 dB | ±8° | SMA | Add to RFQ |
