RF ONE offers a range of ultra-low loss flexible cable assemblies, built with "Tape Wrapped" low density PTFE dielectric and high temperature resistant FEP jacket, exhibiting advantages of smaller attenuation and higher power handling. These assemblies are available in DIN 7/16, N type, SMA, 2.92mm connectors, they are ideal for long cable run use where minimized loss is important.
Features:
P/N | Frequency Range | VSWR Max | IL Max (1 meter) | Connector 1 | Connector 2 | Add to RFQ |
---|---|---|---|---|---|---|

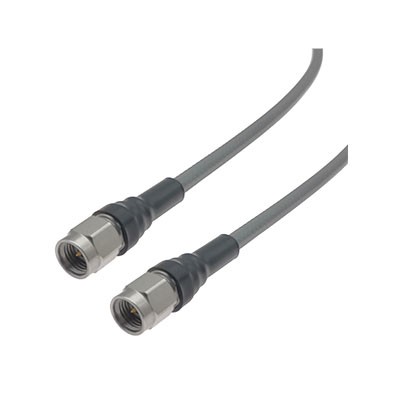

PL400-292M292M-L | DC-40 GHz | 1.3 | 2.6 dB | 2.92mm Male | 2.92mm Male | Add to RFQ |

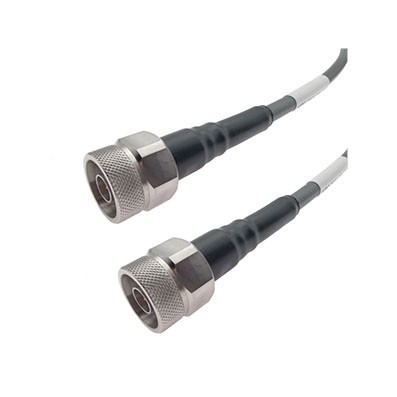

PL800-NMNM-L | DC-18 GHz | 1.3 | 1.1 dB | N Male | N Male | Add to RFQ |

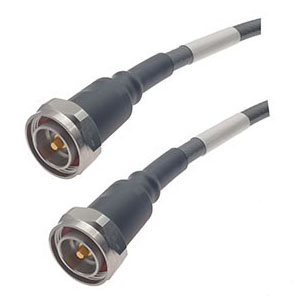

PL800-716M716M-L | DC-6 GHz | 1.3 | 0.6 dB | DIN 7/16 Male | DIN 7/16 Male | Add to RFQ |

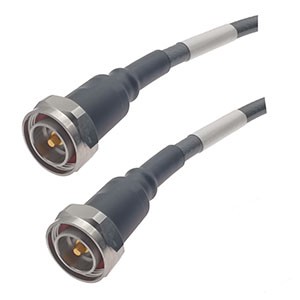

PL1200-716M716M-L | DC-6 GHz | 1.3 | 0.5 dB | DIN 7/16 Male | DIN 7/16 Male | Add to RFQ |
