Armored bench test cables from RF ONE are designed for test and lab applications where repeatable and accurate measurements and endurable construction are needed. Our armored test cables are highly flexible and rugged, with max operating frequency options of 110 GHz, 67 GHz, 50 GHz, 40 GHz, 26.5 GHz, 18 GHz etc.
Features:
➤ Download the brochure for PhaseRel Armored Bench Test Cable Assemblies
➤ Download our article about How RF ONE Test Phase Stability of Cable Assemblies
| P/N | Frequency Range | VSWR Max | IL Max (1 meter) | Connector 1 | Connector 2 | Add to RFQ |
|---|---|---|---|---|---|---|
|
PL140-1M1M-L-A |
DC-110 GHz | 1.35 | 15.9 dB | 1.0mm Male | 1.0mm Male | Add to RFQ |

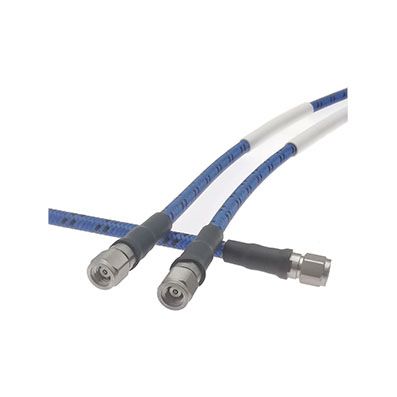

| PL180P-1M1M-L-A | DC-110 GHz | 1.35 | 14.4 dB | 1.0mm Male | 1.0mm Male | Add to RFQ |
|

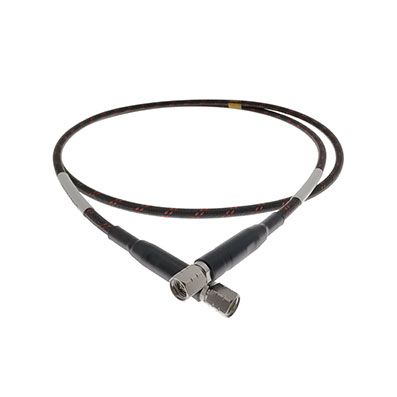

PL230P-185M185M-L-A |
DC-67 GHz | 1.4 | 7.1 dB | 1.85mm Male | 1.85mm Male | Add to RFQ |

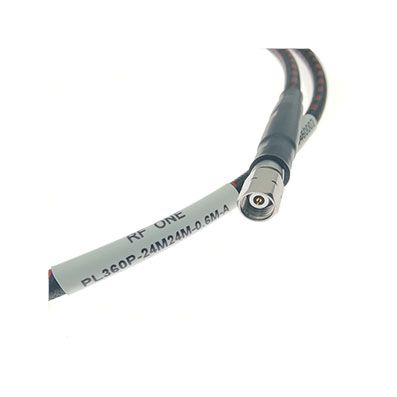

| PL360P-24M24M-L-A | DC-50 GHz | 1.35 | 4.0 dB | 2.4mm Male | 2.4mm Male | Add to RFQ |
|

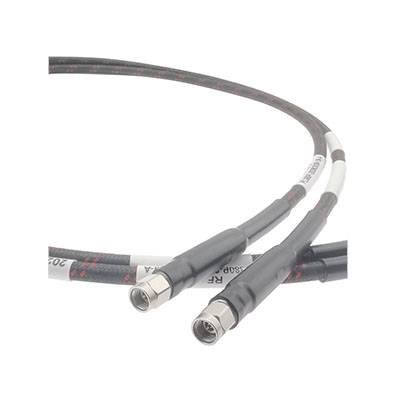

PL380P-292M292M-L-A |
DC-40 GHz | 1.3 | 2.8 dB | 2.92mm Male | 2.92mm Male | Add to RFQ |
| PL520P-35M35M-L-A | DC-26.5 GHz | 1.3 | 1.7 dB | 3.5mm Male | SMA Male | Add to RFQ |

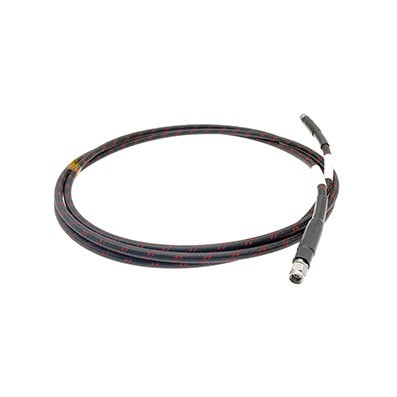

| PL520P-SMAMSMAM-L-A | DC-26.5 GHz | 1.3 | 1.7 dB | SMA Male | SMA Male | Add to RFQ |

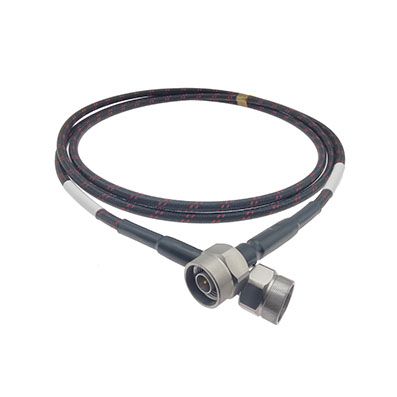

| PL520P-NMNM-L-A | DC-18 GHz | 1.25 | 1.5 dB | N Male | N Male | Add to RFQ |
