SMP Terminations

Grid

Table

Result: 4

RF ONE’s SMP(GPO compatible) termination loads deliver exceptional performance in the smallest footprint, available in three frequency tiers: 18 GHz, 27 GHz and 40 GHz with male and female genders to fit any test fixture or system architecture. We also offer cryogenic SMP loads for quantum computing applications.

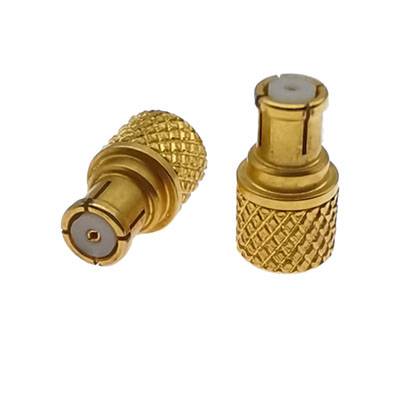

RFT27SMP1

SMP Female Termination DC-27 GHz 2 Watts

Datasheet

Add to RFQ

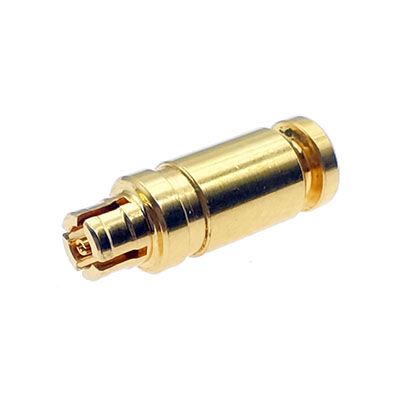

RFT40SMP1

SMP Female Termination DC-40 GHz 2 Watts

Datasheet

Add to RFQ

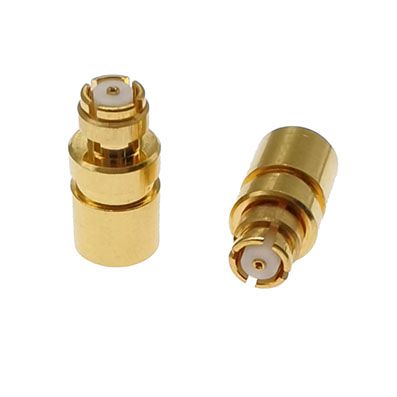

RFT27SMP2

SMP Male Termination DC-27 GHz 2 Watts

Datasheet

Add to RFQ

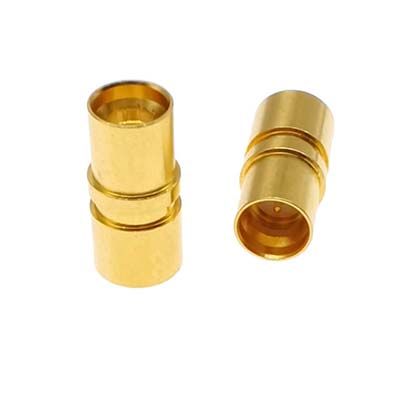

RFT40SMP2

SMP Male Termination DC-40 GHz 2 Watts

Datasheet

Add to RFQ

Show 20

Show 40

Show 60

Show 80

P/N	Average Power	Frequency Max	Connector	Gender	VSWR Max	Shape	Dimension (mm)	Add to RFQ
RFT27SMP1	2 W	27 GHz	SMP	Female	1.3	Round	12(L)*6(φ)	Add to RFQ
RFT40SMP1	2 W	40 GHz	SMP	Female	1.3	Round	12(L)*6(φ)	Add to RFQ
RFT27SMP2	2 W	27 GHz	SMP	Male	1.3	Round	11.9(L)*6(φ)	Add to RFQ
RFT40SMP2	2 W	40 GHz	SMP	Male	1.3	Round	11.9(L)*6(φ)	Add to RFQ
