End launch connectors help reduce losses caused by the transition from PCB to Coax Connector and maintain a Low VSWR. RF ONE’s high performance end launch connectors are specially designed for high frequency substrates use and now available in 2.92mm (40 GHz), 2.40mm (50 GHz), 1.85mm (67 GHz). These connectors are low profile, in standard or narrow body widths, exhibiting very low VSWR. Typical applications include RFIC chip set evaluation board, substrate characterization, high speed digital wireless communication applications.
| P/N | Connector | Gender | Frequency Max | Body Width | Pin Diameter | Max PCB Thickness | VSWR Max | Add to RFQ |
|---|---|---|---|---|---|---|---|---|
|

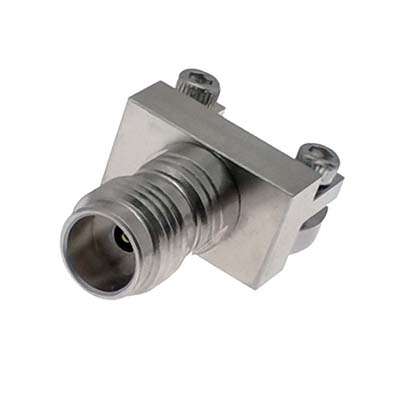

EL185F-1 |
1.85mm | Female | 67 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.35 | Add to RFQ |

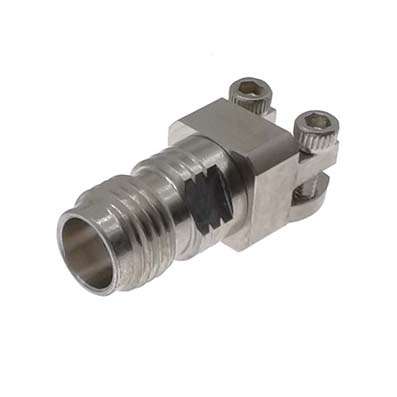

| EL185F-2 | 1.85mm | Female | 67 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.35 | Add to RFQ |
|

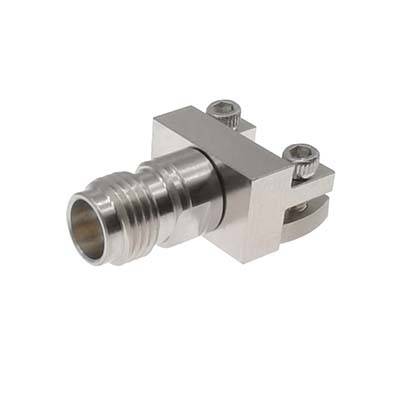

EL24F-1 |
2.4mm | Female | 50 GHz | 0.5 inch | 0.01 inch | 2.5 mm | 1.3 | Add to RFQ |
| EL24F-2 | 2.4mm | Female | 50 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.3 | Add to RFQ |

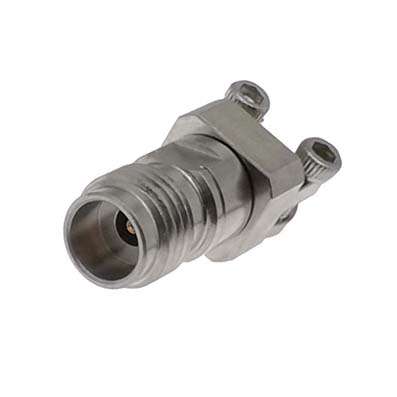

| EL24F-3 | 2.4mm | Female | 50 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.3 | Add to RFQ |
|

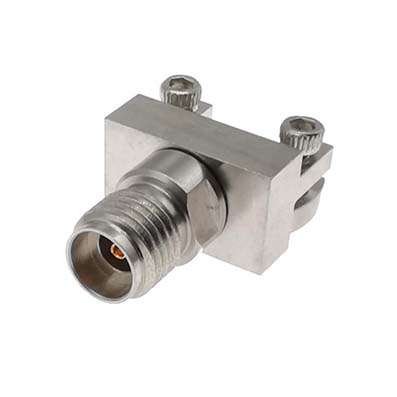

EL292F-1 |
2.92mm | Female | 40 GHz | 0.5 inch | 0.01 inch | 2.5 mm | 1.25 | Add to RFQ |

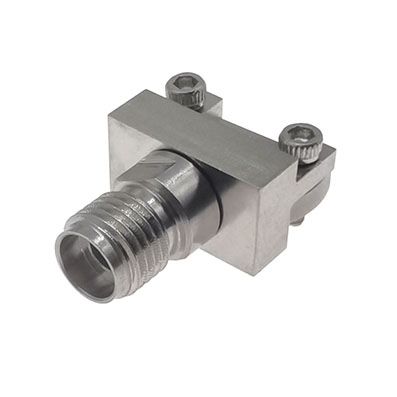

| EL292F-2 | 2.92mm | Female | 40 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.25 | Add to RFQ |

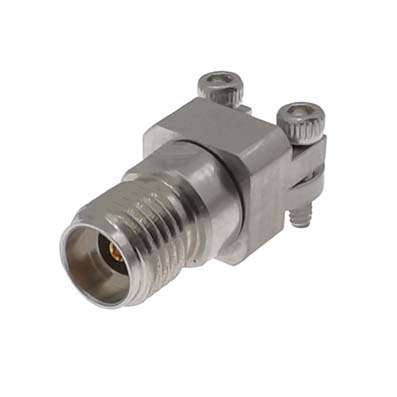

| EL292F-3 | 2.92mm | Female | 40 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.25 | Add to RFQ |

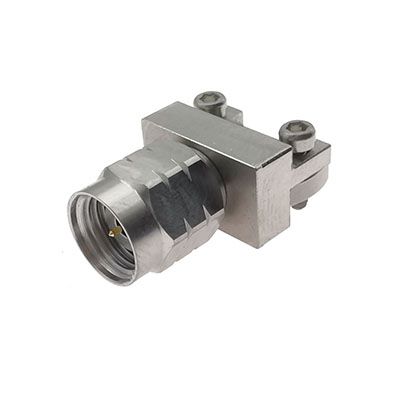

| EL185M-1 | 1.85mm | Male | 67 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.35 | Add to RFQ |
| EL185M-2 | 1.85mm | Male | 67 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.35 | Add to RFQ |

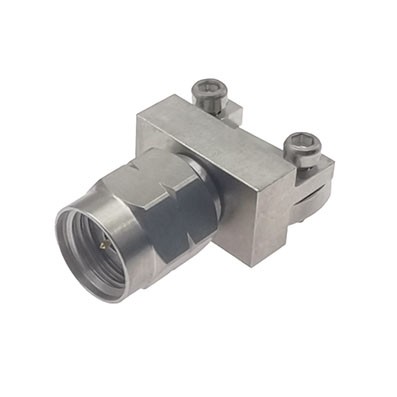

| EL24M-1 | 2.4mm | Male | 50 GHz | 0.5 inch | 0.01 inch | 2.5 mm | 1.3 | Add to RFQ |
| EL24M-2 | 2.4mm | Male | 50 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.3 | Add to RFQ |
| EL24M-3 | 2.4mm | Male | 50 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.3 | Add to RFQ |
| EL292M-1 | 2.92mm | Male | 40 GHz | 0.5 inch | 0.01 inch | 2.5 mm | 1.25 | Add to RFQ |

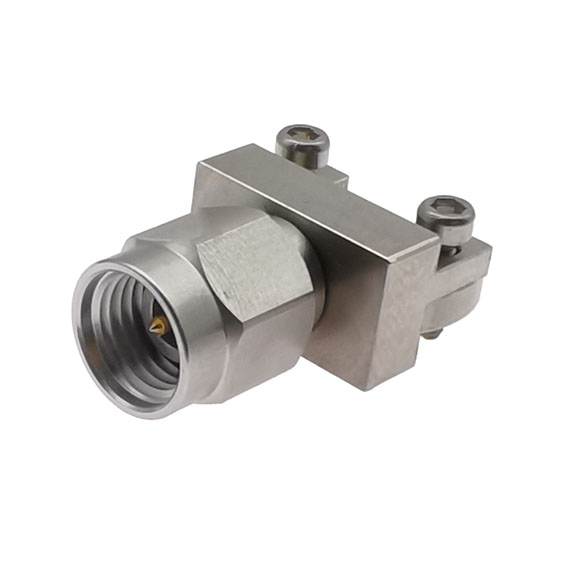

| EL292M-2 | 2.92mm | Male | 40 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.25 | Add to RFQ |
| EL292M-3 | 2.92mm | Male | 40 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.25 | Add to RFQ |
