UF series cable assemblies from RF ONE feature super flexibility and mechanical phase stability with stranded SPC center conductor. UF360 works to 40 GHz with unique PTFE wrapping jacket that enhances its flexibility while accomplishing operating temp up to 200℃. UF520 and UF450 work to 26.5 GHz and 40GHz respectively, in PUR or FEP jacket. These cables are alternative to H+S Sucoflex, rugged armors available.
Features:
➤ Please check our Cable Cross Reference Table VS other major cable vendors.
| P/N | Frequency Max | Outer Diameter | Static Bend Radius | Loss at Max Freq | Power at Max Freq | Add to RFQ |
|---|---|---|---|---|---|---|
|

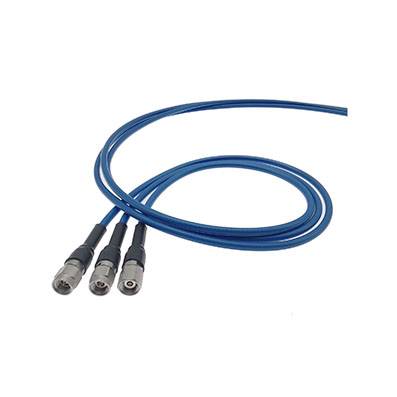

UF370P |
50 GHz | 3.7 mm | 18 mm | 4.1 dB/m | 47 W | Add to RFQ |
| UF360 | 40 GHz | 3.8 mm | 18 mm | 3.1 dB/m | 54 W | Add to RFQ |

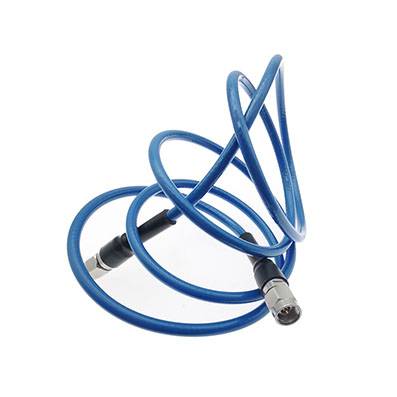

| UF450 | 40 GHz | 4.5 mm | 20 mm | 3 dB/m | 18 W | Add to RFQ |
|

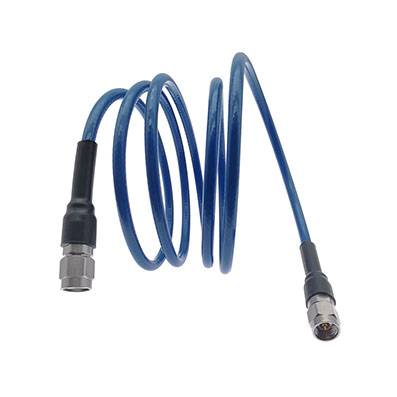

UF520 |
26.5 GHz | 5.2 mm | 18 mm | 2.5 dB/m | 23 W | Add to RFQ |

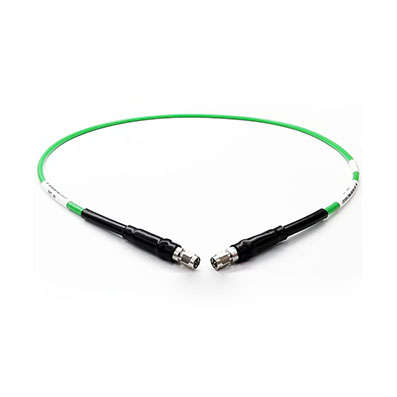

| UF550 | 26.5 GHz | 5.3 mm | 28 mm | 1.6 dB/m | 121 W | Add to RFQ |
