Our 1.85mm in series adapters are available with straight and right angle styles, both tested to 67 GHz and usable to 70 GHz. The V type 1.85mm connectors can be mated with 2.4mm. RF ONE also offers 1.85mm between series adapters including 1.85mm to Mini-SMP, 1.85mm to 2.92mm, 1.85mm to 2.4mm, 1.85mm to SMA etc which are shipped from stock.
P/N | Frequency Max | Connector 1 | Connector 2 | Body Style | VSWR Max | Add to RFQ |
---|---|---|---|---|---|---|
A6704B |
67 GHz | 1.0mm Female | 1.85mm Female | Straight | 1.25 | Add to RFQ |
A6705B |
67 GHz | 1.0mm Male | 1.85mm Female | Straight | 1.25 | Add to RFQ |
A6706B |
67 GHz | 1.0mm Female | 1.85mm Male | Straight | 1.25 | Add to RFQ |
A6707B |
67 GHz | 1.0mm Male | 1.85mm Male | Straight | 1.25 | Add to RFQ |

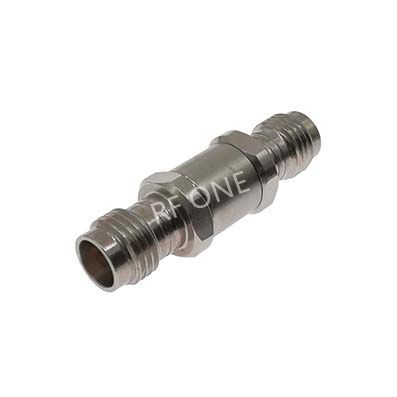

A6701B | 67 GHz | 1.85mm Female | 1.85mm Female | Straight | 1.3 | Add to RFQ |
A6701B-R1 | 67 GHz | 1.85mm Female | 1.85mm Female | Right Angle | 1.3 | Add to RFQ |

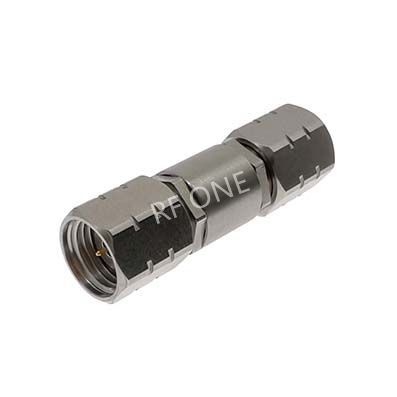

A6702B | 67 GHz | 1.85mm Male | 1.85mm Male | Straight | 1.3 | Add to RFQ |
A6702B-R1 | 67 GHz | 1.85mm Male | 1.85mm Male | Right Angle | 1.3 | Add to RFQ |

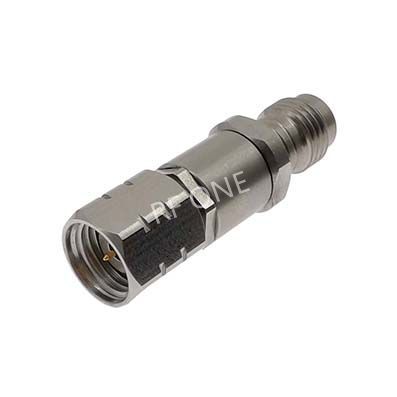

A6703B | 67 GHz | 1.85mm Male | 1.85mm Female | Straight | 1.3 | Add to RFQ |

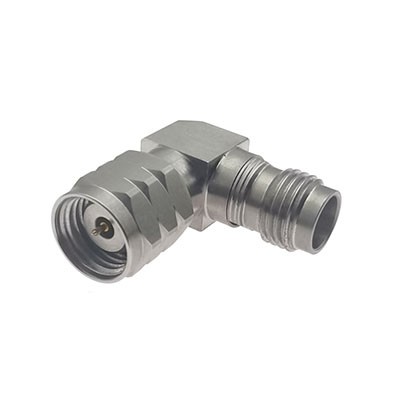

A6703B-R1 | 67 GHz | 1.85mm Male | 1.85mm Female | Right Angle | 1.3 | Add to RFQ |

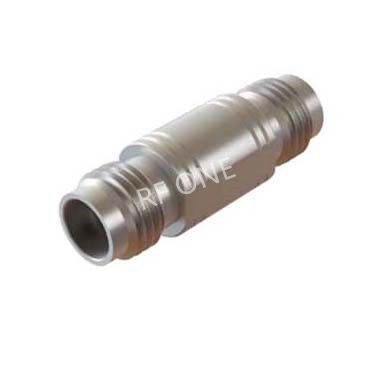

A6501P | 67 GHz | 1.85mm Female | 1.85mm Female | Straight | 1.25 | Add to RFQ |
A6501P-F | 67 GHz | 1.85mm Female | 1.85mm Female | 4 Hole Flange | 1.25 | Add to RFQ |
A6501P-Y | 67 GHz | 1.85mm Female | 1.85mm Female | Bulkhead | 1.25 | Add to RFQ |

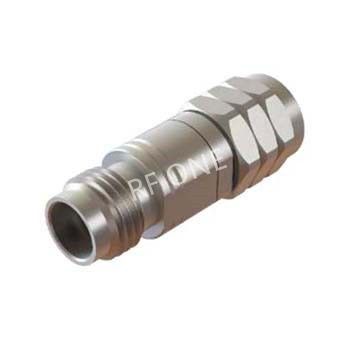

A6502P | 67 GHz | 1.85mm Male | 1.85mm Female | Straight | 1.25 | Add to RFQ |

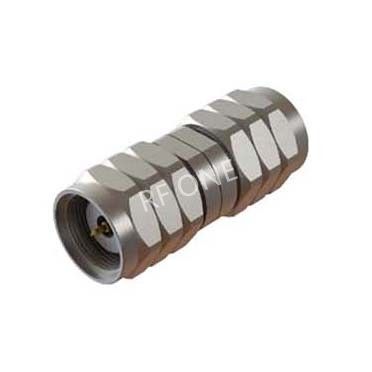

A6503P | 67 GHz | 1.85mm Male | 1.85mm Male | Straight | 1.25 | Add to RFQ |

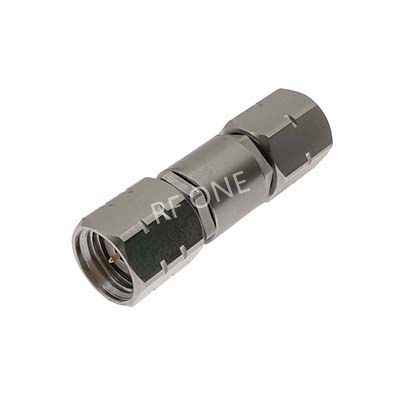

A5004B | 50 GHz | 1.85mm Male | 2.4mm Male | Straight | 1.2 | Add to RFQ |

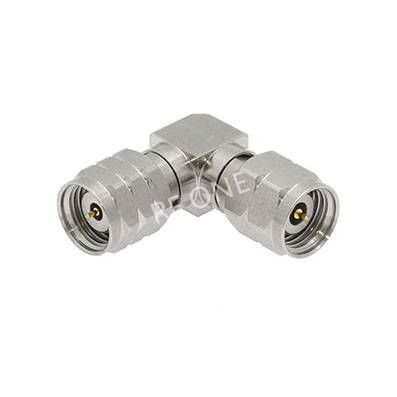

A5004B-RA | 50 GHz | 1.85mm Male | 2.4mm Male | Right Angle | 1.3 | Add to RFQ |

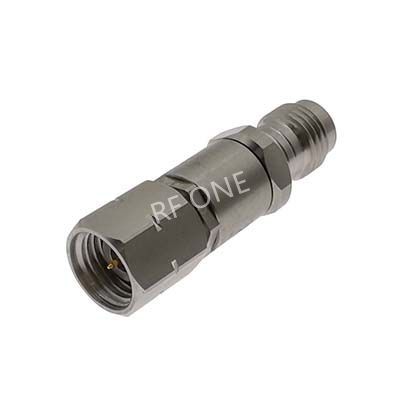

A5005B | 50 GHz | 1.85mm Female | 2.4mm Male | Straight | 1.2 | Add to RFQ |

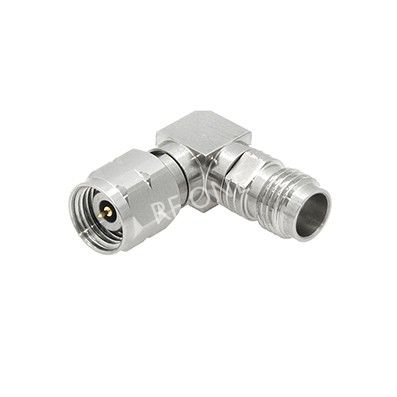

A5005B-RA | 50 GHz | 1.85mm Female | 2.4mm Male | Right Angle | 1.3 | Add to RFQ |

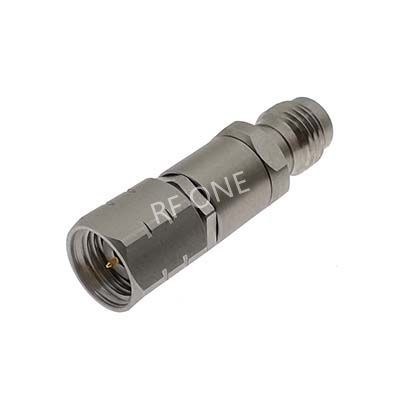

A5006B | 50 GHz | 1.85mm Male | 2.4mm Female | Straight | 1.2 | Add to RFQ |
A5006B-RA | 50 GHz | 1.85mm Male | 2.4mm Female | Right Angle | 1.3 | Add to RFQ |
A5007B | 50 GHz | 1.85mm Female | 2.4mm Female | Straight | 1.2 | Add to RFQ |
A5007B-RA | 50 GHz | 1.85mm Female | 2.4mm Female | Right Angle | 1.3 | Add to RFQ |
A4008B | 40 GHz | 1.85mm Male | 2.92mm Male | Straight | 1.15 | Add to RFQ |
A4008B-RA | 40 GHz | 1.85mm Male | 2.92mm Male | Right Angle | 1.25 | Add to RFQ |
A4009B | 40 GHz | 1.85mm Female | 2.92mm Male | Straight | 1.15 | Add to RFQ |
A4009B-RA | 40 GHz | 1.85mm Female | 2.92mm Male | Right Angle | 1.25 | Add to RFQ |
A4010B | 40 GHz | 1.85mm Female | 2.92mm Female | Straight | 1.15 | Add to RFQ |
A4010B-RA | 40 GHz | 1.85mm Female | 2.92mm Female | Right Angle | 1.25 | Add to RFQ |
A4011B | 40 GHz | 1.85mm Male | 2.92mm Female | Straight | 1.15 | Add to RFQ |
A4011B-RA | 40 GHz | 1.85mm Male | 2.92mm Female | Right Angle | 1.25 | Add to RFQ |
A2716B | 34 GHz | 1.85mm Male | 3.5mm Male | Straight | 1.2 | Add to RFQ |
A2717B | 34 GHz | 1.85mm Female | 3.5mm Male | Straight | 1.2 | Add to RFQ |
A2718B | 34 GHz | 1.85mm Male | 3.5mm Female | Straight | 1.2 | Add to RFQ |
A2719B | 34 GHz | 1.85mm Female | 3.5mm Female | Straight | 1.2 | Add to RFQ |
A3312P | 33 GHz | 1.85mm Female | 3.5mm Female | Straight | 1.15 | Add to RFQ |
A3313P | 33 GHz | 1.85mm Female | 3.5mm Male | Straight | 1.15 | Add to RFQ |
A3314P | 33 GHz | 1.85mm Male | 3.5mm Female | Straight | 1.15 | Add to RFQ |
A3315P | 33 GHz | 1.85mm Male | 3.5mm Male | Straight | 1.15 | Add to RFQ |
A1855B | 18 GHz | 1.85mm Male | SMA Male | Straight | 1.15 | Add to RFQ |
A1856B | 18 GHz | 1.85mm Female | SMA Male | Straight | 1.15 | Add to RFQ |
A1857B | 18 GHz | 1.85mm Male | SMA Female | Straight | 1.15 | Add to RFQ |
A1858B | 18 GHz | 1.85mm Female | SMA Female | Straight | 1.15 | Add to RFQ |
A6708B | 67 GHz | Mini SMP Female | 1.85mm Female | Straight | 1.45 | Add to RFQ |
A6709B | 67 GHz | Mini SMP Male | 1.85mm Female | Straight | 1.45 | Add to RFQ |
A6710B | 67 GHz | Mini SMP Female | 1.85mm Male | Straight | 1.45 | Add to RFQ |
A6711B | 67 GHz | Mini SMP Male | 1.85mm Male | Straight | 1.45 | Add to RFQ |
