Power Dividers

RF power dividers and RF power combiners are used in a wide variety of applications where a signal needs to be distributed or combined. RF ONE offers a comprehensive selection of 2-way through 16-way power dividers in 1.85mm, 2.4mm, 2.92mm, BNC, N, SMA, BNC, TNC and 7/16 DIN connector types. Our wide range of high performance power dividers (splitters / combiners) cover the frequency range from DC to 67 GHz.

P/N Frequency Min No.of Ways Frequency Max Frequency Range Insertion Loss Max Input VSWR Max Output VSWR Max Amplitude Balance Max Isolation Min Phase Balance Max Input Power Max Connector Add to RFQ
PDM-1500-B2 0.001 GHz 0.5 GHz 0.8 dB 1.3 1.3 ±0.3 dB 18 dB ±3° 1 W BNC Add to RFQ
PDM-1500-S2 0.001 GHz 0.5 GHz 0.6 dB 1.3 1.3 ±0.3 dB 20 dB ±3° 1 W SMA Add to RFQ
PDM-1500-S4 0.001 GHz 0.5 GHz 1.3 dB 1.45 1.45 ±0.4 dB 18 dB ±4° 1 W SMA Add to RFQ
PDM-1500-S8 0.001 GHz 0.5 GHz 2.0 dB 1.8 1.8 ±0.5 dB 18 dB ±8° 1 W SMA Add to RFQ
PDM-2500-S2 0.002 GHz 0.5 GHz 0.6 dB 1.25 1.25 ±0.3 dB 20 dB ±3° 1 W SMA Add to RFQ
PDM-430-S2 0.004 GHz 0.03 GHz 0.3 dB 1.25 1.25 ±0.2 dB 25 dB ±2° 1 W SMA Add to RFQ
PDM-430-S3 0.004 GHz 0.03 GHz 0.8 dB 1.35 1.25 ±0.3 dB 25 dB ±3° 1 W SMA Add to RFQ
PDM-5500-B2 0.005 GHz 0.5 GHz 1.0 dB 1.25 1.25 ±0.3 dB 20 dB ±3° 1 W BNC Add to RFQ
PDM-5500-N2 0.005 GHz 0.5 GHz 1.0 dB 1.25 1.2 ±0.3 dB 20 dB ±3° 1 W N Add to RFQ
PDM-5500-S2 0.005 GHz 0.5 GHz 0.6 dB 1.25 1.25 ±0.3 dB 20 dB ±3° 1 W SMA Add to RFQ
PDM-51000-N2 0.005 GHz 1 GHz 1.2 dB 1.3 1.3 ±0.3 dB 18 dB ±3° 1 W N Add to RFQ
PDM-51000-S2 0.005 GHz 1 GHz 1.0 dB 1.3 1.3 ±0.3 dB 18 dB ±3° 1 W SMA Add to RFQ
PDM-51000-S3 0.005 GHz 1 GHz 1.7 dB 1.7 1.4 ±0.4 dB 18 dB ±6° 1 W SMA Add to RFQ
PDM-51000-S4 0.005 GHz 1 GHz 1.6 dB 1.3 1.3 ±0.4 dB 18 dB ±4° 1 W SMA Add to RFQ
PDM-51000-S8 0.005 GHz 1 GHz 3.0 dB 1.3 1.3 ±0.5 dB 18 dB ±5° 1 W SMA Add to RFQ
PDM-10300-S2 0.01 GHz 0.3 GHz 0.5 dB 1.2 1.2 ±0.2 dB 20 dB ±2° 1 W SMA Add to RFQ
PDM-10300-S3 0.01 GHz 0.3 GHz 1.0 dB 1.45 1.25 ±0.4 dB 18 dB ±4° 1 W SMA Add to RFQ
PDM-10300-S4 0.01 GHz 0.3 GHz 1.0 dB 1.25 1.25 ±0.4 dB 20 dB ±4° 1 W SMA Add to RFQ
PDM-101000-B2 0.01 GHz 1 GHz 1.0 dB 1.3 1.3 ±0.3 dB 18 dB ±3° 1 W BNC Add to RFQ
PDM-101000-N2 0.01 GHz 1 GHz 1.0 dB 1.3 1.3 ±0.3 dB 18 dB ±3° 1 W N Add to RFQ
PDM-101000-S2 0.01 GHz 1 GHz 1.0 dB 1.25 1.25 ±0.3 dB 20 dB ±3° 1 W SMA Add to RFQ
PDM-101000-S3 0.01 GHz 1 GHz 1.7 dB 1.7 1.4 ±0.4 dB 18 dB ±6° 1 W SMA Add to RFQ
PDM-101000-S4 0.01 GHz 1 GHz 1.6 dB 1.25 1.25 ±0.4 dB 18 dB ±4° 1 W SMA Add to RFQ
PDM-50500-S2 0.05 GHz 0.5 GHz 0.8 dB 1.25 1.25 ±0.3 dB 20 dB ±3° 1 W SMA Add to RFQ
PDM-50500-S3 0.05 GHz 0.5 GHz 1.2 dB 1.3 1.3 ±0.4 dB 20 dB ±4° 1 W SMA Add to RFQ
PDM-50960-N2 0.05 GHz 0.96 GHz 1.2 dB 1.25 1.25 ±0.3 dB 18 dB ±3° 1 W N Add to RFQ
PDM-50960-N4 0.05 GHz 0.96 GHz 2.0 dB 1.25 1.25 ±0.4 dB 18 dB ±4° 1 W N Add to RFQ
PDM-50960-N8 0.05 GHz 0.96 GHz 3.5 dB 1.3 1.3 ±0.4 dB 18 dB ±5° 1 W N Add to RFQ
PDM-00101-S2 0.1 GHz 1 GHz 1.0 dB 1.3 1.3 ±0.3 dB 18 dB ±3° 1 W SMA Add to RFQ
PDM-00101-S8 0.1 GHz 1 GHz 3.0 dB 1.3 1.3 ±0.5 dB 18 dB ±5° 1 W SMA Add to RFQ
PDM-00103-S2 0.1 GHz 3 GHz 2.5 dB 1.3 1.2 ±0.3 dB 18 dB ±4° 30 W SMA Add to RFQ
PDM-002027-S2 0.2 GHz 2.7 GHz 1.2 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-002027-S4 0.2 GHz 2.7 GHz 2.0 dB 1.35 1.25 ±0.3 dB 18 dB ±3° 30 W SMA Add to RFQ
PDM-0038046-S2 0.38 GHz 4.6 GHz 1.0 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-0038046-S4 0.38 GHz 4.6 GHz 1.5 dB 1.3 1.2 ±0.3 dB 18 dB ±4° 30 W SMA Add to RFQ
PDM-003806-N2 0.38 GHz 6 GHz 1.4 dB 1.3 1.2 ±0.2 dB 20 dB ±3° 30 W N Add to RFQ
PDM-003806-N4 0.38 GHz 6 GHz 2.0 dB 1.35 1.25 ±0.3 dB 18 dB ±4° 30 W N Add to RFQ
Hot

PDM-003806-S2
0.38 GHz 6 GHz 1.2 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-003806-S3 0.38 GHz 6 GHz 2.8 dB 1.6 1.5 ±0.9 dB 18 dB ±8° 20 W SMA Add to RFQ
Hot

PDM-003806-S4
0.38 GHz 6 GHz 1.8 dB 1.25 1.2 ±0.2 dB 18 dB ±4° 30 W SMA Add to RFQ
PDM-003806-S8 0.38 GHz 6 GHz 3.5 dB 1.35 1.25 ±0.4 dB 18 dB ±5° 20 W SMA Add to RFQ
PDM-003808-S2 0.38 GHz 8 GHz 1.4 dB 1.25 1.2 ±0.3 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-003808-S4 0.38 GHz 8 GHz 2.0 dB 1.25 1.22 ±0.3 dB 20 dB ±4° 30 W SMA Add to RFQ
PDM-00401-N2-100 0.4 GHz 1 GHz 0.4 dB 1.25 1.2 ±0.2 dB 18 dB ±2° 100 W N Add to RFQ
PDM-004072-S2 0.4 GHz 7.2 GHz 1.4 dB 1.3 1.2 ±0.2 dB 18 dB ±3° 20 W SMA Add to RFQ
PDM-004072-S4 0.4 GHz 7.2 GHz 2.0 dB 1.3 1.2 ±0.3 dB 18 dB ±4° 20 W SMA Add to RFQ
PDM-00501-S4 0.5 GHz 1 GHz 0.5 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-00503-N2 0.5 GHz 3 GHz 1.0 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W N Add to RFQ
PDM-00503-S2 0.5 GHz 3 GHz 0.6 dB 1.25 1.2 ±0.2 dB 20 dB ±2° 30 W SMA Add to RFQ
PDM-00503-S4 0.5 GHz 3 GHz 0.7 dB 1.23 1.2 ±0.2 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-00503-S8 0.5 GHz 3 GHz 1.0 dB 1.25 1.2 ±0.3 dB 20 dB ±4° 30 W SMA Add to RFQ
Hot

PDM-00506-N2
0.5 GHz 6 GHz 1.2 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W N Add to RFQ
PDM-00506-N3 0.5 GHz 6 GHz 2.8 dB 1.5 1.4 ±0.8 dB 18 dB ±8° 20 W N Add to RFQ
Hot

PDM-00506-N4
0.5 GHz 6 GHz 2.0 dB 1.3 1.2 ±0.3 dB 18 dB ±4° 30 W N Add to RFQ
PDM-00506-N8 0.5 GHz 6 GHz 3.2 dB 1.4 1.25 ±0.4 dB 18 dB ±5° 30 W N Add to RFQ
PDM-00506-N16 0.5 GHz 6 GHz 4.8 dB 1.5 1.3 ±0.5 dB 18 dB ±8° 30 W N Add to RFQ
Hot

PDM-00506-S2
0.5 GHz 6 GHz 1.0 dB 1.4 1.2 ±0.2 dB 18 dB ±2° 30 W SMA Add to RFQ
PDM-00506-S2A 0.5 GHz 6 GHz 1.2 dB 1.25 1.2 ±0.2 dB 20 dB ±2° 30 W SMA Add to RFQ
Hot

PDM-00506-S3
0.5 GHz 6 GHz 2.6 dB 1.4 1.4 ±0.8 dB 20 dB ±8° 20 W SMA Add to RFQ
Hot

PDM-00506-S4
0.5 GHz 6 GHz 1.8 dB 1.25 1.2 ±0.3 dB 20 dB ±4° 30 W SMA Add to RFQ
PDM-00506-S4A 0.5 GHz 6 GHz 1.6 dB 1.25 1.2 ±0.3 dB 20 dB ±4° 30 W SMA Add to RFQ
Hot

PDM-00506-S6
0.5 GHz 6 GHz 2.2 dB 1.3 1.3 ±0.8 dB 18 dB ±8° 30 W SMA Add to RFQ
Hot

PDM-00506-S8
0.5 GHz 6 GHz 2.6 dB 1.4 1.3 ±0.4 dB 18 dB ±5° 30 W SMA Add to RFQ
PDM-00506-S8A 0.5 GHz 6 GHz 2.8 dB 1.25 1.2 ±0.3 dB 20 dB ±4° 30 W SMA Add to RFQ
PDM-00506-S12 0.5 GHz 6 GHz 5.0 dB 1.5 1.3 ±1.0 dB 18 dB ±12° 20 W SMA Add to RFQ
PDM-00506-S16 0.5 GHz 6 GHz 4.8 dB 1.4 1.3 ±0.5 dB 20 dB ±8° 30 W SMA Add to RFQ
PDM-00508-N2 0.5 GHz 8 GHz 1.8 dB 1.25 1.25 ±0.2 dB 20 dB ±3° 30 W N Add to RFQ
PDM-00508-S2 0.5 GHz 8 GHz 1.0 dB 1.4 1.2 ±0.2 dB 18 dB ±3° 20 W SMA Add to RFQ
PDM-00508-S3 0.5 GHz 8 GHz 2.2 dB 1.5 1.4 ±1.0 dB 17 dB ±10° 20 W SMA Add to RFQ
PDM-00508-S4 0.5 GHz 8 GHz 2.0 dB 1.3 1.2 ±0.3 dB 18 dB ±4° 20 W SMA Add to RFQ
PDM-00508-S6 0.5 GHz 8 GHz 3.5 dB 1.55 1.4 ±1.0 dB 17 dB ±10° 20 W SMA Add to RFQ
PDM-00508-S8 0.5 GHz 8 GHz 3.0 dB 1.5 1.4 ±0.4 dB 18 dB ±5° 20 W SMA Add to RFQ
PDM-00508-S12 0.5 GHz 8 GHz 5.0 dB 1.6 1.4 ±1.2 dB 16 dB ±12° 20 W SMA Add to RFQ
PDM-00508-S16 0.5 GHz 8 GHz 4.5 dB 1.5 1.3 ±0.4 dB 18 dB ±8° 20 W SMA Add to RFQ
PDM-00510-S2 0.5 GHz 10 GHz 1.8 dB 1.3 1.25 ±0.3 dB 18 dB ±3° 20 W SMA Add to RFQ
PDM-00512-S3 0.5 GHz 12 GHz 2.6 dB 2 1.5 ±0.8 dB 15 dB ±8° 20 W SMA Add to RFQ
Hot

PDM-00518-S2
0.5 GHz 18 GHz 1.0 dB 1.5 1.5 ±0.3 dB 16 dB ±4° 30 W SMA Add to RFQ
Hot

PDM-00518-S4
0.5 GHz 18 GHz 2.5 dB 2 1.5 ±0.8 dB 15 dB ±8° 30 W SMA Add to RFQ
PDM-00510-S4 0.5 GHz 10 GHz 2.2 dB 1.35 1.25 ±0.3 dB 18 dB ±4° 20 W SMA Add to RFQ
PDM-00518-S8 0.5 GHz 18 GHz 5.0 dB 1.6 1.5 ±0.5 dB 16 dB ±8° 20 W SMA Add to RFQ
PDM-005265-S2 0.5 GHz 26.5 GHz 2.4 dB 1.6 1.6 ±0.4 dB 16 dB ±4° 20 W SMA Add to RFQ
PDM-005265-S4 0.5 GHz 26.5 GHz 3.0 dB 1.5 1.5 ±0.5 dB 14 dB ±6° 20 W SMA Add to RFQ
PDM-00540-K2 0.5 GHz 40 GHz 2.8 dB 1.6 1.5 ±0.4 dB 15 dB ±4° 20 W 2.92mm Add to RFQ
PDM-00540-K4 0.5 GHz 40 GHz 5.0 dB 1.7 1.6 ±0.5 dB 11 dB ±7° 20 W 2.92mm Add to RFQ
PDM-00606-S8 0.6 GHz 6 GHz 2.8 dB 1.3 1.25 ±0.4 dB 18 dB ±5° 30 W SMA Add to RFQ
PDM-00606-S12 0.6 GHz 6 GHz 4.0 dB 1.4 1.3 ±1.0 dB 18 dB ±12° 20 W SMA Add to RFQ
PDM-00606-S16 0.6 GHz 6 GHz 3.0 dB 1.5 1.25 ±0.4 dB 20 dB ±6° 10 W SMA Add to RFQ
PDM-00612-S2A 0.6 GHz 12 GHz 1.8 dB 1.35 1.25 ±0.3 dB 18 dB ±3° 20 W SMA Add to RFQ
PDM-0069027-S2 0.69 GHz 2.7 GHz 0.5 dB 1.25 1.2 ±0.2 dB 20 dB ±2° 30 W SMA Add to RFQ
PDM-0069027-S3 0.69 GHz 2.7 GHz 0.8 dB 1.3 1.2 ±0.5 dB 22 dB ±5° 30 W SMA Add to RFQ
PDM-0069027-S4 0.69 GHz 2.7 GHz 0.8 dB 1.25 1.2 ±0.3 dB 18 dB ±3° 30 W SMA Add to RFQ
PDM-0069027-S8 0.69 GHz 2.7 GHz 1.0 dB 1.25 1.2 ±0.3 dB 20 dB ±4° 30 W SMA Add to RFQ
PDM-0069027-S16 0.69 GHz 2.7 GHz 1.5 dB 1.3 1.2 ±0.3 dB 20 dB ±5° 30 W SMA Add to RFQ
PDM-00698027-N2 0.698 GHz 2.7 GHz 0.5 dB 1.3 1.2 ±0.2 dB 20 dB ±2° 30 W N Add to RFQ
PDM-00698027-N8 0.698 GHz 2.7 GHz 1.8 dB 1.3 1.2 ±0.3 dB 20 dB ±4° 30 W N Add to RFQ
PDM-00698038-N2 0.698 GHz 3.8 GHz 0.8 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W N Add to RFQ
PDM-00698038-N4 0.698 GHz 3.8 GHz 1.6 dB 1.3 1.2 ±0.3 dB 24 dB ±4° 30 W N Add to RFQ
PDM-00698038-S2 0.698 GHz 3.8 GHz 0.8 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 50 W SMA Add to RFQ
PDM-00698038-S3 0.698 GHz 3.8 GHz 1.2 dB 1.35 1.25 ±0.6 dB 18 dB ±6° 50 W SMA Add to RFQ
PDM-00698038-S4 0.698 GHz 3.8 GHz 1.4 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 50 W SMA Add to RFQ
PDM-008027-N2 0.8 GHz 2.7 GHz 0.5 dB 1.25 1.2 ±0.2 dB 20 dB ±2° 30 W N Add to RFQ
PDM-0102-B2 1 GHz 2 GHz 1.0 dB 1.25 1.2 ±0.3 dB 20 dB ±3° 30 W BNC Add to RFQ
PDM-0106-S2 1 GHz 6 GHz 0.6 dB 1.2 1.2 ±0.2 dB 20 dB ±3° 20 W SMA Add to RFQ
PDM-0106-S4 1 GHz 6 GHz 1.0 dB 1.3 1.2 ±0.3 dB 20 dB ±3° 20 W SMA Add to RFQ
PDM-0106-S6 1 GHz 6 GHz 1.8 dB 1.4 1.3 ±0.8 dB 18 dB ±8° 20 W SMA Add to RFQ
PDM-0108-S2 1 GHz 8 GHz 0.8 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 20 W SMA Add to RFQ
PDM-0108-S3 1 GHz 8 GHz 1.5 dB 1.35 1.25 ±0.8 dB 18 dB ±8° 20 W SMA Add to RFQ
PDM-0108-S4 1 GHz 8 GHz 1.4 dB 1.3 1.2 ±0.3 dB 20 dB ±3° 20 W SMA Add to RFQ
PDM-0108-S6 1 GHz 8 GHz 2.0 dB 1.4 1.3 ±0.8 dB 18 dB ±6° 20 W SMA Add to RFQ
PDM-0112-S8 1 GHz 12 GHz 3.2 dB 1.6 1.3 ±0.4 dB 18 dB ±6° 20 W SMA Add to RFQ
PDM-0118-N2 1 GHz 18 GHz 1.5 dB 1.4 1.4 ±0.3 dB 18 dB ±3° 20 W N Add to RFQ
PDM-0118-S2A 1 GHz 18 GHz 1.2 dB 1.4 1.3 ±0.3 dB 18 dB ±3° 20 W SMA Add to RFQ
Hot

PDM-0118-S4
1 GHz 18 GHz 2.5 dB 1.55 1.5 ±0.4 dB 16 dB ±5° 20 W SMA Add to RFQ
Hot

PDM-0118-S8
1 GHz 18 GHz 4.0 dB 1.8 1.6 ±0.5 dB 17 dB ±10° 20 W SMA Add to RFQ
PDM-01265-S2 1 GHz 26.5 GHz 1.5 dB 1.8 1.5 ±0.4 dB 16 dB ±5° 20 W SMA Add to RFQ
PDM-01265-S4 1 GHz 26.5 GHz 3.0 dB 1.5 1.5 ±0.5 dB 16 dB ±6° 20 W SMA Add to RFQ
PDM-01265-K2 1 GHz 26.5 GHz 1.5 dB 1.8 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-0132-K4 1 GHz 32 GHz 3.5 dB 1.6 1.5 ±0.5 dB 16 dB ±6° 20 W 2.92mm Add to RFQ
Hot

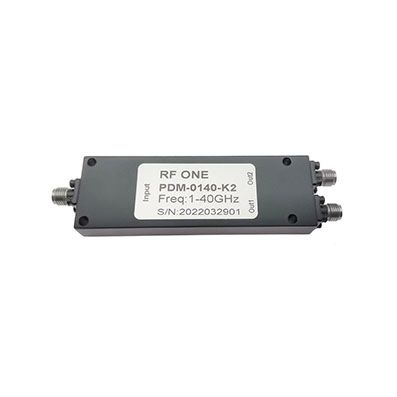

PDM-0140-K2
1 GHz 40 GHz 1.8 dB 1.8 1.6 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ

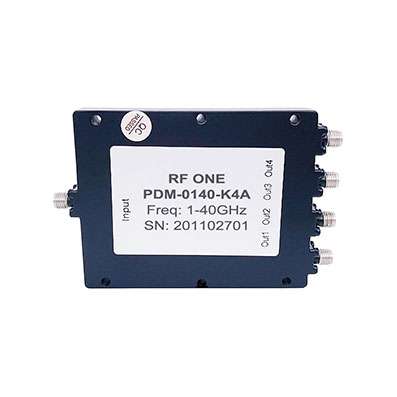

PDM-0140-K4A 1 GHz 40 GHz 4.8 dB 1.7 1.6 ±0.5 dB 16 dB ±7° 20 W 2.92mm Add to RFQ
PDM-01806-S2 1.8 GHz 6 GHz 0.6 dB 1.25 1.2 ±0.2 dB 20 dB ±2° 30 W SMA Add to RFQ
PDM-0204-N2 2 GHz 4 GHz 0.5 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 20 W N Add to RFQ
PDM-0204-S2 2 GHz 4 GHz 0.5 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-0204-S4 2 GHz 4 GHz 0.6 dB 1.25 1.2 ±0.3 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-0204-S8 2 GHz 4 GHz 1.0 dB 1.3 1.2 ±0.3 dB 20 dB ±4° 30 W SMA Add to RFQ
PDM-0206-N2 2 GHz 6 GHz 0.6 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W N Add to RFQ
PDM-0206-N3 2 GHz 6 GHz 0.8 dB 1.25 1.2 ±0.5 dB 20 dB ±5° 30 W N Add to RFQ
PDM-0206-N4 2 GHz 6 GHz 0.8 dB 1.25 1.2 ±0.3 dB 20 dB ±3° 30 W N Add to RFQ
PDM-0206-S2 2 GHz 6 GHz 0.5 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W SMA Add to RFQ

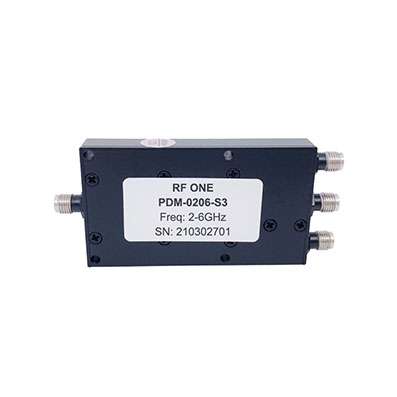

PDM-0206-S3 2 GHz 6 GHz 0.7 dB 1.25 1.2 ±0.5 dB 20 dB ±5° 20 W SMA Add to RFQ
PDM-0206-S4 2 GHz 6 GHz 0.8 dB 1.25 1.2 ±0.3 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-0206-S6 2 GHz 6 GHz 1.0 dB 1.35 1.25 ±0.5 dB 20 dB ±5° 30 W SMA Add to RFQ

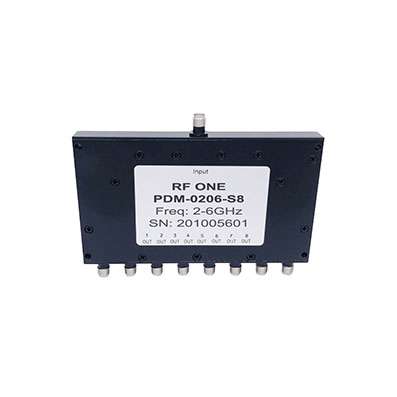

PDM-0206-S8 2 GHz 6 GHz 1.2 dB 1.35 1.25 ±0.4 dB 18 dB ±5° 30 W SMA Add to RFQ
PDM-0206-S16 2 GHz 6 GHz 1.6 dB 1.4 1.25 ±0.3 dB 18 dB ±5° 30 W SMA Add to RFQ
PDM-0208-N2 2 GHz 8 GHz 0.8 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W N Add to RFQ
PDM-0208-N4 2 GHz 8 GHz 1.2 dB 1.4 1.3 ±0.3 dB 18 dB ±4° 30 W N Add to RFQ
PDM-0208-N8 2 GHz 8 GHz 2.0 dB 1.4 1.3 ±0.3 dB 18 dB ±4° 30 W N Add to RFQ
Hot

PDM-0208-S2A
2 GHz 8 GHz 0.6 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-0208-S3 2 GHz 8 GHz 1.0 dB 1.3 1.25 ±0.5 dB 18 dB ±5° 20 W SMA Add to RFQ
Hot

PDM-0208-S4A
2 GHz 8 GHz 1.0 dB 1.35 1.25 ±0.3 dB 18 dB ±4° 30 W SMA Add to RFQ
PDM-0208-S6 2 GHz 8 GHz 1.2 dB 1.35 1.25 ±0.5 dB 20 dB ±5° 30 W SMA Add to RFQ
Hot

PDM-0208-S8
2 GHz 8 GHz 1.5 dB 1.35 1.25 ±0.4 dB 18 dB ±5° 30 W SMA Add to RFQ
PDM-0208-S12 2 GHz 8 GHz 1.6 dB 1.45 1.25 ±0.6 dB 18 dB ±6° 30 W SMA Add to RFQ
PDM-0208-S16 2 GHz 8 GHz 2.8 dB 1.5 1.3 ±0.4 dB 18 dB ±6° 30 W SMA Add to RFQ
PDM-0212-S2 2 GHz 12 GHz 0.8 dB 1.35 1.25 ±0.3 dB 18 dB ±3° 20 W SMA Add to RFQ
PDM-0218-N2 2 GHz 18 GHz 1.5 dB 1.5 1.5 ±0.3 dB 17 dB ±4° 20 W N Add to RFQ
PDM-0218-N4 2 GHz 18 GHz 2.2 dB 1.6 1.5 ±0.4 dB 17 dB ±6° 20 W N Add to RFQ
PDM-0218-N6 2 GHz 18 GHz 3.0 dB 1.7 1.6 ±0.6 dB 18 dB ±6° 20 W N Add to RFQ
Hot

PDM-0218-S2
2 GHz 18 GHz 1.0 dB 1.35 1.3 ±0.3 dB 18 dB ±4° 20 W SMA Add to RFQ
Hot

PDM-0218-S3
2 GHz 18 GHz 1.5 dB 1.5 1.5 ±0.6 dB 18 dB ±6° 20 W SMA Add to RFQ
Hot

PDM-0218-S4
2 GHz 18 GHz 1.6 dB 1.5 1.4 ±0.4 dB 18 dB ±6° 20 W SMA Add to RFQ

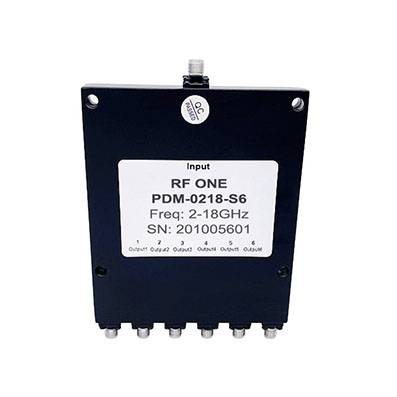

PDM-0218-S6 2 GHz 18 GHz 2.6 dB 1.5 1.5 ±0.6 dB 16 dB ±8° 20 W SMA Add to RFQ
PDM-0218-S8 2 GHz 18 GHz 3.0 dB 1.6 1.5 ±0.5 dB 16 dB ±10° 20 W SMA Add to RFQ
PDM-0218-S16 2 GHz 18 GHz 3.5 dB 1.7 1.5 ±0.5 dB 17 dB ±8° 20 W SMA Add to RFQ
PDM-02265-S2 2 GHz 26.5 GHz 1.2 dB 1.5 1.5 ±0.4 dB 17 dB ±4° 20 W SMA Add to RFQ
PDM-02265-K2 2 GHz 26.5 GHz 1.2 dB 1.5 1.5 ±0.4 dB 17 dB ±4° 20 W 2.92mm Add to RFQ
PDM-0240-K2 2 GHz 40 GHz 1.5 dB 1.5 1.5 ±0.4 dB 17 dB ±4° 20 W 2.92mm Add to RFQ
PDM-0240-K4 2 GHz 40 GHz 3.2 dB 1.8 1.5 ±0.5 dB 16 dB ±8° 20 W 2.92mm Add to RFQ
PDM-0408-S2 4 GHz 8 GHz 0.5 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-0408-S4 4 GHz 8 GHz 1.0 dB 1.35 1.25 ±0.3 dB 18 dB ±4° 30 W SMA Add to RFQ
PDM-0408-S8 4 GHz 8 GHz 0.8 dB 1.25 1.2 ±0.3 dB 20 dB ±3° 30 W SMA Add to RFQ
PDM-0408-S16 4 GHz 8 GHz 2.0 dB 1.5 1.3 ±0.4 dB 18 dB ±5° 30 W SMA Add to RFQ
PDM-0412-S2 4 GHz 12 GHz 0.8 dB 1.25 1.2 ±0.2 dB 18 dB ±3° 20 W SMA Add to RFQ
PDM-0412-S4 4 GHz 12 GHz 1.2 dB 1.4 1.3 ±0.2 dB 18 dB ±4° 20 W SMA Add to RFQ
PDM-0412-S8 4 GHz 12 GHz 1.5 dB 1.4 1.3 ±0.2 dB 18 dB ±4° 20 W SMA Add to RFQ
PDM-0414-S2 4 GHz 14 GHz 1.0 dB 1.35 1.3 ±0.3 dB 18 dB ±4° 20 W SMA Add to RFQ
PDM-0416-S2 4 GHz 16 GHz 0.8 dB 1.35 1.25 ±0.2 dB 18 dB ±3° 20 W SMA Add to RFQ
PDM-0416-S4 4 GHz 16 GHz 1.5 dB 1.4 1.3 ±0.3 dB 18 dB ±5° 20 W SMA Add to RFQ
PDM-0416-S8 4 GHz 16 GHz 2.8 dB 1.6 1.5 ±0.5 dB 16 dB ±10° 20 W SMA Add to RFQ
PDM-0440-K2 4 GHz 40 GHz 1.5 dB 1.5 1.5 ±0.4 dB 17 dB ±4° 20 W 2.92mm Add to RFQ
PDM-0618-S2 6 GHz 18 GHz 0.8 dB 1.3 1.3 ±0.3 dB 18 dB ±3° 20 W SMA Add to RFQ
PDM-0618-S3 6 GHz 18 GHz 1.2 dB 1.5 1.5 ±0.6 dB 18 dB ±6° 20 W SMA Add to RFQ
PDM-0618-S4 6 GHz 18 GHz 1.0 dB 1.4 1.4 ±0.3 dB 18 dB ±5° 20 W SMA Add to RFQ
PDM-0618-S8 6 GHz 18 GHz 2.8 dB 1.5 1.3 ±0.4 dB 16 dB ±5° 20 W SMA Add to RFQ
Hot

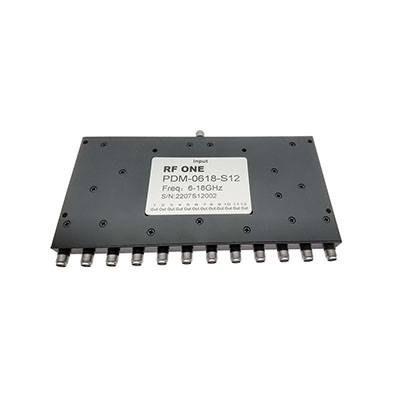

PDM-0618-S12
6 GHz 18 GHz 2.0 dB 1.8 1.6 ±0.8 dB 16 dB ±8° 20 W SMA Add to RFQ
PDM-0618-S16 6 GHz 18 GHz 1.8 dB 1.6 1.5 ±0.6 dB 17 dB ±6° 20 W SMA Add to RFQ
PDM-06265-S2 6 GHz 26.5 GHz 0.6 dB 1.6 1.5 ±0.3 dB 16 dB ±3° 20 W SMA Add to RFQ
PDM-06265-S4 6 GHz 26.5 GHz 2.0 dB 1.7 1.6 ±0.3 dB 16 dB ±3° 20 W SMA Add to RFQ
PDM-0640-K2 6 GHz 40 GHz 1.2 dB 1.6 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
Hot

PDM-0640-K4
6 GHz 40 GHz 2.0 dB 2 1.6 ±0.5 dB 15 dB ±8° 20 W 2.92mm Add to RFQ
Hot

PDM-0812-S2
8 GHz 12 GHz 0.5 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 20 W SMA Add to RFQ
PDM-0812-S3 8 GHz 12 GHz 1.0 dB 1.4 1.4 ±0.5 dB 18 dB ±5° 20 W SMA Add to RFQ
PDM-0812-S4 8 GHz 12 GHz 1.0 dB 1.25 1.2 ±0.4 dB 18 dB ±4° 20 W SMA Add to RFQ
PDM-0812-S8 8 GHz 12 GHz 1.4 dB 1.4 1.3 ±0.4 dB 18 dB ±5° 20 W SMA Add to RFQ
PDM-0812-S12 8 GHz 12 GHz 1.5 dB 1.7 1.5 ±0.6 dB 16 dB ±8° 20 W SMA Add to RFQ
PDM-0812-S16 8 GHz 12 GHz 1.6 dB 1.3 1.3 ±0.4 dB 18 dB ±5° 20 W SMA Add to RFQ
PDM-1020-S2 10 GHz 20 GHz 0.6 dB 1.4 1.4 ±0.3 dB 18 dB ±3° 20 W SMA Add to RFQ
PDM-1028-K2 10 GHz 28 GHz 0.8 dB 1.5 1.5 ±0.4 dB 16 dB ±4° 20 W 2.92mm Add to RFQ
PDM-1035-K2 10 GHz 35 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-1040-K2 10 GHz 40 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-1040-K4 10 GHz 40 GHz 1.6 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-1040-K8 10 GHz 40 GHz 2.5 dB 1.7 1.6 ±0.5 dB 16 dB ±8° 20 W 2.92mm Add to RFQ
PDM-10435-K2 10 GHz 43.5 GHz 1.3 dB 1.7 1.6 ±0.5 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-1218-S4 12 GHz 18 GHz 1.0 dB 1.4 1.3 ±0.3 dB 18 dB ±5° 20 W SMA Add to RFQ
PDM-1218-S8 12 GHz 18 GHz 1.6 dB 1.5 1.3 ±0.3 dB 18 dB ±6° 20 W SMA Add to RFQ

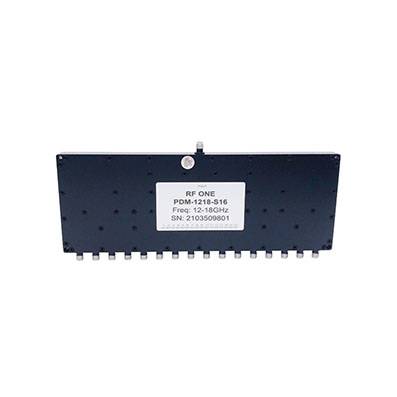

PDM-1218-S16 12 GHz 18 GHz 2.2 dB 1.5 1.3 ±0.3 dB 16 dB ±8° 20 W SMA Add to RFQ
PDM-13515-S2 13.5 GHz 15 GHz 0.5 dB 1.25 1.2 ±0.2 dB 20 dB ±3° 20 W SMA Add to RFQ
PDM-14531-K2 14.5 GHz 31 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±4° 20 W 2.92mm Add to RFQ
PDM-1520-S2 15 GHz 20 GHz 0.5 dB 1.5 1.3 ±0.3 dB 18 dB ±4° 20 W SMA Add to RFQ
PDM-1632-K2 16 GHz 32 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-1640-K8 16 GHz 40 GHz 2.5 dB 1.8 1.6 ±0.6 dB 15 dB ±8° 20 W 2.92mm Add to RFQ
PDM-18265-S2 18 GHz 26.5 GHz 0.6 dB 1.5 1.5 ±0.3 dB 16 dB ±3° 20 W SMA Add to RFQ
PDM-18265-S4 18 GHz 26.5 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W SMA Add to RFQ
PDM-1827-K4 18 GHz 27 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-18265-K8 18 GHz 26.5 GHz 1.6 dB 1.6 1.5 ±0.5 dB 16 dB ±8° 20 W 2.92mm Add to RFQ
PDM-1831-K2 18 GHz 31 GHz 0.8 dB 1.5 1.5 ±0.4 dB 18 dB ±4° 20 W 2.92mm Add to RFQ
PDM-1831-K4 18 GHz 31 GHz 1.0 dB 1.5 1.5 ±0.4 dB 18 dB ±6° 20 W 2.92mm Add to RFQ
PDM-1840-K2 18 GHz 40 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
Hot

PDM-1840-K4
18 GHz 40 GHz 1.6 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-1840-K8 18 GHz 40 GHz 3.2 dB 1.7 1.6 ±0.5 dB 16 dB ±8° 20 W 2.92mm Add to RFQ
PDM-1850-Q2 18 GHz 50 GHz 1.9 dB 1.8 1.8 ±0.8 dB 14 dB ±8° 20 W 2.4mm Add to RFQ
PDM-2021-S3 20 GHz 21 GHz 0.8 dB 1.35 1.35 ±1.2 dB 18 dB ±4° 20 W SMA Add to RFQ
PDM-2040-K2 20 GHz 40 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-2050-Q2 20 GHz 50 GHz 1.5 dB 1.7 1.7 ±0.8 dB 15 dB ±8° 20 W 2.4mm Add to RFQ
PDM-2126-S6 21 GHz 26 GHz 3.0 dB 1.5 1.5 ±0.8 dB 16 dB ±8° 20 W SMA Add to RFQ
PDM-2228-K2 22 GHz 28 GHz 0.6 dB 1.5 1.5 ±0.4 dB 18 dB ±5° 20 W 2.92mm Add to RFQ
PDM-2430-K6 24 GHz 30 GHz 2.0 dB 1.8 1.6 ±1.0 dB 15 dB ±10° 20 W 2.92mm Add to RFQ
PDM-2440-K2 24 GHz 40 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-2440-K4 24 GHz 40 GHz 1.6 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-255265-K8 25.5 GHz 26.5 GHz 1.6 dB 1.5 1.5 ±0.5 dB 18 dB ±8° 20 W 2.92mm Add to RFQ
PDM-26540-K2 26.5 GHz 40 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±4° 20 W 2.92mm Add to RFQ
PDM-26540-K4 26.5 GHz 40 GHz 1.6 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-2628-K2 26 GHz 28 GHz 0.6 dB 1.4 1.4 ±0.2 dB 20 dB ±3° 20 W 2.92mm Add to RFQ
PDM-2628-K4 26 GHz 28 GHz 1.0 dB 1.4 1.4 ±0.2 dB 20 dB ±5° 20 W 2.92mm Add to RFQ
PDM-2731-K2 27 GHz 31 GHz 0.6 dB 1.5 1.5 ±0.4 dB 16 dB ±4° 20 W 2.92mm Add to RFQ
PDM-2731-K4 27 GHz 31 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±5° 20 W 2.92mm Add to RFQ
PDM-2731-K8 27 GHz 31 GHz 1.6 dB 1.5 1.5 ±0.5 dB 18 dB ±8° 20 W 2.92mm Add to RFQ
PDM-2752-Q2 27 GHz 52 GHz 1.2 dB 1.7 1.7 ±0.8 dB 15 dB ±6° 20 W 2.4mm Add to RFQ
PDM-285325-K2 28.5 GHz 32.5 GHz 1.0 dB 1.5 1.5 ±0.4 dB 18 dB ±5° 20 W 2.92mm Add to RFQ
PDM-305325-K2 30.5 GHz 32.5 GHz 0.7 dB 1.5 1.5 ±0.3 dB 18 dB ±4° 20 W 2.92mm Add to RFQ
PDM-305325-K4 30.5 GHz 32.5 GHz 1.4 dB 1.5 1.5 ±0.4 dB 16 dB ±4° 20 W 2.92mm Add to RFQ
PDM-3240-K2 32 GHz 40 GHz 1.0 dB 1.5 1.5 ±0.4 dB 16 dB ±4° 20 W 2.92mm Add to RFQ
PDM-4346-Q2 43 GHz 46 GHz 1.6 dB 1.6 1.6 ±0.3 dB 16 dB ±3° 20 W 2.4mm Add to RFQ
PDR-06-N2 2 Way DC-6 GHz 1.0 dB 1.2 - - 1 W N Add to RFQ
Hot

PDR-06-S2
2 Way DC-6 GHz 0.6 dB 1.2 ±0.2 dB ±3° 1 W SMA Add to RFQ
Hot

PDR-18-S2A
2 Way DC-18 GHz 0.5 dB 1.2 ±0.4 dB ±4° 5 W SMA Add to RFQ
PDR-18-S2 2 Way DC-18 GHz 1.5 dB 1.6 ±0.8 dB ±8° 0.5 W SMA Add to RFQ
PDR-34-352A 2 Way DC-34 GHz 0.6 dB 1.3 ±0.6 dB ±6° 5 W 3.5mm Add to RFQ
Hot

PDR-40-K2A
2 Way DC-40 GHz 0.5 dB 1.38 ±0.7 dB ±5° 5 W 2.92mm Add to RFQ
Hot

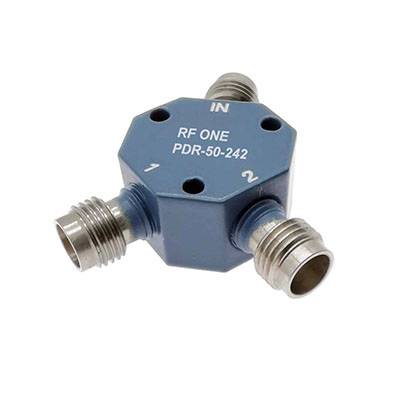

PDR-50-242
2 Way DC-50 GHz 2.0 dB 1.6 ±0.7 dB ±7° 1 W 2.4mm Add to RFQ
Hot

PDR-67-V2
2 Way DC-67 GHz 2.5 dB 1.8 ±0.8 dB ±8° 1 W 1.85mm Add to RFQ
PDR-06-N3 3 Way DC-6 GHz 1.2 dB 1.2 - - 1 W N Add to RFQ
PDR-06-S3 3 Way DC-6 GHz 0.8 dB 1.2 - - 1 W SMA Add to RFQ
PDR-06-S4 4 Way DC-6 GHz 1.2 dB 1.25 - - 1 W SMA Add to RFQ
PDR-06-S6 6 Way DC-6 GHz 1.5 dB 1.2 - - 1 W SMA Add to RFQ
PDR-06-S8 8 Way DC-6 GHz 1.5 dB 1.3 - - 1 W SMA Add to RFQ
PDR-06-S8R 8 Way DC-6 GHz 1.5 dB 1.2 - - 1 W SMA Add to RFQ
