1.85mm, 2.4mm, 2.92mm, N Type, SMA DC Blocks

DC Blocks

Result: 27

DC blocks are used to prevent the flow of direct current frequencies to RF signals. RF ONE offers a selection of 1.85mm, 2.4mm, 2.92mm, N Type, SMA inner DC Blocks, featuring a broad frequency range, excellent return loss, and very low insertion loss. Depending on the model, they operate down to 9 kHz and up to 67 GHz.

Features:

Wideband performance, 9 kHz and up to 67 GHz
50 V till 250 V options
Excellent return loss, very low insertion loss
Male/female, male/male and female/female available
100% RF test, delivered with plots
RoHS and REACH compliant

Download RFONE DC Block Catalog

Filter

Connector

SMA

N Type

BNC

1.85mm

2.4mm

2.92mm

3.5mm

Reset Filters

Export to Excel

Submit

1.85mm Inner DC Block 0.01-67 GHz 60 Volts

Hot

DB6067A

1.85mm Inner DC Block 0.01-67 GHz 60 Volts

Datasheet

P/N	Connector	Frequency Min	Frequency Max	VSWR Max	IL Max	Voltage Max	Add to RFQ
Hot DB6067A	1.85mm	10 MHz	67 GHz	1.5	0.9 dB	60 V	Add to RFQ

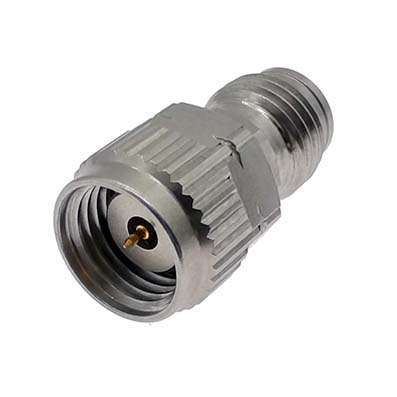

Hot DB6050A	2.4mm	10 MHz	50 GHz	1.35	0.6 dB	60 V	Add to RFQ

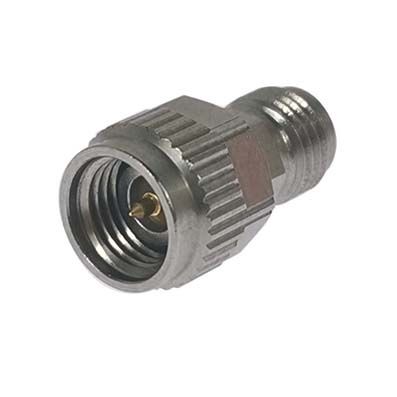

Hot DB6040A	2.92mm	10 MHz	40 GHz	1.35	0.5 dB	60 V	Add to RFQ
Hot DB25040A	2.92mm	1 MHz	40 GHz	1.5	0.5 dB	250 V	Add to RFQ
DB6034A	3.5mm	10 MHz	34 GHz	1.3	0.5 dB	60 V	Add to RFQ
DB6027A	3.5mm	10 MHz	27 GHz	1.25	0.4 dB	60 V	Add to RFQ
DB06B1A	BNC	10 MHz	6 GHz	1.25	0.5 dB	50 V	Add to RFQ

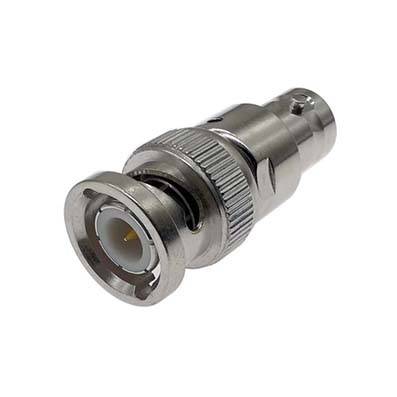

DB06B2A	BNC	10 MHz	6 GHz	1.25	0.5 dB	100 V	Add to RFQ
DB06B3A	BNC	10 MHz	6 GHz	1.25	0.5 dB	250 V	Add to RFQ
Hot DB18N1A	N Type	9 kHz	18 GHz	1.3	0.9 dB	50 V	Add to RFQ

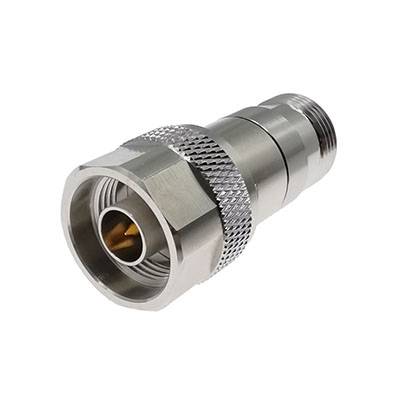

DB18N2A	N Type	10 MHz	18 GHz	1.3	0.6 dB	50 V	Add to RFQ
DB18N3A	N Type	10 MHz	18 GHz	1.3	0.6 dB	100 V	Add to RFQ
DB18N4A	N Type	10 MHz	18 GHz	1.3	0.6 dB	250 V	Add to RFQ
DB08N5A	N Type	10 MHz	8 GHz	1.2	0.4 dB	50 V	Add to RFQ
DB08N6A	N Type	10 MHz	8 GHz	1.2	0.4 dB	100 V	Add to RFQ

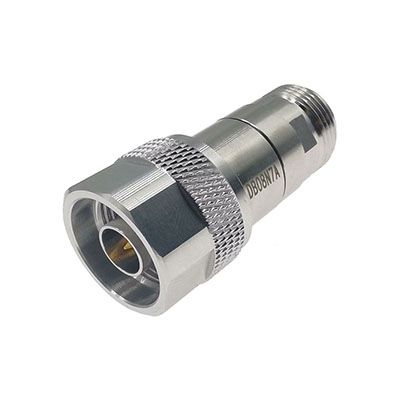

DB08N7A	N Type	10 MHz	8 GHz	1.2	0.4 dB	250 V	Add to RFQ

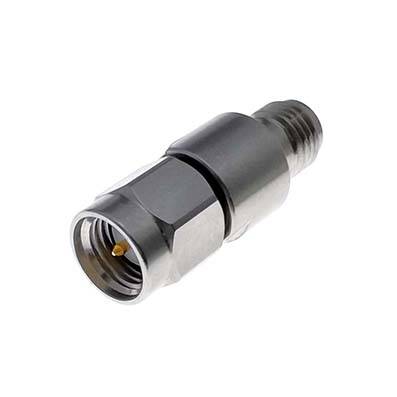

Hot DB27S1A	SMA	9 kHz	26.5 GHz	1.55	1.0 dB	50 V	Add to RFQ
DB27S2A	SMA	10 MHz	26.5 GHz	1.3	0.6 dB	50 V	Add to RFQ
DB27S3A	SMA	10 MHz	26.5 GHz	1.3	0.6 dB	100 V	Add to RFQ
DB27S4A	SMA	10 MHz	26.5 GHz	1.3	0.6 dB	250 V	Add to RFQ
DB18S1A	SMA	9 kHz	18 GHz	1.3	0.9 dB	50 V	Add to RFQ
DB18S2A	SMA	10 MHz	18 GHz	1.3	0.5 dB	50 V	Add to RFQ
DB18S3A	SMA	10 MHz	18 GHz	1.3	0.5 dB	100 V	Add to RFQ
DB18S4A	SMA	10 MHz	18 GHz	1.3	0.5 dB	250 V	Add to RFQ
DB08S5A	SMA	10 MHz	8 GHz	1.2	0.3 dB	50 V	Add to RFQ
DB08S6A	SMA	10 MHz	8 GHz	1.2	0.3 dB	100 V	Add to RFQ
DB08S7A	SMA	10 MHz	8 GHz	1.2	0.3 dB	250 V	Add to RFQ
