Outgassing is the process materials may release volatiles in varying temperature and vacuum conditions or in the space-like environment. Such volatiles could cause serious contamination when deposit on other components.
RF ONE provides thermal vacuum low outgassing phase stable cables with max operating frequency options of 18 GHz, 26.5 GHz, 40 GHz and 50 GHz.
Our New Line of High-Performance Thermal Vacuum Phase Stable Low Loss Cables TVAC-PL series, rigorously tested and verified by multiple satellite users, are now available up to 50 GHz—all at a more affordable price with quicker turnaround for customized lengths.
Features:
Applications:
Note:
These products are tested to the applicable methods of MIL-STD-202 and are intended for ground-based and mobile military equipment environments.
They are not qualified, screened, or qualified to any space-grade standard, including but not limited to NASA EEE-INST-002, ECSS-Q-ST-60.
RF ONE makes no representation of flight heritage, flight-proven status, or in-orbit performance for this product.
Where a customer intends to pursue space qualification, RF ONE can support with relevant test reports and data for the customer's own qualification. Such support does not constitute a qualification claim by RF ONE.
| P/N | Frequency Max | Outer Diameter | Static Bend Radius | Loss at Max Freq | Power at Max Freq | Phase Stability | Add to RFQ |
|---|---|---|---|---|---|---|---|
|
TVAC-PL360P |
50 GHz | 3.6 mm | 18 mm | 3.28 dB/m | 55 W | ≤±5°@ 50 GHz | Add to RFQ |
|
TVAC-PL380P |

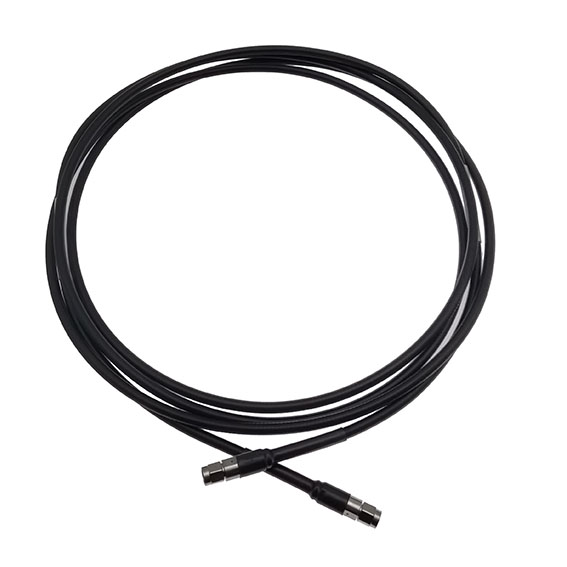

40 GHz | 3.8 mm | 19 mm | 2.20 dB/m | 74 W | ≤±5°@ 40 GHz | Add to RFQ |
|
TVAC-PL520 |
26.5 GHz | 5.2 mm | 25 mm | 1.25 dB/m | 160 W | ≤±5°@ 26.5 GHz | Add to RFQ |
| TVAC380 | 40 GHz | 3.8 mm | 19 mm | 2.2 dB/m | 74 W | ≤±6°@ 40 GHz | Add to RFQ |
| TVAC520 | 26.5 GHz | 5.3 mm | 27 mm | 1.25 dB/m | 160 W | ≤±5°@ 26.5 GHz | Add to RFQ |
| TVAC800 | 18 GHz | 7.8 mm | 39 mm | 0.67 dB/m | 398 W | ≤±4°@ 18 GHz | Add to RFQ |
