Tight bend flexible cable assemblies MB series from RF ONE are designed for congested internal interconnection use. These cable assemblies are unique in that they can be easily bent and still maintains stable electrical performance, making them ideal as cost-effective alternatives to the semi-rigid or semi-flexible cables. MB series are available in very tight bend radius as 8mm, with options of 047, 086, 141 cable sizes.
Features:
| P/N | Frequency Range | VSWR Max | IL Max (1 meter) | Connector 1 | Connector 2 | Add to RFQ |
|---|---|---|---|---|---|---|

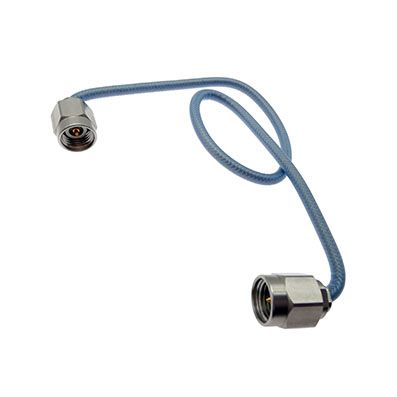

| MB260L-24M24M-L | DC-50 GHz | 1.45 | 5.7 dB | 2.4mm Male | 2.4mm Male | Add to RFQ |
|
MB260L-292M292M-L |
DC-40 GHz | 1.4 | 5.0 dB | 2.92mm Male | 2.92mm Male | Add to RFQ |

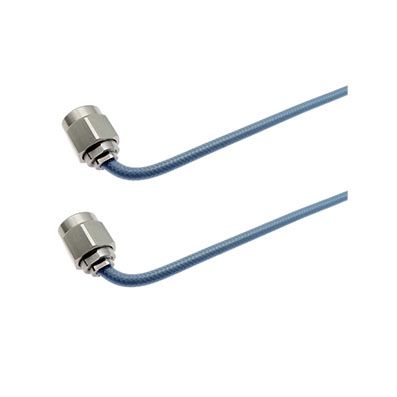

| MB250-292M292M-L | DC-40 GHz | 1.4 | 6.6 dB | 2.92mm Male | 2.92mm Male | Add to RFQ |

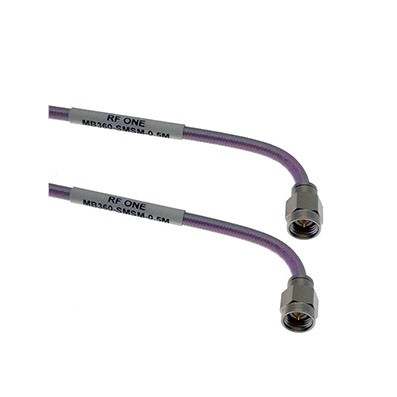

| MB360-SMAMSMAM-L | DC-26.5 GHz | 1.35 | 2.7 dB | SMA Male | SMA Male | Add to RFQ |
