RF ONE’s 1.85mm coaxial fixed attenuators come in 2 watts till 13 watts, with dB values from 1 dB to 40 dB, operating up to 67GHz.
Features:
| P/N | Average Power | Frequency Max | VSWR Max | Attenuations | Direction | Dimensions (mm) | Add to RFQ |
|---|---|---|---|---|---|---|---|
|

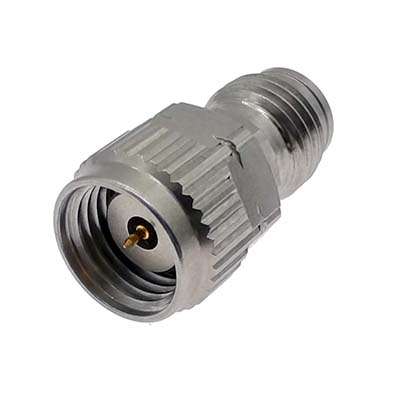

RFHB67XX185C2 |
2 W | 67 GHz | 1.3 | 1-40 dB | Bidirectional | 16(L)*9(φ) | Add to RFQ |
|

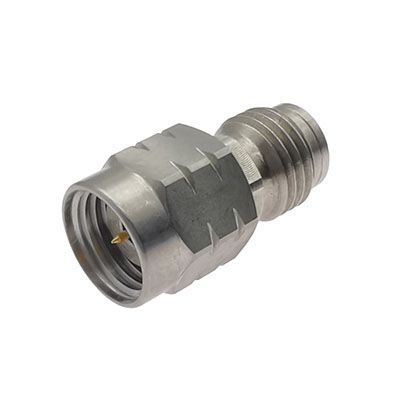

RFHB67XXVC2 |
2 W | 67 GHz | 1.3 | 1-40 dB | Bidirectional | 16(L)*9(φ) | Add to RFQ |

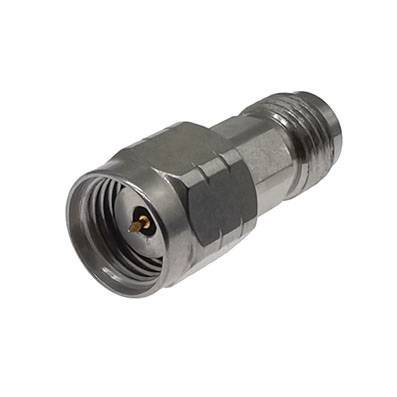

| RFHB67XXVC2A | 2 W | 67 GHz | 1.35 | 1-30 dB | Bidirectional | 18.5(L)*9(φ) | Add to RFQ |
|

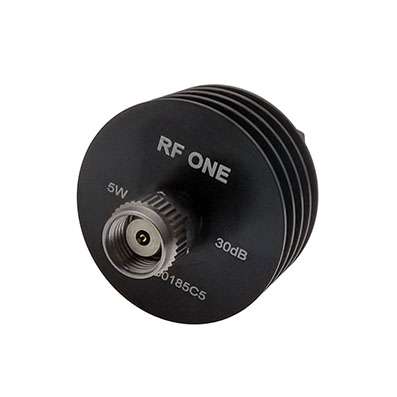

RFHB67XX185C5 |
5 W | 67 GHz | 1.45 | 1-40 dB | Bidirectional | 15.6(L)*28(φ) | Add to RFQ |
|

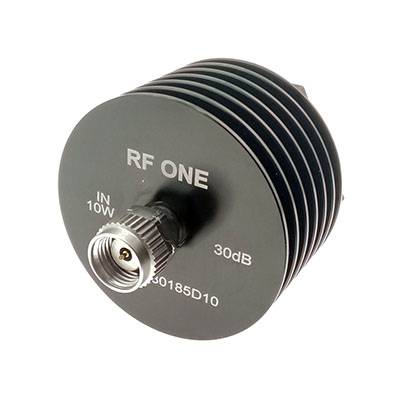

RFH67XX185D10 |
10 W | 67 GHz | 1.45 | 1-40 dB | Unidirectional | 22.2(L)*34.8(φ) | Add to RFQ |
