Low pass filters are one of the most commonly used filters in any communication receiver. RF ONE offers a wide range of low pass filters with cut-off frequencies as low as 1 GHz up to as high as 21 GHz. We employ different technologies for different frequency bands in order to optimize performance, manufacturability and cost.
| P/N | Passband Frequency | Insertion Loss Max | VSWR Max | Reject Frequency | Rejection Min | Power Input Max | Connector | Add to RFQ |
|---|---|---|---|---|---|---|---|---|
| LPF-D3GS1 | DC-0.33 GHz | 0.5 dB | 1.3 | 0.64-3.0 GHz | 60 dB | 1 W | SMA | Add to RFQ |
| LPF-980MS1 | DC-0.98 GHz | 1.5 dB | 1.3 | 1.2-4.2 GHz | 30 dB | 15 W | SMA | Add to RFQ |

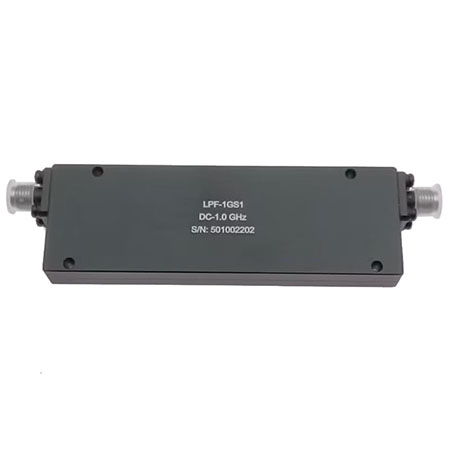

| LPF-1GS1 | DC-1.0 GHz | 1.0 dB | 1.3 | 1.3-4.2 GHz | 70 dB | 15 W | SMA | Add to RFQ |

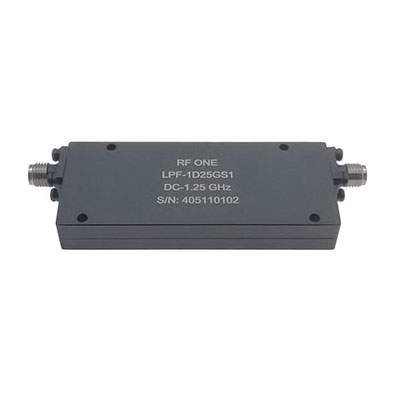

| LPF-1D25GS1 | DC-1.25 GHz | 1.0 dB | 1.3 | 1.52-4.7 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-1D5GS1 | DC-1.5 GHz | 1.0 dB | 1.3 | 1.8-5.3 GHz | 60 dB | 15 W | SMA | Add to RFQ |

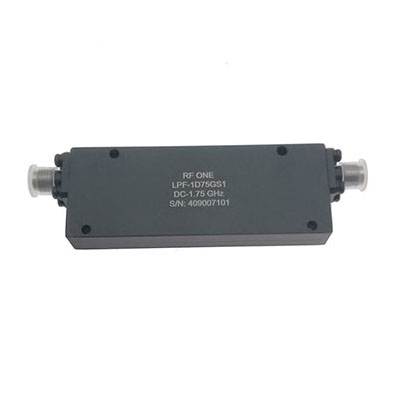

| LPF-1D75GS1 | DC-1.75 GHz | 1.0 dB | 1.3 | 2.1-5.8 GHz | 60 dB | 15 W | SMA | Add to RFQ |

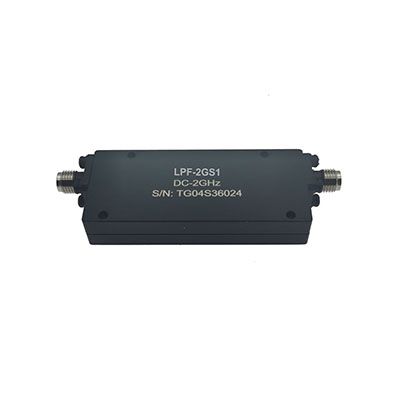

| LPF-2GS1 | DC-2.0 GHz | 1.0 dB | 1.3 | 2.65-7.4 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-2GS2 | DC-2.0 GHz | 1.5 dB | 1.3 | 2.38-7.0 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-2D2GS1 | DC-2.2 GHz | 0.9 dB | 1.3 | 2.62-7.5 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-2D25GS1 | DC-2.25 GHz | 1.5 dB | 1.3 | 2.65-7.4 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-2D5GS1 | DC-2.5 GHz | 1.5 dB | 1.3 | 2.95-7.7 GHz | 60 dB | 15 W | SMA | Add to RFQ |

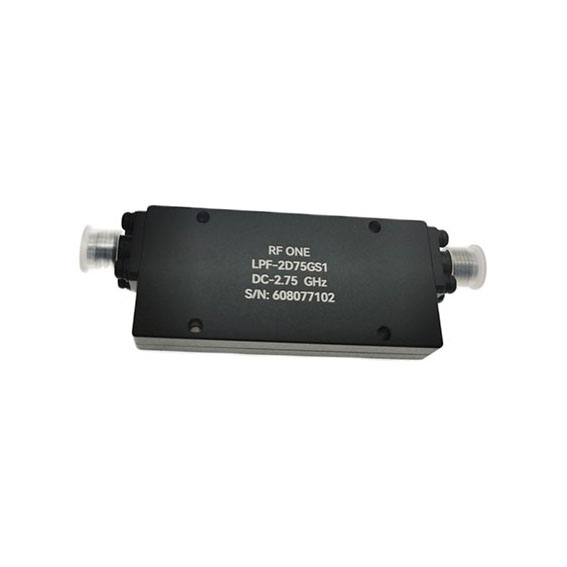

| LPF-2D75GS1 | DC-2.75 GHz | 1.0 dB | 1.3 | 3.17-8.5 GHz | 60 dB | 15 W | SMA | Add to RFQ |

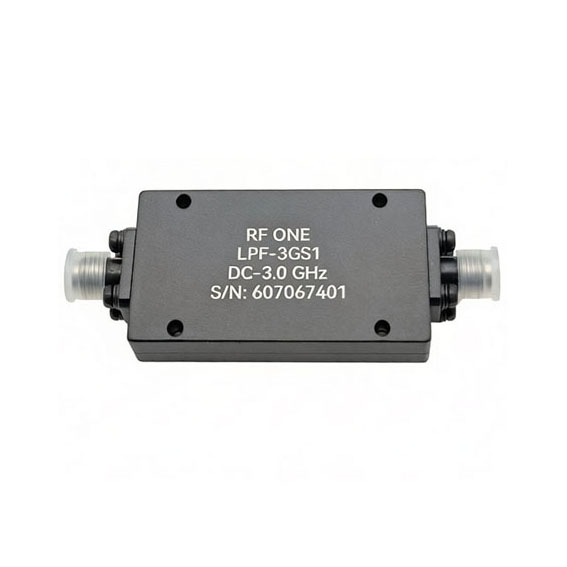

| LPF-3GS1 | DC-3.0 GHz | 1.0 dB | 1.3 | 3.52-10 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-3D25GS1 | DC-3.25 GHz | 1.0 dB | 1.3 | 3.74-10.5 GHz | 60 dB | 15 W | SMA | Add to RFQ |

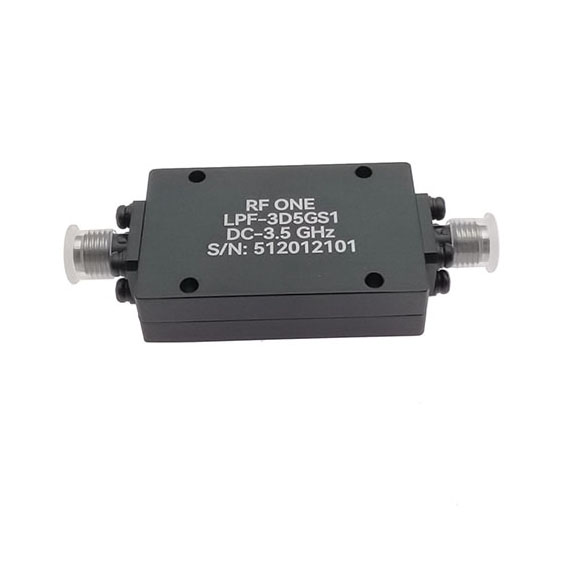

| LPF-3D5GS1 | DC-3.5 GHz | 1.0 dB | 1.3 | 4.05-11.5 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-3D75GS1 | DC-3.75 GHz | 1.0 dB | 1.3 | 4.25-11.8 GHz | 60 dB | 15 W | SMA | Add to RFQ |

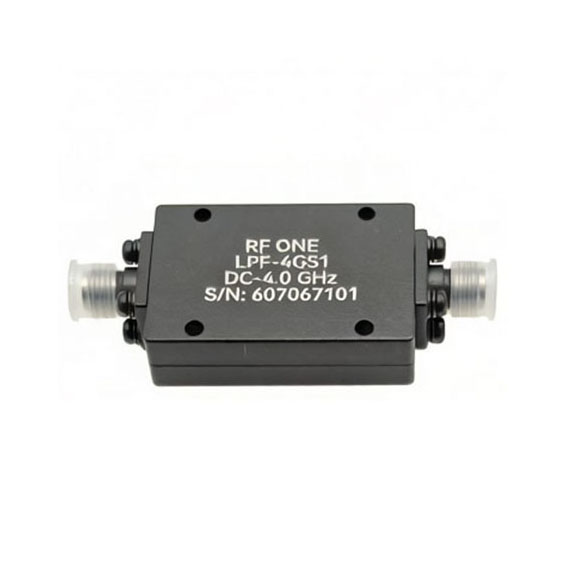

| LPF-4GS1 | DC-4.0 GHz | 1.0 dB | 1.3 | 4.5-12.3 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-4D25GS1 | DC-4.25 GHz | 1.0 dB | 1.3 | 4.77-12.8 GHz | 60 dB | 15 W | SMA | Add to RFQ |

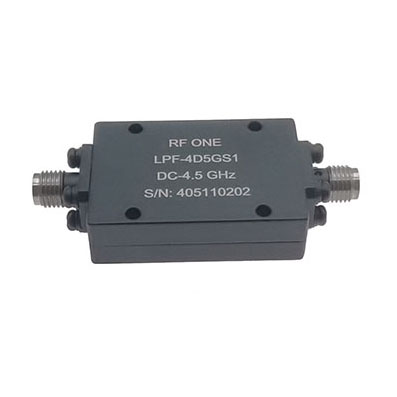

| LPF-4D5GS1 | DC-4.5 GHz | 1.0 dB | 1.3 | 5.1-13.7 GHz | 60 dB | 15 W | SMA | Add to RFQ |

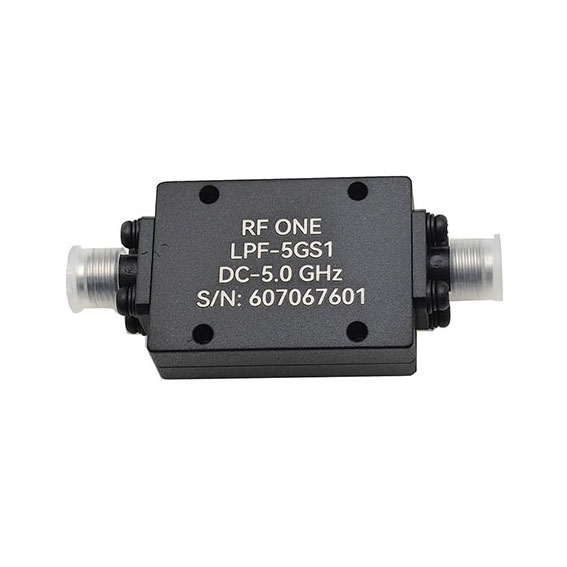

| LPF-5GS1 | DC-5.0 GHz | 1.0 dB | 1.3 | 5.58-15 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-5D5GS1 | DC-5.5 GHz | 1.0 dB | 1.3 | 6.07-15.1 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-6GS1 | DC-6.0 GHz | 1.0 dB | 1.3 | 6.7-15.5 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-6D5GS1 | DC-6.5 GHz | 1.0 dB | 1.3 | 7.27-15.3 GHz | 60 dB | 15 W | SMA | Add to RFQ |
| LPF-7GS1 | DC-7.0 GHz | 1.0 dB | 1.3 | 7.77-15.5 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-7D5GS1 | DC-7.5 GHz | 1.5 dB | 1.4 | 8.3-15.8 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-8GS1 | DC-8.0 GHz | 1.0 dB | 1.4 | 8.8-16.2 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-8D5GS1 | DC-8.5 GHz | 1.0 dB | 1.4 | 9.3-17 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-9GS1 | DC-9.0 GHz | 1.0 dB | 1.4 | 9.8-17 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-9D5GS1 | DC-9.5 GHz | 1.0 dB | 1.4 | 10.3-18 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-10GS1 | DC-10 GHz | 1.0 dB | 1.4 | 10.9-18.5 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-10D5GS1 | DC-10.5 GHz | 1.0 dB | 1.4 | 11.65-18.5 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-11GS1 | DC-11 GHz | 1.0 dB | 1.5 | 12.1-19 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-11D5GS1 | DC-11.5 GHz | 1.0 dB | 1.5 | 12.6-20 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-12GS1 | DC-12 GHz | 1.0 dB | 1.5 | 13.1-20 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-12D5GS1 | DC-12.5 GHz | 1.0 dB | 1.5 | 13.7-20 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-13GS1 | DC-13 GHz | 1.0 dB | 1.5 | 14.1-21 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-13D5GS1 | DC-13.5 GHz | 1.0 dB | 1.5 | 14.7-21.3 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-14GS1 | DC-14 GHz | 1.0 dB | 1.5 | 15.2-21.7 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-14D5GS1 | DC-14.5 GHz | 1.0 dB | 1.5 | 15.7-22 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-15GS1 | DC-15 GHz | 1.0 dB | 1.5 | 16-22.3 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-15D5GS1 | DC-15.5 GHz | 1.0 dB | 1.5 | 16.5-22.5 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-16GS1 | DC-16 GHz | 1.0 dB | 1.5 | 17-22.8 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-16D5GS1 | DC-16.5 GHz | 1.0 dB | 1.5 | 17.5-23 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-17GS1 | DC-17 GHz | 1.0 dB | 1.6 | 18.1-24 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-17D5GS1 | DC-17.5 GHz | 1.0 dB | 1.6 | 18.6-25 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-18GS1 | DC-18 GHz | 1.0 dB | 1.6 | 19.1-26 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-18D5GS1 | DC-18.5 GHz | 1.0 dB | 1.6 | 19.6-26 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-19GS1 | DC-19 GHz | 1.0 dB | 1.6 | 20.1-26 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-20GS1 | DC-20 GHz | 1.0 dB | 1.6 | 21.2-27 GHz | 50 dB | 15 W | SMA | Add to RFQ |
| LPF-21GS1 | DC-21 GHz | 1.0 dB | 1.6 | 22.2-27 GHz | 50 dB | 15 W | SMA | Add to RFQ |
