RF ONE offers a wide choice of in-and-between series low passive intermodulation (PIM) adapters for applications such as installation in wireless infrastructure, in-building systems, and PIM testing setup. Our low PIM adapters come in various combinations of 2.2-5, 4.1/9.5 Mini DIN, 4.3-10, 7/16 DIN, N, NEX10, QN and SMA etc. RF ONE low PIM adapters are ideal for wireless applications.
| P/N | Connection Type | Connector 1 | Connector 2 | Body Style | Frequency Range | VSWR Max | 3rd PIM Max | Add to RFQ |
|---|---|---|---|---|---|---|---|---|

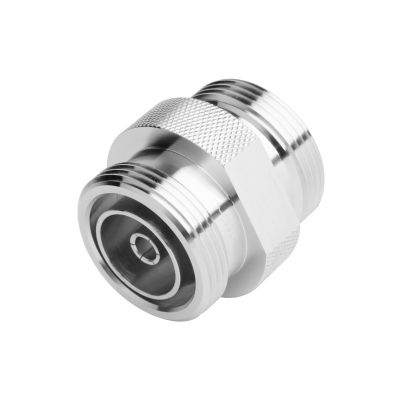

| A0601L | In Series | 7/16 DIN Female | 7/16 DIN Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

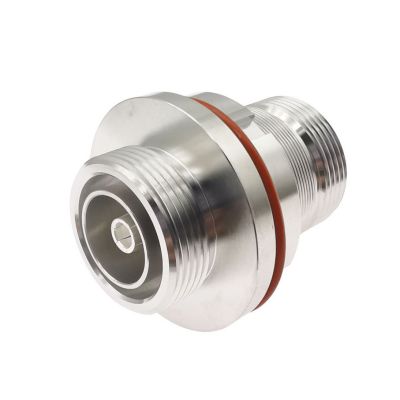

| A0601L-Y | In Series | 7/16 DIN Female | 7/16 DIN Female | Bulkhead | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

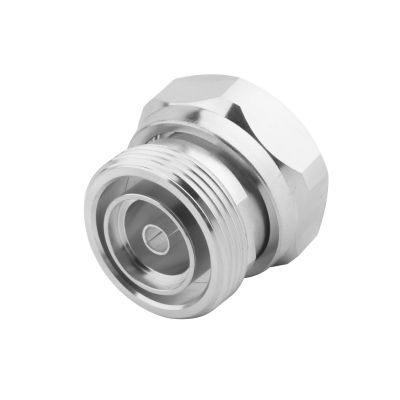

| A0602L | In Series | 7/16 DIN Female | 7/16 DIN Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

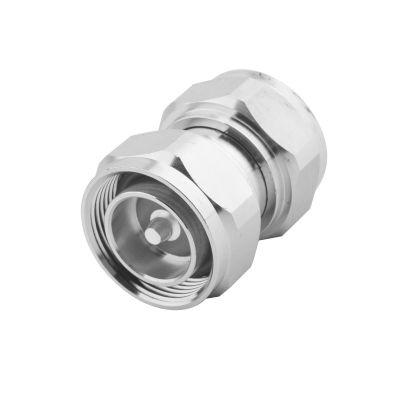

| A0603L | In Series | 7/16 DIN Male | 7/16 DIN Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

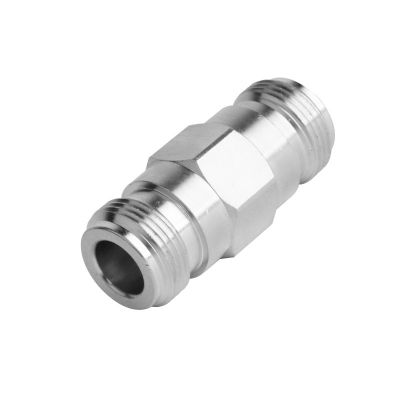

| A0604L | In Series | N Female | N Female | Straight | DC-6 GHz | 1.15 | -160 dBc | Add to RFQ |

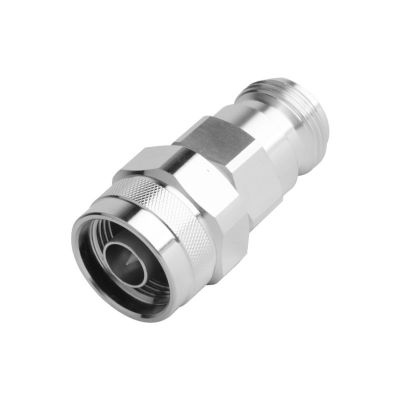

| A0605L | In Series | N Female | N Male | Straight | DC-6 GHz | 1.15 | -160 dBc | Add to RFQ |

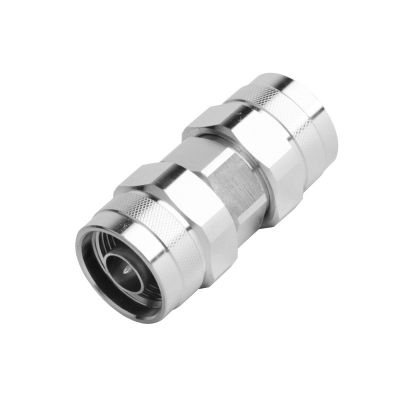

| A0606L | In Series | N Male | N Male | Straight | DC-6 GHz | 1.15 | -160 dBc | Add to RFQ |

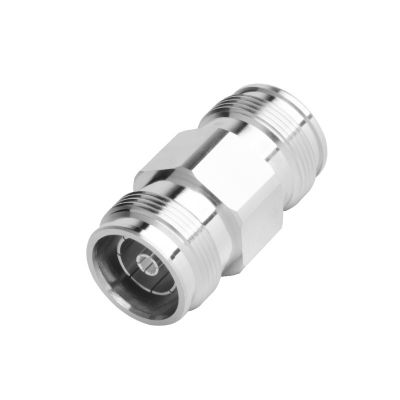

| A0607L | In Series | 4.3-10 Female | 4.3-10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

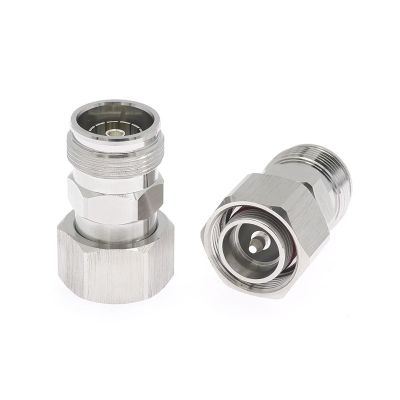

| A0608L | In Series | 4.3-10 Female | 4.3-10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

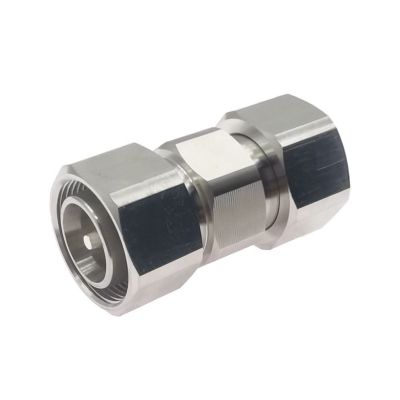

| A0609L | In Series | 4.3-10 Male | 4.3-10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

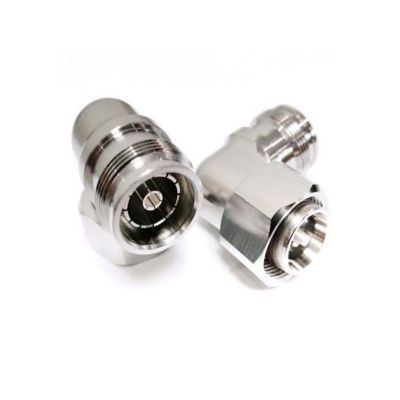

| A0608L-RA | In Series | 4.3-10 Female | 4.3-10 Male | Right Angle | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0610L | In Series | 4.1/9.5 Female | 4.1/9.5 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0611L | In Series | 4.1/9.5 Female | 4.1/9.5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0612L | In Series | 4.1/9.5 Male | 4.1/9.5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

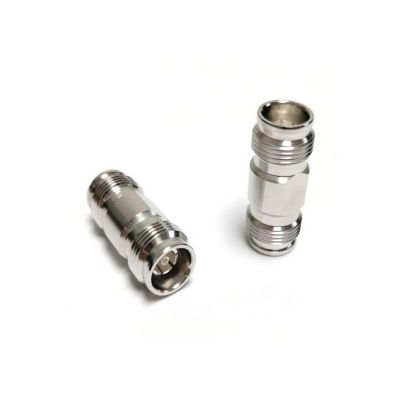

| A0613L | In Series | 2.2-5 Female | 2.2-5 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0614L | In Series | 2.2-5 Female | 2.2-5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

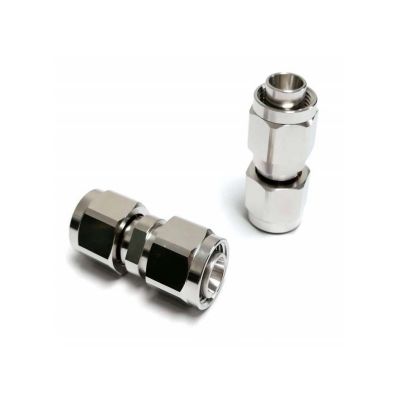

| A0615L | In Series | 2.2-5 Male | 2.2-5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

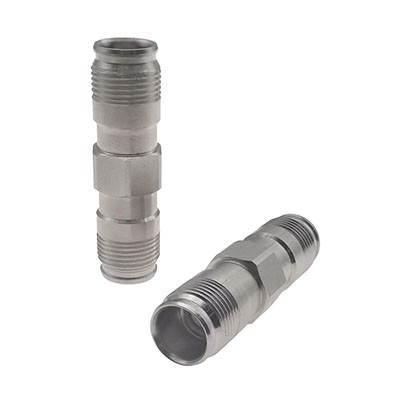

| A0616L | In Series | NEX10 Female | NEX10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

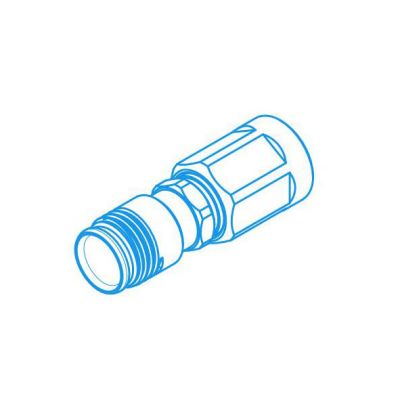

| A0617L | In Series | NEX10 Female | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

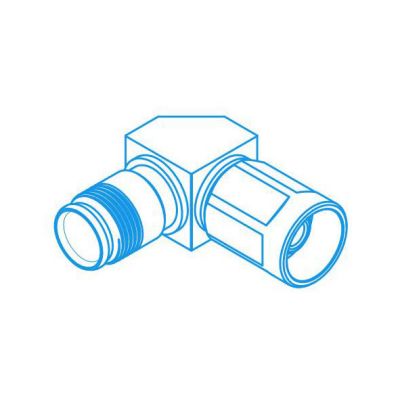

| A0617L-RA | In Series | NEX10 Female | NEX10 Male | Right Angle | DC-6 GHz | 1.35 | -155 dBc | Add to RFQ |
| A0618L | In Series | NEX10 Male | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

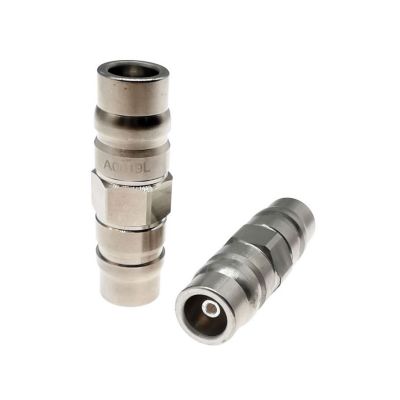

| A0619L | In Series | QN Female | QN Female | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0620L | In Series | QN Female | QN Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0621L | In Series | QN Male | QN Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |

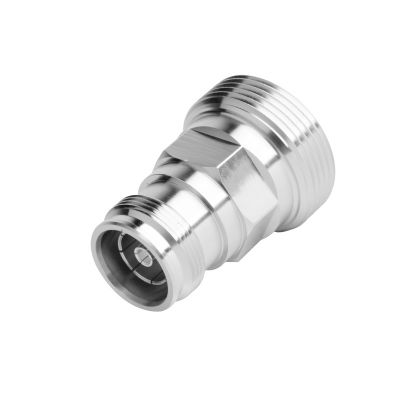

| A0631L | Between Series | 7/16 DIN Female | 4.3-10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

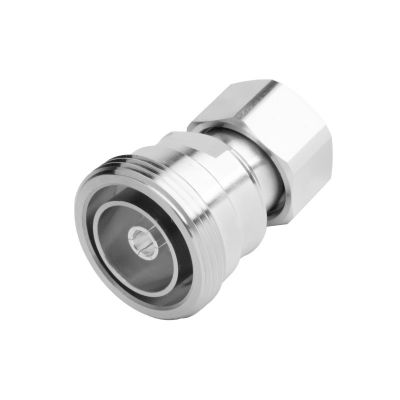

| A0632L | Between Series | 7/16 DIN Female | 4.3-10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

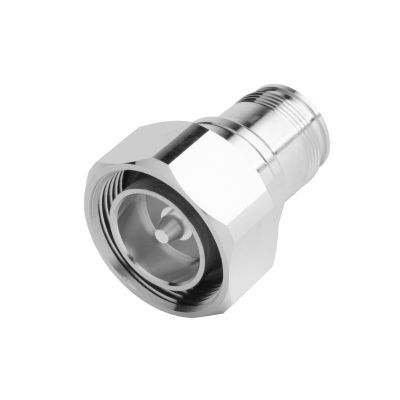

| A0633L | Between Series | 7/16 DIN Male | 4.3-10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

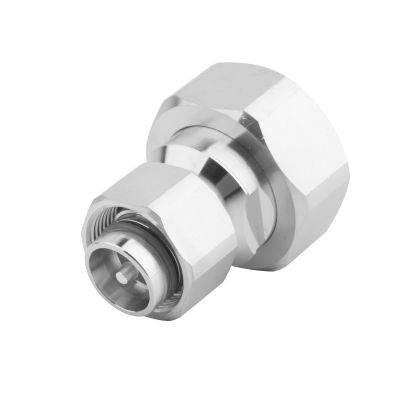

| A0634L | Between Series | 7/16 DIN Male | 4.3-10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0635L | Between Series | 7/16 DIN Female | 4.1/9.5 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0636L | Between Series | 7/16 DIN Female | 4.1/9.5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0637L | Between Series | 7/16 DIN Male | 4.1/9.5 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0638L | Between Series | 7/16 DIN Male | 4.1/9.5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

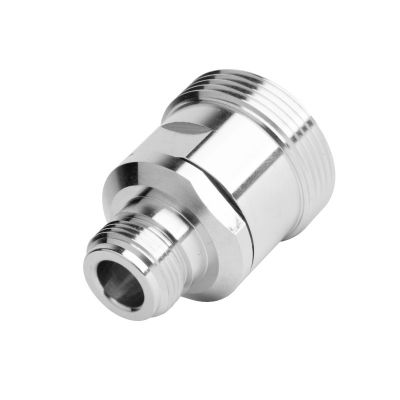

| A0639L | Between Series | 7/16 DIN Female | N Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

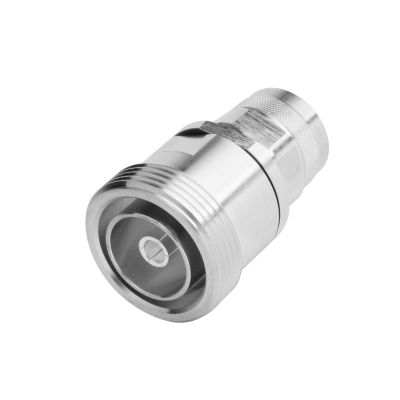

| A0640L | Between Series | 7/16 DIN Female | N Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

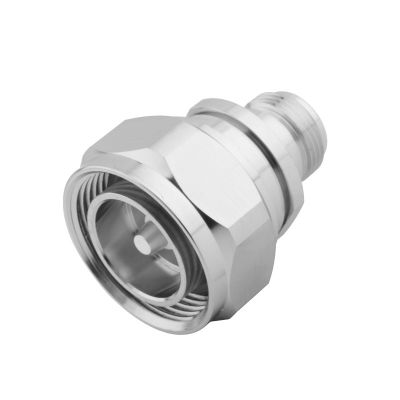

| A0641L | Between Series | 7/16 DIN Male | N Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0642L | Between Series | 7/16 DIN Male | N Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0643L | Between Series | 7/16 DIN Female | NEX10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0644L | Between Series | 7/16 DIN Female | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0645L | Between Series | 7/16 DIN Male | NEX10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |

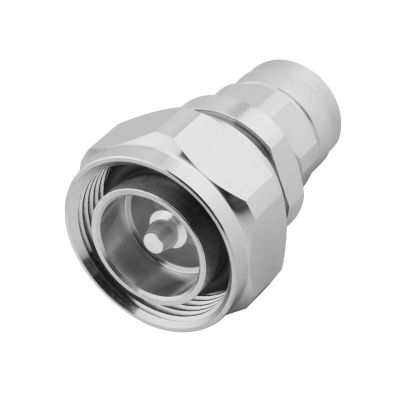

| A0646L | Between Series | 7/16 DIN Male | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0651L | Between Series | 7/16 DIN Female | 2.2-5 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0652L | Between Series | 7/16 DIN Female | 2.2-5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0653L | Between Series | 7/16 DIN Male | 2.2-5 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0654L | Between Series | 7/16 DIN Male | 2.2-5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0655L | Between Series | 4.3-10 Female | N Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0656L | Between Series | 4.3-10 Female | N Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0657L | Between Series | 4.3-10 Male | N Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0658L | Between Series | 4.3-10 Male | N Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0659L | Between Series | 4.1/9.5 Female | N Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0660L | Between Series | 4.1/9.5 Female | N Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0661L | Between Series | 4.1/9.5 Male | N Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0662L | Between Series | 4.1/9.5 Male | N Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0663L | Between Series | N Female | NEX10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0664L | Between Series | N Female | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0665L | Between Series | N Male | NEX10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0666L | Between Series | N Male | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0667L | Between Series | N Female | SMA Female | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0668L | Between Series | N Female | SMA Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0669L | Between Series | N Male | SMA Female | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0670L | Between Series | N Male | SMA Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0671L | Between Series | N Female | QMA Female | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0672L | Between Series | N Female | QMA Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0673L | Between Series | N Male | QMA Female | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0674L | Between Series | N Male | QMA Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0675L | Between Series | N Female | 2.2-5 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0676L | Between Series | N Female | 2.2-5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0677L | Between Series | N Male | 2.2-5 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0678L | Between Series | N Male | 2.2-5 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0679L | Between Series | NEX10 Female | SMA Female | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0680L | Between Series | NEX10 Female | SMA Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0681L | Between Series | NEX10 Male | SMA Female | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0682L | Between Series | NEX10 Male | SMA Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0683L | Between Series | QN Female | N Female | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0684L | Between Series | QN Female | N Male | Straight | DC-6 GHz | 1.25 | -155 dBc | Add to RFQ |
| A0685L | Between Series | QN Male | N Female | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A0686L | Between Series | QN Male | N Male | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A0687L | Between Series | QN Female | TNC Female | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A0688L | Between Series | QN Female | TNC Male | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A0689L | Between Series | QN Male | TNC Female | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A0690L | Between Series | QN Male | TNC Male | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A0691L | Between Series | 4.3-10 Female | NEX10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0692L | Between Series | 4.3-10 Female | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0693L | Between Series | 4.3-10 Male | NEX10 Female | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0694L | Between Series | 4.3-10 Male | NEX10 Male | Straight | DC-6 GHz | 1.25 | -160 dBc | Add to RFQ |
| A0695L | Between Series | SMA Female | QMA Female | Straight | DC-6 GHz | 1.25 | -150 dBc | Add to RFQ |
| A0696L | Between Series | SMA Female | QMA Male | Straight | DC-6 GHz | 1.25 | -150 dBc | Add to RFQ |
| A0697L | Between Series | SMA Male | QMA Female | Straight | DC-6 GHz | 1.25 | -150 dBc | Add to RFQ |
| A0698L | Between Series | SMA Male | QMA Male | Straight | DC-6 GHz | 1.25 | -150 dBc | Add to RFQ |
| A06101L | Between Series | 4.3-10 Female | SMA Female | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A06102L | Between Series | 4.3-10 Female | SMA Male | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A06103L | Between Series | 4.3-10 Male | SMA Female | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
| A06104L | Between Series | 4.3-10 Male | SMA Male | Straight | DC-6 GHz | 1.2 | -155 dBc | Add to RFQ |
