RF ONE introduces the industry’s most versatile 2.4mm termination series, supporting frequencies up to 50 GHz(extended 52.5 GHz) and a wide selection of power ratings(2 Watts reaching 35 Watts) and accessory chains, ideal for Q-Band SatCom, radar and ATE applications.
Features:
| P/N | Average Power | Frequency Max | Connector | Gender | VSWR Max | Shape | Dimension (mm) | Add to RFQ |
|---|---|---|---|---|---|---|---|---|
|

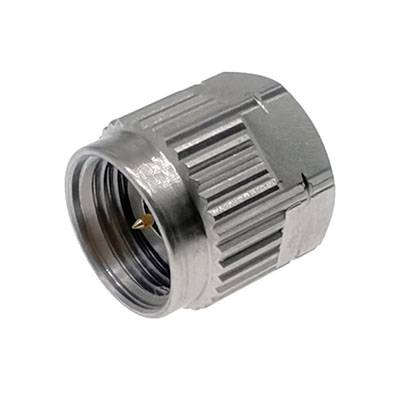

RFT5002242 |
2 W | 50 GHz | 2.4mm | Male | 1.2 | Round | 8.8(L)*9(φ) | Add to RFQ |

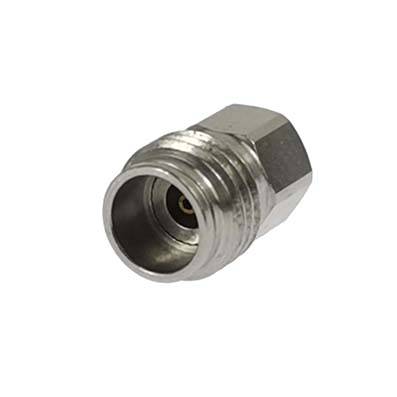

| RFT5002241 | 2 W | 50 GHz | 2.4mm | Female | 1.2 | Round | 9.4(L)*6.4(φ) | Add to RFQ |

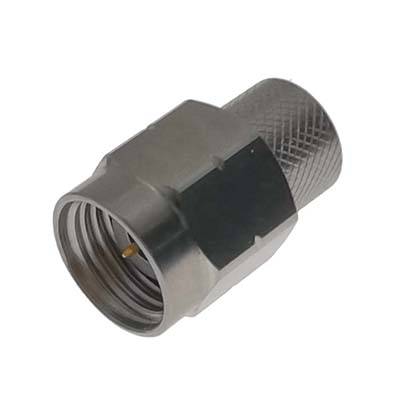

| RFT5002242A | 2 W | 50 GHz | 2.4mm | Male | 1.2 | Round | 12.4(L)*6.4(φ) | Add to RFQ |

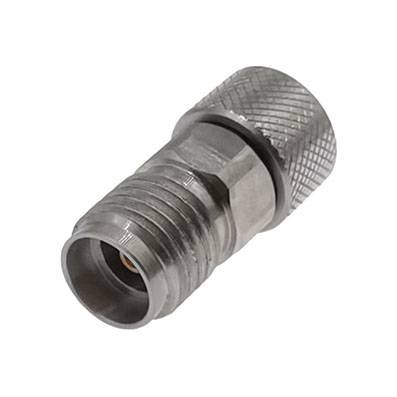

| RFT5002241A | 2 W | 50 GHz | 2.4mm | Female | 1.2 | Round | 14.8(L)*6.4(φ) | Add to RFQ |

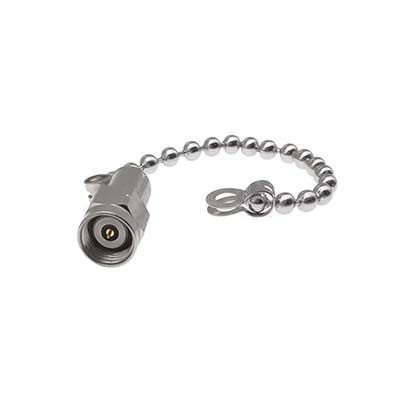

| RFT5002242C | 2 W | 50 GHz | 2.4mm | Male | 1.2 | With Chain | 18.6(L)*7(φ) | Add to RFQ |

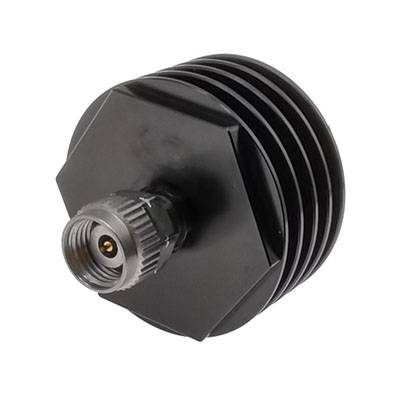

| RFT5005242 | 5 W | 50 GHz | 2.4mm | Male | 1.3 | Round | 15.6(L)*28(φ) | Add to RFQ |

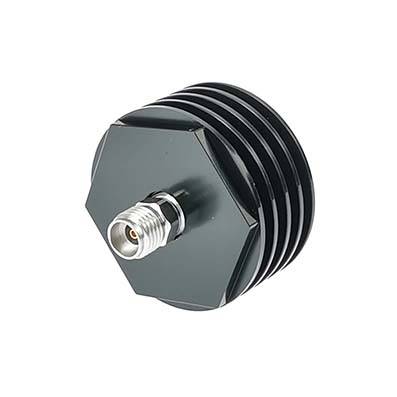

| RFT5005241 | 5 W | 50 GHz | 2.4mm | Female | 1.3 | Round | 15.6(L)*28(φ) | Add to RFQ |
| RFT5010242 | 10 W | 50 GHz | 2.4mm | Male | 1.3 | Round | 22.2(L)*28(φ) | Add to RFQ |
| RFT5010241 | 10 W | 50 GHz | 2.4mm | Female | 1.3 | Round | 22.2(L)*28(φ) | Add to RFQ |

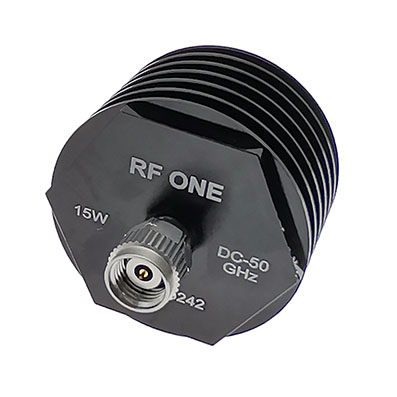

| RFT5015242 | 15 W | 50 GHz | 2.4mm | Male | 1.3 | Round | 22.2(L)*34.8(φ) | Add to RFQ |

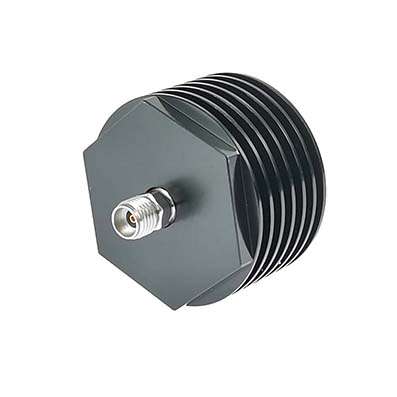

| RFT5015241 | 15 W | 50 GHz | 2.4mm | Female | 1.3 | Round | 22.2(L)*34.8(φ) | Add to RFQ |

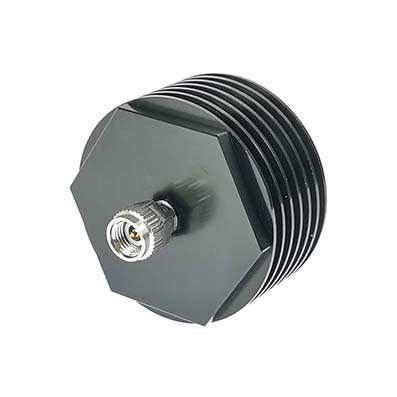

| RFT5020242 | 20 W | 50 GHz | 2.4mm | Male | 1.34 | Round | 28.8(L)*40.8(φ) | Add to RFQ |
| RFT5020241 | 20 W | 50 GHz | 2.4mm | Female | 1.34 | Round | 28.8(L)*40.8(φ) | Add to RFQ |

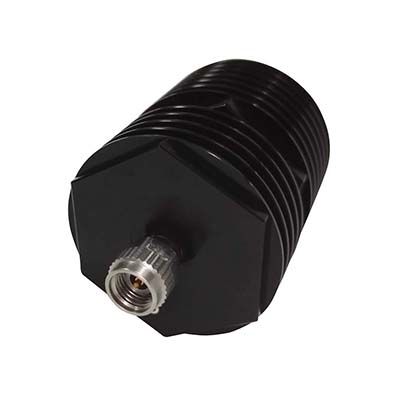

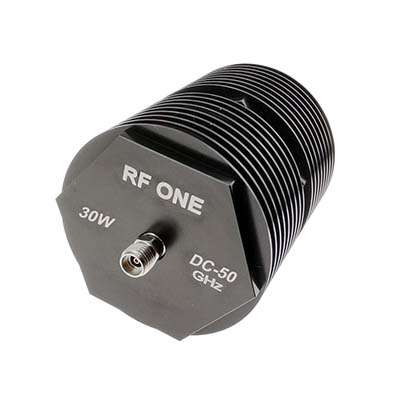

| RFT5030242 | 30 W | 50 GHz | 2.4mm | Male | 1.34 | Round | 47.5(L)*40.8(φ) | Add to RFQ |
| RFT5030241 | 30 W | 50 GHz | 2.4mm | Female | 1.34 | Round | 47.5(L)*40.8(φ) | Add to RFQ |
| RFT5035242 | 35 W | 50 GHz | 2.4mm | Male | 1.38 | Round | 54.2(L)*40.8(φ) | Add to RFQ |
| RFT5035241 | 35 W | 50 GHz | 2.4mm | Female | 1.38 | Round | 54.2(L)*40.8(φ) | Add to RFQ |
