Super flexible phase stable test cables from RF ONE are built from our UF series cables, which are extremely flexible and mechanical phase stable benefiting from the stranded center conductor and PUR jacket. These cable assemblies are specifically designed for test use where repeated flexure and phase stability are required.
Features:
| P/N | Frequency Range | VSWR Max | IL Max (1 meter) | Connector 1 | Connector 2 | Add to RFQ |
|---|---|---|---|---|---|---|
|

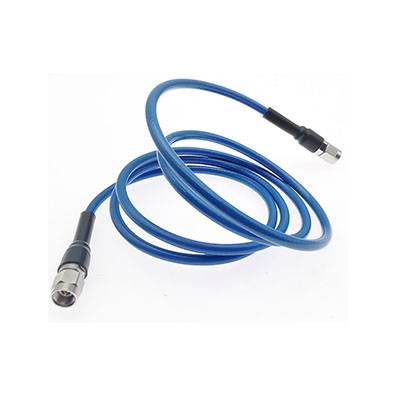

UF370P-292M292M-L |
DC-40 GHz | 1.3 | 4.3 dB | 2.92mm Male | 2.92mm Male | Add to RFQ |

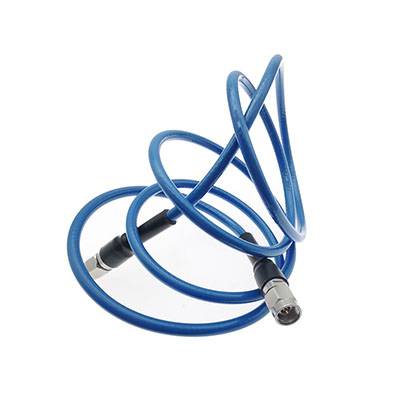

| UF450-292M292M-L | DC-40 GHz | 1.3 | 3.7 dB | 2.92mm Male | 2.92mm Male | Add to RFQ |

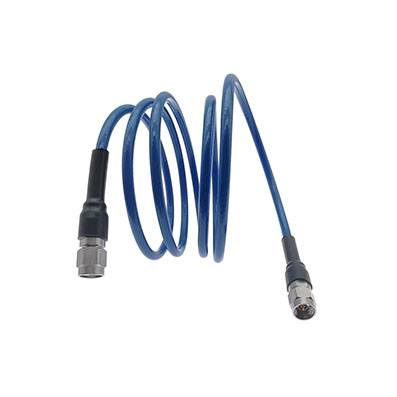

| UF520-SMAMSMAM-L | DC-26.5 GHz | 1.25 | 3.1 dB | SMA Male | SMA Male | Add to RFQ |

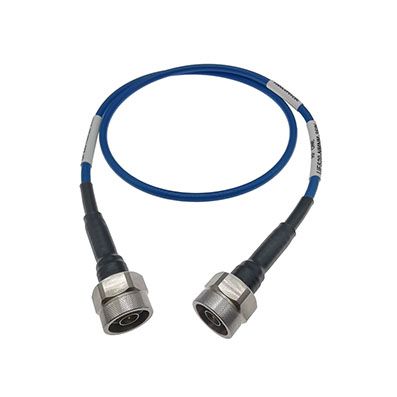

| UF520-NMNM-L | DC-18 GHz | 1.3 | 2.5 dB | N Male | N Male | Add to RFQ |
