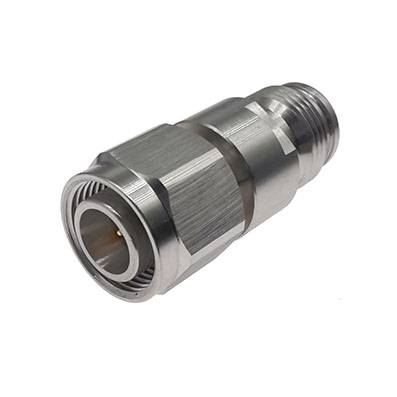

RF ONE’s 2.2-5 fixed attenuators deliver precision signal control for DC to 8 GHz applications, with power handling 2 Watts and higher power rates available. Available in attenuation values from 1 dB to 60 dB, these rugged, bidirectional attenuators feature low VSWR and compact dimensions, optimized for test & measurement and wireless infrastructure.
| P/N | Average Power | Frequency Max | VSWR Max | Attenuations | Direction | Dimensions (mm) | Add to RFQ |
|---|---|---|---|---|---|---|---|
| RFHB04XXZC2 | 2 W | 4 GHz | 1.15 | 1-60 dB | Bidirectional | 37(L)*16(φ) | Add to RFQ |
| RFHB06XXZC2 | 2 W | 6 GHz | 1.25 | 1-60 dB | Bidirectional | 37(L)*16(φ) | Add to RFQ |
| RFHB08XXZC2 | 2 W | 8 GHz | 1.25 | 1-60 dB | Bidirectional | 37(L)*16(φ) | Add to RFQ |
