RF ONE offers a premium selection of 6 way power dividers/combiners to deliver superior signal fidelity where high isolation is critical. Covering an extensive frequency range up to 30 GHz, these dividers are the preferred choice for coherent signal combining and precise power distribution. Custom frequency bands and optimized specifications available.
| P/N | Frequency Min | Frequency Max | Insertion Loss Max | Input VSWR Max | Isolation Min | Amplitude Balance Max | Phase Balance Max | Connector | Add to RFQ |
|---|---|---|---|---|---|---|---|---|---|
|

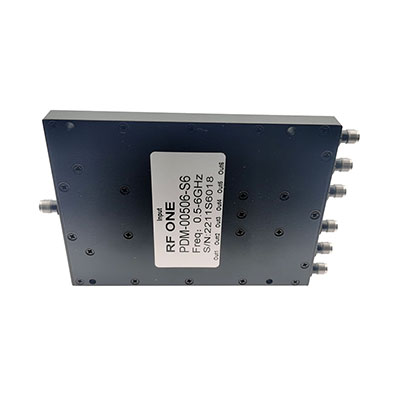

PDM-00506-S6 |
0.5 GHz | 6 GHz | 2.2 dB | 1.3 | 18 dB | ±0.8 dB | ±8° | SMA | Add to RFQ |

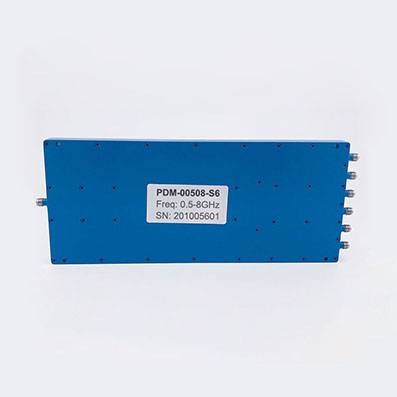

| PDM-00508-S6 | 0.5 GHz | 8 GHz | 3.5 dB | 1.55 | 17 dB | ±1.0 dB | ±10° | SMA | Add to RFQ |
| PDM-0106-S6 | 1 GHz | 6 GHz | 2.2 dB | 1.3 | 18 dB | ±0.8 dB | ±8° | SMA | Add to RFQ |

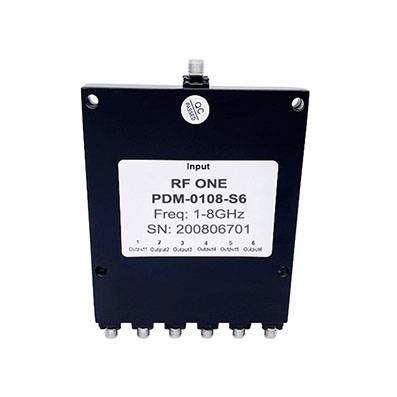

| PDM-0108-S6 | 1 GHz | 8 GHz | 2.0 dB | 1.4 | 18 dB | ±0.8 dB | ±6° | SMA | Add to RFQ |
| PDM-0206-S6 | 2 GHz | 6 GHz | 1.0 dB | 1.35 | 20 dB | ±0.5 dB | ±5° | SMA | Add to RFQ |

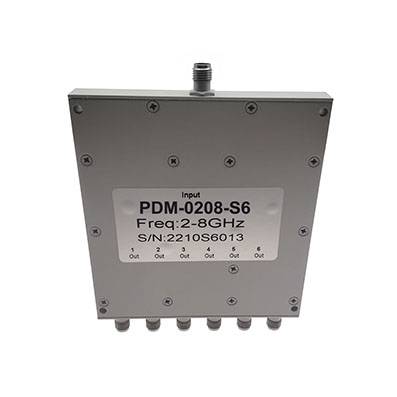

| PDM-0208-S6 | 2 GHz | 8 GHz | 1.2 dB | 1.35 | 20 dB | ±0.5 dB | ±5° | SMA | Add to RFQ |
| PDM-0218-N6 | 2 GHz | 18 GHz | 3.0 dB | 1.7 | 18 dB | ±0.6 dB | ±6° | N | Add to RFQ |
| PDM-0218-S6 | 2 GHz | 18 GHz | 2.6 dB | 1.5 | 16 dB | ±0.6 dB | ±8° | SMA | Add to RFQ |
| PDM-2126-S6 | 21 GHz | 26 GHz | 3.0 dB | 1.5 | 16 dB | ±0.8 dB | ±8° | SMA | Add to RFQ |
| PDM-2126-K6 | 21 GHz | 26 GHz | 3.0 dB | 1.5 | 16 dB | ±0.8 dB | ±8° | 2.92mm | Add to RFQ |

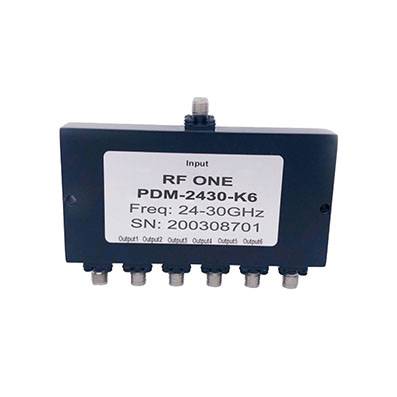

| PDM-2430-K6 | 24 GHz | 30 GHz | 2.0 dB | 1.8 | 15 dB | ±1.0 dB | ±10° | 2.92mm | Add to RFQ |
