RF ONE offers a range of 12 way power dividers/combiners covering from 0.5 GHz to 18 GHz. These dividers come in BNC, N type, SMA etc connectors, featuring wide band, low VSWR, low insertion losses and high isolation. Custom frequency bands and optimized specifications available.
| P/N | Frequency Min | Frequency Max | Insertion Loss Max | Input VSWR Max | Isolation Min | Amplitude Balance Max | Phase Balance Max | Connector | Add to RFQ |
|---|---|---|---|---|---|---|---|---|---|
| PDM-00506-S12 | 0.5 GHz | 6 GHz | 5.0 dB | 1.5 | 18 dB | ±1.0 dB | ±12° | SMA | Add to RFQ |
| PDM-00508-S12 | 0.5 GHz | 8 GHz | 5.0 dB | 1.6 | 16 dB | ±1.2 dB | ±12° | SMA | Add to RFQ |

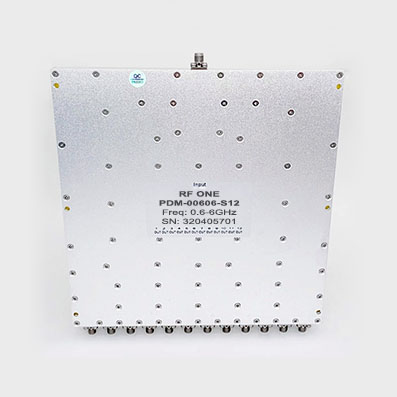

| PDM-00606-S12 | 0.6 GHz | 6 GHz | 4.0 dB | 1.4 | 18 dB | ±1.0 dB | ±12° | SMA | Add to RFQ |

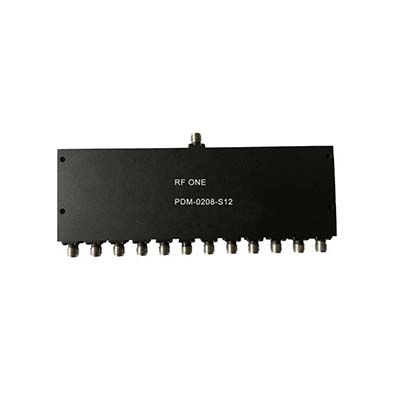

| PDM-0208-S12 | 2 GHz | 8 GHz | 1.6 dB | 1.45 | 18 dB | ±0.6 dB | ±6° | SMA | Add to RFQ |
|

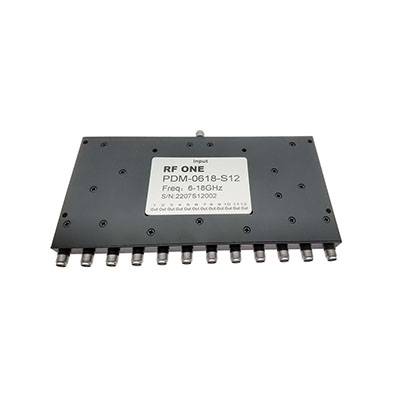

PDM-0618-S12 |
6 GHz | 18 GHz | 2.0 dB | 1.8 | 16 dB | ±0.8 dB | ±8° | SMA | Add to RFQ |

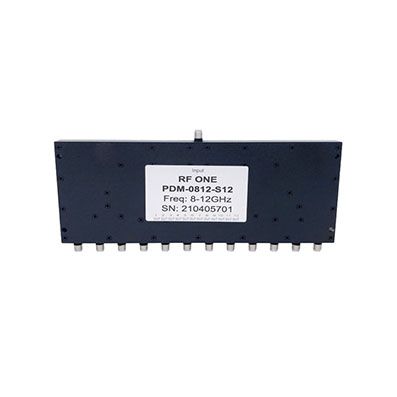

| PDM-0812-S12 | 8 GHz | 12 GHz | 1.5 dB | 1.7 | 16 dB | ±0.6 dB | ±8° | SMA | Add to RFQ |
