Low PIM Terminations

Grid

Table

Result: 32

RF ONE has been designing low PIM termination loads since 2014. Over the past years, we have developed cable terminations ranging from 170 dBc (test grade) to 150 dBc (production grade ). Our low PIM terminations are available in 25 W, 30 W, 50 W, 70 W, 100 W, 150 W and 200 W.

Filter

Average Power

50 W

100 W

150 W

200 W

300 W

Connector

N Female

N Male

4.3-10 Female

4.3-10 Male

7/16 DIN Female

7/16 DIN Male

Reset Filters

Export to Excel

Submit

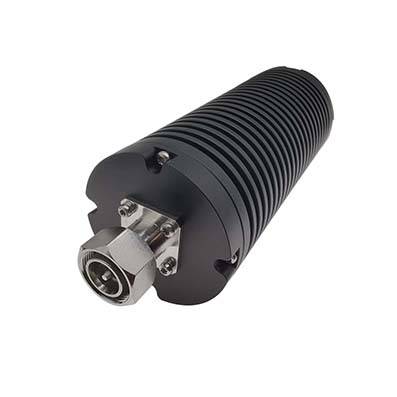

RTL035043102

4.3-10 Male Low PIM Termination 380-2700 MHz 50 Watts -158 dBc IP67

Datasheet

P/N	Average Power	Connector	Frequency Range	VSWR Max	3rd PIM Max	Add to RFQ
RTL035043102	50 W	4.3-10 Male	380-2700 MHz	1.25	-158 dBc	Add to RFQ

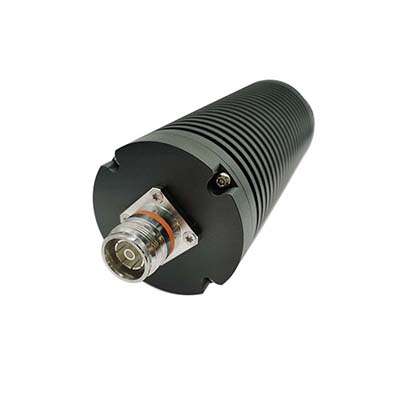

RTL035043101	50 W	4.3-10 Female	380-2700 MHz	1.25	-158 dBc	Add to RFQ

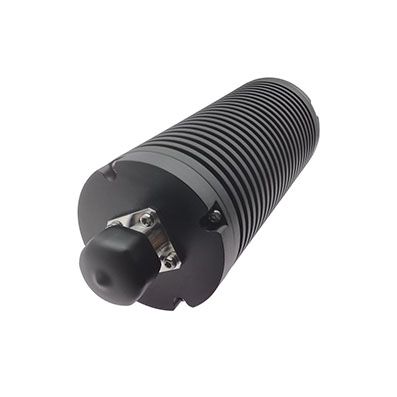

RTL0350D2	50 W	7/16 DIN Male	380-2700 MHz	1.25	-158 dBc	Add to RFQ

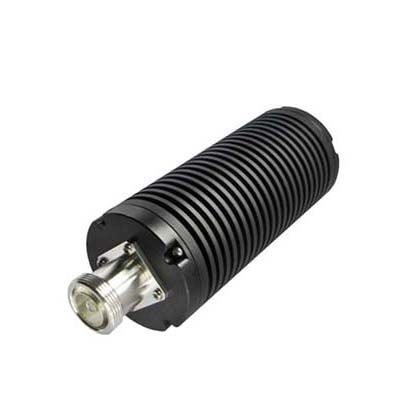

RTL0350D1	50 W	7/16 DIN Female	380-2700 MHz	1.25	-158 dBc	Add to RFQ

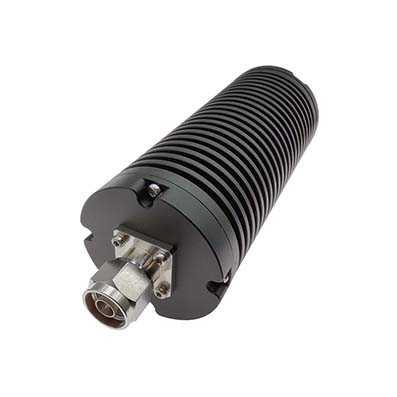

RTL0350N2	50 W	N Male	380-2700 MHz	1.25	-158 dBc	Add to RFQ
RTL0350N1	50 W	N Female	380-2700 MHz	1.25	-158 dBc	Add to RFQ
RTL045043102-D	50 W	4.3-10 Male	380-4000 MHz	1.3	-160 dBc	Add to RFQ
RTL045043101-D	50 W	4.3-10 Female	380-4000 MHz	1.3	-160 dBc	Add to RFQ

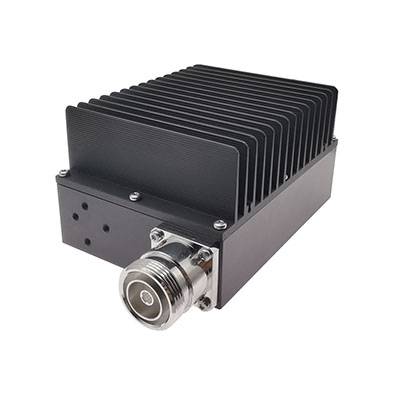

Hot RTL0450D1-D	50 W	7/16 DIN Female	380-4000 MHz	1.3	-160 dBc	Add to RFQ

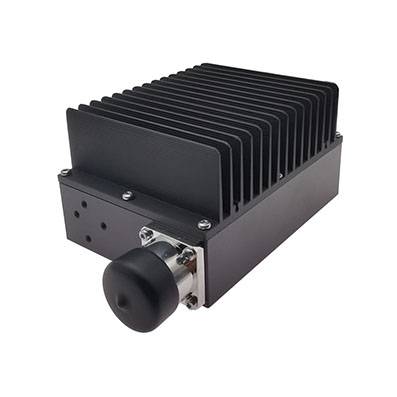

RTL0450N2-D	50 W	N Male	380-4000 MHz	1.3	-160 dBc	Add to RFQ
RTL0450N1-D	50 W	N Female	380-4000 MHz	1.3	-160 dBc	Add to RFQ

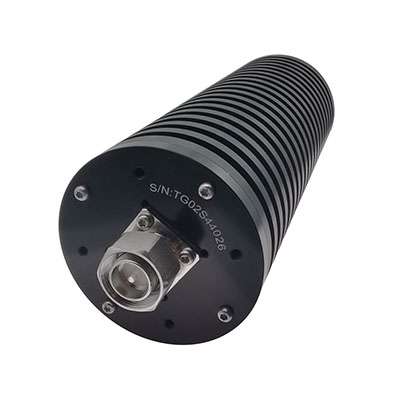

Hot RTL04100F2	100 W	4.3-10 Male	380-6000 MHz	1.3	-160 dBc	Add to RFQ

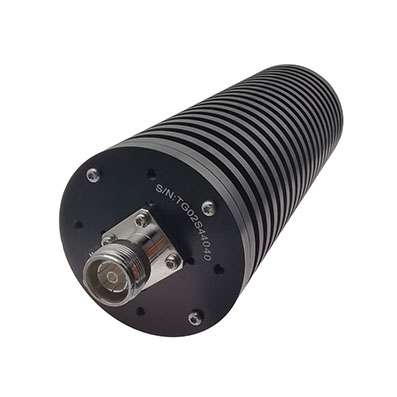

Hot RTL04100F1	100 W	4.3-10 Female	380-6000 MHz	1.3	-160 dBc	Add to RFQ

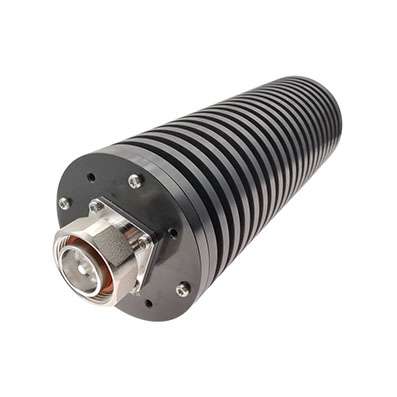

Hot RTL04100D2	100 W	7/16 DIN Male	380-6000 MHz	1.3	-160 dBc	Add to RFQ

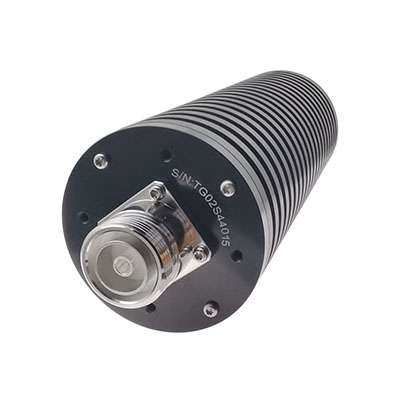

Hot RTL04100D1	100 W	7/16 DIN Female	380-6000 MHz	1.3	-160 dBc	Add to RFQ

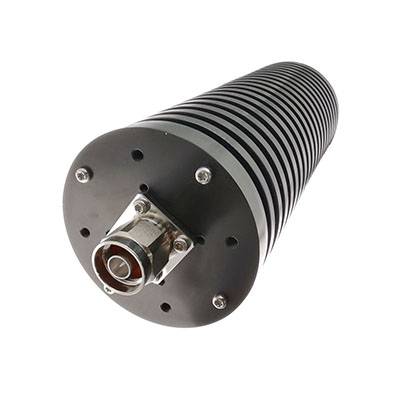

Hot RTL04100N2	100 W	N Male	380-6000 MHz	1.3	-160 dBc	Add to RFQ

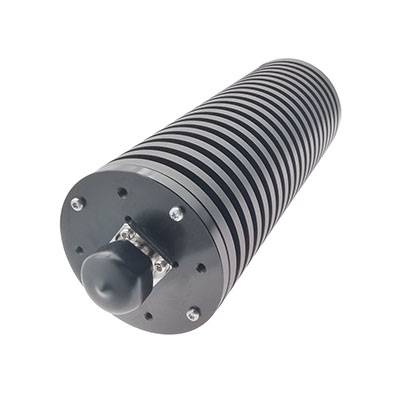

Hot RTL04100N1	100 W	N Female	380-6000 MHz	1.3	-160 dBc	Add to RFQ
RTL0410043102-D	100 W	4.3-10 Male	380-4000 MHz	1.3	-160 dBc	Add to RFQ
RTL0410043101-D	100 W	4.3-10 Female	380-4000 MHz	1.3	-160 dBc	Add to RFQ

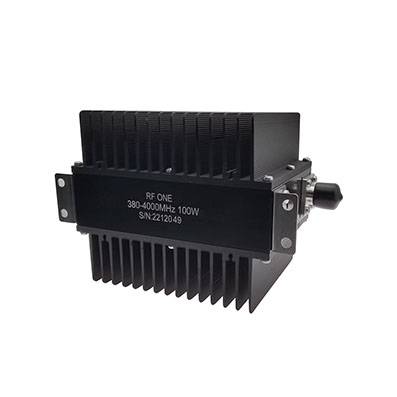

RTL04100D1-D	100 W	7/16 DIN Female	380-4000 MHz	1.3	-160 dBc	Add to RFQ
RTL04100N2-D	100 W	N Male	380-4000 MHz	1.3	-160 dBc	Add to RFQ
Hot RTL04100N1-D	100 W	N Female	380-4000 MHz	1.3	-160 dBc	Add to RFQ
RTL04150N1-DA	150 W	N Female	400-6000 MHz	1.38	-160 dBc	Add to RFQ
RTL0420043101-DA	200 W	4.3-10 Female	400-6000 MHz	1.38	-160 dBc	Add to RFQ
RTL0520043101-D	200 W	4.3-10 Female	555-6000 MHz	1.3	-160 dBc	Add to RFQ
RTL0520043102-D	200 W	4.3-10 Male	555-6000 MHz	1.3	-160 dBc	Add to RFQ
Hot RTL05200D1-D	200 W	7/16 DIN Female	555-6000 MHz	1.3	-160 dBc	Add to RFQ
RTL05200D2-D	200 W	7/16 DIN Male	555-6000 MHz	1.3	-160 dBc	Add to RFQ
RTL0430043101-D	300 W	4.3-10 Female	400-6000 MHz	1.3	-160 dBc	Add to RFQ
RTL04300D1-D	300 W	7/16 DIN Female	400-6000 MHz	1.3	-160 dBc	Add to RFQ
RTL04300N2-D	300 W	N Male	400-6000 MHz	1.3	-160 dBc	Add to RFQ
Hot RTL04300N1-D	300 W	N Female	400-6000 MHz	1.3	-160 dBc	Add to RFQ
