NMD Adapters

Grid
Table
Result: 14

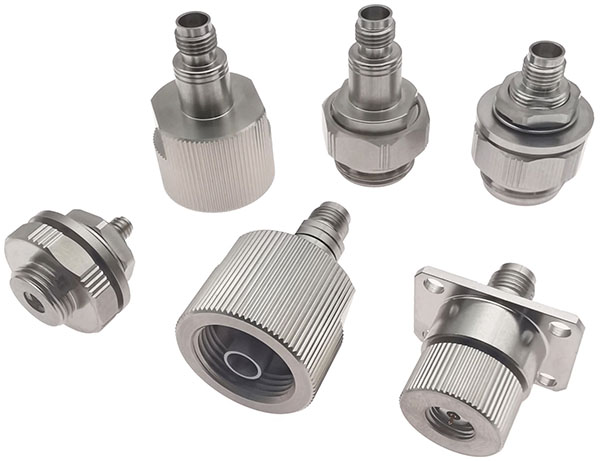

RF ONE’s NMD adapters are precision-built for ruggedized test environments,engineered to withstand the rigors of network analyzers, automatic test equipment (ATE). Featuring a large threaded stainless steel body, these adapters deliver industry-leading low VSWR and high durability across 1.0mm, 1.85mm, 2.4mm, 2.92mm and 3.5mm interfaces.


Features

  • Frequency Range: Up to 110 GHz
  • Body Material: 316F Stainless Steel
  • Interface Options:1.0mm, 1.85mm, 2.4mm, 2.92mm, 3.5mm
  • Max VSWR ≤ 1.35 @ 110 GHz
NMD ADAPTERS
Filter
Freq Range
Freq Range
DC-110 GHz
DC-67 GHz
DC-50 GHz
DC-40 GHz
DC-26.5 GHz
Reset Filters
Export to Excel
Submit
NMD 1.0mm Female to 1.0mm Female Adapter
AM11001
NMD 1.0mm Female to 1.0mm Female Adapter
Datasheet
Add to RFQ
NMD 1.0mm Male to 1.0mm Male Bulkhead Adapter
AM11002
NMD 1.0mm Male to 1.0mm Male Bulkhead Adapter
Datasheet
Add to RFQ

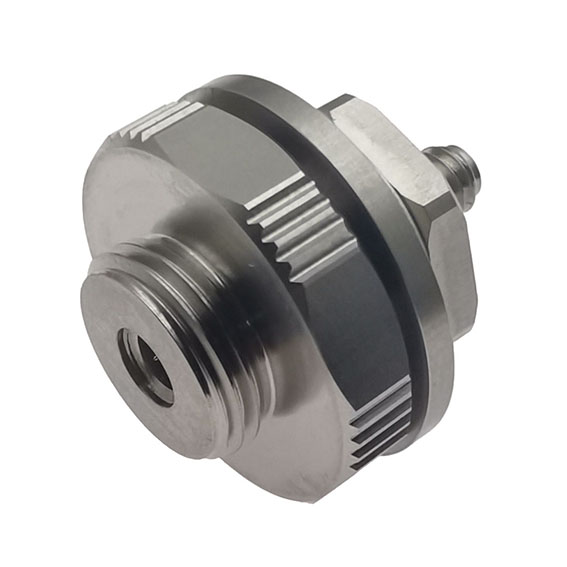

NMD 1.0mm Male to 1.0mm Female Bulkhead Adapter
AM11003
NMD 1.0mm Male to 1.0mm Female Bulkhead Adapter
Datasheet
Add to RFQ
NMD 1.0mm Female to 1.85 Female Adapter
AM6701
NMD 1.0mm Female to 1.85 Female Adapter
Datasheet
Add to RFQ

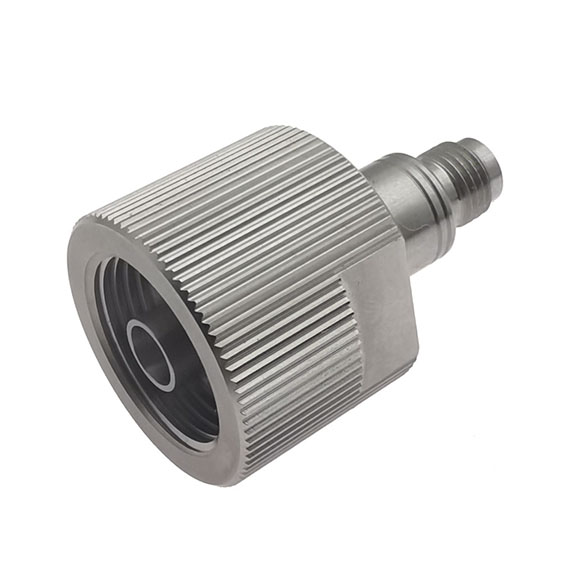

NMD 1.85mm Female to 1.85 Female Adapter
AM6702
NMD 1.85mm Female to 1.85 Female Adapter
Datasheet
Add to RFQ

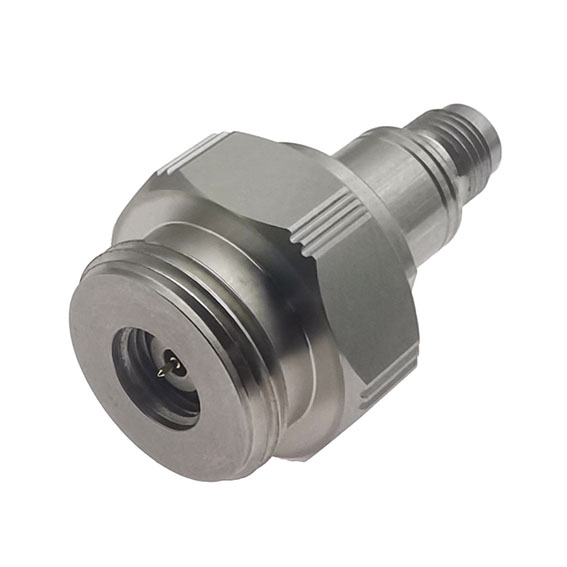

NMD 1.85mm Male to 1.85 Female Adapter
AM6703
NMD 1.85mm Male to 1.85 Female Adapter
Datasheet
Add to RFQ
NMD 1.85mm Male to 1.85 Female Bulkhead Adapter
AM6704
NMD 1.85mm Male to 1.85 Female Bulkhead Adapter
Datasheet
Add to RFQ

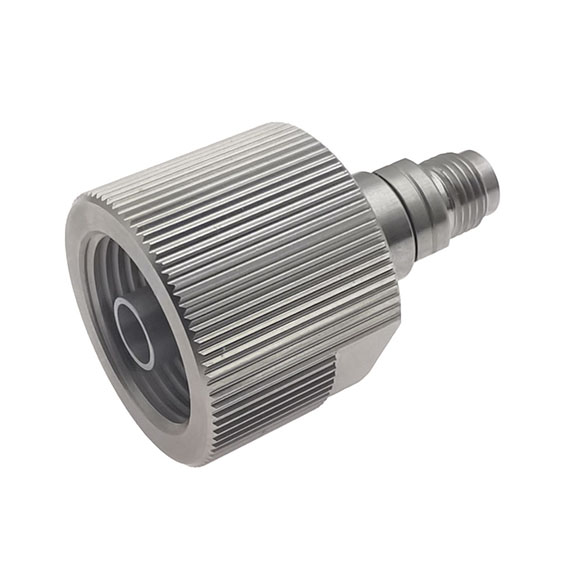

NMD 2.4mm Female to 2.4 Female Adapter
AM5001
NMD 2.4mm Female to 2.4 Female Adapter
Datasheet
Add to RFQ
NMD 2.4mm Male to 2.4 Female Adapter
AM5002
NMD 2.4mm Male to 2.4 Female Adapter
Datasheet
Add to RFQ
NMD 2.92mm Female to 2.92 Female Adapter
AM4001
NMD 2.92mm Female to 2.92 Female Adapter
Datasheet
Add to RFQ
NMD 2.92mm Male to 2.92 Female Adapter
AM4002
NMD 2.92mm Male to 2.92 Female Adapter
Datasheet
Add to RFQ
NMD 2.92mm Male to 2.92 Female Bulkhead Adapter
AM4003
NMD 2.92mm Male to 2.92 Female Bulkhead Adapter
Datasheet
Add to RFQ

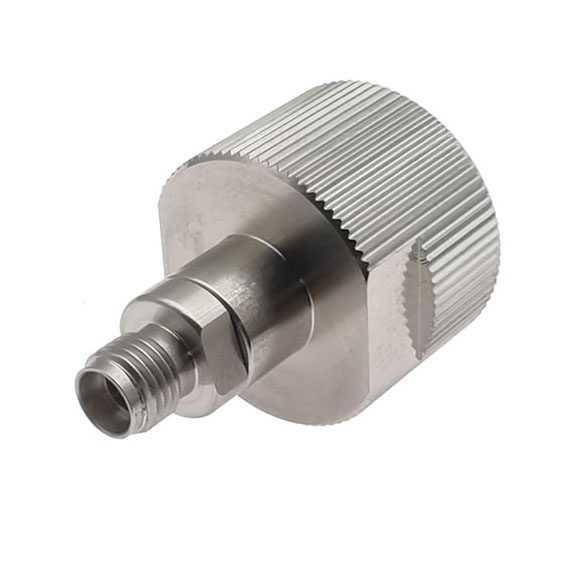

NMD 3.5mm Female to 3.5 Female Adapter
AM2701
NMD 3.5mm Female to 3.5 Female Adapter
Datasheet
Add to RFQ
NMD 3.5mm Male to 3.5 Female Adapter
AM2702
NMD 3.5mm Male to 3.5 Female Adapter
Datasheet
Add to RFQ
Show 20
Show 20
Show 40
Show 60
Show 80
 1
P/N Freq Range Connector 1 Connector 2 Body Style VSWR Max Add to RFQ
AM11001 DC-110 GHz NMD 1.0mm Female 1.0mm Female Straight 1.35 Add to RFQ
AM11002 DC-110 GHz NMD 1.0mm Male 1.0mm Male Bulkhead 1.4 Add to RFQ
AM11003 DC-110 GHz NMD 1.0mm Male 1.0mm Female Bulkhead 1.4 Add to RFQ
AM6701 DC-67 GHz NMD 1.0mm Female 1.85 Female Straight 1.2 Add to RFQ
AM6702 DC-67 GHz NMD 1.85mm Female 1.85 Female Straight 1.2 Add to RFQ
AM6703 DC-67 GHz NMD 1.85mm Male 1.85 Female Straight 1.2 Add to RFQ
AM6704 DC-67 GHz NMD 1.85mm Male 1.85 Female Bulkhead 1.2 Add to RFQ
AM5001 DC-50 GHz NMD 2.4mm Female 2.4 Female Straight 1.2 Add to RFQ
AM5002 DC-50 GHz NMD 2.4mm Male 2.4 Female Straight 1.2 Add to RFQ
AM4001 DC-40 GHz NMD 2.92mm Female 2.92 Female Straight 1.15 Add to RFQ
AM4002 DC-40 GHz NMD 2.92mm Male 2.92 Female Straight 1.15 Add to RFQ
AM4003 DC-40 GHz NMD 2.92mm Male 2.92 Female Bulkhead 1.15 Add to RFQ
AM2701 DC-26.5 GHz NMD 3.5mm Female 3.5 Female Straight 1.15 Add to RFQ
AM2702 DC-26.5 GHz NMD 3.5mm Male 3.5 Female Straight 1.15 Add to RFQ
