Low PIM Components

Passive intermodulation (PIM) is a form of intermodulation caused by the nonlinearities present in all passive rf components. RF ONE offers a varity of low passive intermodulation (PIM) components, including low PIM attenuators, low PIM terminations, low PIM duplexers, low PIM connectors, and low PIM adapters.

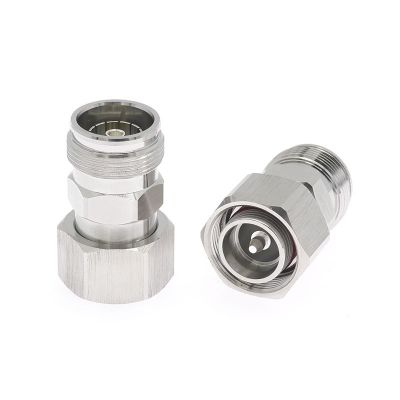

Low PIM Adapters

Low PIM Attenuators

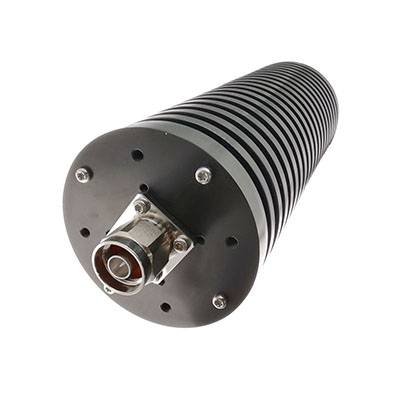

Low PIM Terminations

P/N	Average Power	Connection Type	Connector	Connector 1	Frequency Range	Connector 2	VSWR Max	Body Style	Input Return Loss Min	3rd PIM Max	Add to RFQ
A0601L		In Series		7/16 DIN Female	DC-6 GHz	7/16 DIN Female	1.25	Straight		-160 dBc	Add to RFQ
A0601L-Y		In Series		7/16 DIN Female	DC-6 GHz	7/16 DIN Female	1.25	Bulkhead		-160 dBc	Add to RFQ
A0602L		In Series		7/16 DIN Female	DC-6 GHz	7/16 DIN Male	1.25	Straight		-160 dBc	Add to RFQ
A0603L		In Series		7/16 DIN Male	DC-6 GHz	7/16 DIN Male	1.25	Straight		-160 dBc	Add to RFQ
A0604L		In Series		N Female	DC-6 GHz	N Female	1.15	Straight		-160 dBc	Add to RFQ
A0605L		In Series		N Female	DC-6 GHz	N Male	1.15	Straight		-160 dBc	Add to RFQ
A0606L		In Series		N Male	DC-6 GHz	N Male	1.15	Straight		-160 dBc	Add to RFQ
A0607L		In Series		4.3-10 Female	DC-6 GHz	4.3-10 Female	1.25	Straight		-160 dBc	Add to RFQ
A0608L		In Series		4.3-10 Female	DC-6 GHz	4.3-10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0609L		In Series		4.3-10 Male	DC-6 GHz	4.3-10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0608L-RA		In Series		4.3-10 Female	DC-6 GHz	4.3-10 Male	1.25	Right Angle		-160 dBc	Add to RFQ
A0610L		In Series		4.1/9.5 Female	DC-6 GHz	4.1/9.5 Female	1.25	Straight		-160 dBc	Add to RFQ
A0611L		In Series		4.1/9.5 Female	DC-6 GHz	4.1/9.5 Male	1.25	Straight		-160 dBc	Add to RFQ
A0612L		In Series		4.1/9.5 Male	DC-6 GHz	4.1/9.5 Male	1.25	Straight		-160 dBc	Add to RFQ
A0613L		In Series		2.2-5 Female	DC-6 GHz	2.2-5 Female	1.25	Straight		-160 dBc	Add to RFQ
A0614L		In Series		2.2-5 Female	DC-6 GHz	2.2-5 Male	1.25	Straight		-160 dBc	Add to RFQ
A0615L		In Series		2.2-5 Male	DC-6 GHz	2.2-5 Male	1.25	Straight		-160 dBc	Add to RFQ
A0616L		In Series		NEX10 Female	DC-6 GHz	NEX10 Female	1.25	Straight		-160 dBc	Add to RFQ
A0617L		In Series		NEX10 Female	DC-6 GHz	NEX10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0617L-RA		In Series		NEX10 Female	DC-6 GHz	NEX10 Male	1.35	Right Angle		-155 dBc	Add to RFQ
A0618L		In Series		NEX10 Male	DC-6 GHz	NEX10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0619L		In Series		QN Female	DC-6 GHz	QN Female	1.25	Straight		-155 dBc	Add to RFQ
A0620L		In Series		QN Female	DC-6 GHz	QN Male	1.25	Straight		-155 dBc	Add to RFQ
A0621L		In Series		QN Male	DC-6 GHz	QN Male	1.25	Straight		-155 dBc	Add to RFQ
A0631L		Between Series		7/16 DIN Female	DC-6 GHz	4.3-10 Female	1.25	Straight		-160 dBc	Add to RFQ
A0632L		Between Series		7/16 DIN Female	DC-6 GHz	4.3-10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0633L		Between Series		7/16 DIN Male	DC-6 GHz	4.3-10 Female	1.25	Straight		-160 dBc	Add to RFQ
A0634L		Between Series		7/16 DIN Male	DC-6 GHz	4.3-10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0635L		Between Series		7/16 DIN Female	DC-6 GHz	4.1/9.5 Female	1.25	Straight		-160 dBc	Add to RFQ
A0636L		Between Series		7/16 DIN Female	DC-6 GHz	4.1/9.5 Male	1.25	Straight		-160 dBc	Add to RFQ
A0637L		Between Series		7/16 DIN Male	DC-6 GHz	4.1/9.5 Female	1.25	Straight		-160 dBc	Add to RFQ
A0638L		Between Series		7/16 DIN Male	DC-6 GHz	4.1/9.5 Male	1.25	Straight		-160 dBc	Add to RFQ
A0639L		Between Series		7/16 DIN Female	DC-6 GHz	N Female	1.25	Straight		-160 dBc	Add to RFQ
A0640L		Between Series		7/16 DIN Female	DC-6 GHz	N Male	1.25	Straight		-160 dBc	Add to RFQ
A0641L		Between Series		7/16 DIN Male	DC-6 GHz	N Female	1.25	Straight		-160 dBc	Add to RFQ
A0642L		Between Series		7/16 DIN Male	DC-6 GHz	N Male	1.25	Straight		-160 dBc	Add to RFQ
A0643L		Between Series		7/16 DIN Female	DC-6 GHz	NEX10 Female	1.25	Straight		-160 dBc	Add to RFQ
A0644L		Between Series		7/16 DIN Female	DC-6 GHz	NEX10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0645L		Between Series		7/16 DIN Male	DC-6 GHz	NEX10 Female	1.25	Straight		-160 dBc	Add to RFQ
A0646L		Between Series		7/16 DIN Male	DC-6 GHz	NEX10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0651L		Between Series		7/16 DIN Female	DC-6 GHz	2.2-5 Female	1.25	Straight		-160 dBc	Add to RFQ
A0652L		Between Series		7/16 DIN Female	DC-6 GHz	2.2-5 Male	1.25	Straight		-160 dBc	Add to RFQ
A0653L		Between Series		7/16 DIN Male	DC-6 GHz	2.2-5 Female	1.25	Straight		-160 dBc	Add to RFQ
A0654L		Between Series		7/16 DIN Male	DC-6 GHz	2.2-5 Male	1.25	Straight		-160 dBc	Add to RFQ
A0655L		Between Series		4.3-10 Female	DC-6 GHz	N Female	1.25	Straight		-160 dBc	Add to RFQ
A0656L		Between Series		4.3-10 Female	DC-6 GHz	N Male	1.25	Straight		-160 dBc	Add to RFQ
A0657L		Between Series		4.3-10 Male	DC-6 GHz	N Female	1.25	Straight		-160 dBc	Add to RFQ
A0658L		Between Series		4.3-10 Male	DC-6 GHz	N Male	1.25	Straight		-160 dBc	Add to RFQ
A0659L		Between Series		4.1/9.5 Female	DC-6 GHz	N Female	1.25	Straight		-160 dBc	Add to RFQ
A0660L		Between Series		4.1/9.5 Female	DC-6 GHz	N Male	1.25	Straight		-160 dBc	Add to RFQ
A0661L		Between Series		4.1/9.5 Male	DC-6 GHz	N Female	1.25	Straight		-160 dBc	Add to RFQ
A0662L		Between Series		4.1/9.5 Male	DC-6 GHz	N Male	1.25	Straight		-160 dBc	Add to RFQ
A0663L		Between Series		N Female	DC-6 GHz	NEX10 Female	1.25	Straight		-160 dBc	Add to RFQ
A0664L		Between Series		N Female	DC-6 GHz	NEX10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0665L		Between Series		N Male	DC-6 GHz	NEX10 Female	1.25	Straight		-160 dBc	Add to RFQ
A0666L		Between Series		N Male	DC-6 GHz	NEX10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0667L		Between Series		N Female	DC-6 GHz	SMA Female	1.25	Straight		-155 dBc	Add to RFQ
A0668L		Between Series		N Female	DC-6 GHz	SMA Male	1.25	Straight		-155 dBc	Add to RFQ
A0669L		Between Series		N Male	DC-6 GHz	SMA Female	1.25	Straight		-155 dBc	Add to RFQ
A0670L		Between Series		N Male	DC-6 GHz	SMA Male	1.25	Straight		-155 dBc	Add to RFQ
A0671L		Between Series		N Female	DC-6 GHz	QMA Female	1.25	Straight		-155 dBc	Add to RFQ
A0672L		Between Series		N Female	DC-6 GHz	QMA Male	1.25	Straight		-155 dBc	Add to RFQ
A0673L		Between Series		N Male	DC-6 GHz	QMA Female	1.25	Straight		-155 dBc	Add to RFQ
A0674L		Between Series		N Male	DC-6 GHz	QMA Male	1.25	Straight		-155 dBc	Add to RFQ
A0675L		Between Series		N Female	DC-6 GHz	2.2-5 Female	1.25	Straight		-160 dBc	Add to RFQ
A0676L		Between Series		N Female	DC-6 GHz	2.2-5 Male	1.25	Straight		-160 dBc	Add to RFQ
A0677L		Between Series		N Male	DC-6 GHz	2.2-5 Female	1.25	Straight		-160 dBc	Add to RFQ
A0678L		Between Series		N Male	DC-6 GHz	2.2-5 Male	1.25	Straight		-160 dBc	Add to RFQ
A0679L		Between Series		NEX10 Female	DC-6 GHz	SMA Female	1.25	Straight		-155 dBc	Add to RFQ
A0680L		Between Series		NEX10 Female	DC-6 GHz	SMA Male	1.25	Straight		-155 dBc	Add to RFQ
A0681L		Between Series		NEX10 Male	DC-6 GHz	SMA Female	1.25	Straight		-155 dBc	Add to RFQ
A0682L		Between Series		NEX10 Male	DC-6 GHz	SMA Male	1.25	Straight		-155 dBc	Add to RFQ
A0683L		Between Series		QN Female	DC-6 GHz	N Female	1.25	Straight		-155 dBc	Add to RFQ
A0684L		Between Series		QN Female	DC-6 GHz	N Male	1.25	Straight		-155 dBc	Add to RFQ
A0685L		Between Series		QN Male	DC-6 GHz	N Female	1.2	Straight		-155 dBc	Add to RFQ
A0686L		Between Series		QN Male	DC-6 GHz	N Male	1.2	Straight		-155 dBc	Add to RFQ
A0687L		Between Series		QN Female	DC-6 GHz	TNC Female	1.2	Straight		-155 dBc	Add to RFQ
A0688L		Between Series		QN Female	DC-6 GHz	TNC Male	1.2	Straight		-155 dBc	Add to RFQ
A0689L		Between Series		QN Male	DC-6 GHz	TNC Female	1.2	Straight		-155 dBc	Add to RFQ
A0690L		Between Series		QN Male	DC-6 GHz	TNC Male	1.2	Straight		-155 dBc	Add to RFQ
A0691L		Between Series		4.3-10 Female	DC-6 GHz	NEX10 Female	1.25	Straight		-160 dBc	Add to RFQ
A0692L		Between Series		4.3-10 Female	DC-6 GHz	NEX10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0693L		Between Series		4.3-10 Male	DC-6 GHz	NEX10 Female	1.25	Straight		-160 dBc	Add to RFQ
A0694L		Between Series		4.3-10 Male	DC-6 GHz	NEX10 Male	1.25	Straight		-160 dBc	Add to RFQ
A0695L		Between Series		SMA Female	DC-6 GHz	QMA Female	1.25	Straight		-150 dBc	Add to RFQ
A0696L		Between Series		SMA Female	DC-6 GHz	QMA Male	1.25	Straight		-150 dBc	Add to RFQ
A0697L		Between Series		SMA Male	DC-6 GHz	QMA Female	1.25	Straight		-150 dBc	Add to RFQ
A0698L		Between Series		SMA Male	DC-6 GHz	QMA Male	1.25	Straight		-150 dBc	Add to RFQ
A06101L		Between Series		4.3-10 Female	DC-6 GHz	SMA Female	1.2	Straight		-155 dBc	Add to RFQ
A06102L		Between Series		4.3-10 Female	DC-6 GHz	SMA Male	1.2	Straight		-155 dBc	Add to RFQ
A06103L		Between Series		4.3-10 Male	DC-6 GHz	SMA Female	1.2	Straight		-155 dBc	Add to RFQ
A06104L		Between Series		4.3-10 Male	DC-6 GHz	SMA Male	1.2	Straight		-155 dBc	Add to RFQ
RALXX25FA-A	25 W		4.3-10		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
RALXX25NA-A	25 W		N		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
RALXX50FA-A	50 W		4.3-10		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
Hot RALXX50NA-A	50 W		N		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
RALXX100FA-A	100 W		4.3-10		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
RALXX100NA-A	100 W		N		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
Hot RALXX200FA-A	200 W		4.3-10		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
RALXX200NA-A	200 W		N		555-6000 MHz				18 dB	-160 dBc	Add to RFQ

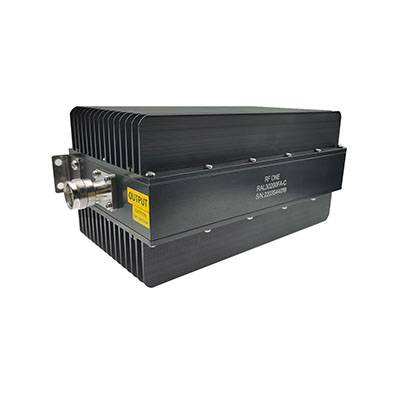

RAL30200FA-C	200 W		4.3-10		400-6000 MHz				18 dB	-160 dBc	Add to RFQ
RAL30200NA-C	200 W		N		400-6000 MHz				18 dB	-160 dBc	Add to RFQ
RALXX300FA	300 W		4.3-10		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
RALXX300DA	300 W		7/16 DIN		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
RALXX300NA	300 W		N		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
Hot RALXX400FA	400 W		4.3-10		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
RALXX400DA	400 W		7/16 DIN		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
RALXX400NA	400 W		N		555-6000 MHz				18 dB	-160 dBc	Add to RFQ
RALXX400FA1	400 W		4.3-10		400-6000 MHz				18 dB	-160 dBc	Add to RFQ
RTL0310S2	10 W		SMA Male		600-3000 MHz		1.25			-153 dBc	Add to RFQ
Hot RTL042543102-D	25 W		4.3-10 Male		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL042543101-D	25 W		4.3-10 Female		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL0425D1-D	25 W		7/16 DIN Female		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL0425N2-D	25 W		N Male		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL0425N1-D	25 W		N Female		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL0330D2	30 W		7/16 DIN Male		380-2700 MHz		1.25			-158 dBc	Add to RFQ
RTL035043102	50 W		4.3-10 Male		380-2700 MHz		1.25			-158 dBc	Add to RFQ
RTL035043101	50 W		4.3-10 Female		380-2700 MHz		1.25			-158 dBc	Add to RFQ
RTL0350D2	50 W		7/16 DIN Male		380-2700 MHz		1.25			-158 dBc	Add to RFQ
RTL0350D1	50 W		7/16 DIN Female		380-2700 MHz		1.25			-158 dBc	Add to RFQ
RTL0350N2	50 W		N Male		380-2700 MHz		1.25			-158 dBc	Add to RFQ
RTL0350N1	50 W		N Female		380-2700 MHz		1.25			-158 dBc	Add to RFQ
RTL045043102-D	50 W		4.3-10 Male		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL045043101-D	50 W		4.3-10 Female		380-4000 MHz		1.3			-160 dBc	Add to RFQ
Hot RTL0450D1-D	50 W		7/16 DIN Female		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL0450N2-D	50 W		N Male		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL0450N1-D	50 W		N Female		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL0370N1	70 W		N Female		380-2700 MHz		1.25			-158 dBc	Add to RFQ
Hot RTL04100F2	100 W		4.3-10 Male		380-6000 MHz		1.3			-160 dBc	Add to RFQ
Hot RTL04100F1	100 W		4.3-10 Female		380-6000 MHz		1.3			-160 dBc	Add to RFQ
Hot RTL04100D2	100 W		7/16 DIN Male		380-6000 MHz		1.3			-160 dBc	Add to RFQ
Hot RTL04100D1	100 W		7/16 DIN Female		380-6000 MHz		1.3			-160 dBc	Add to RFQ
Hot RTL04100N2	100 W		N Male		380-6000 MHz		1.3			-160 dBc	Add to RFQ
Hot RTL04100N1	100 W		N Female		380-6000 MHz		1.3			-160 dBc	Add to RFQ
RTL0410043102-D	100 W		4.3-10 Male		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL0410043101-D	100 W		4.3-10 Female		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL04100D1-D	100 W		7/16 DIN Female		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL04100N2-D	100 W		N Male		380-4000 MHz		1.3			-160 dBc	Add to RFQ
Hot RTL04100N1-D	100 W		N Female		380-4000 MHz		1.3			-160 dBc	Add to RFQ
RTL03100D1-D	100 W		7/16 DIN Female		698-2700 MHz		1.25			-168 dBc	Add to RFQ
RTL06100D1-D	100 W		7/16 DIN Female		DC-6000 MHz		1.3			-160 dBc	Add to RFQ
RTL06100F1-D	100 W		4.3-10 Female		DC-6000 MHz		1.3			-160 dBc	Add to RFQ
RTL06100N1-D	100 W		N Female		DC-6000 MHz		1.3			-160 dBc	Add to RFQ
RTL04150N1-DA	150 W		N Female		400-6000 MHz		1.38			-160 dBc	Add to RFQ
RTL0420043101-DA	200 W		4.3-10 Female		400-6000 MHz		1.38			-160 dBc	Add to RFQ
RTL0520043101-D	200 W		4.3-10 Female		555-6000 MHz		1.3			-160 dBc	Add to RFQ
RTL0520043102-D	200 W		4.3-10 Male		555-6000 MHz		1.3			-160 dBc	Add to RFQ
Hot RTL05200D1-D	200 W		7/16 DIN Female		555-6000 MHz		1.3			-160 dBc	Add to RFQ
RTL05200D2-D	200 W		7/16 DIN Male		555-6000 MHz		1.3			-160 dBc	Add to RFQ
RTL0430043101-D	300 W		4.3-10 Female		400-6000 MHz		1.3			-160 dBc	Add to RFQ
RTL04300D1-D	300 W		7/16 DIN Female		400-6000 MHz		1.3			-160 dBc	Add to RFQ
RTL04300N2-D	300 W		N Female		400-6000 MHz		1.3			-160 dBc	Add to RFQ
Hot RTL04300N1-D	300 W		N Female		400-6000 MHz		1.3			-160 dBc	Add to RFQ

Language

Language
