Dust caps are used to protect the ends of RF connectors from moisture, dust particles or other contaminants. They also protect the connector interface when it's not in use. RF ONE offers dust caps in material of metal and plastic ones.
Stock plastic dust caps include SMA, TNC, N type, DIN 7/16, 4.3-10, BNC, QMA etc, please make sure to choose the correct gender of dust caps for your connectors.
Plastic Dust Cap List

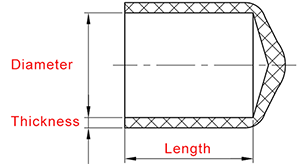

| Part Number | Description | Diameter (mm） | Length (mm) | Thickness (mm) |
|---|---|---|---|---|
| PCNM-13.5(0.8) | N Female Dust Cap for Male Connector | 20 | 13.5 | 0.8 |
| PCNF-13.5(1.0) | N Male Dust Cap for Female Connector | 15.8 | 13.5 | 1.0 |
| PCSMAM-10.5(1.0) | SMA, 3.5mm, 2.92mm, 2.4mm, 1.85mm Female Dust Cap for Male Connector | 8 | 10.5 | 1.0 |
| PCSMAF-9(0.8) | SMA, 3.5mm, 2.92mm Male Dust Cap for Female Connector | 5.8 | 9 | 0.8 |
| PCVF-9(1.0) | 2.4mm, 1.85mm Male Dust Cap for Female Connector | 6.7 | 9 | 1.0 |
| PC4310M-13.5(1.0) | 4.3-10 Female Dust for Male Connector | 23 | 13.5 | 1.0 |
| PC4310F-13(1.0) | 4.3-10 Male Dust for Female Connector | 19.5 | 13 | 1.0 |
| PC716M-15(1.2) | 7/16 DIN Female Dust Cap for Male Connector | 32.5 | 15 | 1.2 |
| PC716F-13.5(1.2) | 7/16 DIN Male Dust Cap for Female Connector | 28.5 | 13.5 | 1.2 |
| PCTNCM-13.5(1.2) | TNC Female Dust Cap for Male Connector | 15.5 | 13.5 | 1.2 |
| PCTNCF-13.5(1.0) | TNC Male Dust Cap for Female Connector | 10.6 | 13.5 | 1.0 |
| PCBNCM-17(1.0) | BNC Female Dust Cap for Male Connector | 14.5 | 17 | 1.0 |
| PCBNCF-12.5(1.0) | BNC Male Dust Cap for Female Connector | 10.2 | 12.5 | 1.0 |
| PCQMAM-8(0.8) | QMA Female Dust Cap for Male Connector | 9 | 8 | 0.8 |
| PCQMAF-6.5(0.8) | QMA Male Dust Cap for Female Connector | 5.2 | 6.5 | 0.8 |
| PCSMPF-6(0.8) | SMP Male Dust Cap for Female Connector | 3 | 6 | 9.54 |
