Super flexible PUR armored test cables from RF ONE are ultra flexible and very rugged with stainless steel inner protection and PUR jacket. This armored cable is more flexible than other conventional armored ones, it is specifically designed for repeated flexure and maintains signal integrity to 50 GHz.
Features:
| P/N | Frequency Range | VSWR Max | IL Max (1 meter) | Connector 1 | Connector 2 | Add to RFQ |
|---|---|---|---|---|---|---|
| UF370P-24M24M-L-AU | DC-50 GHz | 1.35 | 4.9 dB | 2.4mm Male | 2.4mm Male | Add to RFQ |

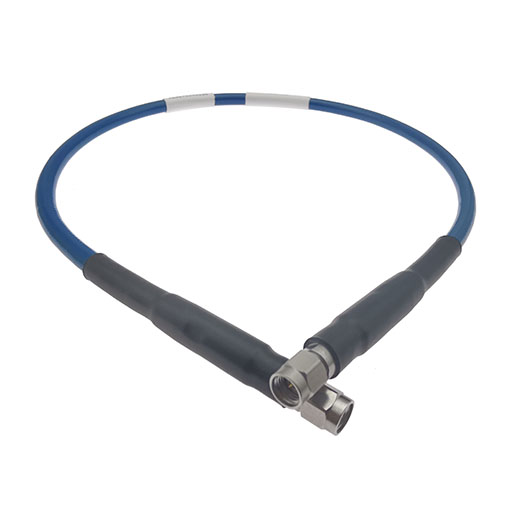

| UF450-292M292M-L-AU | DC-40 GHz | 1.3 | 3.7 dB | 2.92mm Male | 2.92mm Male | Add to RFQ |
|
UF520-SMAMSMAM-L-AU |

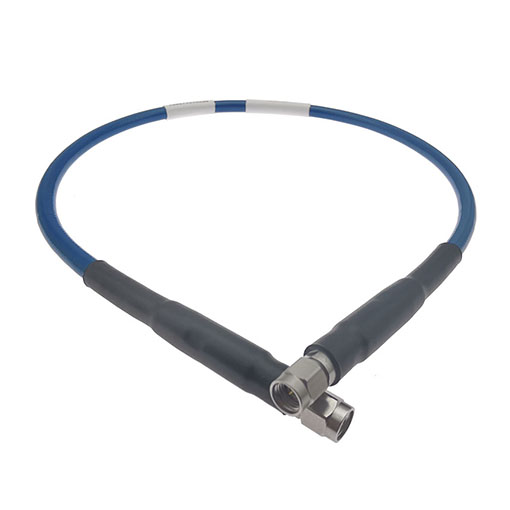

DC-26.5 GHz | 1.25 | 3.1 dB | SMA Male | SMA Male | Add to RFQ |
| UF520-NMNM-L-AU | DC-18 GHz | 1.25 | 2.5 dB | N Male | N Male | Add to RFQ |

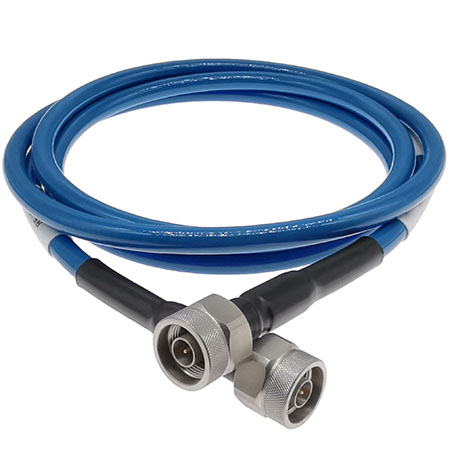

| UF550-NMNM-L-AU | DC-18 GHz | 1.3 | 1.8 dB | N Male | N Male | Add to RFQ |
