SF series from RF ONE is 50 Ohm semi-flexible coax cable that has an outer conductor comprised of a tin-filled copper wire braid (which enables easy forming/reforming by hand), a copper/poly foil inner layer, and a semi-rigid-style dielectric and center conductor. Available in .086”, .141” sizes with max operating frequency to 18 GHz. The conformable properties of the cable allow or easy hand-forming and shape retention, which makes it ideal for interconnect of RF systems.
| P/N | Frequency Max | Outer Diameter | Static Bend Radius | Loss at Max Freq | Power at Max Freq | Add to RFQ |
|---|---|---|---|---|---|---|

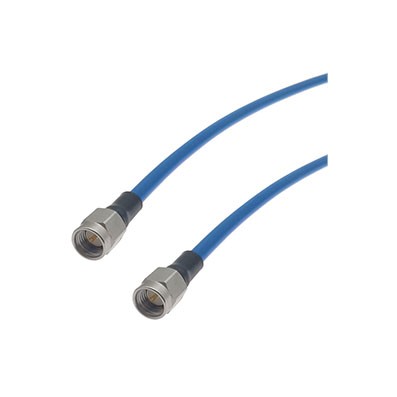

| SF086 | 18 GHz | 2.6 mm | 6 mm | 4.0 dB/m | 23 W | Add to RFQ |
| SF141 | 18 GHz | 4.1 mm | 8 mm | 2.3 dB/m | 97 W | Add to RFQ |

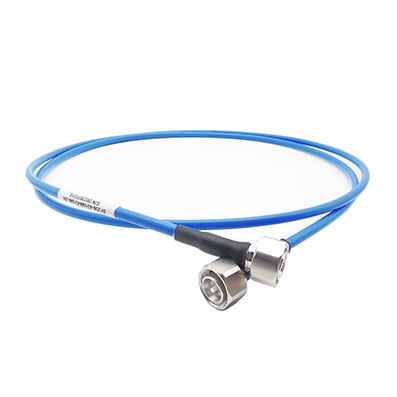

| SF250 | 6 GHz | 6.8 mm | 10 mm | 0.69 dB/m | 389 W | Add to RFQ |
