Phase Stable PL Series
Result: 14

PL series from RF ONE are phase and amplitude stable low loss cables with max operating frequency options of 18 GHz, 26.5 GHz, 30 GHz, 40 GHz, 50 GHz, 67 GHz and 110 GHz. Using micro-porous PTFE dielectrics which provide consistent performance over temperature changes, these cables are ideally for high frequency signal transmission between systems or used in test instruments when low loss and stability are critical. PL series cable assemblies are available with a broad selection of connectors and ruggedized armors. Bulk cables available as well.

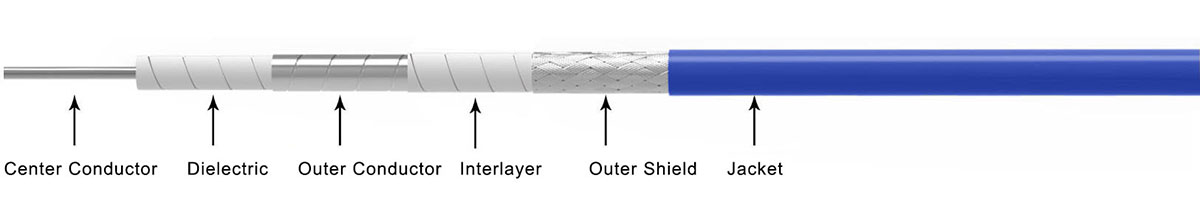

cable struction of RF ONE PL series


Features:

  • Minimal phase and attenuation change versus flexure
  • Robust for dynamic use with multiple inter-layers
  • Very low VSWR and loss, typ VSWR 1.30 to 67 GHz
  • Broad options of frequency, cable size, connector and armor


➤ Please check our Cable Cross Reference Table VS other major cable vendors.
➤ Mechanical phase stability is tested by wrapping the cable 360 degree. Check our report on Phase Stability Test over Flexure.

Show 20
Show 20
Show 40
Show 60
Show 80
 1
P/N Frequency Max Outer Diameter Static Bend Radius Loss at Max Freq Power at Max Freq Phase Stability Add to RFQ
Hot

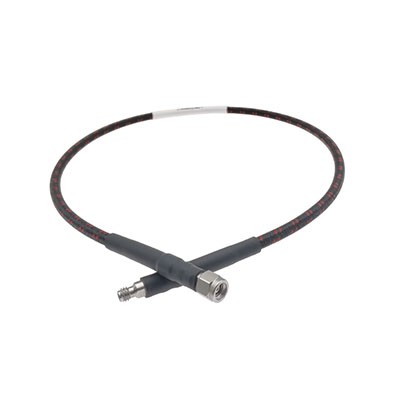

PL140
110 GHz 1.4 mm 8 mm 14.6 dB/m 3 W ≤±12°@ 110 GHz Add to RFQ

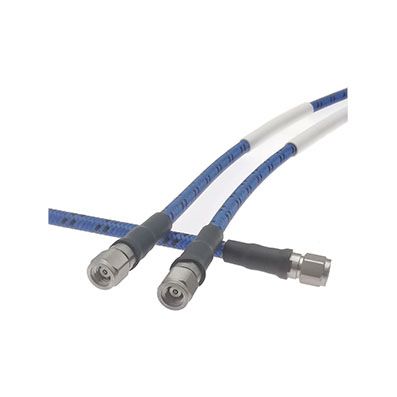

PL180P 110 GHz 1.8 mm 13 mm 13.1 dB/m 2 W ≤±12°@ 110 GHz Add to RFQ

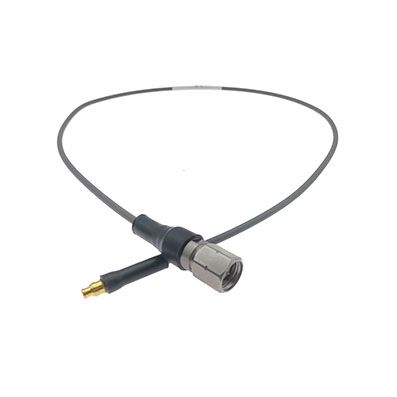

PL220 67 GHz 2.2 mm 11 mm 6 dB/m 29 W ≤±8°@ 67 GHz Add to RFQ
Hot

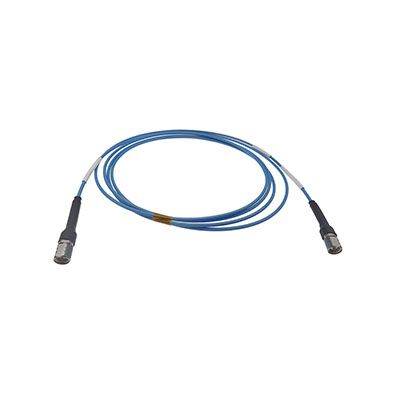

PL230P
67 GHz 2.6 mm 11 mm 6 dB/m 29 W ≤±7°@ 67 GHz Add to RFQ

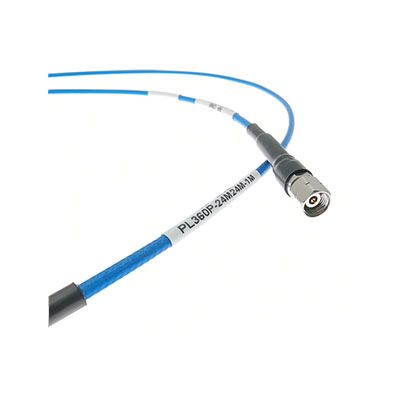

PL360P 50 GHz 3.6 mm 18 mm 3.3 dB/m 55 W ≤±5°@ 50 GHz Add to RFQ

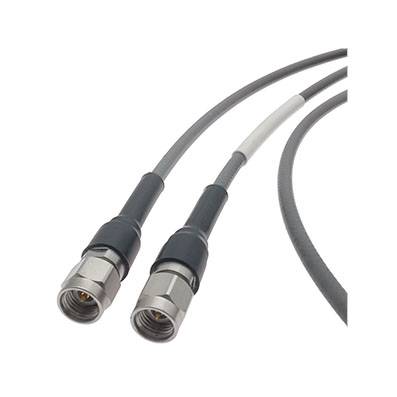

PL360 40 GHz 3.6 mm 18 mm 2.6 dB/m 75 W ≤±6°@ 40 GHz Add to RFQ
Hot

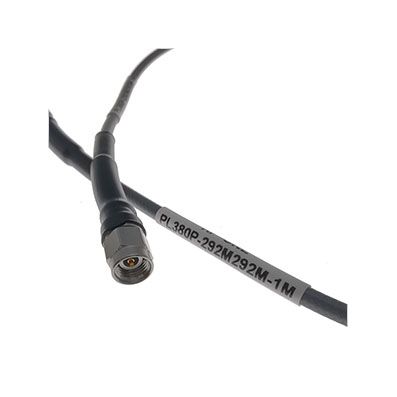

PL380P
40 GHz 3.8 mm 18 mm 2.2 dB/m 74 W ≤±5°@ 40 GHz Add to RFQ
PL390P 40 GHz 3.9 mm 18 mm 2.6 dB/m 75 W ≤±5°@ 40 GHz Add to RFQ

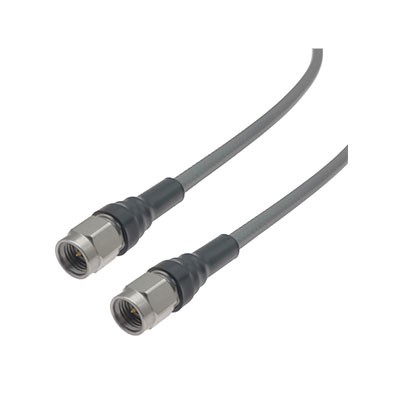

PL400 40 GHz 4.0 mm 20 mm 2.0 dB/m 77 W ≤±5°@ 40 GHz Add to RFQ

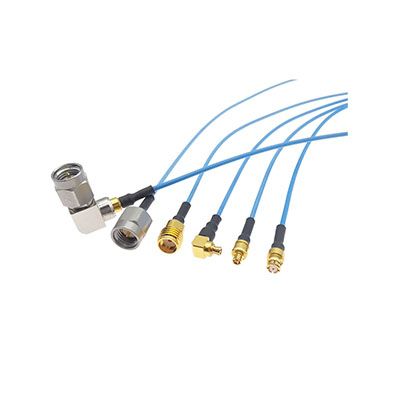

PL150 40 GHz 1.5 mm 7 mm 7.3 dB/m 6 W ≤±8°@ 40 GHz Add to RFQ

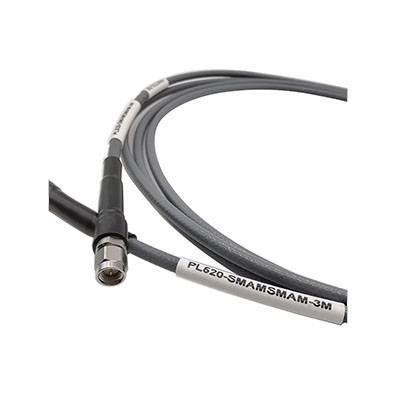

PL520 26.5 GHz 5.2 mm 25 mm 1.3 dB/m 160 W ≤±5°@ 26.5 GHz Add to RFQ
PL520P 26.5 GHz 5.4 mm 26 mm 1.3 dB/m 160 W ≤±5°@ 26.5 GHz Add to RFQ

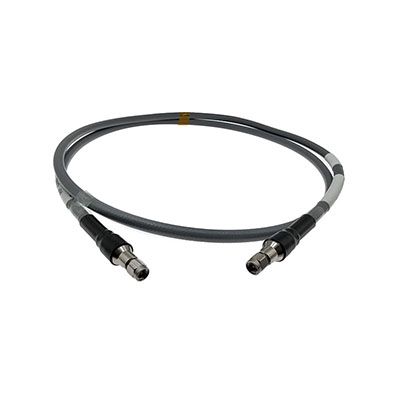

PL800 18 GHz 7.85 mm 40 mm 0.7 dB/m 398 W ≤±5°@ 18 GHz Add to RFQ

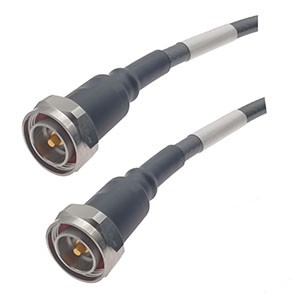

PL1200 10 GHz 12.0 mm 60 mm 0.4 dB/m 867 W ≤±4°@ 10 GHz Add to RFQ
