Features:
| P/N | Waveguide Size | Frequency Range | VSWR Max | IL Max | Directivity Min | Add to RFQ |
|---|---|---|---|---|---|---|

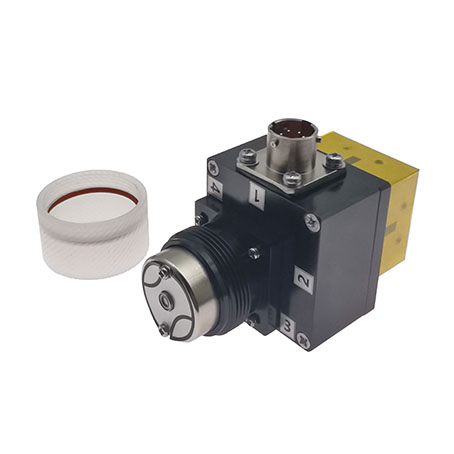

| RD22F-L24A | WR22 | 32.9-50.1 GHz | 1.2 | 0.3 dB | 55 dB | Add to RFQ |
| RD28F-L24A | WR28 | 26.3-40.0 GHz | 1.15 | 0.15 dB | 70 dB | Add to RFQ |
| RD34F-L24A | WR34 | 21.7-33.0 GHz | 1.1 | 0.15 dB | 65 dB | Add to RFQ |
| RD42F-L24A | WR42 | 17.6-26.7 GHz | 1.1 | 0.15 dB | 65 dB | Add to RFQ |

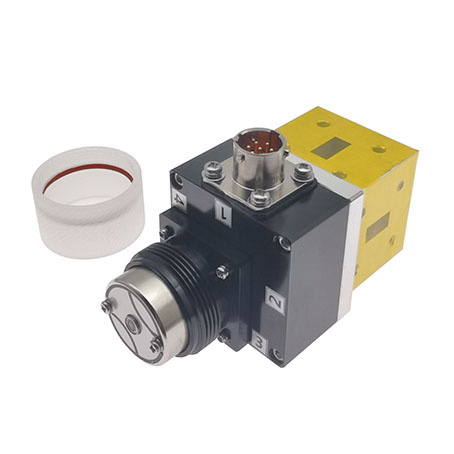

| RD51F-L24A | WR51 | 14.5-22.0 GHz | 1.1 | 0.15 dB | 65 dB | Add to RFQ |
| RD62F-L24A | WR62 | 11.9-18.0 GHz | 1.1 | 0.15 dB | 65 dB | Add to RFQ |
| RD75F-L24A | WR75 | 9.84-15.0 GHz | 1.1 | 0.15 dB | 65 dB | Add to RFQ |
| RD90F-L24A | WR90 | 8.20-12.5 GHz | 1.1 | 0.15 dB | 70 dB | Add to RFQ |
| RD112F-L24A | WR112 | 6.57-9.99 GHz | 1.1 | 0.15 dB | 70 dB | Add to RFQ |
| RD137F-L24A | WR137 | 5.38-8.17 GHz | 1.1 | 0.1 dB | 70 dB | Add to RFQ |
| RD159F-L24A | WR159 | 4.64-7.05 GHz | 1.1 | 0.1 dB | 70 dB | Add to RFQ |
| RD187F-L24A | WR187 | 3.94-5.99 GHz | 1.1 | 0.1 dB | 70 dB | Add to RFQ |
| RD229F-L24A | WR229 | 3.22-4.90 GHz | 1.15 | 0.1 dB | 70 dB | Add to RFQ |
| RD284F-L24A | WR284 | 2.60-3.95 GHz | 1.1 | 0.1 dB | 70 dB | Add to RFQ |
| RD340F-L24A | WR340 | 2.17-3.30 GHz | 1.1 | 0.1 dB | 70 dB | Add to RFQ |

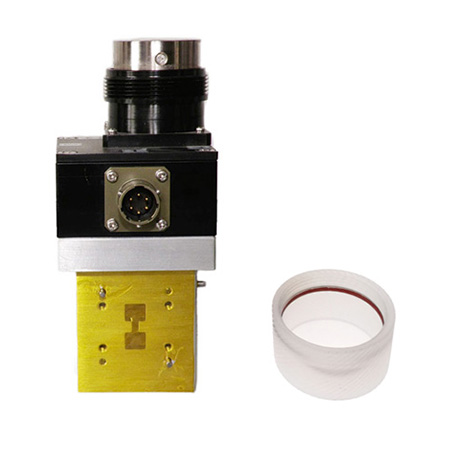

| RD180F-L24A | WRD180 | 18-40 GHz | 1.2 | 0.4 dB | 50 dB | Add to RFQ |
| RD200F-L24A | WRD200 | 2-4.8 GHz | 1.2 | 0.35 dB | 50 dB | Add to RFQ |
| RD350F-L24A | WRD350 | 3.5-8.2 GHz | 1.2 | 0.35 dB | 55 dB | Add to RFQ |
| RD500F-L24A | WRD500 | 5-18 GHz | 1.2 | 0.35 dB | 60 dB | Add to RFQ |
| RD650F-L24A | WRD650 | 6.5-18 GHz | 1.2 | 0.35 dB | 60 dB | Add to RFQ |
| RD750F-L24A | WRD750 | 2.17-3.30 GHz | 1.2 | 0.35 dB | 50 dB | Add to RFQ |
