RF ONE offers one of the industry’ s most comprehensive portfolios of fixed attenuators, covering frequencies from DC to 110 GHz. Our attenuator range includes connector interfaces SMA, N, BNC, QMA, DIN 7/16, 4.3-10, SMP and precision 3.5mm, 2.92mm, 2.4mm, 1.85mm, and 1.0mm. Addressing the demanding market requirements, we also provide specialized attenuators for thermal vacuum (TVAC) and cryogenic applications.
Features
View our articles
Discussion on High Power Attenuator Failure and Prevention Guide
High Power Attenuator Operating Guidelines & Precautions
RF ONE's attenuators are designed and produced per MIL-STD-202 & MIL-DTL-3933. More articles about reliability test can be found at Technical Articles
RF ONE also offers a wide choice of Low PIM Attenuators and Waveguide Attenuators.
| P/N | Average Power | Frequency Max | Connector | VSWR Max | Attenuations | Shape | Direction | Dimensions (mm) | Add to RFQ |
|---|---|---|---|---|---|---|---|---|---|

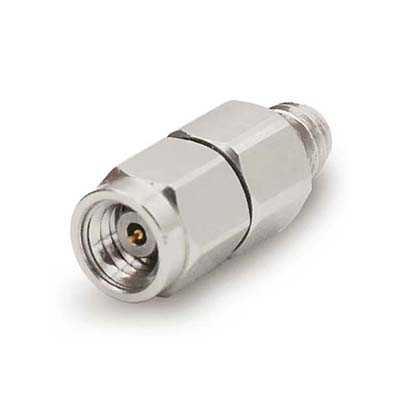

| RFHB1-XX | 1 W | 110 GHz | 1.0mm | 1.6 | 3-20 dB | Round | Bidirectional | 15.4(L) | Add to RFQ |
|
RFHB1C-XX |
1 W | 110 GHz | 1.0mm | 1.5 | 3-40 dB | Round | Bidirectional | 11(L) | Add to RFQ |
|
RFHB67XX185C2 |
2 W | 67 GHz | 1.85mm | 1.3 | 0-80 dB | Round | Bidirectional | 16(L)*9(φ) | Add to RFQ |
|
RFHB67XXVC2 |
2 W | 67 GHz | 1.85mm | 1.3 | 1-40 dB | Round | Bidirectional | 16(L)*9(φ) | Add to RFQ |
| RFHB67XXVC2A | 2 W | 67 GHz | 1.85mm | 1.35 | 1-30 dB | Round | Bidirectional | 18.5(L)*9(φ) | Add to RFQ |
|
RFHB67XX185C5 |
5 W | 67 GHz | 1.85mm | 1.45 | 1-40 dB | Round | Bidirectional | 15.6(L)*28(φ) | Add to RFQ |
|

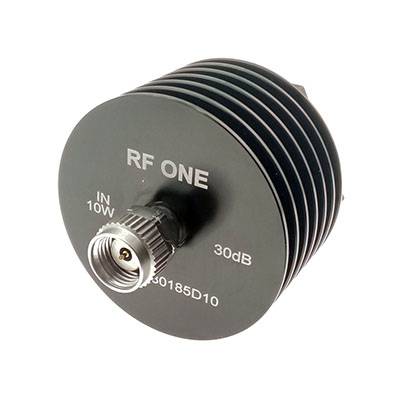

RFH67XX185D10 |
10 W | 67 GHz | 1.85mm | 1.45 | 3-40 dB | Round | Unidirectional | 22.2(L)*34.8(φ) | Add to RFQ |
| RFHB04XXZC2 | 2 W | 4 GHz | 2.2-5 | 1.15 | 1-60 dB | Round | Bidirectional | 37(L)*16(φ) | Add to RFQ |
| RFHB06XXZC2 | 2 W | 6 GHz | 2.2-5 | 1.25 | 1-60 dB | Round | Bidirectional | 37(L)*16(φ) | Add to RFQ |
| RFHB08XXZC2 | 2 W | 8 GHz | 2.2-5 | 1.25 | 1-60 dB | Round | Bidirectional | 37(L)*16(φ) | Add to RFQ |
|
RFHB50XX24C2 |
2 W | 50 GHz | 2.4mm | 1.3 | 0-80 dB | Round | Bidirectional | 16(L)*9(φ) | Add to RFQ |
|
RFHB50XXQC2 |
2 W | 50 GHz | 2.4mm | 1.3 | 0-40 dB | Round | Bidirectional | 16(L)*9(φ) | Add to RFQ |
| RFHB50XX24C2A | 2 W | 50 GHz | 2.4mm | 1.3 | 1-30 dB | Round | Bidirectional | 19.7(L)*9(φ) | Add to RFQ |
|
RFHB50XX24C5 |
5 W | 50 GHz | 2.4mm | 1.34 | 1-40 dB | Round | Bidirectional | 15.6(L)*28(φ) | Add to RFQ |
| RFHB50XX24C8 | 8 W | 50 GHz | 2.4mm | 1.34 | 1-40 dB | Round | Bidirectional | 15.6(L)*34.8(φ) | Add to RFQ |
|
RFH50XX24D10 |
10 W | 50 GHz | 2.4mm | 1.34 | 3-40 dB | Round | Unidirectional | 22.2(L)*28(φ) | Add to RFQ |
| RFH50XX24D15 | 15 W | 50 GHz | 2.4mm | 1.34 | 3-40 dB | Round | Unidirectional | 22.2(L)*34.8(φ) | Add to RFQ |
| RFH50XX24D20 | 20 W | 50 GHz | 2.4mm | 1.38 | 10-40 dB | Round | Unidirectional | 28.8(L)*40.8(φ) | Add to RFQ |
| RFH50XX24D30 | 30 W | 50 GHz | 2.4mm | 1.38 | 10-40 dB | Round | Unidirectional | 47.6(L)*40.8(φ) | Add to RFQ |

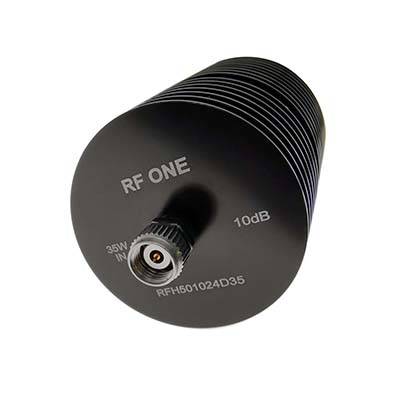

| RFH50XX24D35 | 35 W | 50 GHz | 2.4mm | 1.44 | 10-40 dB | Round | Unidirectional | 54.2(L)*40.8(φ) | Add to RFQ |
|
RFHB40XX292C2 |
2 W | 40 GHz | 2.92mm | 1.23 | 0-80 dB | Round | Bidirectional | 15.2(L)*9(φ) | Add to RFQ |
|
RFHB40XXKC2 |
2 W | 40 GHz | 2.92mm | 1.23 | 1-30 dB | Round | Bidirectional | 15.6(L)*9(φ) | Add to RFQ |
| RFHB40XXKC2A | 2 W | 40 GHz | 2.92mm | 1.25 | 0-30 dB | Round | Bidirectional | 17.2(L)*9(φ) | Add to RFQ |
| RFHB40XX292A2-F | 2 W | 40 GHz | 2.92mm | 1.23 | 1-30 dB | Round | Bidirectional | 20.3(L)*5.4(φ) | Add to RFQ |
| RFHB40XX292C5 | 5 W | 40 GHz | 2.92mm | 1.26 | 1-40 dB | Round | Bidirectional | 14.4(L)*28(φ) | Add to RFQ |
| RFHB40XXKC5A | 5 W | 40 GHz | 2.92mm | 1.25 | 1-30 dB | Round | Bidirectional | 17.8(L)*31.8(φ) | Add to RFQ |
|
RFHB40XX292C10 |
10 W | 40 GHz | 2.92mm | 1.26 | 1-40 dB | Round | Bidirectional | 14.4(L)*34.8(φ) | Add to RFQ |
| RFH40XX292D10A | 10 W | 40 GHz | 2.92mm | 1.26 | 2-40 dB | Round | Unidirectional | 32.1(L)*34.8(φ) | Add to RFQ |
| RFH40XXKD10A | 10 W | 40 GHz | 2.92mm | 1.3 | 3-40 dB | Round | Unidirectional | 25.8(L)*38(φ) | Add to RFQ |
| RFH40XX292D20 | 20 W | 40 GHz | 2.92mm | 1.26 | 3-40 dB | Round | Unidirectional | 21.4(L)*40.8(φ) | Add to RFQ |
| RFH40XXKD20A | 20 W | 40 GHz | 2.92mm | 1.35 | 10-40 dB | Round | Unidirectional | 57(L)*38(φ) | Add to RFQ |
| RFH40XX292D25 | 25 W | 40 GHz | 2.92mm | 1.3 | 3-40 dB | Round | Unidirectional | 28.4(L)*40.8(φ) | Add to RFQ |

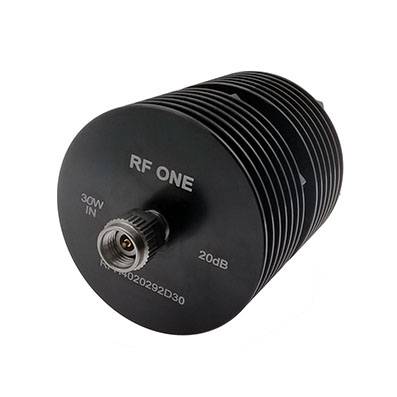

| RFH40XX292D30 | 30 W | 40 GHz | 2.92mm | 1.3 | 10-40 dB | Round | Unidirectional | 46.1(L)*34.8(φ) | Add to RFQ |
| RFH40XX292D35 | 35 W | 40 GHz | 2.92mm | 1.3 | 10-40 dB | Round | Unidirectional | 46.1(L)*40.8(φ) | Add to RFQ |
| RFH40XX292D40 | 40 W | 40 GHz | 2.92mm | 1.38 | 10-40 dB | Round | Unidirectional | 53.1(L)*40.8(φ) | Add to RFQ |
| RFH40XX292D45 | 45 W | 40 GHz | 2.92mm | 1.38 | 10-40 dB | Round | Unidirectional | 60.1(L)*40.8(φ) | Add to RFQ |
|
RFH40XX292D50 |
50 W | 40 GHz | 2.92mm | 1.38 | 2-40 dB | Round | Unidirectional | 60.1(L)*49.8(φ) | Add to RFQ |
| RFH40XXKD50A | 50 W | 40 GHz | 2.92mm | 1.35 | 10-40 dB | Round | Unidirectional | 88.8(L)*54(φ) | Add to RFQ |
|
RFH40XXKD50B |
50 W | 40 GHz | 2.92mm | 1.38 | 10-40 dB | Round | Unidirectional | 110(L)*54(φ) | Add to RFQ |
|
RFH30XX292D100 |
100 W | 30 GHz | 2.92mm | 1.3 | 10-40 dB | Round | Unidirectional | 99(L)*49.8(φ) | Add to RFQ |
|
RFH40XXKD100A |
100 W | 40 GHz | 2.92mm | 1.4 | 10-60 dB | Round | Unidirectional | Fan cooled | Add to RFQ |
|
RFHB34XX35C2 |
2 W | 34 GHz | 3.5mm | 1.2 | 1-40 dB | Round | Bidirectional | 15.6(L)*9(φ) | Add to RFQ |

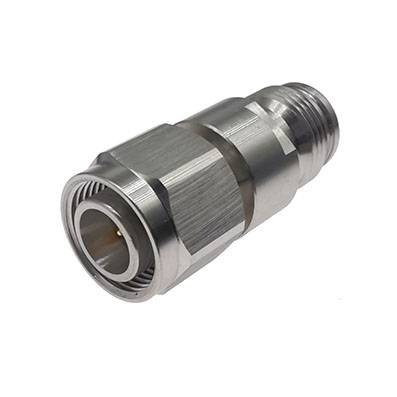

| RFHB03XX4310C2 | 2 W | 3 GHz | 4.3-10 | 1.2 | 1-30 dB | Round | Bidirectional | 48(L)*22(φ) | Add to RFQ |
| RFHB06XX4310C2 | 2 W | 6 GHz | 4.3-10 | 1.2 | 1-30 dB | Round | Bidirectional | 48(L)*22(φ) | Add to RFQ |
| RFHB03XX4310C5 | 5 W | 3 GHz | 4.3-10 | 1.15 | 1-30 dB | Round | Bidirectional | 48(L)*22(φ) | Add to RFQ |
| RFHB06XX4310C5 | 5 W | 6 GHz | 4.3-10 | 1.2 | 1-30 dB | Round | Bidirectional | 48(L)*22(φ) | Add to RFQ |
| RFHB04XX4310C10 | 10 W | 4 GHz | 4.3-10 | 1.15 | 1-50 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |
| RFHB06XX4310C10 | 10 W | 6 GHz | 4.3-10 | 1.25 | 1-50 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |
| RFHB03XX4310C15 | 15 W | 3 GHz | 4.3-10 | 1.15 | 1-50 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |
| RFHB06XX4310C15 | 15 W | 6 GHz | 4.3-10 | 1.25 | 1-50 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |
| RFHB03XX4310C25 | 25 W | 3 GHz | 4.3-10 | 1.2 | 1-40 dB | Round | Bidirectional | 70(L)*38(φ) | Add to RFQ |
| RFHB06XX4310C25 | 25 W | 6 GHz | 4.3-10 | 1.25 | 1-40 dB | Round | Bidirectional | 70(L)*38(φ) | Add to RFQ |
| RFHB03XX4310C50 | 50 W | 3 GHz | 4.3-10 | 1.2 | 1-50 dB | Round | Bidirectional | 79(L)*45(φ) | Add to RFQ |
| RFHB06XX4310C50 | 50 W | 6 GHz | 4.3-10 | 1.25 | 1-50 dB | Round | Bidirectional | 79(L)*45(φ) | Add to RFQ |
| RFH03XX4310D50 | 50 W | 3 GHz | 4.3-10 | 1.2 | 1-30 dB | Round | Unidirectional | 70(L)*41(φ) | Add to RFQ |
| RFH06XX4310D50 | 50 W | 6 GHz | 4.3-10 | 1.25 | 1-30 dB | Round | Unidirectional | 70(L)*41(φ) | Add to RFQ |
| RFH04XX4310D50-D | 50 W | 4 GHz | 4.3-10 | 1.2 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH06XX4310D50-D | 50 W | 6 GHz | 4.3-10 | 1.25 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH04XX4310D50-S | 50 W | 4 GHz | 4.3-10 | 1.2 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH06XX4310D50-S | 50 W | 6 GHz | 4.3-10 | 1.25 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFHB04XX4310C100 | 100 W | 4 GHz | 4.3-10 | 1.2 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB06XX4310C100 | 100 W | 6 GHz | 4.3-10 | 1.25 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH03XX4310D100 | 100 W | 3 GHz | 4.3-10 | 1.2 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH06XX4310D100 | 100 W | 6 GHz | 4.3-10 | 1.25 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH04XX4310A100 | 100 W | 4 GHz | 4.3-10 | 1.2 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH06XX4310A100 | 100 W | 6 GHz | 4.3-10 | 1.25 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH04XX4310D100-D | 100 W | 4 GHz | 4.3-10 | 1.2 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH06XX4310D100-D | 100 W | 6 GHz | 4.3-10 | 1.25 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH04XX4310D100-S | 100 W | 4 GHz | 4.3-10 | 1.2 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
| RFH06XX4310D100-S | 100 W | 6 GHz | 4.3-10 | 1.25 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |

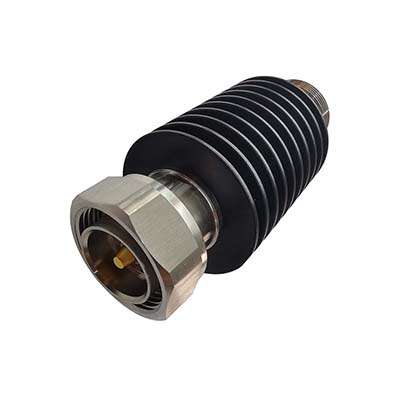

| RFHB04XXDC10 | 10 W | 4 GHz | 7/16 DIN | 1.2 | 1-50 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB06XXDC10 | 10 W | 6 GHz | 7/16 DIN | 1.25 | 1-50 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB04XXDC25 | 25 W | 4 GHz | 7/16 DIN | 1.2 | 1-40 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |
| RFHB06XXDC25 | 25 W | 6 GHz | 7/16 DIN | 1.25 | 1-40 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |
| RFHB04XXDC100-D | 100 W | 4 GHz | 7/16 DIN | 1.2 | 3-40 dB | Rectangular | Bidirectional | 152*110*120 | Add to RFQ |
| RFHB06XXDC100-D | 100 W | 6 GHz | 7/16 DIN | 1.25 | 6-40 dB | Rectangular | Bidirectional | 152*110*120 | Add to RFQ |
| RFH04XXDD100-D | 100 W | 4 GHz | 7/16 DIN | 1.2 | 6-30 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH06XXDD100-D | 100 W | 6 GHz | 7/16 DIN | 1.25 | 6-30 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH06XXDD1000 | 1000 W | 6 GHz | 7/16 DIN | 1.4 | 30-60 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFH03XXDA1500 | 1500 W | 3 GHz | 7/16 DIN | 1.25 | 20-50 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFH02XXDD2000 | 2000 W | 2 GHz | 7/16 DIN | 1.25 | 40-60 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFH04XXDD2000 | 2000 W | 4 GHz | 7/16 DIN | 1.35 | 40-60 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFH06XXDD2000 | 2000 W | 6 GHz | 7/16 DIN | 1.45 | 40-60 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFH01XXDD3000 | 3000 W | 1 GHz | 7/16 DIN | 1.25 | 50 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFHB04XXBC2 | 2 W | 4 GHz | BNC | 1.2 | 1-60 dB | Round | Bidirectional | 35(L)*14.5(φ) | Add to RFQ |
| RFHB06XXBC5 | 5 W | 6 GHz | BNC | 1.25 | 1-30 dB | Round | Bidirectional | 8(L)*29(φ) | Add to RFQ |
| RFHB03XXBC25 | 25 W | 3 GHz | BNC | 1.25 | 1-50 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |
| RFH04XXBD50 | 50 W | 4 GHz | BNC | 1.2 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH04XXBD50-D | 50 W | 4 GHz | BNC | 1.2 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH06XXBD50-D | 50 W | 6 GHz | BNC | 1.25 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |

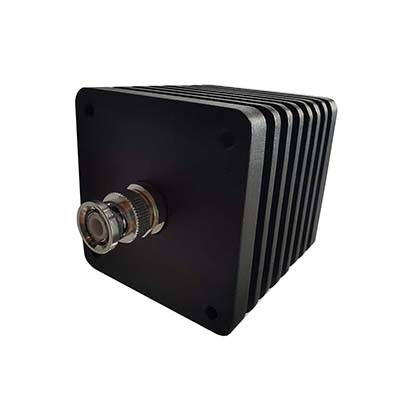

| RFH04XXBD50-S | 50 W | 4 GHz | BNC | 1.2 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH06XXBD50-S | 50 W | 6 GHz | BNC | 1.25 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFHB04XXBC100-D | 100 W | 4 GHz | BNC | 1.2 | 6-60 dB | Rectangular | Bidirectional | 152*110*120 | Add to RFQ |
| RFH04XXBD100 | 100 W | 4 GHz | BNC | 1.2 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH06XXBD100 | 100 W | 6 GHz | BNC | 1.25 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH04XXBD100-D | 100 W | 4 GHz | BNC | 1.2 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH06XXBD100-D | 100 W | 6 GHz | BNC | 1.25 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH04XXBD100-S | 100 W | 4 GHz | BNC | 1.2 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
| RFH06XXBD100-S | 100 W | 6 GHz | BNC | 1.25 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
| RFHB04XXNC2 | 2 W | 4 GHz | N | 1.15 | 1-60 dB | Round | Bidirectional | 45(L)*19(φ) | Add to RFQ |
| RFHB06XXNC2 | 2 W | 6 GHz | N | 1.2 | 1-60 dB | Round | Bidirectional | 45(L)*19(φ) | Add to RFQ |
| RFHB08XXNC2 | 2 W | 8.5 GHz | N | 1.25 | 1-60 dB | Round | Bidirectional | 45(L)*19(φ) | Add to RFQ |
| RFHB12XXNC2 | 2 W | 12.4 GHz | N | 1.3 | 1-60 dB | Round | Bidirectional | 45(L)*19(φ) | Add to RFQ |
| RFHB18XXNC2 | 2 W | 18 GHz | N | 1.35 | 1-60 dB | Round | Bidirectional | 45(L)*19(φ) | Add to RFQ |
| RFHB04XXNC5 | 5 W | 4 GHz | N | 1.2 | 1-60 dB | Round | Bidirectional | 58(L)*19(φ) | Add to RFQ |
| RFHB06XXNC5 | 5 W | 6 GHz | N | 1.25 | 1-60 dB | Round | Bidirectional | 58(L)*19(φ) | Add to RFQ |
| RFHB08XXNC5 | 5 W | 8.5 GHz | N | 1.25 | 1-60 dB | Round | Bidirectional | 58(L)*19(φ) | Add to RFQ |
| RFHB12XXNC5 | 5 W | 12.4 GHz | N | 1.3 | 1-60 dB | Round | Bidirectional | 58(L)*19(φ) | Add to RFQ |
| RFHB18XXNC5 | 5 W | 18 GHz | N | 1.35 | 1-40 dB | Round | Bidirectional | 58(L)*19(φ) | Add to RFQ |
| RFHB04XXNC10 | 10 W | 4 GHz | N | 1.2 | 1-60 dB | Round | Bidirectional | 26(L)*30(φ) | Add to RFQ |
| RFHB06XXNC10 | 10 W | 6 GHz | N | 1.25 | 1-60 dB | Round | Bidirectional | 26(L)*30(φ) | Add to RFQ |
| RFHB08XXNC10 | 10 W | 8.5 GHz | N | 1.25 | 1-60 dB | Round | Bidirectional | 26(L)*30(φ) | Add to RFQ |
| RFHB12XXNC10 | 10 W | 12.4 GHz | N | 1.35 | 1-60 dB | Round | Bidirectional | 26(L)*30(φ) | Add to RFQ |
| RFHB18XXNC10 | 10 W | 18 GHz | N | 1.45 | 1-60 dB | Round | Bidirectional | 26(L)*30(φ) | Add to RFQ |
| RFHB04XXNC15 | 15 W | 4 GHz | N | 1.2 | 1-40 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |
| RFHB06XXNC15 | 15 W | 6 GHz | N | 1.25 | 1-40 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |
| RFHB08XXNC15 | 15 W | 8.5 GHz | N | 1.25 | 1-40 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |
| RFHB12XXNC15 | 15 W | 12.4 GHz | N | 1.35 | 1-40 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |
| RFHB18XXNC15 | 15 W | 18 GHz | N | 1.45 | 1-40 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |
| RFHB04XXNC20 | 20 W | 4 GHz | N | 1.2 | 1-60 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB06XXNC20 | 20 W | 6 GHz | N | 1.25 | 1-60 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB08XXNC20 | 20 W | 8.5 GHz | N | 1.25 | 1-60 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB12XXNC20 | 20 W | 12.4 GHz | N | 1.35 | 1-60 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB18XXNC20 | 20 W | 18 GHz | N | 1.45 | 1-60 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB04XXNC25 | 25 W | 4 GHz | N | 1.2 | 1-50 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB06XXNC25 | 25 W | 6 GHz | N | 1.25 | 1-50 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB08XXNC25 | 25 W | 8.5 GHz | N | 1.25 | 1-50 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB12XXNC25 | 25 W | 12.4 GHz | N | 1.35 | 1-50 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB18XXNC25 | 25 W | 18 GHz | N | 1.45 | 1-50 dB | Round | Bidirectional | 49.5(L)*38(φ) | Add to RFQ |
| RFHB04XXNA25-A | 25 W | 4 GHz | N | 1.2 | 1-50 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |
| RFHB06XXNA25-A | 25 W | 6 GHz | N | 1.25 | 1-50 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |
| RFHB08XXNA25-A | 25 W | 8.5 GHz | N | 1.25 | 1-50 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |
| RFHB12XXNA25-A | 25 W | 12.4 GHz | N | 1.35 | 1-50 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |
| RFHB18XXNA25-A | 25 W | 18 GHz | N | 1.45 | 1-50 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |
| RFH04XXNC30 | 30 W | 4 GHz | N | 1.2 | 1-50 dB | Round | Unidirectional | 70(L)*38(φ) | Add to RFQ |
| RFH06XXNC30 | 30 W | 6 GHz | N | 1.25 | 1-50 dB | Round | Unidirectional | 70(L)*38(φ) | Add to RFQ |
| RFH08XXNC30 | 30 W | 8.5 GHz | N | 1.25 | 1-50 dB | Round | Unidirectional | 70(L)*38(φ) | Add to RFQ |
| RFH12XXNC30 | 30 W | 12.4 GHz | N | 1.35 | 1-50 dB | Round | Unidirectional | 70(L)*38(φ) | Add to RFQ |
| RFH18XXNC30 | 30 W | 18 GHz | N | 1.45 | 1-50 dB | Round | Unidirectional | 70(L)*38(φ) | Add to RFQ |
| RFHB03XXNC50 | 50 W | 3 GHz | N | 1.15 | 1-50 dB | Round | Bidirectional | 79(L)*45(φ) | Add to RFQ |
| RFHB06XXNC50 | 50 W | 6 GHz | N | 1.25 | 1-50 dB | Round | Bidirectional | 79(L)*45(φ) | Add to RFQ |
| RFHB08XXNC50 | 50 W | 8.5 GHz | N | 1.25 | 1-50 dB | Round | Bidirectional | 79(L)*45(φ) | Add to RFQ |
| RFHB12XXNC50 | 50 W | 12.4 GHz | N | 1.35 | 1-50 dB | Round | Bidirectional | 79(L)*45(φ) | Add to RFQ |
| RFHB18XXNC50 | 50 W | 18 GHz | N | 1.45 | 1-50 dB | Round | Bidirectional | 79(L)*45(φ) | Add to RFQ |
| RFHB04XXNC50-A | 50 W | 4 GHz | N | 1.2 | 1-50 dB | Round | Bidirectional | 70(L)*64(φ) | Add to RFQ |
| RFHB06XXNC50-A | 50 W | 6 GHz | N | 1.25 | 1-50 dB | Round | Bidirectional | 70(L)*64(φ) | Add to RFQ |
| RFHB08XXNC50-A | 50 W | 8.5 GHz | N | 1.25 | 1-50 dB | Round | Bidirectional | 70(L)*64(φ) | Add to RFQ |
| RFHB12XXNC50-A | 50 W | 12.4 GHz | N | 1.35 | 1-50 dB | Round | Bidirectional | 70(L)*64(φ) | Add to RFQ |
| RFHB18XXNC50-A | 50 W | 18 GHz | N | 1.45 | 1-50 dB | Round | Bidirectional | 70(L)*64(φ) | Add to RFQ |
| RFHB04XXNC50-D | 50 W | 4 GHz | N | 1.2 | 1-50 dB | Rectangular | Bidirectional | 70*110*120 | Add to RFQ |
| RFHB06XXNC50-D | 50 W | 6 GHz | N | 1.25 | 1-50 dB | Rectangular | Bidirectional | 70*110*120 | Add to RFQ |
| RFHB08XXNC50-D | 50 W | 8.5 GHz | N | 1.25 | 1-50 dB | Rectangular | Bidirectional | 70*110*120 | Add to RFQ |
| RFHB12XXNC50-D | 50 W | 12.4 GHz | N | 1.35 | 1-50 dB | Rectangular | Bidirectional | 70*110*120 | Add to RFQ |
| RFHB18XXNC50-D | 50 W | 18 GHz | N | 1.45 | 1-50 dB | Rectangular | Bidirectional | 70*110*120 | Add to RFQ |
| RFHB04XXNC50-S | 50 W | 4 GHz | N | 1.2 | 1-50 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB06XXNC50-S | 50 W | 6 GHz | N | 1.25 | 1-50 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB08XXNC50-S | 50 W | 8.5 GHz | N | 1.25 | 1-50 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB12XXNC50-S | 50 W | 12.4 GHz | N | 1.35 | 1-50 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB18XXNC50-S | 50 W | 18 GHz | N | 1.45 | 1-50 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB04XXNA50-S | 50 W | 4 GHz | N | 1.2 | 1-50 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB06XXNA50-S | 50 W | 6 GHz | N | 1.25 | 1-50 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB08XXNA50-S | 50 W | 8.5 GHz | N | 1.25 | 1-50 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB12XXNA50-S | 50 W | 12.4 GHz | N | 1.35 | 1-50 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB18XXNA50-S | 50 W | 18 GHz | N | 1.45 | 1-50 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFH04XXNA50 | 50 W | 4 GHz | N | 1.2 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH06XXNA50 | 50 W | 6 GHz | N | 1.25 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH08XXNA50 | 50 W | 8.5 GHz | N | 1.25 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH12XXNA50 | 50 W | 12.4 GHz | N | 1.35 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH18XXNA50 | 50 W | 18 GHz | N | 1.45 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH04XXND50-D | 50 W | 4 GHz | N | 1.2 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH06XXND50-D | 50 W | 6 GHz | N | 1.25 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH08XXND50-D | 50 W | 8.5 GHz | N | 1.25 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH12XXND50-D | 50 W | 12.4 GHz | N | 1.35 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH18XXND50-D | 50 W | 18 GHz | N | 1.45 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH04XXND50-S | 50 W | 4 GHz | N | 1.2 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH06XXND50-S | 50 W | 6 GHz | N | 1.25 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH08XXND50-S | 50 W | 8.5 GHz | N | 1.25 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH12XXND50-S | 50 W | 12.4 GHz | N | 1.35 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH18XXND50-S | 50 W | 18 GHz | N | 1.45 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFHB03XXNC75 | 75 W | 3 GHz | N | 1.2 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB04XXNC75 | 75 W | 4 GHz | N | 1.2 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB06XXNC75 | 75 W | 6 GHz | N | 1.25 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB08XXNC75 | 75 W | 8.5 GHz | N | 1.25 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB12XXNC75 | 75 W | 12.4 GHz | N | 1.35 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB18XXNC75 | 75 W | 18 GHz | N | 1.45 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB04XXNC75-S | 75 W | 4 GHz | N | 1.2 | 6-60 dB | Square | Bidirectional | 105*64*64 | Add to RFQ |
| RFHB06XXNC75-S | 75 W | 6 GHz | N | 1.25 | 6-60 dB | Square | Bidirectional | 105*64*64 | Add to RFQ |
| RFHB08XXNC75-S | 75 W | 8.5 GHz | N | 1.25 | 6-60 dB | Square | Bidirectional | 105*64*64 | Add to RFQ |
| RFHB12XXNC75-S | 75 W | 12.4 GHz | N | 1.35 | 6-60 dB | Square | Bidirectional | 105*64*64 | Add to RFQ |
| RFHB18XXNC75-S | 75 W | 18 GHz | N | 1.45 | 6-60 dB | Square | Bidirectional | 105*64*64 | Add to RFQ |
| RFHB03XXNC100 | 100 W | 3 GHz | N | 1.2 | 3-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB04XXNC100 | 100 W | 4 GHz | N | 1.2 | 3-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB06XXNC100 | 100 W | 6 GHz | N | 1.25 | 3-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB08XXNC100 | 100 W | 8.5 GHz | N | 1.25 | 3-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB12XXNC100 | 100 W | 12.4 GHz | N | 1.35 | 3-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB18XXNC100 | 100 W | 18 GHz | N | 1.45 | 3-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB04XXNC100-D | 100 W | 4 GHz | N | 1.2 | 6-60 dB | Rectangular | Bidirectional | 152*110*120 | Add to RFQ |
| RFHB06XXNC100-D | 100 W | 6 GHz | N | 1.25 | 6-60 dB | Rectangular | Bidirectional | 152*110*120 | Add to RFQ |
| RFHB08XXNC100-D | 100 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Bidirectional | 152*110*120 | Add to RFQ |
| RFHB12XXNC100-D | 100 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Bidirectional | 152*110*120 | Add to RFQ |
| RFHB18XXNC100-D | 100 W | 18 GHz | N | 1.45 | 6-60 dB | Rectangular | Bidirectional | 152*110*120 | Add to RFQ |
| RFHB04XXNA100-E | 100 W | 4 GHz | N | 1.2 | 6-60 dB | Rectangular | Bidirectional | 101*110*120 | Add to RFQ |
| RFHB06XXNA100-E | 100 W | 6 GHz | N | 1.25 | 6-60 dB | Rectangular | Bidirectional | 101*110*120 | Add to RFQ |
| RFHB08XXNA100-E | 100 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Bidirectional | 101*110*120 | Add to RFQ |
| RFHB12XXNA100-E | 100 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Bidirectional | 101*110*120 | Add to RFQ |
| RFHB18XXNA100-E | 100 W | 18 GHz | N | 1.45 | 6-60 dB | Rectangular | Bidirectional | 101*110*120 | Add to RFQ |
| RFH04XXND100 | 100 W | 4 GHz | N | 1.2 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH06XXND100 | 100 W | 6 GHz | N | 1.25 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH08XXND100 | 100 W | 8.5 GHz | N | 1.25 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH12XXND100 | 100 W | 12.4 GHz | N | 1.35 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH18XXND100 | 100 W | 18 GHz | N | 1.45 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH04XXND100-D | 100 W | 4 GHz | N | 1.2 | 1-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH06XXND100-D | 100 W | 6 GHz | N | 1.25 | 1-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH08XXND100-D | 100 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH12XXND100-D | 100 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH18XXND100-D | 100 W | 18 GHz | N | 1.45 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH04XXNA100-D | 100 W | 4 GHz | N | 1.2 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH06XXNA100-D | 100 W | 6 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH08XXNA100-D | 100 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH12XXNA100-D | 100 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH18XXNA100-D | 100 W | 18 GHz | N | 1.45 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH04XXND100-S | 100 W | 4 GHz | N | 1.2 | 6-60 dB | Square | Unidirectional | 64*64*105 | Add to RFQ |
| RFH06XXND100-S | 100 W | 6 GHz | N | 1.25 | 6-60 dB | Square | Unidirectional | 64*64*105 | Add to RFQ |
| RFH08XXND100-S | 100 W | 8.5 GHz | N | 1.25 | 6-60 dB | Square | Unidirectional | 64*64*105 | Add to RFQ |
| RFH12XXND100-S | 100 W | 12.4 GHz | N | 1.35 | 6-60 dB | Square | Unidirectional | 64*64*105 | Add to RFQ |
| RFH18XXND100-S | 100 W | 18 GHz | N | 1.45 | 6-60 dB | Square | Unidirectional | 64*64*105 | Add to RFQ |
| RFH04XXND150-D | 150 W | 4 GHz | N | 1.2 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH06XXND150-D | 150 W | 6 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH08XXND150-D | 150 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH12XXND150-D | 150 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH18XXND150-D | 150 W | 18 GHz | N | 1.45 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH04XXNA150-D | 150 W | 4 GHz | N | 1.2 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH06XXNA150-D | 150 W | 6 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH08XXNA150-D | 150 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH12XXNA150-D | 150 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH18XXNA150-D | 150 W | 18 GHz | N | 1.45 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH04XXND150-S | 150 W | 4 GHz | N | 1.2 | 6-60 dB | Rectangular | Unidirectional | 64*64*148 | Add to RFQ |
| RFH06XXND150-S | 150 W | 6 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 64*64*148 | Add to RFQ |
| RFH08XXND150-S | 150 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 64*64*148 | Add to RFQ |
| RFH12XXND150-S | 150 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Unidirectional | 64*64*148 | Add to RFQ |
| RFH18XXND150-S | 150 W | 18 GHz | N | 1.45 | 6-60 dB | Rectangular | Unidirectional | 64*64*148 | Add to RFQ |
| RFH04XXND200-D | 200 W | 4 GHz | N | 1.2 | 1-60 dB | Rectangular | Unidirectional | 203*110*120 | Add to RFQ |
| RFH06XXND200-D | 200 W | 6 GHz | N | 1.25 | 1-60 dB | Rectangular | Unidirectional | 203*110*120 | Add to RFQ |
| RFH08XXND200-D | 200 W | 8.5 GHz | N | 1.25 | 1-60 dB | Rectangular | Unidirectional | 203*110*120 | Add to RFQ |
| RFH12XXND200-D | 200 W | 12.4 GHz | N | 1.35 | 1-60 dB | Rectangular | Unidirectional | 203*110*120 | Add to RFQ |
| RFH18XXND200-D | 200 W | 18 GHz | N | 1.45 | 1-60 dB | Rectangular | Unidirectional | 203*110*120 | Add to RFQ |
| RFH04XXND250-D | 250 W | 4 GHz | N | 1.2 | 3-60 dB | Rectangular | Unidirectional | 254*110*120 | Add to RFQ |
| RFH06XXND250-D | 250 W | 6 GHz | N | 1.25 | 3-60 dB | Rectangular | Unidirectional | 254*110*120 | Add to RFQ |
| RFH08XXND250-D | 250 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 254*110*120 | Add to RFQ |
| RFH12XXND250-D | 250 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Unidirectional | 254*110*120 | Add to RFQ |
| RFH18XXND250-D | 250 W | 18 GHz | N | 1.45 | 10-60 dB | Rectangular | Unidirectional | 254*110*120 | Add to RFQ |
| RFHB04XXNA300-D | 300 W | 4 GHz | N | 1.25 | 6-60 dB | Rectangular | Bidirectional | 509*110*120 | Add to RFQ |
| RFHB06XXNA300-D | 300 W | 6 GHz | N | 1.3 | 10-60 dB | Rectangular | Bidirectional | 509*110*120 | Add to RFQ |
| RFHB08XXNA300-D | 300 W | 8.5 GHz | N | 1.3 | 10-60 dB | Rectangular | Bidirectional | 509*110*120 | Add to RFQ |
| RFHB12XXNA300-D | 300 W | 12.4 GHz | N | 1.35 | 10-60 dB | Rectangular | Bidirectional | 509*110*120 | Add to RFQ |
| RFHB18XXNA300-D | 300 W | 18 GHz | N | 1.5 | 10-60 dB | Rectangular | Bidirectional | 509*110*120 | Add to RFQ |
| RFH04XXND300-D | 300 W | 4 GHz | N | 1.2 | 0.5-60 dB | Rectangular | Unidirectional | 305*110*120 | Add to RFQ |
| RFH06XXND300-D | 300 W | 6 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 305*110*120 | Add to RFQ |
| RFH08XXND300-D | 300 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 305*110*120 | Add to RFQ |
| RFH12XXND300-D | 300 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Unidirectional | 305*110*120 | Add to RFQ |
| RFH18XXND300-D | 300 W | 18 GHz | N | 1.45 | 6-60 dB | Rectangular | Unidirectional | 305*110*120 | Add to RFQ |
| RFH04XXNA300-D | 300 W | 4 GHz | N | 1.2 | 0.5-60 dB | Rectangular | Unidirectional | 305*110*120 | Add to RFQ |
| RFH06XXNA300-D | 300 W | 6 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 305*110*120 | Add to RFQ |
| RFH08XXNA300-D | 300 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 305*110*120 | Add to RFQ |
| RFH12XXNA300-D | 300 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Unidirectional | 305*110*120 | Add to RFQ |
| RFH18XXNA300-D | 300 W | 18 GHz | N | 1.45 | 6-60 dB | Rectangular | Unidirectional | 305*110*120 | Add to RFQ |
|
RA04300NC-40 |
300 W | 4 GHz | N | 1.25 | 40 dB | Rectangular | Unidirectional | 236*115*85 | Add to RFQ |
| RFH04XXND350-D | 350 W | 4 GHz | N | 1.2 | 10-60 dB | Rectangular | Unidirectional | 407*110*120 | Add to RFQ |
| RFH06XXND350-D | 350 W | 6 GHz | N | 1.25 | 10-60 dB | Rectangular | Unidirectional | 407*110*120 | Add to RFQ |
| RFH08XXND350-D | 350 W | 8.5 GHz | N | 1.25 | 10-60 dB | Rectangular | Unidirectional | 407*110*120 | Add to RFQ |
| RFH12XXND350-D | 350 W | 12.4 GHz | N | 1.35 | 10-60 dB | Rectangular | Unidirectional | 407*110*120 | Add to RFQ |
| RFH18XXND350-D | 350 W | 18 GHz | N | 1.45 | 10-60 dB | Rectangular | Unidirectional | 407*110*120 | Add to RFQ |
| RFH0303ND500-D | 500 W | 3 GHz | N | 1.25 | 3 dB | Rectangular | Unidirectional | 254*110*120 | Add to RFQ |
| RFH0606ND500-D | 500 W | 6 GHz | N | 1.25 | 6 dB | Rectangular | Unidirectional | 407*110*120 | Add to RFQ |
| RFH04XXND500-D | 500 W | 4 GHz | N | 1.2 | 10-60 dB | Rectangular | Unidirectional | 509*110*120 | Add to RFQ |
| RFH06XXND500-D | 500 W | 6 GHz | N | 1.25 | 10-60 dB | Rectangular | Unidirectional | 509*110*120 | Add to RFQ |
| RFH08XXND500-D | 500 W | 8.5 GHz | N | 1.25 | 10-60 dB | Rectangular | Unidirectional | 509*110*120 | Add to RFQ |
| RFH12XXND500-D | 500 W | 12.4 GHz | N | 1.35 | 10-60 dB | Rectangular | Unidirectional | 509*110*120 | Add to RFQ |
| RFH18XXND500-D | 500 W | 18 GHz | N | 1.5 | 10-60 dB | Rectangular | Unidirectional | 509*110*120 | Add to RFQ |
|
RA04500ND-XX |
500 W | 4 GHz | N | 1.25 | 10-50 dB | Rectangular | Unidirectional | 342*115*85 | Add to RFQ |
|
RFH04XXND600-F |
600 W | 4 GHz | N | 1.25 | 10-60 dB | Rectangular | Unidirectional | 435*220*130 | Add to RFQ |
|
RFH06XXND600-F |
600 W | 6 GHz | N | 1.3 | 10-60 dB | Rectangular | Unidirectional | 435*220*130 | Add to RFQ |
|
RFH08XXND600-F |
600 W | 8.5 GHz | N | 1.3 | 10-60 dB | Rectangular | Unidirectional | 435*220*130 | Add to RFQ |
|
RFH12XXND600-F |
600 W | 12.4 GHz | N | 1.35 | 10-60 dB | Rectangular | Unidirectional | 435*220*130 | Add to RFQ |
|
RFH18XXND600-F |
600 W | 18 GHz | N | 1.5 | 10-60 dB | Rectangular | Unidirectional | 435*220*130 | Add to RFQ |
| RFH03XXNA1000 | 1000 W | 3 GHz | N | 1.25 | 20-50 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFH04XXND1000 | 1000 W | 4 GHz | N | 1.35 | 20-50 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFH06XXND1000 | 1000 W | 6 GHz | N | 1.4 | 30-60 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFH0840ND1000 | 1000 W | 8 GHz | N | 1.45 | 40 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFH1040ND1000 | 1000 W | 10 GHz | N | 1.5 | 40 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFH03XXNA1500 | 1500 W | 3 GHz | N | 1.25 | 20-50 dB | With wheel | Unidirectional | Fan cooled | Add to RFQ |
| RFHB03XXQC2 | 2 W | 3 GHz | QMA | 1.2 | 1-50 dB | Round | Bidirectional | 36(L)*10.5(φ) | Add to RFQ |
| RFHB06XXQC2 | 2 W | 6 GHz | QMA | 1.2 | 1-50 dB | Round | Bidirectional | 36(L)*10.5(φ) | Add to RFQ |
| RFHB03XXQC5 | 5 W | 3 GHz | QMA | 1.15 | 1-50 dB | Round | Bidirectional | 36(L)*10.5(φ) | Add to RFQ |
| RFHB06XXQC5 | 5 W | 6 GHz | QMA | 1.2 | 1-50 dB | Round | Bidirectional | 36(L)*10.5(φ) | Add to RFQ |
| RFHB04XXSC2 | 2 W | 4 GHz | SMA | 1.2 | 1-60 dB | Round | Bidirectional | 24(L)*9(φ) | Add to RFQ |
| RFHB06XXSC2 | 2 W | 6 GHz | SMA | 1.25 | 1-60 dB | Round | Bidirectional | 24(L)*9(φ) | Add to RFQ |
| RFHB08XXSC2 | 2 W | 8.5 GHz | SMA | 1.25 | 1-60 dB | Round | Bidirectional | 24(L)*9(φ) | Add to RFQ |
| RFHB12XXSC2 | 2 W | 12.4 GHz | SMA | 1.25 | 1-60 dB | Round | Bidirectional | 24(L)*9(φ) | Add to RFQ |
| RFHB18XXSC2 | 2 W | 18 GHz | SMA | 1.3 | 0-60 dB | Round | Bidirectional | 24(L)*9(φ) | Add to RFQ |
| RFHB27XXSC2 | 2 W | 27 GHz | SMA | 1.3 | 0-30 dB | Round | Bidirectional | 16.3(L)*9(φ) | Add to RFQ |
| RFHB04XXSC2A | 2 W | 4 GHz | SMA | 1.2 | 1-60 dB | Round | Bidirectional | 27(L)*9(φ) | Add to RFQ |
| RFHB06XXSC2A | 2 W | 6 GHz | SMA | 1.25 | 1-60 dB | Round | Bidirectional | 27(L)*9(φ) | Add to RFQ |
| RFHB08XXSC2A | 2 W | 8.5 GHz | SMA | 1.25 | 1-60 dB | Round | Bidirectional | 27(L)*9(φ) | Add to RFQ |
| RFHB12XXSC2A | 2 W | 12.4 GHz | SMA | 1.25 | 1-60 dB | Round | Bidirectional | 27(L)*9(φ) | Add to RFQ |
| RFHB18XXSC2A | 2 W | 18 GHz | SMA | 1.3 | 1-60 dB | Round | Bidirectional | 27(L)*9(φ) | Add to RFQ |
| RFHB27XXSC2A | 2 W | 27 GHz | SMA | 1.3 | 1-30 dB | Round | Bidirectional | 21.8(L)*9(φ) | Add to RFQ |
| RFHB18XXSC2M | 2 W | 18 GHz | SMA | 1.25 | 1-30 dB | With Hex | Bidirectional | 21.6(L)*9(φ) | Add to RFQ |
| RFHB18XXSA2 | 2 W | 18 GHz | SMA | 1.3 | 0-60 dB | Round | Bidirectional | 25.8(L)*9(φ) | Add to RFQ |
| RFHB18XXSB2 | 2 W | 18 GHz | SMA | 1.3 | 0-60 dB | Round | Bidirectional | 30.7(L)*9(φ) | Add to RFQ |

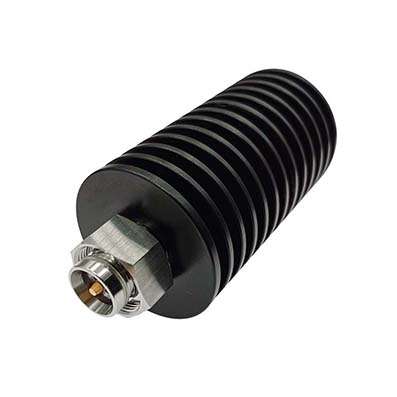

| RFHB04XXSC5 | 5 W | 4 GHz | SMA | 1.1 | 1-60 dB | Round | Bidirectional | 9(L)*19(φ) | Add to RFQ |
| RFHB06XXSC5 | 5 W | 6 GHz | SMA | 1.15 | 1-60 dB | Round | Bidirectional | 9(L)*19(φ) | Add to RFQ |
| RFHB08XXSC5 | 5 W | 8.5 GHz | SMA | 1.15 | 1-60 dB | Round | Bidirectional | 9(L)*19(φ) | Add to RFQ |
| RFHB12XXSC5 | 5 W | 12.4 GHz | SMA | 1.2 | 1-60 dB | Round | Bidirectional | 9(L)*19(φ) | Add to RFQ |
| RFHB18XXSC5 | 5 W | 18 GHz | SMA | 1.25 | 1-60 dB | Round | Bidirectional | 9(L)*19(φ) | Add to RFQ |
| RFHB27XXSC5 | 5 W | 27 GHz | SMA | 1.3 | 1-60 dB | Round | Bidirectional | 9(L)*19(φ) | Add to RFQ |
| RFHB04XXSC10 | 10 W | 4 GHz | SMA | 1.15 | 1-40 dB | Round | Bidirectional | 28(L)*15.8(φ) | Add to RFQ |
| RFHB06XXSC10 | 10 W | 6 GHz | SMA | 1.2 | 1-40 dB | Round | Bidirectional | 28(L)*15.8(φ) | Add to RFQ |
| RFHB08XXSC10 | 10 W | 8.5 GHz | SMA | 1.2 | 1-40 dB | Round | Bidirectional | 28(L)*15.8(φ) | Add to RFQ |
| RFHB12XXSC10 | 10 W | 12.4 GHz | SMA | 1.25 | 1-40 dB | Round | Bidirectional | 28(L)*15.8(φ) | Add to RFQ |
| RFHB18XXSC10 | 10 W | 18 GHz | SMA | 1.35 | 1-40 dB | Round | Bidirectional | 28(L)*15.8(φ) | Add to RFQ |
| RFHB04XXSC15 | 15 W | 4 GHz | SMA | 1.2 | 1-40 dB | Round | Bidirectional | 34(L)*15.8(φ) | Add to RFQ |
| RFHB06XXSC15 | 15 W | 6 GHz | SMA | 1.25 | 1-40 dB | Round | Bidirectional | 34(L)*15.8(φ) | Add to RFQ |
| RFHB08XXSC15 | 15 W | 8.5 GHz | SMA | 1.25 | 1-40 dB | Round | Bidirectional | 34(L)*15.8(φ) | Add to RFQ |
| RFHB12XXSC15 | 15 W | 12.4 GHz | SMA | 1.35 | 1-40 dB | Round | Bidirectional | 34(L)*15.8(φ) | Add to RFQ |
| RFHB18XXSC15 | 15 W | 18 GHz | SMA | 1.45 | 1-40 dB | Round | Bidirectional | 34(L)*15.8(φ) | Add to RFQ |
| RFHB04XXSC20 | 20 W | 4 GHz | SMA | 1.15 | 1-40 dB | Round | Bidirectional | 40(L)*38(φ) | Add to RFQ |
| RFHB06XXSC20 | 20 W | 6 GHz | SMA | 1.2 | 1-40 dB | Round | Bidirectional | 40(L)*38(φ) | Add to RFQ |
| RFHB08XXSC20 | 20 W | 8.5 GHz | SMA | 1.2 | 1-40 dB | Round | Bidirectional | 40(L)*38(φ) | Add to RFQ |
| RFHB12XXSC20 | 20 W | 12.4 GHz | SMA | 1.25 | 1-40 dB | Round | Bidirectional | 40(L)*38(φ) | Add to RFQ |
| RFHB18XXSC20 | 20 W | 18 GHz | SMA | 1.35 | 1-40 dB | Round | Bidirectional | 40(L)*38(φ) | Add to RFQ |
| RFHB18XXSC20-A | 20 W | 18 GHz | SMA | 1.45 | 1-40 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |
| RFHB04XXSC20C | 20 W | 4 GHz | SMA | 1.2 | 1-40 dB | Round | Bidirectional | 54(L)*15(φ) | Add to RFQ |
| RFHB06XXSC20C | 20 W | 6 GHz | SMA | 1.25 | 1-40 dB | Round | Bidirectional | 54(L)*15(φ) | Add to RFQ |
| RFHB08XXSC20C | 20 W | 8.5 GHz | SMA | 1.25 | 1-40 dB | Round | Bidirectional | 54(L)*15(φ) | Add to RFQ |
| RFHB12XXSC20C | 20 W | 12.4 GHz | SMA | 1.35 | 1-40 dB | Round | Bidirectional | 54(L)*15(φ) | Add to RFQ |
| RFHB18XXSC20C | 20 W | 18 GHz | SMA | 1.45 | 1-40 dB | Round | Bidirectional | 54(L)*15(φ) | Add to RFQ |
| RFH04XXSD20 | 20 W | 4 GHz | SMA | 1.2 | 1-40 dB | Round | Unidirectional | 54(L)*15(φ) | Add to RFQ |
| RFH06XXSD20 | 20 W | 6 GHz | SMA | 1.25 | 1-40 dB | Round | Unidirectional | 54(L)*15(φ) | Add to RFQ |
| RFH08XXSD20 | 20 W | 8.5 GHz | SMA | 1.25 | 1-40 dB | Round | Unidirectional | 54(L)*15(φ) | Add to RFQ |
| RFH12XXSD20 | 20 W | 12.4 GHz | SMA | 1.35 | 1-40 dB | Round | Unidirectional | 54(L)*15(φ) | Add to RFQ |
| RFH18XXSD20 | 20 W | 18 GHz | SMA | 1.45 | 1-40 dB | Round | Unidirectional | 54(L)*15(φ) | Add to RFQ |
| RFHB04XXSC25 | 25 W | 4 GHz | SMA | 1.15 | 1-40 dB | Round | Bidirectional | 40(L)*38(φ) | Add to RFQ |
| RFHB06XXSC25 | 25 W | 6 GHz | SMA | 1.2 | 1-40 dB | Round | Bidirectional | 40(L)*38(φ) | Add to RFQ |
| RFHB08XXSC25 | 25 W | 8.5 GHz | SMA | 1.2 | 1-40 dB | Round | Bidirectional | 40(L)*38(φ) | Add to RFQ |
| RFHB12XXSC25 | 25 W | 12.4 GHz | SMA | 1.25 | 1-40 dB | Round | Bidirectional | 40(L)*38(φ) | Add to RFQ |
| RFHB18XXSC25 | 25 W | 18 GHz | SMA | 1.35 | 1-40 dB | Round | Bidirectional | 40(L)*38(φ) | Add to RFQ |
| RFH04XXSD30 | 30 W | 4 GHz | SMA | 1.2 | 1-60 dB | Round | Unidirectional | 85.8(L)*15(φ) | Add to RFQ |
| RFH06XXSD30 | 30 W | 6 GHz | SMA | 1.25 | 1-60 dB | Round | Unidirectional | 85.8(L)*15(φ) | Add to RFQ |
| RFH08XXSD30 | 30 W | 8.5 GHz | SMA | 1.25 | 1-60 dB | Round | Unidirectional | 85.8(L)*15(φ) | Add to RFQ |
| RFH12XXSD30 | 30 W | 12.4 GHz | SMA | 1.3 | 1-60 dB | Round | Unidirectional | 85.8(L)*15(φ) | Add to RFQ |
| RFH18XXSD30 | 30 W | 18 GHz | SMA | 1.35 | 1-60 dB | Round | Unidirectional | 85.8(L)*15(φ) | Add to RFQ |
| RFH04XXSA50 | 50 W | 4 GHz | SMA | 1.25 | 1-40 dB | Round | Unidirectional | 70(L)*38(φ) | Add to RFQ |
| RFH06XXSA50 | 50 W | 6 GHz | SMA | 1.25 | 1-40 dB | Round | Unidirectional | 70(L)*38(φ) | Add to RFQ |
| RFH08XXSA50 | 50 W | 8.5 GHz | SMA | 1.3 | 1-40 dB | Round | Unidirectional | 70(L)*38(φ) | Add to RFQ |
| RFH12XXSA50 | 50 W | 12.4 GHz | SMA | 1.35 | 1-40 dB | Round | Unidirectional | 70(L)*38(φ) | Add to RFQ |
| RFH18XXSA50 | 50 W | 18 GHz | SMA | 1.45 | 1-40 dB | Round | Unidirectional | 70(L)*38(φ) | Add to RFQ |
| RFHB04XXSC50 | 50 W | 4 GHz | SMA | 1.2 | 1-50 dB | Round | Bidirectional | 70*64(φ) | Add to RFQ |
| RFHB06XXSC50 | 50 W | 6 GHz | SMA | 1.25 | 1-50 dB | Round | Bidirectional | 70*64(φ) | Add to RFQ |
| RFHB08XXSC50 | 50 W | 8.5 GHz | SMA | 1.25 | 1-50 dB | Round | Bidirectional | 70*64(φ) | Add to RFQ |
| RFHB12XXSC50 | 50 W | 12.4 GHz | SMA | 1.35 | 1-50 dB | Round | Bidirectional | 70*64(φ) | Add to RFQ |
| RFHB18XXSC50 | 50 W | 18 GHz | SMA | 1.45 | 1-50 dB | Round | Bidirectional | 70*64(φ) | Add to RFQ |

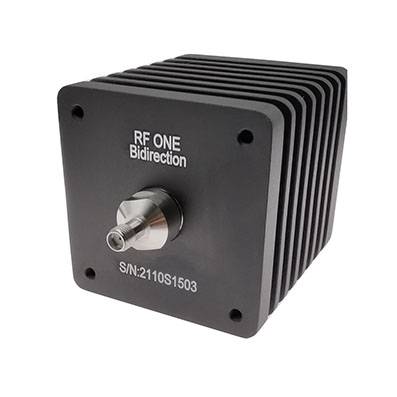

| RFHB04XXSC50-S | 50 W | 4 GHz | SMA | 1.15 | 3-40 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB06XXSC50-S | 50 W | 6 GHz | SMA | 1.2 | 3-40 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB08XXSC50-S | 50 W | 8.5 GHz | SMA | 1.2 | 3-40 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB12XXSC50-S | 50 W | 12.4 GHz | SMA | 1.25 | 3-40 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |
| RFHB18XXSC50-S | 50 W | 18 GHz | SMA | 1.35 | 3-40 dB | Square | Bidirectional | 70*64*64 | Add to RFQ |

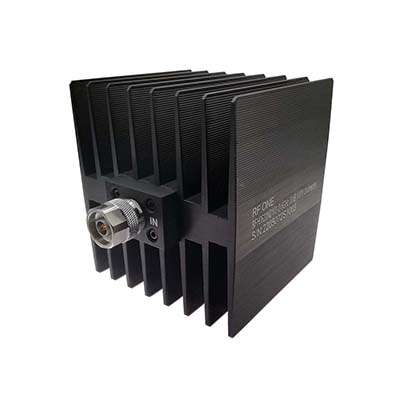

| RFH04XXSD50-D | 50 W | 4 GHz | SMA | 1.2 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH06XXSD50-D | 50 W | 6 GHz | SMA | 1.25 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH08XXSD50-D | 50 W | 8.5 GHz | SMA | 1.25 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH12XXSD50-D | 50 W | 12.4 GHz | SMA | 1.35 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH18XXSD50-D | 50 W | 18 GHz | SMA | 1.45 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH27XXSD50 | 50 W | 27 GHz | SMA | 1.3 | 10-30 dB | Round | Unidirectional | 88.8(L)*54(φ) | Add to RFQ |
| RFH27XXSD50A | 50 W | 26.5 GHz | SMA | 1.35 | 6-60 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFHB04XXSC75 | 75 W | 4 GHz | SMA | 1.2 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB06XXSC75 | 75 W | 6 GHz | SMA | 1.25 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB08XXSC75 | 75 W | 8.5 GHz | SMA | 1.25 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB12XXSC75 | 75 W | 12.4 GHz | SMA | 1.35 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB18XXSC75 | 75 W | 18 GHz | SMA | 1.45 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB04XXSC75-S | 75 W | 4 GHz | SMA | 1.2 | 6-60 dB | Square | Bidirectional | 105*64*64 | Add to RFQ |
| RFHB06XXSC75-S | 75 W | 6 GHz | SMA | 1.25 | 6-60 dB | Square | Bidirectional | 105*64*64 | Add to RFQ |
| RFHB08XXSC75-S | 75 W | 8.5 GHz | SMA | 1.25 | 6-60 dB | Square | Bidirectional | 105*64*64 | Add to RFQ |
| RFHB12XXSC75-S | 75 W | 12.4 GHz | SMA | 1.35 | 6-60 dB | Square | Bidirectional | 105*64*64 | Add to RFQ |
| RFHB18XXSC75-S | 75 W | 18 GHz | SMA | 1.45 | 6-60 dB | Square | Bidirectional | 105*64*64 | Add to RFQ |
| RFHB04XXSC100 | 100 W | 4 GHz | SMA | 1.2 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB06XXSC100 | 100 W | 6 GHz | SMA | 1.25 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB08XXSC100 | 100 W | 8.5 GHz | SMA | 1.25 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB12XXSC100 | 100 W | 12.4 GHz | SMA | 1.35 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB18XXSC100 | 100 W | 18 GHz | SMA | 1.45 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFHB03XXSA100-D | 100 W | 3 GHz | SMA | 1.25 | 6-60 dB | Rectangular | Bidirectional | 101*110*120 | Add to RFQ |
| RFHB06XXSA100-D | 100 W | 6 GHz | SMA | 1.25 | 6-60 dB | Rectangular | Bidirectional | 101*110*120 | Add to RFQ |
| RFHB08XXSA100-D | 100 W | 8.5 GHz | SMA | 1.25 | 6-60 dB | Rectangular | Bidirectional | 101*110*120 | Add to RFQ |
| RFHB12XXSA100-D | 100 W | 12.4 GHz | SMA | 1.35 | 6-60 dB | Rectangular | Bidirectional | 101*110*120 | Add to RFQ |
| RFHB18XXSA100-D | 100 W | 18 GHz | SMA | 1.45 | 6-60 dB | Rectangular | Bidirectional | 101*110*120 | Add to RFQ |
| RFH04XXSD100 | 100 W | 4 GHz | SMA | 1.2 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH06XXSD100 | 100 W | 6 GHz | SMA | 1.25 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH08XXSD100 | 100 W | 8.5 GHz | SMA | 1.25 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH12XXSD100 | 100 W | 12.4 GHz | SMA | 1.35 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH18XXSD100 | 100 W | 18 GHz | SMA | 1.45 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH04XXSD100-D | 100 W | 4 GHz | SMA | 1.2 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH06XXSD100-D | 100 W | 6 GHz | SMA | 1.25 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH08XXSD100-D | 100 W | 8.5 GHz | SMA | 1.25 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH12XXSD100-D | 100 W | 12.4 GHz | SMA | 1.35 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH18XXSD100-D | 100 W | 18 GHz | SMA | 1.45 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
|

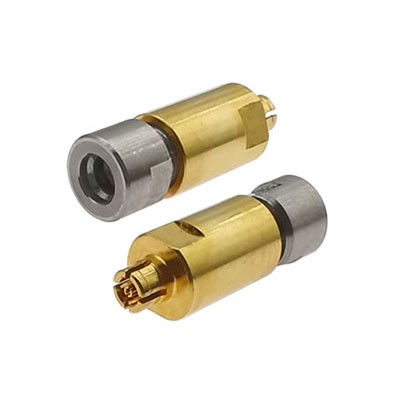

RA18P-XX |
2 W | 18 GHz | SMP | 1.35 | 1-30 dB | Round | Bidirectional | 17.7(L)*6.4(φ) | Add to RFQ |
|
RA40P-XX |
2 W | 40 GHz | SMP | 1.4 | 1-30 dB | Round | Bidirectional | 17.7(L)*6.4(φ) | Add to RFQ |

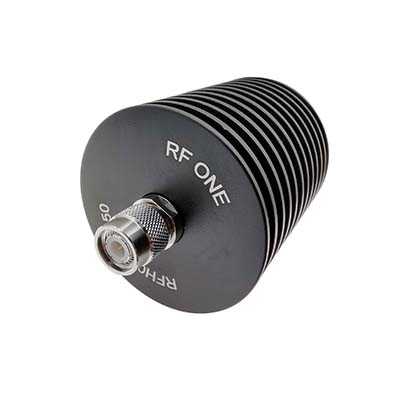

| RFHB04XXTC2 | 2 W | 4 GHz | TNC | 1.2 | 1-30 dB | Round | Bidirectional | L=35 | Add to RFQ |
| RFHB06XXTC2 | 2 W | 6 GHz | TNC | 1.2 | 1-30 dB | Round | Bidirectional | L=35 | Add to RFQ |
| RFHB08XXTC2 | 2 W | 8.5 GHz | TNC | 1.2 | 1-30 dB | Round | Bidirectional | L=35 | Add to RFQ |
| RFHB12XXTC2 | 2 W | 12.4 GHz | TNC | 1.25 | 1-30 dB | Round | Bidirectional | L=35 | Add to RFQ |
| RFHB18XXTC2 | 2 W | 18 GHz | TNC | 1.35 | 1-30 dB | Round | Bidirectional | L=35 | Add to RFQ |
| RFHB04XXTC5 | 5 W | 4 GHz | TNC | 1.2 | 1-40 dB | Round | Bidirectional | 49.5(L)*25(φ) | Add to RFQ |
| RFHB06XXTC5 | 5 W | 6 GHz | TNC | 1.25 | 1-40 dB | Round | Bidirectional | 49.5(L)*25(φ) | Add to RFQ |
| RFHB08XXTC5 | 5 W | 8.5 GHz | TNC | 1.25 | 1-40 dB | Round | Bidirectional | 49.5(L)*25(φ) | Add to RFQ |
| RFHB12XXTC5 | 5 W | 12.4 GHz | TNC | 1.35 | 1-40 dB | Round | Bidirectional | 49.5(L)*25(φ) | Add to RFQ |
| RFHB18XXTC5 | 5 W | 18 GHz | TNC | 1.45 | 1-40 dB | Round | Bidirectional | 49.5(L)*25(φ) | Add to RFQ |
| RFHB04XXTC10 | 10 W | 4 GHz | TNC | 1.2 | 1-60 dB | Round | Bidirectional | 50(L)*30(φ) | Add to RFQ |
| RFHB06XXTC10 | 10 W | 6 GHz | TNC | 1.25 | 1-60 dB | Round | Bidirectional | 50(L)*30(φ) | Add to RFQ |
| RFHB08XXTC10 | 10 W | 8.5 GHz | TNC | 1.25 | 1-60 dB | Round | Bidirectional | 50(L)*30(φ) | Add to RFQ |
| RFHB12XXTC10 | 10 W | 12.4 GHz | TNC | 1.35 | 1-60 dB | Round | Bidirectional | 50(L)*30(φ) | Add to RFQ |
| RFHB18XXTC10 | 10 W | 18 GHz | TNC | 1.45 | 1-60 dB | Round | Bidirectional | 50(L)*30(φ) | Add to RFQ |
| RFHB04XXTC20 | 20 W | 4 GHz | TNC | 1.2 | 1-40 dB | Round | Bidirectional | 50(L)*38(φ) | Add to RFQ |
| RFHB06XXTC20 | 20 W | 6 GHz | TNC | 1.25 | 1-40 dB | Round | Bidirectional | 50(L)*38(φ) | Add to RFQ |
| RFHB08XXTC20 | 20 W | 8.5 GHz | TNC | 1.25 | 1-40 dB | Round | Bidirectional | 50(L)*38(φ) | Add to RFQ |
| RFHB12XXTC20 | 20 W | 12.4 GHz | TNC | 1.35 | 1-40 dB | Round | Bidirectional | 50(L)*38(φ) | Add to RFQ |
| RFHB18XXTC20 | 20 W | 18 GHz | TNC | 1.45 | 1-40 dB | Round | Bidirectional | 50(L)*38(φ) | Add to RFQ |
| RFHB04XXTC25 | 25 W | 4 GHz | TNC | 1.2 | 1-50 dB | Round | Bidirectional | 70(L)*38(φ) | Add to RFQ |
| RFHB06XXTC25 | 25 W | 6 GHz | TNC | 1.25 | 1-50 dB | Round | Bidirectional | 70(L)*38(φ) | Add to RFQ |
| RFHB08XXTC25 | 25 W | 8.5 GHz | TNC | 1.25 | 1-50 dB | Round | Bidirectional | 70(L)*38(φ) | Add to RFQ |
| RFHB12XXTC25 | 25 W | 12.4 GHz | TNC | 1.35 | 1-50 dB | Round | Bidirectional | 70(L)*38(φ) | Add to RFQ |
| RFHB18XXTC25 | 25 W | 18 GHz | TNC | 1.45 | 1-50 dB | Round | Bidirectional | 70(L)*38(φ) | Add to RFQ |
| RFHB04XXTC50 | 50 W | 4 GHz | TNC | 1.2 | 1-40 dB | Round | Bidirectional | 70(L)*64(φ) | Add to RFQ |
| RFHB06XXTC50 | 50 W | 6 GHz | TNC | 1.25 | 1-40 dB | Round | Bidirectional | 70(L)*64(φ) | Add to RFQ |
| RFHB08XXTC50 | 50 W | 8.5 GHz | TNC | 1.25 | 1-40 dB | Round | Bidirectional | 70(L)*64(φ) | Add to RFQ |
| RFHB12XXTC50 | 50 W | 12.4 GHz | TNC | 1.35 | 1-40 dB | Round | Bidirectional | 70(L)*64(φ) | Add to RFQ |
| RFHB18XXTC50 | 50 W | 18 GHz | TNC | 1.45 | 1-40 dB | Round | Bidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH04XXTD50 | 50 W | 4 GHz | TNC | 1.2 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH06XXTD50 | 50 W | 6 GHz | TNC | 1.25 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH08XXTD50 | 50 W | 8.5 GHz | TNC | 1.25 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH12XXTD50 | 50 W | 12.4 GHz | TNC | 1.35 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH18XXTD50 | 50 W | 18 GHz | TNC | 1.45 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |
| RFH04XXTD50-D | 50 W | 4 GHz | TNC | 1.2 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH06XXTD50-D | 50 W | 6 GHz | TNC | 1.25 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH08XXTD50-D | 50 W | 8.5 GHz | TNC | 1.25 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH12XXTD50-D | 50 W | 12.4 GHz | TNC | 1.35 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH18XXTD50-D | 50 W | 18 GHz | TNC | 1.45 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH04XXTD50-S | 50 W | 4 GHz | TNC | 1.2 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH06XXTD50-S | 50 W | 6 GHz | TNC | 1.25 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH08XXTD50-S | 50 W | 8.5 GHz | TNC | 1.25 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH12XXTD50-S | 50 W | 12.4 GHz | TNC | 1.35 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH18XXTD50-S | 50 W | 18 GHz | TNC | 1.45 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH04XXTD100 | 100 W | 4 GHz | TNC | 1.2 | 6-40 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH06XXTD100 | 100 W | 6 GHz | TNC | 1.25 | 6-40 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH08XXTD100 | 100 W | 8.5 GHz | TNC | 1.25 | 6-40 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH12XXTD100 | 100 W | 12.4 GHz | TNC | 1.35 | 6-40 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH18XXTD100 | 100 W | 18 GHz | TNC | 1.45 | 6-40 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH04XXTD100-D | 100 W | 4 GHz | TNC | 1.2 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH06XXTD100-D | 100 W | 6 GHz | TNC | 1.25 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH08XXTD100-D | 100 W | 8.5 GHz | TNC | 1.25 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH12XXTD100-D | 100 W | 12.4 GHz | TNC | 1.35 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH18XXTD100-D | 100 W | 18 GHz | TNC | 1.45 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH04XXTD100-S | 100 W | 4 GHz | TNC | 1.2 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
| RFH06XXTD100-S | 100 W | 6 GHz | TNC | 1.25 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
| RFH08XXTD100-S | 100 W | 8.5 GHz | TNC | 1.25 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
| RFH12XXTD100-S | 100 W | 12.4 GHz | TNC | 1.35 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
| RFH18XXTD100-S | 100 W | 18 GHz | TNC | 1.45 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
| RFH04XXTA150-D | 150 W | 4 GHz | TNC | 1.2 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH06XXTA150-D | 150 W | 6 GHz | TNC | 1.25 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH08XXTA150-D | 150 W | 8.5 GHz | TNC | 1.25 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH12XXTA150-D | 150 W | 12.4 GHz | TNC | 1.35 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFH18XXTA150-D | 150 W | 18 GHz | TNC | 1.45 | 6-60 dB | Rectangular | Unidirectional | 152*110*120 | Add to RFQ |
| RFHB06XXNC75-DM | 75 W | 6 GHz | N | 1.25 | 10-60 dB | Rectangular | Bidirectional | 79*79*52 | Add to RFQ |
| RFHB08XXNC75-DM | 75 W | 8.5 GHz | N | 1.25 | 10-60 dB | Rectangular | Bidirectional | 79*79*52 | Add to RFQ |
| RFHB12XXNC75-DM | 75 W | 12.4 GHz | N | 1.35 | 10-60 dB | Rectangular | Bidirectional | 79*79*52 | Add to RFQ |
| RFH04XXND100-DC | 100 W | 4 GHz | N | 1.2 | 6-60 dB | Rectangular | Unidirectional | 79.5*50.8*25.4 | Add to RFQ |
| RFH06XXND100-DC | 100 W | 6 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 79.5*50.8*25.4 | Add to RFQ |
| RFH08XXND100-DC | 100 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 79.5*50.8*25.4 | Add to RFQ |
| RFH12XXND100-DC | 100 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Unidirectional | 79.5*50.8*25.4 | Add to RFQ |
| RFH18XXND100-DC | 100 W | 18 GHz | N | 1.45 | 6-60 dB | Rectangular | Unidirectional | 79.5*50.8*25.4 | Add to RFQ |
| RFH04XXND100-DM | 100 W | 4 GHz | N | 1.2 | 10-60 dB | Rectangular | Unidirectional | 79*79*52 | Add to RFQ |
| RFH06XXND100-DM | 100 W | 6 GHz | N | 1.25 | 10-60 dB | Rectangular | Unidirectional | 79*79*52 | Add to RFQ |
| RFH08XXND100-DM | 100 W | 8 GHz | N | 1.25 | 10-60 dB | Rectangular | Unidirectional | 79*79*52 | Add to RFQ |
| RFH12XXND100-DM | 100 W | 12.4 GHz | N | 1.35 | 10-60 dB | Rectangular | Unidirectional | 79*79*52 | Add to RFQ |
| RFH18XXND100-DM | 100 W | 18 GHz | N | 1.45 | 10-60 dB | Rectangular | Unidirectional | 79*79*52 | Add to RFQ |
| RFH04XXNA150-DC | 150 W | 4 GHz | N | 1.2 | 6-60 dB | Rectangular | Unidirectional | 135*57*38 | Add to RFQ |
| RFH06XXNA150-DC | 150 W | 6 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 135*57*38 | Add to RFQ |
| RFH08XXNA150-DC | 150 W | 8.5 GHz | N | 1.25 | 6-60 dB | Rectangular | Unidirectional | 135*57*38 | Add to RFQ |
| RFH12XXNA150-DC | 150 W | 12.4 GHz | N | 1.35 | 6-60 dB | Rectangular | Unidirectional | 135*57*38 | Add to RFQ |
| RFH18XXNA150-DC | 150 W | 18 GHz | N | 1.45 | 6-60 dB | Rectangular | Unidirectional | 135*57*38 | Add to RFQ |
| RFH04XXNB150-DM | 150 W | 4 GHz | N | 1.2 | 3-60 dB | Rectangular | Unidirectional | 105*79*52 | Add to RFQ |
| RFH08XXNB150-DM | 150 W | 8.5 GHz | N | 1.25 | 3-60 dB | Rectangular | Unidirectional | 105*79*52 | Add to RFQ |
| RFH04XXND250-DC | 250 W | 4 GHz | N | 1.2 | 10-60 dB | Rectangular | Unidirectional | 224*57*30 | Add to RFQ |
| RFH06XXND250-DC | 250 W | 6 GHz | N | 1.25 | 10-60 dB | Rectangular | Unidirectional | 224*57*30 | Add to RFQ |
| RFH08XXND250-DC | 250 W | 8.5 GHz | N | 1.25 | 10-60 dB | Rectangular | Unidirectional | 224*57*30 | Add to RFQ |
| RFH12XXND250-DC | 250 W | 12.4 GHz | N | 1.35 | 10-60 dB | Rectangular | Unidirectional | 224*57*30 | Add to RFQ |
| RFH18XXND250-DC | 250 W | 18 GHz | N | 1.45 | 10-60 dB | Rectangular | Unidirectional | 224*57*30 | Add to RFQ |
| RFH04XXNA250-DM | 250 W | 4 GHz | N | 1.2 | 5-60 dB | Rectangular | Unidirectional | 170*79*52 | Add to RFQ |
| RFH08XXNA250-DM | 250 W | 8.5 GHz | N | 1.25 | 5-60 dB | Rectangular | Unidirectional | 170*79*52 | Add to RFQ |
| RFH06XXNA250-DM | 250 W | 6 GHz | N | 1.25 | 5-60 dB | Rectangular | Unidirectional | 170*79*52 | Add to RFQ |
| RFH12XXNA250-DM | 250 W | 12.4 GHz | N | 1.35 | 5-60 dB | Rectangular | Unidirectional | 170*79*52 | Add to RFQ |
| RFH04XXNA350-DM | 350 W | 4 GHz | N | 1.2 | 10-60 dB | Rectangular | Unidirectional | 230*79*52 | Add to RFQ |
| RFH06XXNA350-DM | 350 W | 6 GHz | N | 1.25 | 10-60 dB | Rectangular | Unidirectional | 230*79*52 | Add to RFQ |
| RFH08XXNA350-DM | 350 W | 8.5 GHz | N | 1.25 | 10-60 dB | Rectangular | Unidirectional | 230*79*52 | Add to RFQ |
| RFH04XXSA150-DC | 150 W | 4 GHz | SMA | 1.2 | 6-60 dB | Rectangular | Unidirectional | 135*57*38 | Add to RFQ |
| RFH06XXSA150-DC | 150 W | 6 GHz | SMA | 1.25 | 6-60 dB | Rectangular | Unidirectional | 135*57*38 | Add to RFQ |
| RFH08XXSA150-DC | 150 W | 8.5 GHz | SMA | 1.25 | 6-60 dB | Rectangular | Unidirectional | 135*57*38 | Add to RFQ |
| RFH12XXSA150-DC | 150 W | 12.4 GHz | SMA | 1.35 | 6-60 dB | Rectangular | Unidirectional | 135*57*38 | Add to RFQ |
| RFH18XXSA150-DC | 150 W | 18 GHz | SMA | 1.45 | 6-60 dB | Rectangular | Unidirectional | 135*57*38 | Add to RFQ |
