SSMA Terminations

Grid

Table

Result: 2

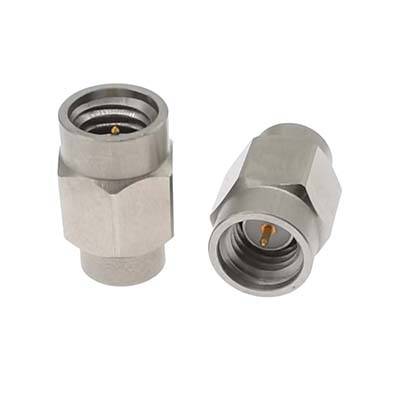

RF ONE SSMA male and female termination loads features a frequency range of DC to 40 GHz with average power 2 watts. These SSMA 50 Ohm RF load terminations are constructed of stainless steel.

RFT4002SSMA2

SSMA Male Termination DC-40 GHz 2 Watts

Datasheet

Add to RFQ

RFT4002SSMA1

SSMA Female Termination DC-40 GHz 2 Watts

Datasheet

Add to RFQ

Show 20

Show 40

Show 60

Show 80

P/N	Average Power	Frequency Max	Connector	Gender	VSWR Max	Shape	Dimension (mm)	Add to RFQ
RFT4002SSMA2	2 W	40 GHz	SSMA	Male	1.3	Round	10.9(L)*7.3(φ)	Add to RFQ
RFT4002SSMA1	2 W	40 GHz	SSMA	Female	1.3	Round	9.9(L)*7.3(φ)	Add to RFQ
