RF ONE offers a wide variety of 4.3-10 attenuators (or 4.3/10 attenuators, 4310 attenuators), power rated from 2 watts to 100 watts.
| P/N | Average Power | Frequency Max | VSWR Max | Attenuations | Shape | Direction | Dimensions (mm) | Add to RFQ |
|---|---|---|---|---|---|---|---|---|
| RFHB03XX4310C2 | 2 W | 3 GHz | 1.2 | 1-30 dB | Round | Bidirectional | 48(L)*22(φ) | Add to RFQ |

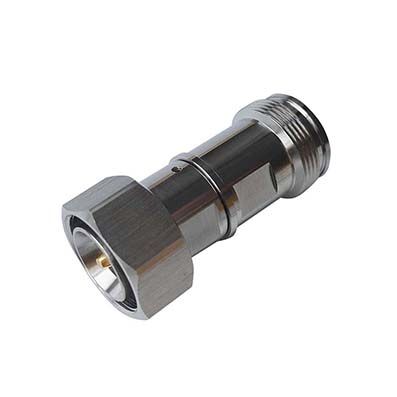

| RFHB06XX4310C2 | 2 W | 6 GHz | 1.2 | 1-30 dB | Round | Bidirectional | 48(L)*22(φ) | Add to RFQ |
| RFHB03XX4310C5 | 5 W | 3 GHz | 1.15 | 1-30 dB | Round | Bidirectional | 48(L)*22(φ) | Add to RFQ |

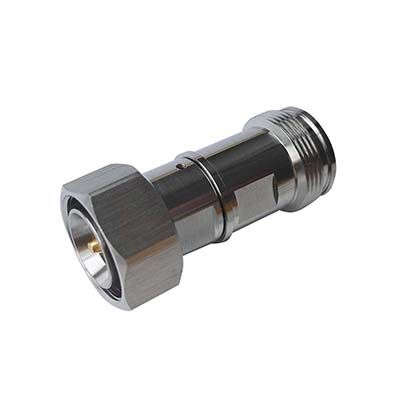

| RFHB06XX4310C5 | 5 W | 6 GHz | 1.2 | 1-30 dB | Round | Bidirectional | 48(L)*22(φ) | Add to RFQ |
| RFHB04XX4310C10 | 10 W | 4 GHz | 1.15 | 1-50 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |

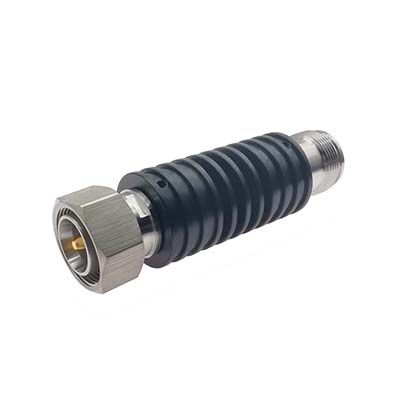

| RFHB06XX4310C10 | 10 W | 6 GHz | 1.25 | 1-50 dB | Round | Bidirectional | 49.5(L)*30(φ) | Add to RFQ |
| RFHB03XX4310C15 | 15 W | 3 GHz | 1.15 | 1-50 dB | Round | Bidirectional | 49.5(L)*25(φ) | Add to RFQ |

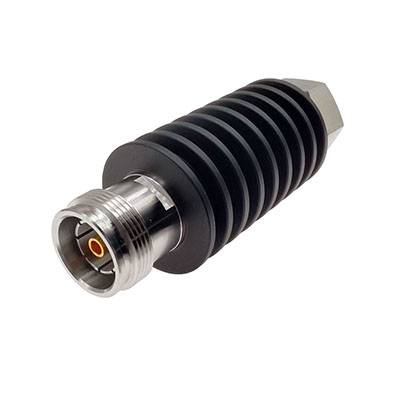

| RFHB06XX4310C15 | 15 W | 6 GHz | 1.2 | 1-50 dB | Round | Bidirectional | 49.5(L)*25(φ) | Add to RFQ |
| RFHB03XX4310C25 | 25 W | 3 GHz | 1.2 | 1-40 dB | Round | Bidirectional | 70(L)*38(φ) | Add to RFQ |
| RFHB06XX4310C25 | 25 W | 6 GHz | 1.25 | 1-40 dB | Round | Bidirectional | 70(L)*38(φ) | Add to RFQ |

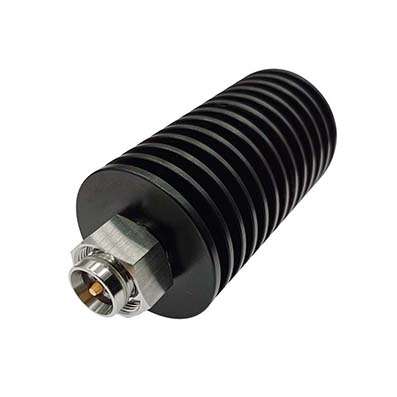

| RFHB03XX4310C50 | 50 W | 3 GHz | 1.2 | 1-50 dB | Round | Bidirectional | 79(L)*45(φ) | Add to RFQ |
| RFHB06XX4310C50 | 50 W | 6 GHz | 1.25 | 1-50 dB | Round | Bidirectional | 79(L)*45(φ) | Add to RFQ |
| RFH03XX4310D50 | 50 W | 3 GHz | 1.2 | 1-30 dB | Round | Unidirectional | 70(L)*41(φ) | Add to RFQ |

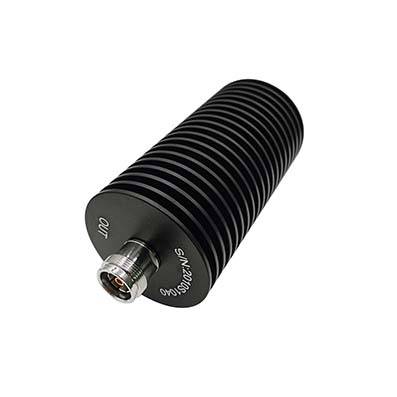

| RFH06XX4310D50 | 50 W | 6 GHz | 1.25 | 1-30 dB | Round | Unidirectional | 70(L)*41(φ) | Add to RFQ |

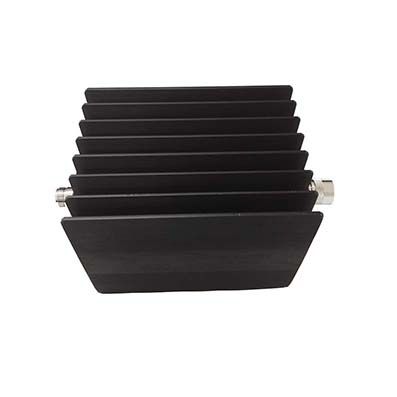

| RFH04XX4310D50-D | 50 W | 4 GHz | 1.2 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH06XX4310D50-D | 50 W | 6 GHz | 1.25 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |

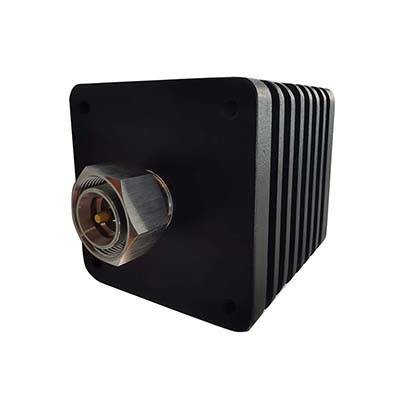

| RFH04XX4310D50-S | 50 W | 4 GHz | 1.2 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH06XX4310D50-S | 50 W | 6 GHz | 1.25 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFHB04XX4310C100 | 100 W | 4 GHz | 1.2 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |

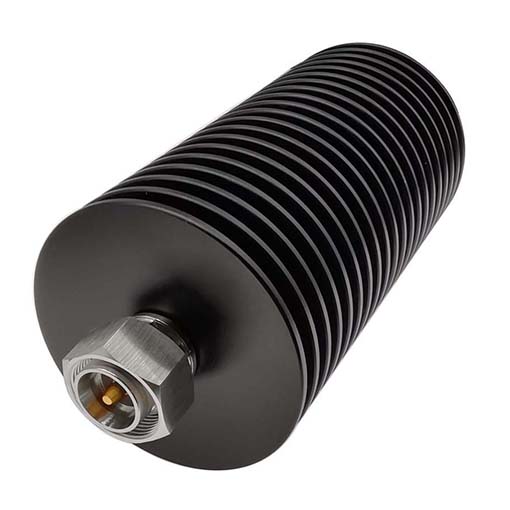

| RFHB06XX4310C100 | 100 W | 6 GHz | 1.25 | 6-60 dB | Round | Bidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH03XX4310D100 | 100 W | 3 GHz | 1.2 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH06XX4310D100 | 100 W | 6 GHz | 1.25 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH04XX4310A100 | 100 W | 4 GHz | 1.2 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH06XX4310A100 | 100 W | 6 GHz | 1.25 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH04XX4310D100-D | 100 W | 4 GHz | 1.2 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH06XX4310D100-D | 100 W | 6 GHz | 1.25 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH04XX4310D100-S | 100 W | 4 GHz | 1.2 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
| RFH06XX4310D100-S | 100 W | 6 GHz | 1.25 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
