RF ONE delivers the industry’s most complete 2.92mm termination (load) portfolio, with power ratings spanning 2W to 100W, usable bandwidth extending to 42.5 GHz, making it the go-to solution for mmWave satellite, radar, defense and advanced ATE systems.
Features
| P/N | Average Power | Frequency Max | Connector | Gender | VSWR Max | Shape | Dimension (mm) | Add to RFQ |
|---|---|---|---|---|---|---|---|---|
|

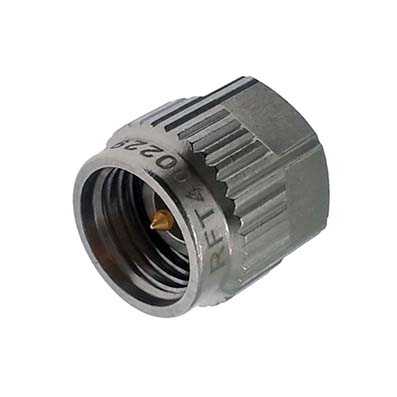

RFT40022922 |
2 W | 40 GHz | 2.92mm | Male | 1.15 | Round | 8.4(L)*9(φ) | Add to RFQ |

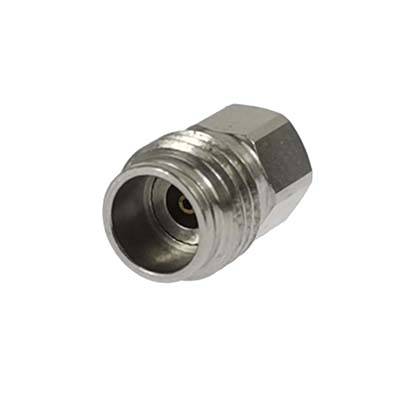

| RFT40022921 | 2 W | 40 GHz | 2.92mm | Female | 1.15 | Round | 9.4(L)*6.4(φ) | Add to RFQ |
|

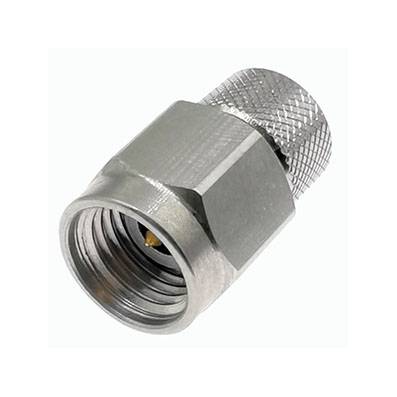

RFT40022922A |
2 W | 40 GHz | 2.92mm | Male | 1.2 | Round | 12.8(L)*7(φ) | Add to RFQ |

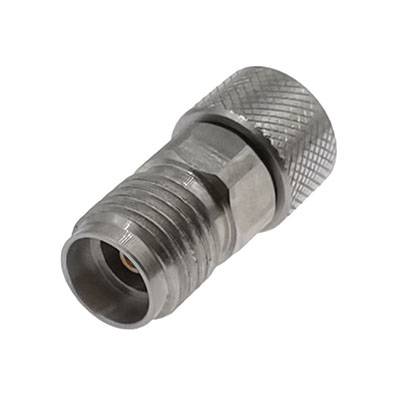

| RFT40022921A | 2 W | 40 GHz | 2.92mm | Female | 1.2 | Round | 12.7(L)*7(φ) | Add to RFQ |

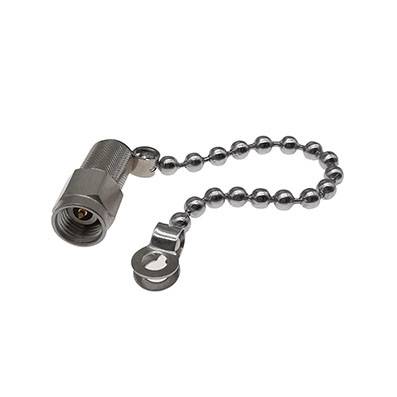

| RFT40022922C | 2 W | 40 GHz | 2.92mm | Male | 1.2 | With Chain | 16.8(L)*7(φ) | Add to RFQ |

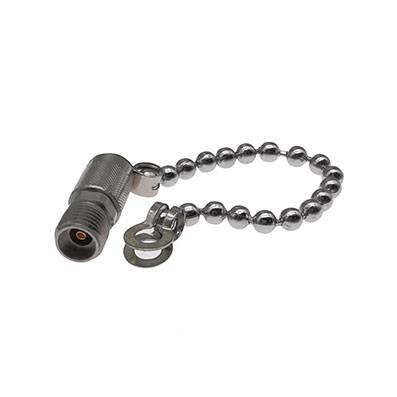

| RFT40022921C | 2 W | 40 GHz | 2.92mm | Female | 1.2 | With Chain | 17.7(L)*7(φ) | Add to RFQ |

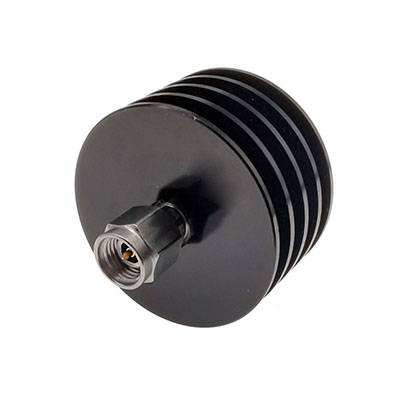

| RFT40052922A | 5 W | 40 GHz | 2.92mm | Male | 1.25 | Round | 17.8(L)*31.8(φ) | Add to RFQ |

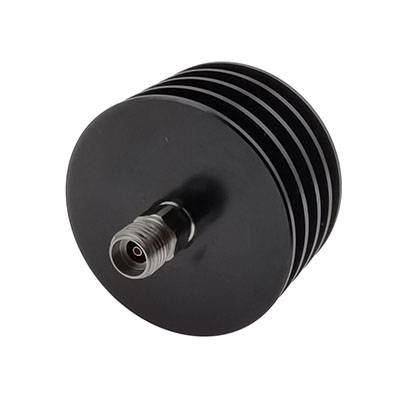

| RFT40052921A | 5 W | 40 GHz | 2.92mm | Female | 1.25 | Round | 17.8(L)*31.8(φ) | Add to RFQ |

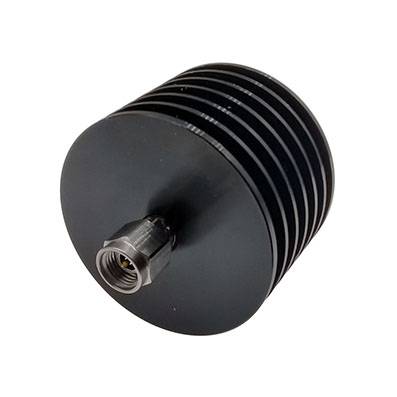

| RFT40102922A | 10 W | 40 GHz | 2.92mm | Male | 1.3 | Round | 25.8(L)*38(φ) | Add to RFQ |

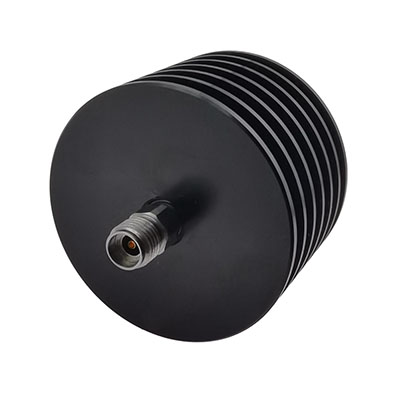

| RFT40102921A | 10 W | 40 GHz | 2.92mm | Female | 1.3 | Round | 25.8(L)*38(φ) | Add to RFQ |

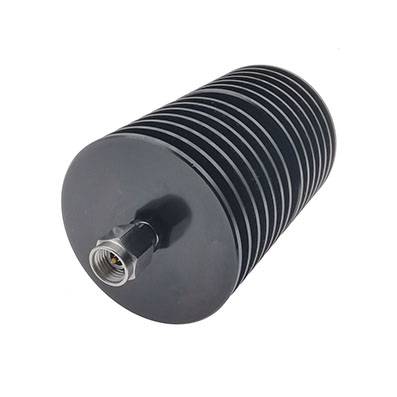

| RFT40202922A | 20 W | 40 GHz | 2.92mm | Male | 1.35 | Round | 57(L)*38(φ) | Add to RFQ |

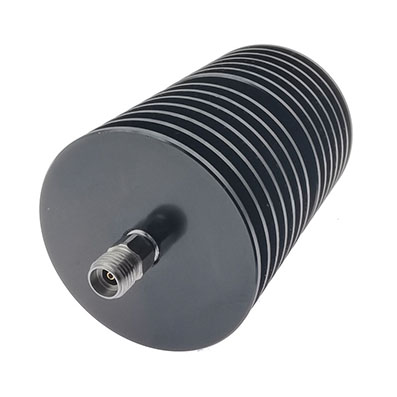

| RFT40202921A | 20 W | 40 GHz | 2.92mm | Female | 1.35 | Round | 57(L)*38(φ) | Add to RFQ |
| RFT40302922 | 30 W | 40 GHz | 2.92mm | Male | 1.3 | Round | 46.1(L)*34.8(φ) | Add to RFQ |
| RFT40302921 | 30 W | 40 GHz | 2.92mm | Female | 1.3 | Round | 46.1(L)*34.8(φ) | Add to RFQ |

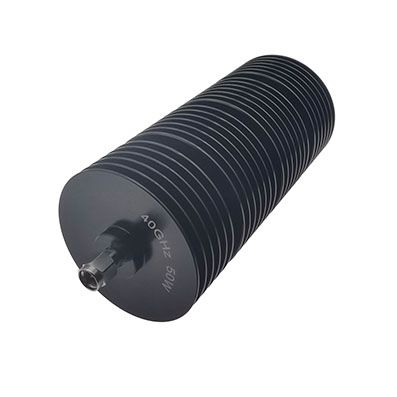

| RFT40502922A | 50 W | 40 GHz | 2.92mm | Male | 1.35 | Round | 114(L)*54(φ) | Add to RFQ |

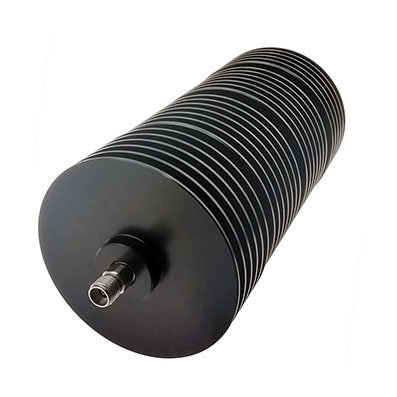

| RFT40502921A | 50 W | 40 GHz | 2.92mm | Female | 1.35 | Round | 114(L)*54(φ) | Add to RFQ |

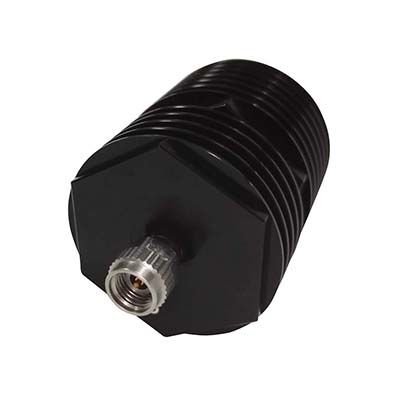

| RFT301002922 | 100 W | 30 GHz | 2.92mm | Male | 1.3 | Round | 99(L)*49.8(φ) | Add to RFQ |

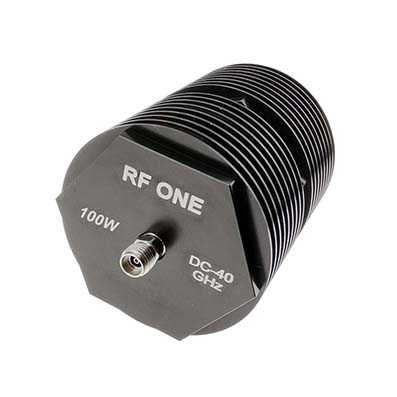

| RFT301002921 | 100 W | 30 GHz | 2.92mm | Female | 1.3 | Round | 99(L)*49.8(φ) | Add to RFQ |

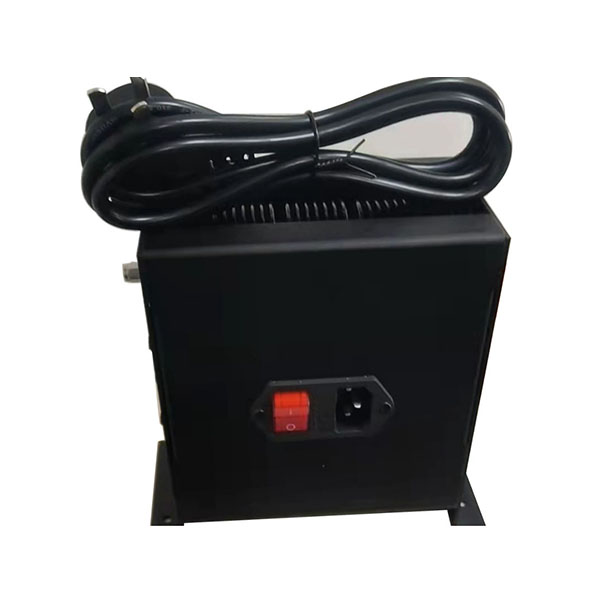

| RFT401002922A | 100 W | 40 GHz | 2.92mm | Male | 1.4 | Rectangular | Fan cooled | Add to RFQ |
