P/N | Connection Type | Frequency Max | Connector 1 | Connector 2 | Body Style | VSWR Max | Add to RFQ |
---|---|---|---|---|---|---|---|

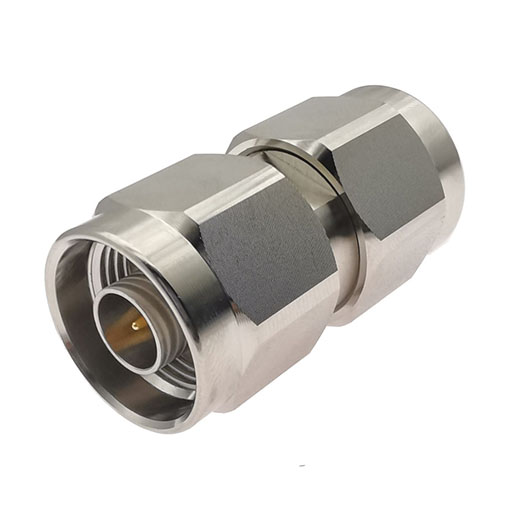

NM-NM | In Series | 18 GHz | N Male | N Male | Straight | 1.2 | Add to RFQ |
NF-NM | In Series | 18 GHz | N Female | N Male | Straight | 1.2 | Add to RFQ |
NF-NF | In Series | 18 GHz | N Female | N Female | Straight | 1.2 | Add to RFQ |
NF-NF-F | In Series | 18 GHz | N Female | N Female | 4 Hole Flange | 1.2 | Add to RFQ |
NM-SMAM | Between Series | 18 GHz | N Male | SMA Male | Straight | 1.2 | Add to RFQ |
NM-SMAF | Between Series | 18 GHz | N Male | SMA Female | Straight | 1.2 | Add to RFQ |
NF-SMAF | Between Series | 18 GHz | N Female | SMA Female | Straight | 1.2 | Add to RFQ |
NF-SMAM | Between Series | 18 GHz | N Female | SMA Male | Straight | 1.2 | Add to RFQ |
NF-SMAF-F | Between Series | 18 GHz | N Female | SMA Female | 4 Hole Flange | 1.2 | Add to RFQ |
NF-SMAM-F | Between Series | 18 GHz | N Female | SMA Male | 4 Hole Flange | 1.2 | Add to RFQ |
SMAM-SMAM | In Series | 18 GHz | SMA Male | SMA Male | Straight | 1.15 | Add to RFQ |
SMAF-SMAM | In Series | 18 GHz | SMA Female | SMA Male | Straight | 1.15 | Add to RFQ |
SMAF-SMAF | In Series | 18 GHz | SMA Female | SMA Female | Straight | 1.15 | Add to RFQ |
SMAF-SMAM-F | In Series | 18 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ |
SMAF-SMAF-F | In Series | 18 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ |
SMAF-SMAF-FA | In Series | 18 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ |
SMAF-SMAF-FB | In Series | 18 GHz | SMA Female | SMA Female | 4 Hole Flange | 1.15 | Add to RFQ |
SMAF-SMAF-Y | In Series | 18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ |
SMAF-SMAF-YA | In Series | 18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ |
SMAF-SMAF-YB | In Series | 18 GHz | SMA Female | SMA Female | Bulkhead | 1.15 | Add to RFQ |
SMAM-SMAM-R | In Series | 18 GHz | SMA Male | SMA Male | Right Angle | 1.25 | Add to RFQ |
SMAF-SMAM-R | In Series | 18 GHz | SMA Female | SMA Male | Right Angle | 1.25 | Add to RFQ |
SMAF-SMAF-R | In Series | 18 GHz | SMA Female | SMA Female | Right Angle | 1.25 | Add to RFQ |
