RF torque wrenches are used to consistently and accurately tighten connectors. Proper mating is essential for optimal RF performance. RF ONE offers a broad range of preset torque wrenches in either click type or break-over type, designed for connectors of 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMA, Nex 10, 2.2-5, TNC, N type, 4.3-10, 4.1-9.5, DIN 7/16 etc.
Features:
Notes:
1. Torque values for stainless steel and brass connector nut are different.
2. Click type torque wrench uses a ball detent and spring style clutch mechanism. Break over torque wrench will break over once the preset torque value is reached, removing the chance of over torquing.
3. As N type connector has different standards in nut size, we list head opening sizes for 19mm, 20mm, 21mm.
| P/N | Wrench Type | For Connector | Torque Value | Hex Size | Add to RFQ |
|---|---|---|---|---|---|

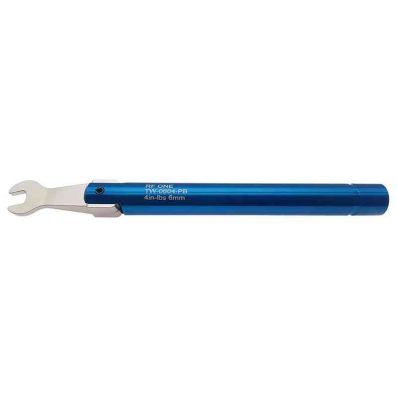

| TW-0604-PB | Breakover | 1.0mm | 4 in-lbs (0.45 N·m) | 15/64 inch (6 mm) | Add to RFQ |

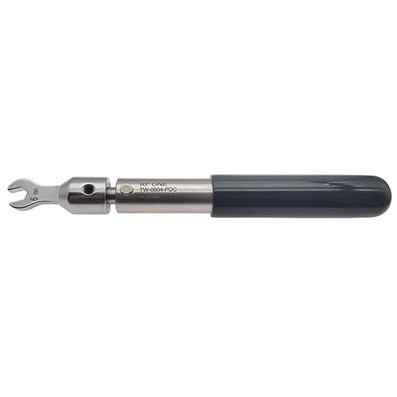

| TW-0604-PDC | Preset Click | 1.0mm | 4 in-lbs (0.45 N·m) | 15/64 inch (6 mm) | Add to RFQ |

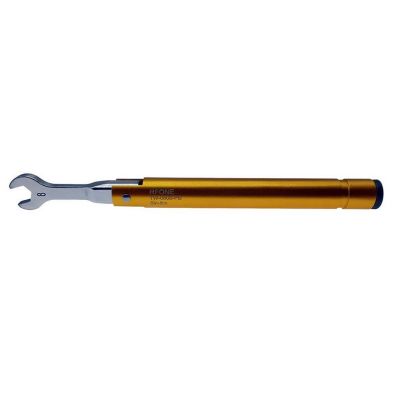

| TW-0808-PB | Breakover | 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMA | 8 in-lbs (0.9 N·m) | 5/16 inch (8 mm) | Add to RFQ |
| TW-0808-PDC | Preset Click | 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMA | 8 in-lbs (0.9 N·m) | 5/16 inch (8 mm) | Add to RFQ |

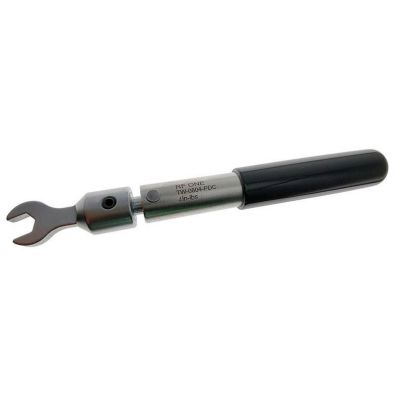

| TW-0804-PDC | Preset Click | Brass SMA | 4 in-lbs (0.45 N·m) | 5/16 inch (8 mm) | Add to RFQ |
| TW-1113-PDC | Preset Click | NEX10 | 13.3 in-lbs (1.5 N·m) | 7/16 inch (11 mm) | Add to RFQ |

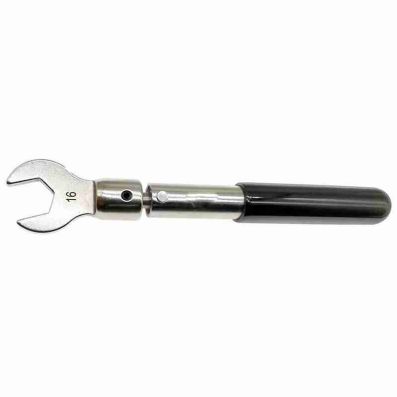

| TW-1626-PDC | Preset Click | 2.2-5 | 26.5 in-lbs (3 N·m) | 16 mm | Add to RFQ |
| TW-2289-PDC | Preset Click | 4.1/9.5 | 88.5 in-lbs (10 N·m) | 22 mm | Add to RFQ |

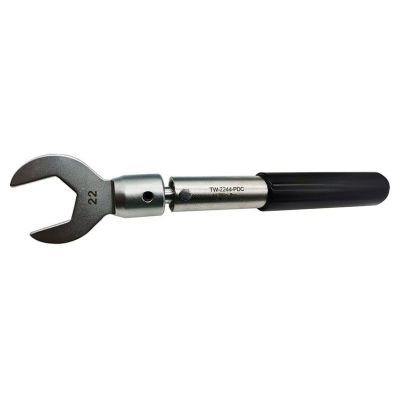

| TW-2244-PDC | Preset Click | 4.3-10 | 44.25 in-lbs (5 N·m) | 22 mm | Add to RFQ |

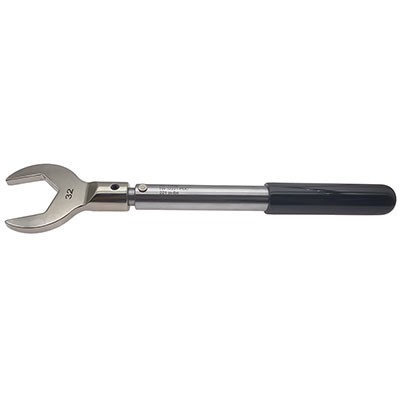

| TW-32221-PDC | Preset Click | 7/16 DIN | 221 in-lbs (25 N·m) | 32 mm | Add to RFQ |

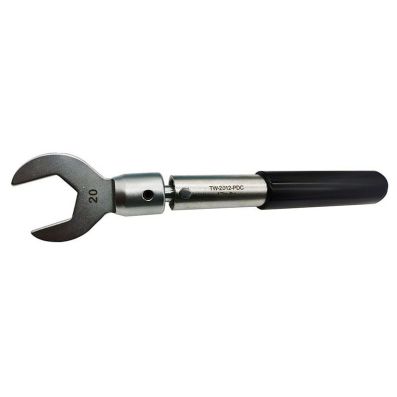

| TW-2012-PDC | Preset Click | N (20mm nut) | 12 in-lbs (1.36 N·m) | 20 mm | Add to RFQ |

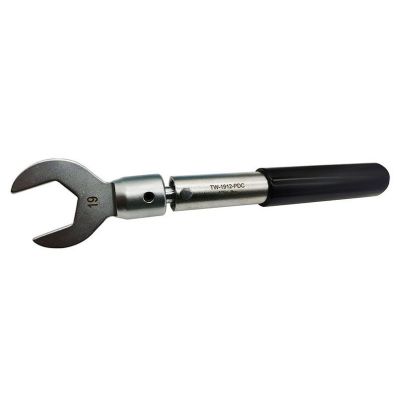

| TW-1912-PDC | Preset Click | N (19mm nut) | 12 in-lbs (1.36 N·m) | 3/4 inch (19 mm) | Add to RFQ |

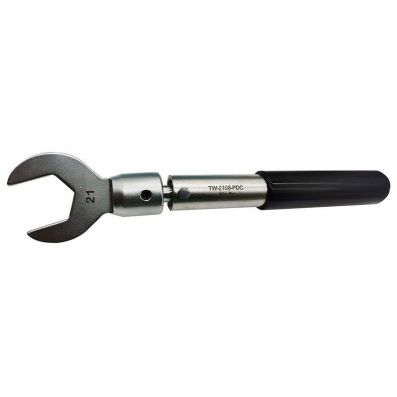

| TW-2108-PDC | Preset Click | N (21mm nut) | 8 in-lbs (0.9 N·m) | 21 mm | Add to RFQ |
| TW-2112-PDC | Preset Click | N (21mm nut) | 12 in-lbs (1.35 N·m) | 21 mm | Add to RFQ |

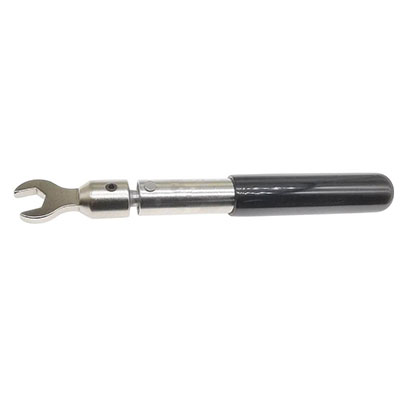

| TW-1508-PDC | Preset Click | TNC | 8 in-lbs (0.9 N·m) | 15 mm | Add to RFQ |
