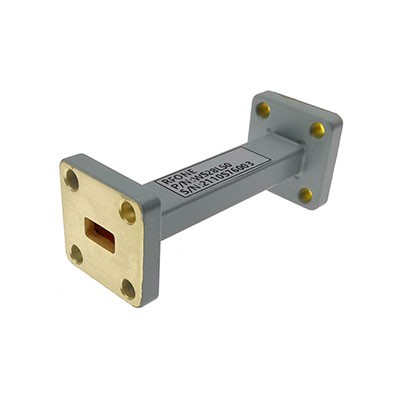

RF ONE offers a complete line of waveguide straight sections covering the waveguide sizes WR3 to WR1150. Our waveguide straight sections are in-house built for quality precision and specialized for customer-specific designs. We build these straight sections with precision and plate them for low insertion loss and high corrosion resistance. We have a wide range of custom options, please contact sales@rfone.cn to discuss specific requirements.
Features:
| P/N | Frequency Range | VSWR Max | Waveguide Size | Flange Type | Add to RFQ |
|---|---|---|---|---|---|
| WS1150-L | 0.64-0.98 GHz | 1.05 | WR1150 | UDR8 | Add to RFQ |
| WS975-L | 0.76-1.15 GHz | 1.05 | WR975 | UDR9 | Add to RFQ |
| WS770-L | 0.96-1.46 GHz | 1.05 | WR770 | UDR12 | Add to RFQ |
| WS650-L | 1.13-1.73 GHz | 1.05 | WR650 | UDR14 | Add to RFQ |
| WS510-L | 1.45-2.2 GHz | 1.05 | WR510 | UDR18 | Add to RFQ |
| WS430-L | 1.72-2.61 GHz | 1.05 | WR430 | UDR22 | Add to RFQ |
| WS340-L | 2.17-3.30 GHz | 1.05 | WR340 | UDR26 | Add to RFQ |
| WS284-L | 2.60-3.95 GHz | 1.05 | WR284 | UDR32 | Add to RFQ |
| WS229-L | 3.22-4.90 GHz | 1.05 | WR229 | UDR40 | Add to RFQ |
| WS187-L | 3.94-5.99 GHz | 1.05 | WR187 | UDR48 | Add to RFQ |
| WS159-L | 4.64-7.05 GHz | 1.05 | WR159 | UDR58 | Add to RFQ |
| WS137-L | 5.38-8.17 GHz | 1.05 | WR137 | UDR70 | Add to RFQ |
| WS112-L | 6.57-9.99 GHz | 1.05 | WR112 | UBR84 | Add to RFQ |
| WS90-L | 8.20-12.5 GHz | 1.05 | WR90 | UBR100 | Add to RFQ |
| WS75-L | 9.84-15.0 GHz | 1.05 | WR75 | UBR120 | Add to RFQ |
| WS62-L | 11.9-18.0 GHz | 1.05 | WR62 | UBR140 | Add to RFQ |
| WS51-L | 14.5-22.0 GHz | 1.05 | WR51 | UBR180 | Add to RFQ |
| WS51A-L | 14.5-22.0 GHz | 1.05 | WR51 | MIL3922/70 | Add to RFQ |
| WS42-L | 17.6-26.7 GHz | 1.05 | WR42 | UBR220 | Add to RFQ |
| WS34-L | 21.7-33.0 GHz | 1.05 | WR34 | UBR260 | Add to RFQ |
| WS34A-L | 21.7-33.0 GHz | 1.05 | WR34 | UG-1530/U | Add to RFQ |
| WS28-L | 26.3-40.0 GHz | 1.05 | WR28 | UBR320 | Add to RFQ |
| WS22-L | 32.9-50.1 GHz | 1.1 | WR22 | UG-383/U | Add to RFQ |
| WS19-L | 39.2-59.6 GHz | 1.1 | WR19 | UG-383/U Mod | Add to RFQ |
| WS15-L | 49.8-75.8 GHz | 1.1 | WR15 | UG-385/U | Add to RFQ |
| WS12-L | 60.5-91.9 GHz | 1.15 | WR12 | UG-387/U | Add to RFQ |
| WS10-L | 73.8-112 GHz | 1.15 | WR10 | UG-387/U Mod | Add to RFQ |
| WS8-L | 92.2-140 GHz | 1.15 | WR8 | UG-387/U Mod | Add to RFQ |
| WS6-L | 113-173 GHz | 1.15 | WR7 | UG-387/U Mod | Add to RFQ |
| WS5-L | 145-220 GHz | 1.2 | WR5 | UG-387/U Mod | Add to RFQ |
| WS4-L | 172-261 GHz | 1.2 | WR4 | UG-387/U Mod | Add to RFQ |
| WS3-L | 217-330 GHz | 1.2 | WR3 | UG-387/U Mod | Add to RFQ |
