RF ONE’s BNC attenuators combine the convenience of bayonet-style coupling with precision signal control. Available in a wide selection of attenuation values (1-60 dB) and power ratings (2W to 100W and higher power rates available), our BNC series provides the flexibility required for broadcast, telecom, and laboratory applications.
| P/N | Average Power | Frequency Max | VSWR Max | Attenuations | Shape | Direction | Dimensions (mm) | Add to RFQ |
|---|---|---|---|---|---|---|---|---|
| RFHB04XXBC2 | 2 W | 4 GHz | 1.2 | 1-60 dB | Round | Bidirectional | 35(L)*14.5(φ) | Add to RFQ |

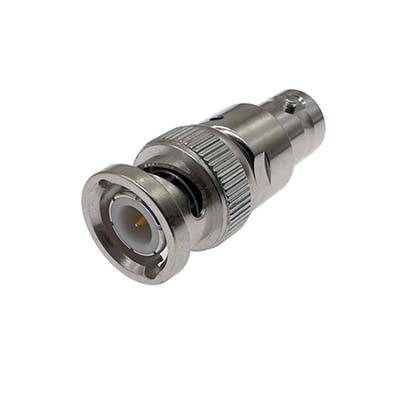

| RFHB06XXBC2 | 2 W | 6 GHz | 1.25 | 1-60 dB | Round | Bidirectional | 35(L)*14.5(φ) | Add to RFQ |
| RFHB04XXBC5 | 5 W | 4 GHz | 1.2 | 1-30 dB | Round | Bidirectional | 8(L)*29(φ) | Add to RFQ |
| RFHB06XXBC5 | 5 W | 6 GHz | 1.25 | 1-30 dB | Round | Bidirectional | 8(L)*29(φ) | Add to RFQ |
| RFHB03XXBC25 | 25 W | 3 GHz | 1.25 | 1-50 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |
| RFHB06XXBC25 | 25 W | 6 GHz | 1.25 | 1-50 dB | Round | Bidirectional | 54(L)*44(φ) | Add to RFQ |

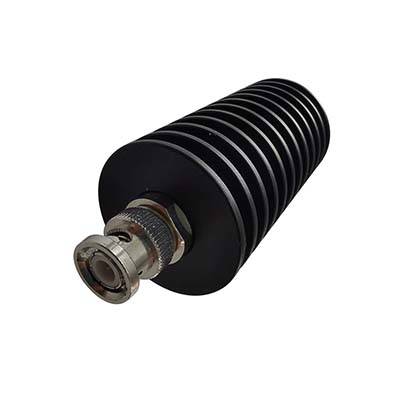

| RFH04XXBD50 | 50 W | 4 GHz | 1.2 | 1-50 dB | Round | Unidirectional | 70(L)*64(φ) | Add to RFQ |

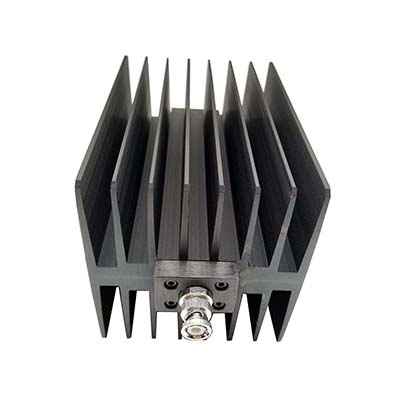

| RFH04XXBD50-D | 50 W | 4 GHz | 1.2 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |
| RFH06XXBD50-D | 50 W | 6 GHz | 1.25 | 1-50 dB | Rectangular | Unidirectional | 70*110*120 | Add to RFQ |

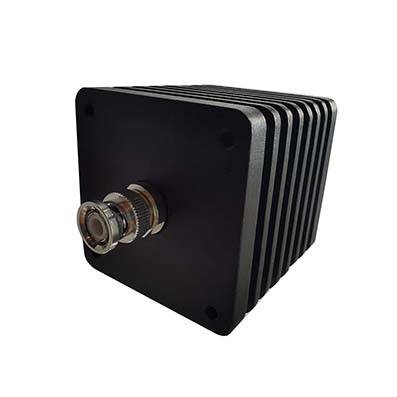

| RFH04XXBD50-S | 50 W | 4 GHz | 1.2 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFH06XXBD50-S | 50 W | 6 GHz | 1.25 | 1-50 dB | Square | Unidirectional | 70*64*64 | Add to RFQ |
| RFHB04XXBC100-D | 100 W | 4 GHz | 1.2 | 6-60 dB | Rectangular | Bidirectional | 152*110*120 | Add to RFQ |

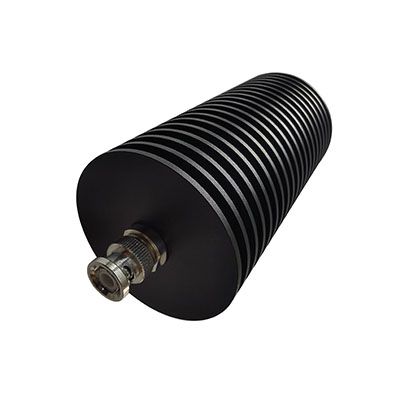

| RFH04XXBD100 | 100 W | 4 GHz | 1.2 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH06XXBD100 | 100 W | 6 GHz | 1.25 | 6-60 dB | Round | Unidirectional | 121(L)*64(φ) | Add to RFQ |
| RFH04XXBD100-D | 100 W | 4 GHz | 1.2 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH06XXBD100-D | 100 W | 6 GHz | 1.25 | 6-60 dB | Rectangular | Unidirectional | 101*110*120 | Add to RFQ |
| RFH04XXBD100-S | 100 W | 4 GHz | 1.2 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
| RFH06XXBD100-S | 100 W | 6 GHz | 1.25 | 6-60 dB | Square | Unidirectional | 105*64*64 | Add to RFQ |
