Flexible Cables Replacing Semi-flexible SP Series
Result: 3

SP series from RF ONE are low cost flexible cables as replacement for semi-flexible cables. Size for size, they offer lower insertion loss and better flexibility than the hand-formable cables. Available in 047, 086 and 141 sizes, they are ideal for high density interconnection use. Bulk cables are offered as well, allowing greater flexibility for end user in connector terminations.

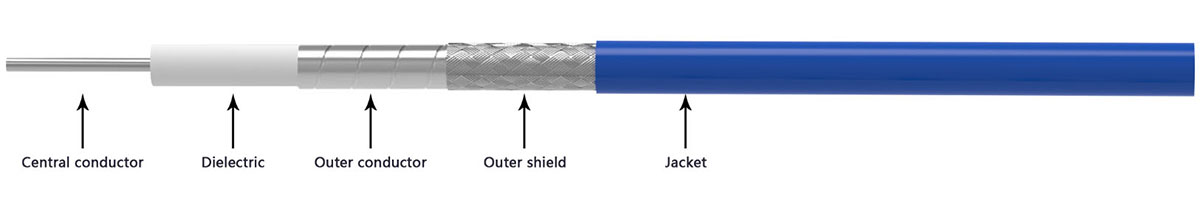

cable struction of RF ONE SP series


Features:

  • Superior flexible cable alternative to semi-flexible cables
  • Up to 67 GHz, available in 047, 086 and 141 sizes
  • Highly competitive pricing, from stock
  • Each cable delivered with test plot


➤ Please check our Cable Cross Reference Table VS other major cable vendors.

Show 20
Show 20
Show 40
Show 60
Show 80
 1
P/N Frequency Max Outer Diameter Static Bend Radius Loss at Max Freq Power at Max Freq Add to RFQ

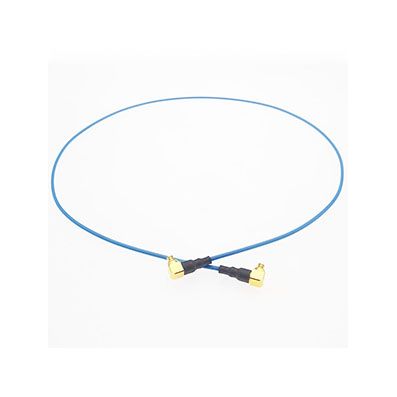

SP160 67 GHz 1.6 mm 6 mm 11.9 dB/m 4 W Add to RFQ
Hot

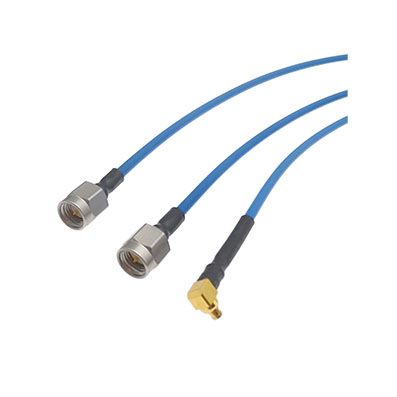

SP280
40 GHz 2.8 mm 14 mm 4.4 dB/m 16 W Add to RFQ

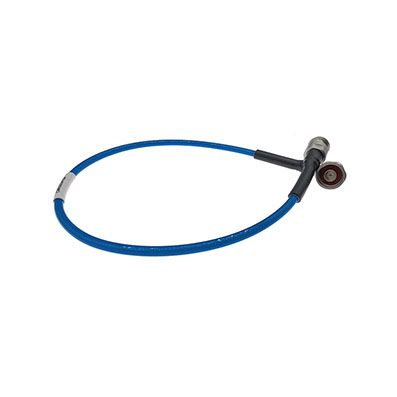

SP400 26.5 GHz 4.0 mm 20 mm 2.8 dB/m 36 W Add to RFQ
