RF ONE offers different types of band stop filters, including lumped element, cavity, ceramic, waveguide and suspended substrate band stop filters, we match the optimum topology to your requirements. Our expertise is derived from the many years of design experience, knowledge, and emphasis on customer requirements.
| P/N | Reject Frequency | Rejection Min | Passband Frequency | Insertion Loss Max | Return loss Min | Power Input Max | Connector | Add to RFQ |
|---|---|---|---|---|---|---|---|---|
| BSF-155MS1 | 135-175 MHz | 40 dB | DC-100, 212-1000 MHz | 3 dB | 8 dB | 50 W | SMA | Add to RFQ |
| BSF-375MS1 | 250-500 MHz | 50 dB | DC-160, 590-850 MHz | 3 dB | 10 dB | 40 W | SMA | Add to RFQ |
| BSF-435MS1 | 400-470 MHz | 40 dB | DC-350, 520-2500 MHz | 3 dB | 8 dB | 50 W | SMA | Add to RFQ |
| BSF-750MS1 | 500-1000 MHz | 50 dB | DC-380, 1120-1400 MHz | 3 dB | 10 dB | 40 W | SMA | Add to RFQ |
| BSF-778MN1 | 773-783 MHz | 40 dB | DC-758, 798-4000 MHz | 3 dB | 10 dB | 100 W | N | Add to RFQ |
| BSF-786MS1 | 770-803 MHz | 40 dB | DC-760, 813-3500 MHz | 3 dB | 10 dB | 40 W | SMA | Add to RFQ |
| BSF-793MS1B | 783-803 MHz | 60 dB | DC-748, 838-4000 MHz | 1 dB | 10 dB | 40 W | SMA | Add to RFQ |
| BSF-836MS1 | 824-849 MHz | 40 dB | DC-814, 859-3500 MHz | 3 dB | 10 dB | 40 W | SMA | Add to RFQ |
| BSF-877MS1 | 860-894 MHz | 40 dB | DC-850, 904-3500 MHz | 3 dB | 10 dB | 40 W | SMA | Add to RFQ |
| BSF-912MS1 | 864-960 MHz | 40 dB | DC-834, 990-3000 MHz | 3.5 dB | 5 dB | 40 W | SMA | Add to RFQ |
| BSF-920MS1 | 917-923.5 MHz | 40 dB | DC-902, 938.5-5000 MHz | 3 dB | 10 dB | 20 W | SMA | Add to RFQ |

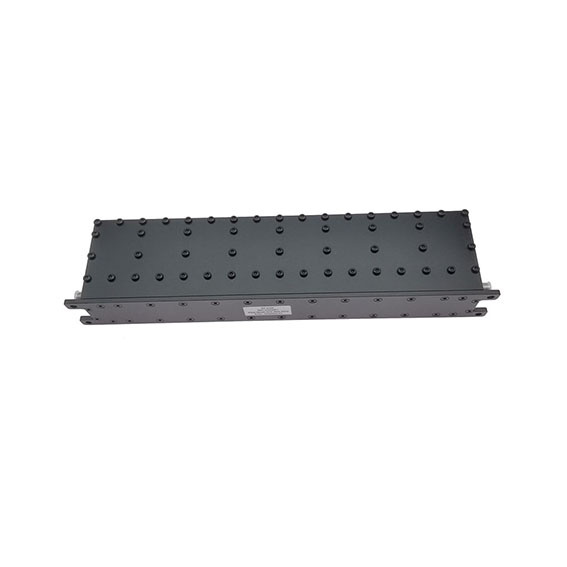

| BSF-942MS1 | 925-960 MHz | 40 dB | DC-915, 975-3500 MHz | 3 dB | 10 dB | 40 W | SMA | Add to RFQ |
| BSF-943MS1 | 940-946.3 MHz | 40 dB | DC-925, 961.3-5000 MHz | 3 dB | 10 dB | 20 W | SMA | Add to RFQ |
| BSF-955MS1 | 943.3-960 MHz | 40 dB | DC-933, 976-3000 MHz | 2.5 dB | 10 dB | 40 W | SMA | Add to RFQ |
| BSF-1765MS1 | 1750-1780 MHz | 40 dB | DC-1740, 1790-4000 MHz | 3 dB | 10 dB | 40 W | SMA | Add to RFQ |
| BSF-2595MS1 | 2585-2605 MHz | 50 dB | DC-2570, 2620-6000 MHz | 1.3 dB | 10 dB | 40 W | SMA | Add to RFQ |
| BSF-3560MS1 | 3420-3700 MHz | 50 dB | DC-3385.8, 3734.2-11500 MHz | 3 dB | 10 dB | 60 W | SMA | Add to RFQ |
| BSF-3700MS1 | 3600-3800 MHz | 55 dB | DC-3420, 3900-8500 MHz | 2.5 dB | 8 dB | 20 W | SMA | Add to RFQ |
| BSF-5220MS1 | 5170-5270 MHz | 50 dB | DC-5150, 5290-6750 MHz | 2.2 dB | 10 dB | 20 W | SMA | Add to RFQ |
