High flex life economy test cables are designed to maximize the repeatability of your test set-ups for results that remain consistent over hundreds of test cycles. Durability and excellent frequency performance is designed into every product on this line with the added bonus of being made with very phase stable materials.
Features:
| P/N | Frequency Range | VSWR Max | IL Max (1 meter) | Connector 1 | Connector 2 | Add to RFQ |
|---|---|---|---|---|---|---|
|

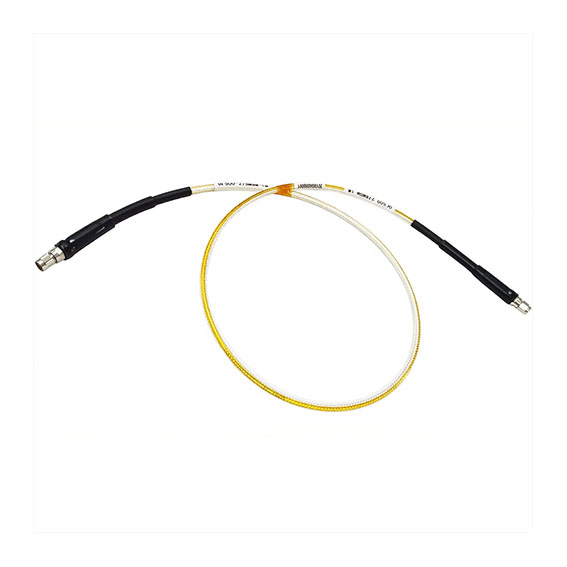

DF480-SMAMSMAM-L |
DC-26.5 GHz | 1.3 | 2.5 dB | SMA Male | SMA Male | Add to RFQ |
|

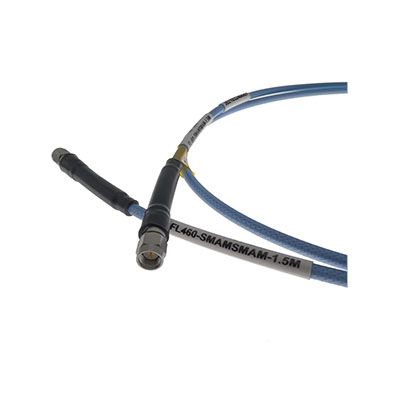

FL460-SMAMSMAM-L |
DC-18 GHz | 1.25 | 1.9 dB | SMA Male | SMA Male | Add to RFQ |

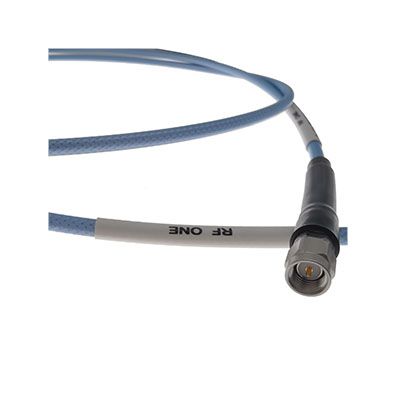

| FL520-SMAMSMAM-L | DC-18 GHz | 1.25 | 1.7 dB | SMA Male | SMA Male | Add to RFQ |
| FL520-NMNM-L | DC-18 GHz | 1.3 | 1.7 dB | N Male | N Male | Add to RFQ |

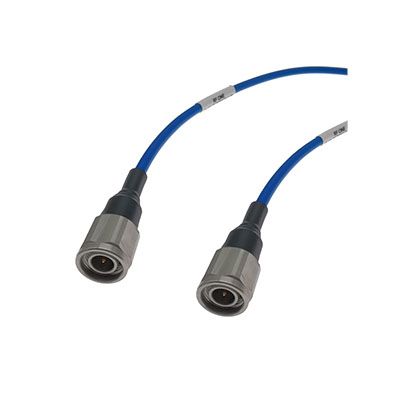

| FL620-TNCMTNCM-L | DC-18 GHz | 1.35 | 1.5 dB | TNC Male | TNC Male | Add to RFQ |
