Resistive power dividers offer distinct advantages, including compactness and true broadband operation from DC to high frequencies. While they typically exhibit higher insertion loss and lower power handling compared to reactive designs, they remain indispensable for wideband test and measurement applications.
RF ONE provides a versatile selection of precision resistive power dividers engineered for ultra-broadband performance up to 67 GHz, including 1.85mm, 2.4mm, 2.92mm, and SMA, from 2-way to 8 way.
| P/N | No.of Ways | Frequency Range | Insertion Loss Max | Input VSWR Max | Amplitude Balance Max | Phase Balance Max | Input Power Max | Connector | Add to RFQ |
|---|---|---|---|---|---|---|---|---|---|

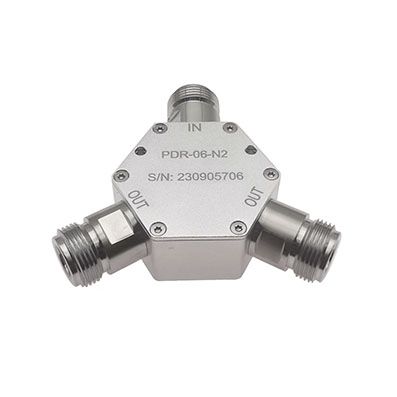

| PDR-06-N2 | 2 Way | DC-6 GHz | 1.0 dB | 1.2 | - | - | 1 W | N | Add to RFQ |
|
PDR-06-S2 |

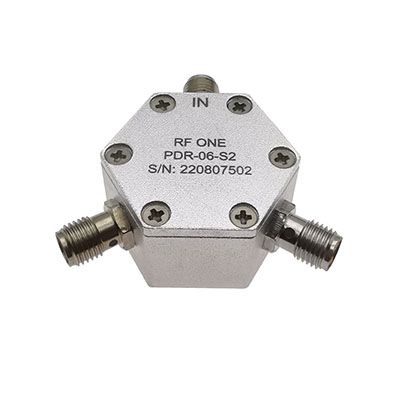

2 Way | DC-6 GHz | 0.6 dB | 1.2 | ±0.2 dB | ±3° | 1 W | SMA | Add to RFQ |
|
PDR-18-S2A |

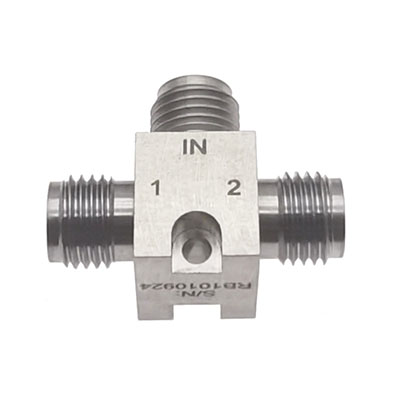

2 Way | DC-18 GHz | 0.5 dB | 1.2 | ±0.4 dB | ±4° | 5 W | SMA | Add to RFQ |

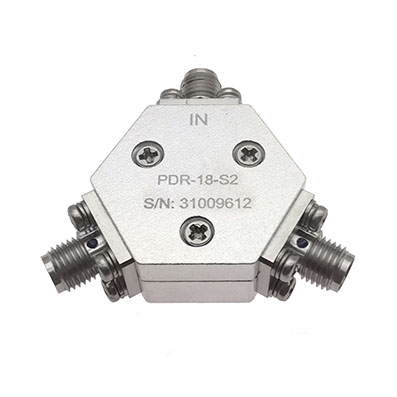

| PDR-18-S2 | 2 Way | DC-18 GHz | 1.5 dB | 1.6 | ±0.8 dB | ±8° | 0.5 W | SMA | Add to RFQ |

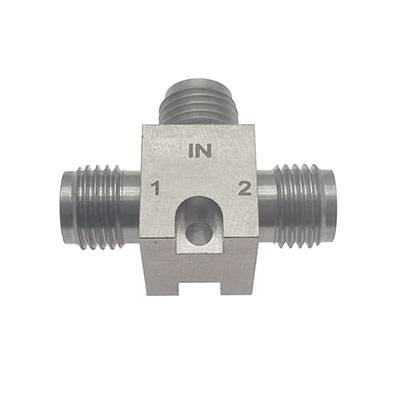

| PDR-34-352A | 2 Way | DC-34 GHz | 0.6 dB | 1.3 | ±0.6 dB | ±6° | 5 W | 3.5mm | Add to RFQ |
|

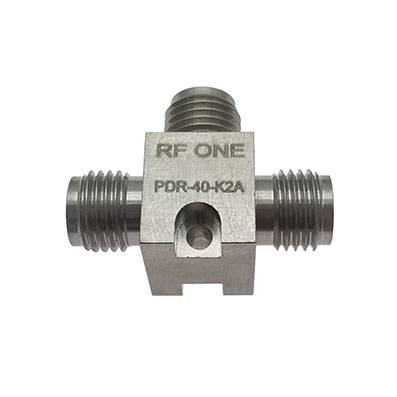

PDR-40-K2A |
2 Way | DC-40 GHz | 0.5 dB | 1.38 | ±0.7 dB | ±5° | 5 W | 2.92mm | Add to RFQ |
|
PDR-50-242 |
2 Way | DC-50 GHz | 2.0 dB | 1.6 | ±0.7 dB | ±7° | 1 W | 2.4mm | Add to RFQ |
|
PDR-67-V2 |

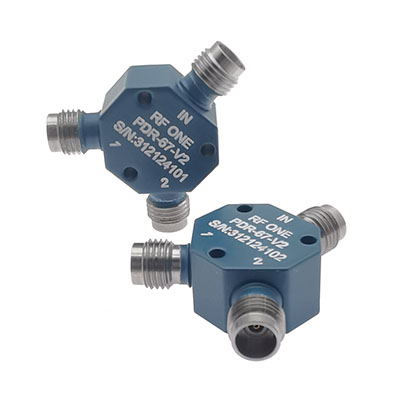

2 Way | DC-67 GHz | 2.5 dB | 1.8 | ±0.8 dB | ±8° | 1 W | 1.85mm | Add to RFQ |

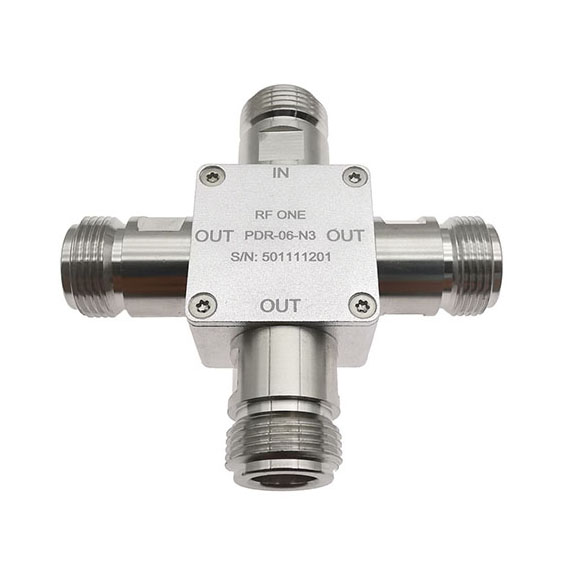

| PDR-06-N3 | 3 Way | DC-6 GHz | 1.2 dB | 1.2 | - | - | 1 W | N | Add to RFQ |

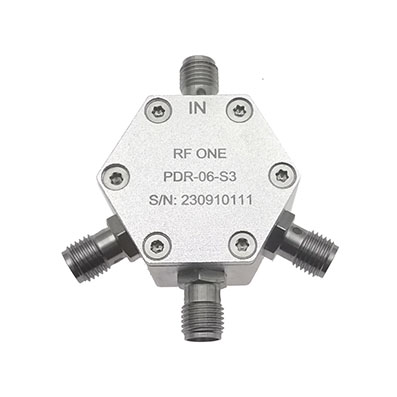

| PDR-06-S3 | 3 Way | DC-6 GHz | 0.8 dB | 1.2 | - | - | 1 W | SMA | Add to RFQ |

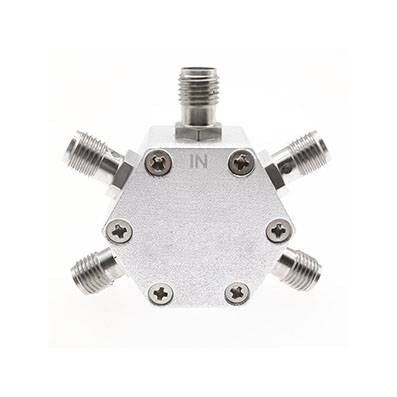

| PDR-06-S4 | 4 Way | DC-6 GHz | 1.2 dB | 1.25 | - | - | 1 W | SMA | Add to RFQ |
| PDR-06-S6 | 6 Way | DC-6 GHz | 1.5 dB | 1.2 | - | - | 1 W | SMA | Add to RFQ |

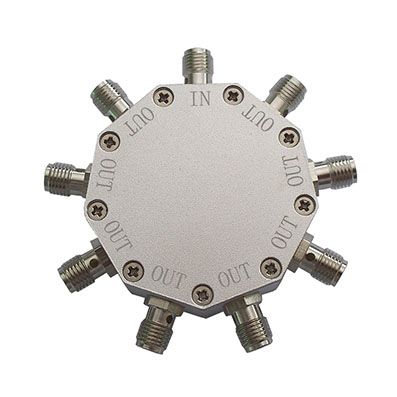

| PDR-06-S8 | 8 Way | DC-6 GHz | 2.0 dB | 1.3 | - | - | 1 W | SMA | Add to RFQ |

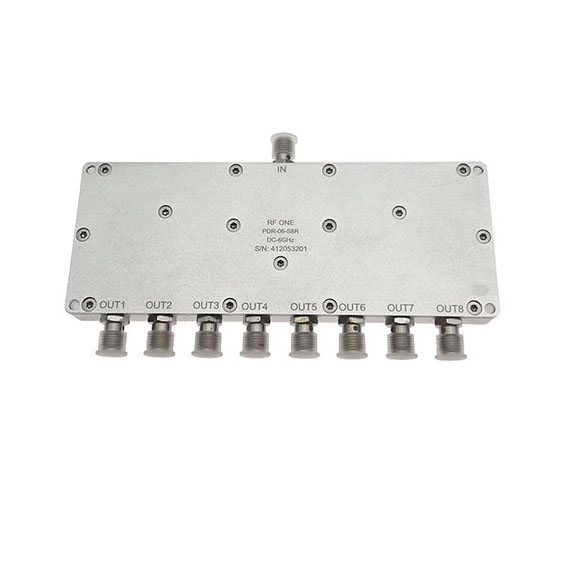

| PDR-06-S8R | 8 Way | DC-6 GHz | 1.5 dB | 1.2 | - | - | 1 W | SMA | Add to RFQ |
